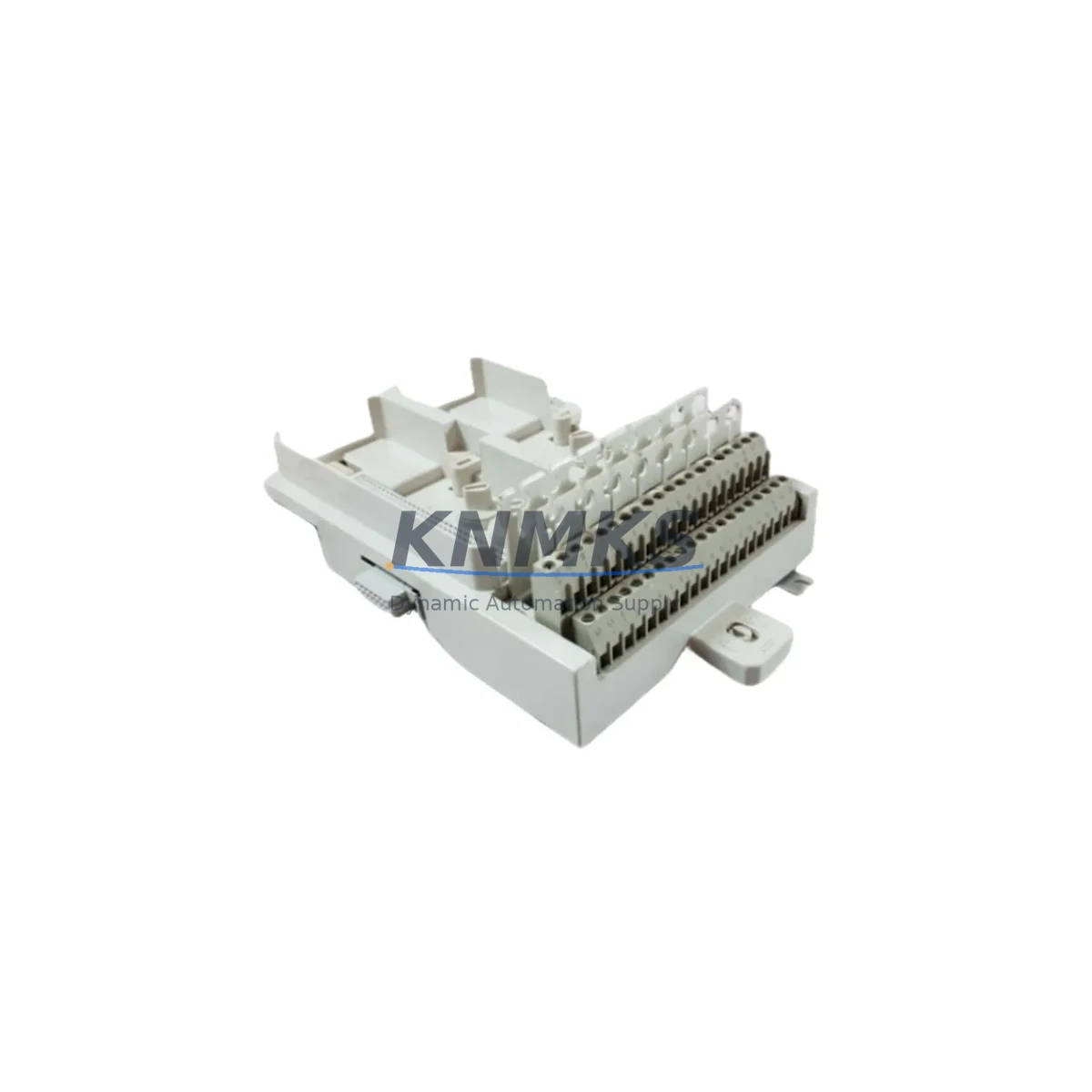

ABB TU844 3BSE021445R1 Fail-Safe Redundant I/O Term Unit

Overview

ABB TU844 3BSE021445R1 Fail-Safe Redundant I/O Term Unit: Fault Protection for Critical Industrial Control

The ABB TU844 3BSE021445R1 is a high-reliability Redundant Termination Unit designed for the ABB S800 I/O system — one of the most widely deployed distributed I/O platforms in safety-critical process automation. Engineered to sustain continuous operation in demanding industrial environments, the TU844 provides the physical and electrical interface layer that keeps redundant I/O modules connected, protected, and operational even under adverse field conditions including high electromagnetic interference, voltage transients, mechanical vibration, and elevated ambient temperatures.

In continuous production facilities — petrochemical plants, power generation stations, water treatment works, metallurgical smelters, and offshore platforms — an unplanned I/O termination failure can cascade into a full process shutdown. The TU844 eliminates this single point of failure by supporting hot-swap redundant module configurations, allowing maintenance teams to replace an AI810, AO810, or DI810 series I/O module without interrupting the live control loop. This capability is fundamental to achieving the high availability targets demanded by SIL-rated safety instrumented systems and IEC 61511-compliant process safety architectures.

Signal integrity is preserved through the TU844’s robust field wiring terminals, which maintain stable contact resistance across the full operating temperature range. In environments where signal drift or ground loop interference can cause spurious trips or missed alarms — such as variable-frequency drive motor control cabinets, high-current switchgear rooms, or outdoor junction boxes subject to thermal cycling — the TU844’s shielded terminal design and surge-tolerant construction provide a measurable reduction in nuisance faults. When paired with the ABB CI854 PROFIBUS DP Communication Interface or the CI801 AF100 Fieldbus Modem, the TU844 ensures that field signal quality is maintained from the sensor all the way to the controller backplane.

Within a fully redundant S800 control cabinet, the TU844 works in concert with the ABB SS822 Power Supply Supervisor and SD821 / SD822 Power Supply modules to maintain uninterrupted 24 VDC rail integrity. Power supply redundancy combined with I/O module redundancy at the TU844 level means that neither a single power rail failure nor a module fault will interrupt the control output to field actuators — a critical requirement in emergency shutdown (ESD) systems and burner management systems (BMS) where loss of output signal must be interpreted as a safe-state command.

For installations in mining, port crane control, or heavy manufacturing where vibration and cable pull forces are significant, the TU844’s robust DIN-rail mounting and captive terminal screws prevent the intermittent contact faults that are a leading cause of unexplained I/O errors in mobile or high-vibration plant. In dusty or humid environments — grain handling, cement production, pulp and paper mills — the sealed terminal block design resists contamination ingress that would otherwise degrade insulation resistance over time.

The TU844 is also a preferred replacement component in legacy S800 system upgrades. Where an existing ABB TU810 or TU830 Termination Unit has reached end of service life or suffered physical damage, the TU844 provides a compatible upgrade path that preserves existing field wiring while adding enhanced redundancy support. This makes it a cost-effective choice for brownfield modernization projects where rewiring is not feasible and process continuity is non-negotiable.

Every TU844 3BSE021445R1 unit supplied by KNMKS undergoes pre-shipment functional verification including terminal continuity testing, insulation resistance check, and visual inspection against ABB factory quality standards. Units are dispatched from in-stock inventory with full traceability documentation, supporting your site’s spare parts management and audit requirements.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A resilient S800-based control cabinet integrates multiple layers of protection that work together with the TU844 to eliminate single points of failure. The ABB SD822 Power Supply (3BSC610037R1) provides redundant 24 VDC power to the I/O bus, while the SS822 Power Supply Supervisor monitors both supply rails and triggers an alarm on any deviation — preventing silent power degradation from reaching field devices. The CI854A PROFIBUS DP Interface Module maintains communication between the S800 I/O cluster and the AC800M controller, and its redundant configuration ensures that a single communication path failure does not interrupt process data exchange.

For surge and transient protection at the cabinet entry point, ABB-compatible surge protective devices rated to IEC 61643-11 are recommended upstream of the TU844 field terminals — particularly in outdoor substations or sites with frequent lightning activity. Within the cabinet, the ABB TB820V2 ModuleBus Modem extends the optical ModuleBus to remote I/O clusters, maintaining signal isolation between high-voltage and low-voltage sections. Together, these components form a coordinated protection architecture where the TU844 serves as the reliable field-side anchor of the redundant I/O chain.

Critical Industrial Safety Applications

The TU844 3BSE021445R1 is deployed across a broad range of safety-critical and continuous-process industries. In petrochemical and refinery applications, it supports the redundant I/O infrastructure of emergency shutdown systems, where every field signal — from pressure transmitters, flame detectors, and valve position switches — must be reliably received and acted upon without interruption. In power generation plants, the TU844 underpins turbine control and boiler management I/O, where a missed analog signal can trigger an unplanned unit trip costing hundreds of thousands in lost generation.

In mining and mineral processing, the TU844 is used in conveyor interlock systems and crusher control panels where vibration, dust, and high motor starting currents create a hostile electrical environment. Its robust terminal design and redundant module support reduce the frequency of I/O-related maintenance interventions. In water and wastewater treatment facilities, the TU844 supports pump station automation and chemical dosing control, where continuous availability is mandated by environmental compliance requirements. Port and terminal automation systems — including ship-to-shore crane control and automated stacking crane (ASC) systems — rely on the TU844’s hot-swap capability to perform I/O maintenance during scheduled windows without halting cargo operations.

Safety and Quality FAQ

Q: Does the TU844 3BSE021445R1 come with a support terms?
A: Yes. Every unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. All units are pre-shipment tested for terminal continuity and insulation integrity before dispatch.

Q: Is the TU844 compatible with my existing S800 I/O modules?
A: The TU844 is designed for the ABB S800 I/O platform and is compatible with AI810, AO810, DI810, DO810, and related redundant module variants. If you are upgrading from a TU810 or TU830, the TU844 supports the same field wiring layout, minimizing rewiring effort during replacement.

Q: Can the TU844 be replaced without shutting down the process?
A: The TU844 supports hot-swap redundant I/O module configurations, meaning the I/O module seated on the termination unit can be replaced while the redundant partner module maintains the control loop. Full termination unit replacement should be performed during a planned maintenance window; consult your site safety procedures and ABB system documentation for guidance.

Q: What is the long-term supply availability for the TU844 3BSE021445R1?
A: KNMKS maintains in-stock inventory of the TU844 3BSE021445R1 to support both immediate replacement needs and planned spare parts programs. We supply globally with full export documentation. For long-term maintenance contracts or multi-unit spare parts agreements, contact our sales team directly.
