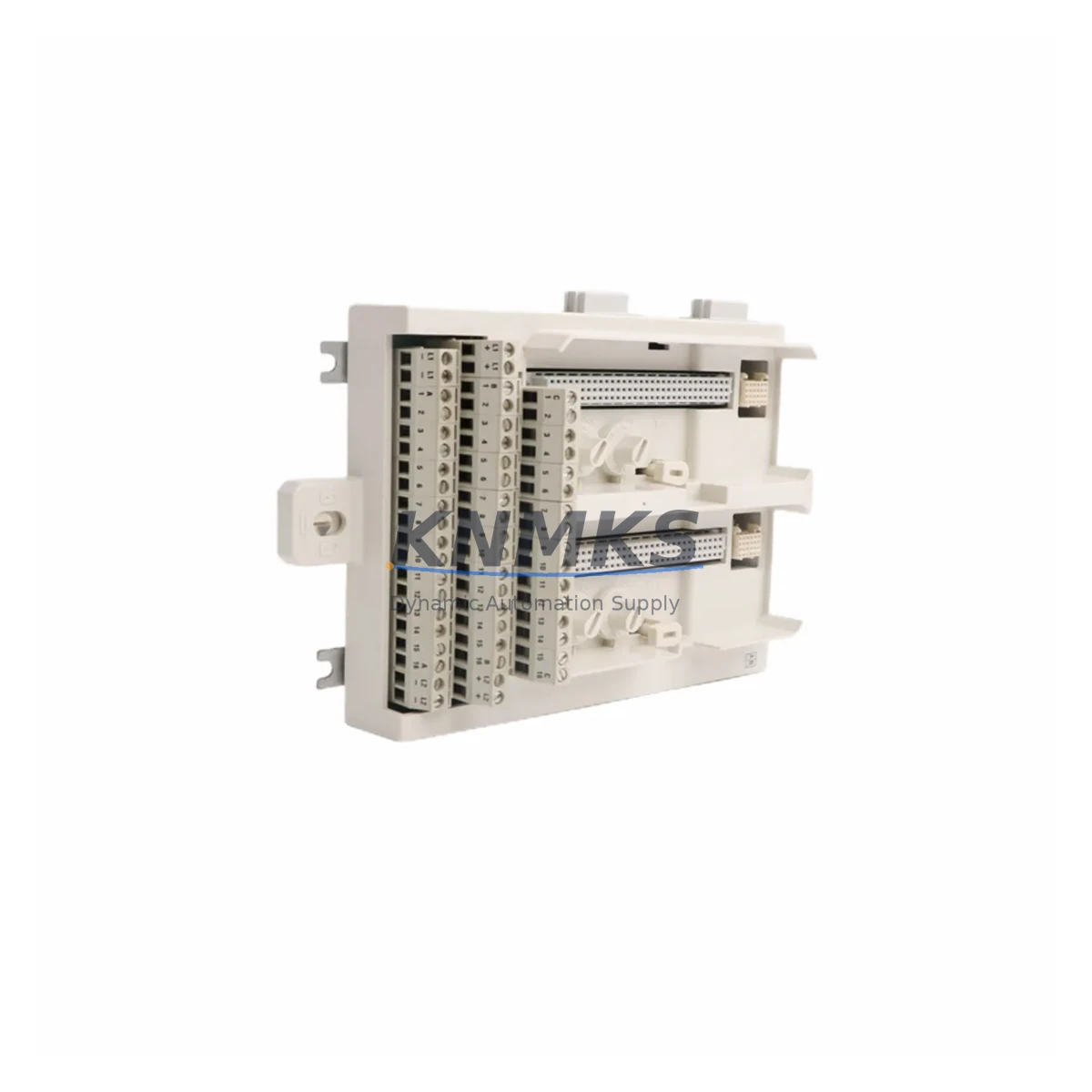

ABB TU842 3BSE020850R1 Maintenance-Proven S800 Spare

Overview

ABB TU842 3BSE020850R1 Maintenance-Proven S800 Spare: Reliable Termination Unit for Continuous Factory Uptime

The ABB TU842 (part number 3BSE020850R1) is an original S800 I/O Module Termination Unit engineered for demanding industrial automation environments. Designed to interface directly with ABB’s S800 I/O series modules, the TU842 provides a robust, field-proven termination platform for DCS and process control systems operating in continuous production facilities. Whether you are managing a scheduled annual overhaul, responding to an unplanned shutdown, or building a strategic spare parts inventory, the TU842 3BSE020850R1 is a critical component that maintenance and procurement engineers should keep on hand.

At KNMKS, every TU842 unit is sourced from verified supply channels, individually inspected, and tested prior to dispatch. We support long-term supply continuity for legacy and active ABB S800 installations, backed by a support terms confirmed by quotation and documented pre-shipment testing records.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The TU842 termination unit sits at the heart of the S800 I/O field wiring interface. When planning a replacement or conducting a control cabinet inspection, maintenance engineers should treat the TU842 as part of a broader system health check rather than an isolated swap. A thorough inspection should include the following associated components:

Begin with the S800 I/O modules themselves — AI810 analog input modules, AO810V2 analog output modules, DI810 digital input modules, and DO810 digital output modules are the most common modules mounted on TU842 termination units. Verify that module connectors are free of corrosion and that the module-to-termination unit locking mechanism is secure. Next, inspect the TB820V2 ModuleBus Modem or equivalent communication interface that links the S800 I/O cluster to the AC800M controller backplane — a degraded modem can cause intermittent I/O faults that are often misdiagnosed as termination unit failures.

Check the 24 VDC field power supply feeding the termination unit rail. Voltage sags or ripple on the field supply bus are a leading cause of spurious I/O alarms and can accelerate connector wear on the TU842. Inspect the associated fuse terminals and miniature circuit breakers in the marshalling cabinet — blown or weakened fuses protecting individual field loops are frequently discovered during TU842 replacement work. If the installation uses signal isolators or signal conditioners between field instruments and the S800 I/O, verify isolator output ranges and check for drift, particularly on aging 4–20 mA loops.

For systems with PROFIBUS DP or FOUNDATION Fieldbus segments connected through the S800 I/O cluster, inspect the fieldbus termination resistors and cable shielding continuity. Poor fieldbus termination is a common root cause of communication errors that surface after a termination unit replacement. Finally, review the AC800M controller module and its redundant power supply modules — if the TU842 is being replaced as part of a broader system fault, the controller and its CEX-Bus interface should be included in the diagnostic sweep.

Site Replacement Workflow

Replacing the ABB TU842 3BSE020850R1 on an active S800 I/O system requires careful sequencing to minimize downtime and avoid configuration loss. Follow this recommended workflow:

1. Pre-replacement verification: Confirm the replacement TU842 carries the correct part number (3BSE020850R1) and matches the existing termination unit’s wiring configuration. Cross-reference the as-built wiring diagram for the cabinet before disconnecting any field cables.

2. Safe isolation: Place the affected I/O module in forced or manual mode via the AC800M engineering workstation (ABB Control Builder) to prevent process upsets during the swap. De-energize the field wiring terminals using the appropriate isolation procedure for your site safety management system.

3. Field wiring transfer: Label and photograph all field wiring connections before removal. The TU842 uses screw-type or spring-clamp terminals depending on the variant — use the correct tool to avoid terminal damage. Transfer wiring systematically, verifying each channel against the loop drawing.

4. Module re-seating and system check: Re-seat the S800 I/O module onto the new TU842, confirm the locking tab is engaged, and restore field power. Verify channel-by-channel I/O status in the DCS operator station before returning the loop to automatic control.

5. Post-replacement documentation: Update the maintenance management system (CMMS) with the replacement date, part number, and any observations. Retain the removed TU842 for failure analysis if the replacement was fault-driven.

This workflow supports rapid recovery from unplanned shutdowns while maintaining system integrity and audit traceability — key requirements for ISO 55001-aligned asset management programs.

Spare Parts Support FAQ

Q1: Is the TU842 3BSE020850R1 compatible with all S800 I/O modules?
The TU842 is designed for use with the ABB S800 I/O module family. Compatibility depends on the specific I/O module type and wiring configuration. Common compatible modules include the AI810, AO810V2, DI810, and DO810. Always verify the module-to-termination unit pairing against the ABB S800 I/O hardware documentation (3BSE020924) before installation.

Q2: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment functional and visual inspection. Support requests are supported with replacement or repair, subject to failure analysis confirmation.

Q3: Can the TU842 replace older or discontinued termination unit variants in legacy S800 systems?
In many cases, yes. The TU842 3BSE020850R1 is a widely used standard termination unit within the S800 I/O family and is backward-compatible with earlier S800 installations. However, site-specific wiring configurations and module generations should be verified against the original engineering documentation before substitution in legacy systems.

Q4: How do you ensure long-term supply availability for the TU842?
KNMKS maintains strategic stock of high-demand ABB S800 spare parts, including the TU842 3BSE020850R1, to support customers with long-term maintenance contracts and annual overhaul schedules. For volume procurement or blanket purchase agreements, contact our sales team to discuss lead times, pricing, and supply continuity arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

TU842 3BSE020850R1
S800 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB TU842 3BSE020850R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
