ABB TU831V1 Fail-Safe Termination Module for Industrial Control

Overview

ABB TU831V1 Fail-Safe Termination Module for Industrial Control Reliability

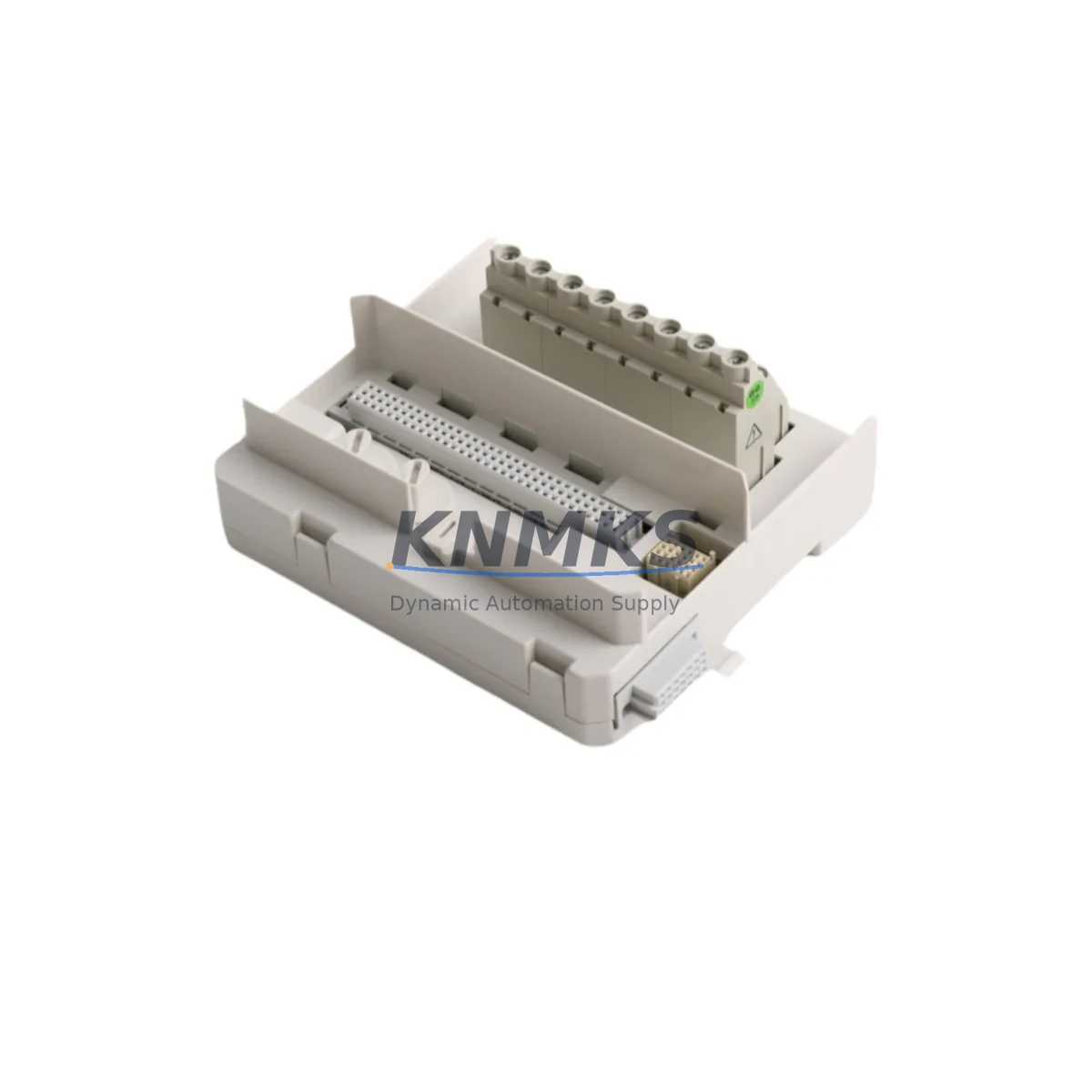

The ABB TU831V1 is a high-integrity termination module designed for the ABB S800 I/O series, engineered to deliver fail-safe signal routing and robust field wiring termination in the most demanding industrial control environments. Whether deployed in continuous process plants, critical interlock loops, or high-density control cabinets, the TU831V1 provides the structural backbone that keeps field signals clean, stable, and reliably connected to the control system — even under conditions of high electromagnetic interference, voltage surges, mechanical vibration, and extreme ambient temperatures.

In industrial automation, the termination layer is often the first point of failure when environmental stress accumulates. Loose field wiring, corroded terminal contacts, signal ground loops, and surge-induced transients can all propagate upstream into the DCS or safety controller, triggering nuisance trips, false alarms, or — in worst-case scenarios — undetected signal loss in a safety-critical loop. The TU831V1 addresses these risks through its robust mechanical design, gold-plated terminal contacts, and full compatibility with the ABB AI830A analog input module and the ABB AO820 analog output module, ensuring that every milliamp signal from the field arrives at the controller with full integrity.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet is a system — not a collection of individual components. The TU831V1 performs at its highest when integrated into a well-engineered I/O architecture. In high-density cabinets handling dozens of field loops simultaneously, the TU831V1 pairs directly with the ABB TB820V2 ModuleBus modem to maintain stable backplane communication between the I/O modules and the AC800M controller. Any degradation in this communication path — caused by EMI coupling, power rail noise, or loose backplane connectors — can result in I/O scan delays or module faults that cascade into process upsets.

On the power supply side, the ABB SD831 24 VDC power supply unit provides the regulated, low-ripple DC power that the S800 I/O rack demands. Pairing the TU831V1 with a properly sized SD831 eliminates the risk of brownout-induced module resets during motor starts or large inductive load switching events. For applications where power redundancy is mandatory — such as safety instrumented systems or emergency shutdown panels — a dual SD831 configuration with automatic changeover is the recommended architecture.

In field environments with high surge exposure, such as outdoor substations, pump stations, or conveyor drive panels, the ABB SACE Tmax XT series circuit breakers provide upstream overcurrent and short-circuit protection that prevents destructive fault currents from reaching the termination layer. Combined with the TU831V1’s own transient suppression capability, this layered protection strategy significantly reduces the risk of terminal damage or signal corruption during fault events.

For process plants requiring PROFIBUS DP or FOUNDATION Fieldbus communication, the ABB CI854B PROFIBUS DP interface module integrates directly into the S800 I/O architecture, allowing the TU831V1-terminated field devices to communicate with the AC800M controller over a deterministic, noise-immune fieldbus. This eliminates the analog signal chain entirely for compatible transmitters, further reducing the risk of signal drift and calibration errors in long-cable field installations.

Critical Industrial Safety Applications

The ABB TU831V1 is deployed across a wide range of safety-critical and continuous-process industries where control interruption carries significant operational, financial, or safety consequences.

In petrochemical and refinery environments, the TU831V1 terminates field signals from pressure transmitters, flow meters, and temperature sensors feeding into emergency shutdown (ESD) and burner management systems (BMS). Its resistance to hydrocarbon vapor atmospheres and its stable contact resistance under thermal cycling make it a preferred termination solution in these high-consequence applications.

In electric power generation and transmission facilities, the module supports the termination of protection relay I/O, transformer monitoring signals, and generator excitation control loops. The ability to maintain signal integrity under the intense electromagnetic fields generated by high-voltage switchgear is a critical requirement that the TU831V1 meets through its shielded terminal design.

In mining and mineral processing operations, where dust ingress, mechanical shock, and wide temperature swings are routine, the TU831V1’s robust mechanical construction and vibration-rated terminal contacts ensure that field wiring connections remain secure through the operational life of the equipment — reducing the frequency of unplanned maintenance interventions and the associated production losses.

In water and wastewater treatment plants, the module supports the termination of pump control, valve actuator, and level sensor signals in environments characterized by high humidity, chemical vapors, and frequent wash-down cycles. Its non-condensing humidity tolerance and corrosion-resistant terminal materials make it well-suited for these wet-process applications.

In metallurgical and steel production facilities, where furnace control, rolling mill automation, and ladle handling systems demand absolute signal reliability, the TU831V1 provides the termination integrity required to prevent false trips or missed alarms in high-temperature, high-vibration control environments.

Safety and Quality FAQ

Q1: What support terms coverage is provided with the ABB TU831V1?
Every TU831V1 unit supplied by KNMKS carries a full support terms confirmed by quotation covering manufacturing defects, contact failure, and functional performance. Support terms replacement is processed with priority dispatch to minimize any impact on your production schedule.

Q2: Is the TU831V1 tested before shipment?
Yes. All units undergo 100% pre-shipment functional verification, including terminal contact resistance measurement, mechanical integrity inspection, and compatibility confirmation against the ABB S800 I/O module specification. Only units that pass all test criteria are released for dispatch.

Q3: Is the TU831V1 compatible with all ABB S800 I/O modules?
The TU831V1 is designed for use with the ABB S800 I/O series and is compatible with analog input modules (AI830A), analog output modules (AO820), and digital I/O modules (DI810, DO810). Compatibility with specific module variants should be confirmed against the ABB S800 I/O hardware configuration guide for your system revision.

Q4: Can long-term supply continuity be guaranteed for the TU831V1?
KNMKS maintains forward buffer stock of the TU831V1 to support long-term maintenance and spare parts programs. For customers with planned maintenance schedules or multi-year supply agreements, we offer reserved stock allocation and priority fulfillment to ensure that critical spare parts are available when needed — without dependence on spot-market availability or extended OEM lead times.
