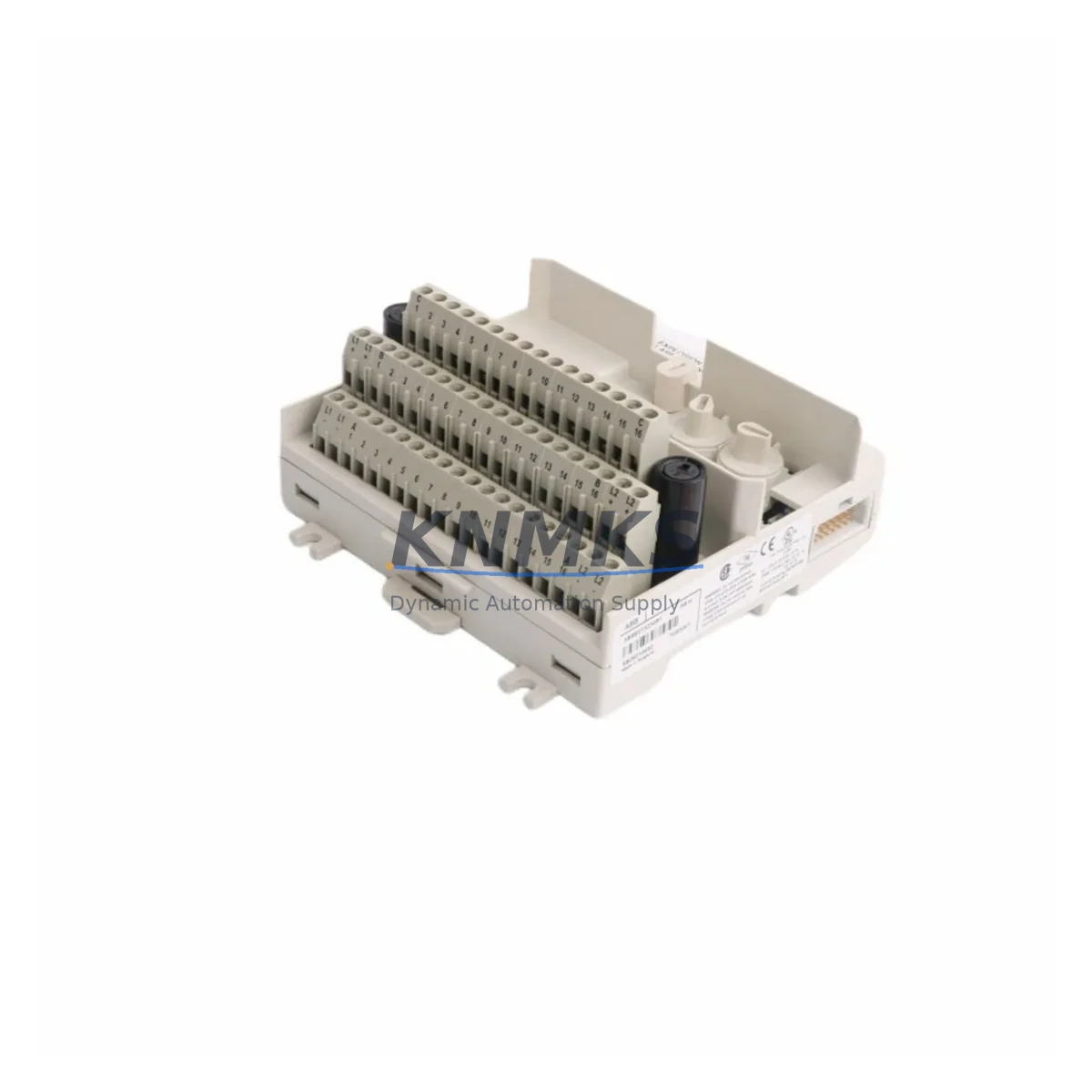

ABB TU830V1 3BSE013234R1 Migration-Ready Termination Unit

Overview

ABB TU830V1 3BSE013234R1 Migration-Ready Termination Unit for Legacy Control Systems

The ABB TU830V1 (3BSE013234R1) is a field-proven S800 I/O termination unit engineered for direct integration into existing ABB AC800M and AC800F distributed control architectures. Designed as a migration-ready replacement for the discontinued TU830 series, this module enables plant engineers to modernize aging control cabinets without redesigning field wiring or replacing the entire I/O subsystem. Whether you are executing a phased retrofit of a legacy DCS, recovering from an unplanned module failure, or extending the operational life of an S800 I/O rack, the TU830V1 delivers the electrical and mechanical compatibility required to minimize engineering risk and reduce total downtime.

Before committing to a replacement, engineers should verify several critical parameters: confirm that the existing backplane slot accepts the TU830V1 footprint, validate that terminal block wiring assignments match the original TU830 pinout, and check that the field cable shield connections are correctly routed to the grounding bar. Power supply capacity at the rack level — typically sourced from an ABB SD831 or SD832 24 VDC power supply module — must be recalculated if additional I/O modules such as the AI810 analog input module or DI810 digital input module are being added to the same rack during the same maintenance window. Failure to account for cumulative current draw across all populated slots can cause intermittent resets or communication faults on the ModuleBus segment.

Communication link integrity is equally important. The TU830V1 supports both PROFIBUS DP and ModuleBus protocols, making it compatible with the CI854 PROFIBUS DP communication interface and the standard S800 remote I/O cluster topology. When migrating from an older rack that used a different bus termination resistor configuration, engineers must confirm that the PROFIBUS segment termination is correctly set at both physical ends of the bus to prevent reflection errors. Address assignment for the replacement module should be validated in the AC800M controller project before the module is powered on, and any changes to the hardware configuration tree in ABB Control Builder M must be downloaded and verified against the live PLC scan cycle.

HMI screen updates are often overlooked during termination unit replacements. If the original TU830 was mapped to specific I/O tags in the ABB 800xA System or a third-party SCADA platform, the tag database should be audited to confirm that signal names, engineering unit scaling, and alarm limits remain intact after the swap. In cases where the replacement is performed on a running system using hot-standby redundancy, the switchover sequence must be tested in simulation before field execution to protect process continuity.

Installation space confirmation is a practical prerequisite. The TU830V1 occupies a standard S800 DIN rail slot and is mechanically interchangeable with the original TU830, but the surrounding cable management tray and adjacent modules — such as the TB820V2 ModuleBus modem — must have sufficient clearance for the locking tab and field wiring harness. Firmware version compatibility between the TU830V1 and the hosting AC800M controller should be confirmed against the ABB compatibility matrix prior to commissioning.

Every TU830V1 3BSE013234R1 unit shipped by KNMKS undergoes pre-shipment functional testing, including continuity verification across all terminal positions, visual inspection of the backplane connector, and confirmation of module identification data. Stock is maintained to support urgent breakdown orders and planned retrofit schedules alike. All units are covered by a support terms confirmed by quotation from the date of shipment.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful TU830V1 retrofit begins with a thorough audit of the existing S800 I/O rack layout. Document the slot positions of all installed modules — including any AO810V2 analog output modules, DO810 digital output modules, and the TB820V2 ModuleBus modem — before removing the legacy termination unit. Photograph the field wiring harness and label each conductor group before disconnection. If the control system uses a CI854 PROFIBUS DP interface for remote I/O communication, confirm that the PROFIBUS address of the affected rack is documented and that the segment termination resistors are accessible for inspection. For systems where the S800 rack is mounted inside a pressurized or climate-controlled control cabinet, coordinate with the site safety team to confirm that the cabinet can be safely opened during the planned maintenance window without triggering environmental alarms or process interlocks.

Downtime Control During System Migration

Minimizing unplanned downtime during a termination unit replacement requires a structured pre-work checklist. Before the maintenance window opens, pre-stage the TU830V1 3BSE013234R1 alongside any associated spare parts — including spare terminal block screws and a replacement ModuleBus cable if the existing cable shows signs of wear. Export and archive the current AC800M controller project, including all function block diagrams and signal lists, to a secure backup location. If the system supports hot-standby redundancy via a paired AC800M controller, test the switchover sequence in advance and confirm that the standby controller holds the latest program version. During the swap, work systematically from the field wiring terminals inward to the backplane connector, reconnecting and torquing each terminal to the manufacturer’s specified value. After the TU830V1 is seated and the rack is powered, monitor the ModuleBus status LEDs and confirm that the AC800M controller recognizes the module within the expected scan cycle before releasing the system back to automatic control. Document the as-found and as-left conditions, including any firmware version changes, for the site maintenance record.

Retrofit Support FAQ

Q1: Is the TU830V1 3BSE013234R1 a direct replacement for the discontinued TU830?
Yes. The TU830V1 is the current production successor to the TU830 and is mechanically and electrically compatible with the same S800 backplane slot. No wiring modifications are required provided the original terminal block assignments are preserved.

Q2: What commissioning steps are required after installing the TU830V1?
After physical installation, open the AC800M project in ABB Control Builder M, verify that the hardware configuration reflects the TU830V1 module type, download the configuration to the controller, and confirm that all I/O signals associated with the replaced termination unit are reading correctly in the 800xA system or connected SCADA platform.

Q3: Does KNMKS perform pre-shipment testing on the TU830V1?
Yes. Every unit undergoes functional testing including terminal continuity checks, backplane connector inspection, and module identification verification before shipment. A support terms confirmed by quotation is included from the date of shipment.

Q4: What is the typical lead time and stock availability?
KNMKS maintains ready stock of the TU830V1 3BSE013234R1 to support both emergency breakdown orders and planned retrofit schedules. Contact our team for current availability and expedited shipping options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

TU830V1 3BSE013234R1
S800 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB TU830V1 3BSE013234R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
