ABB TU818 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB TU818 Maintenance-Proven Spare Part for Factory Uptime

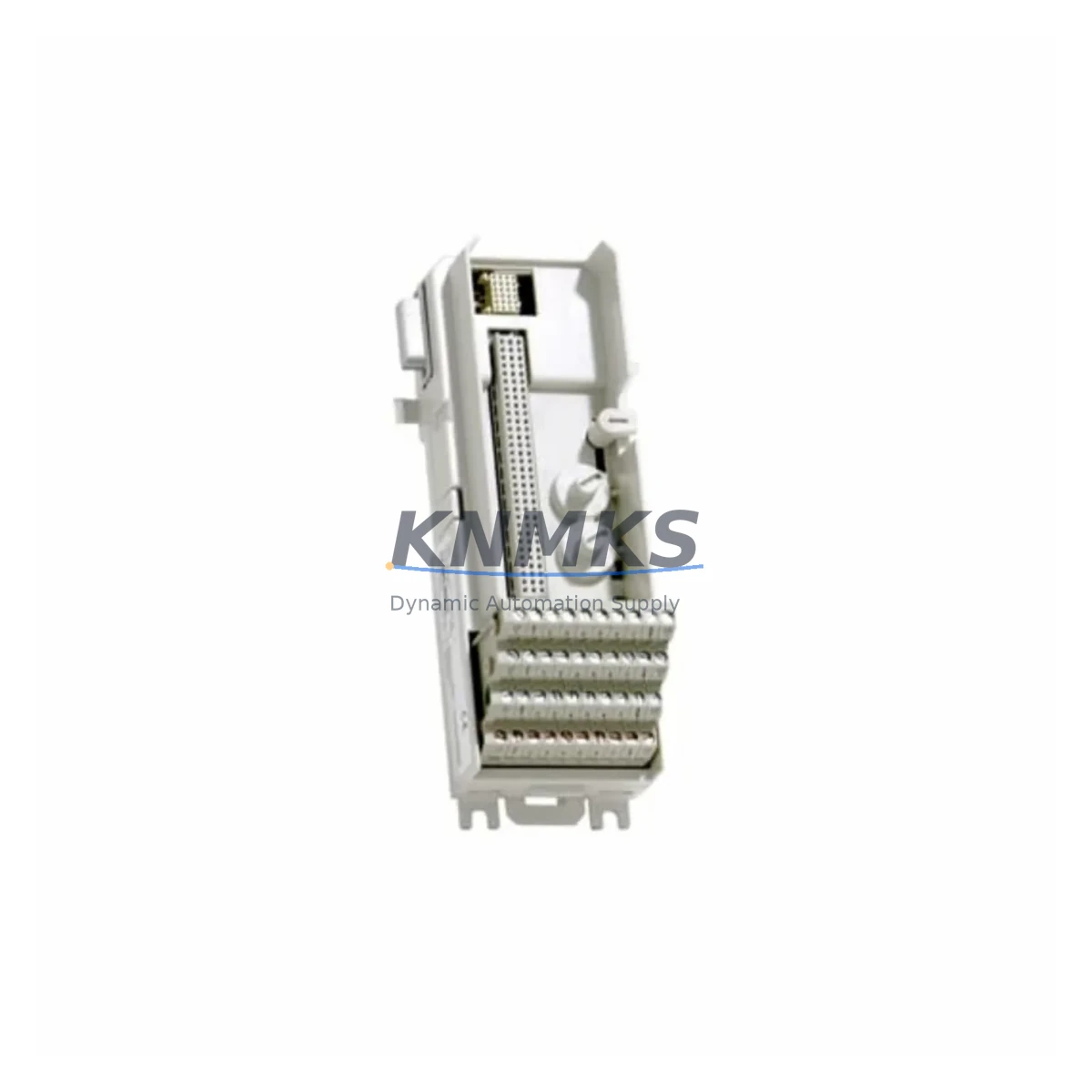

The ABB TU818 is a module termination unit designed for the S800 I/O system — one of ABB’s most widely deployed distributed I/O platforms in process automation, power generation, and continuous manufacturing environments. As a critical interface component between field wiring and I/O modules, the TU818 plays a foundational role in signal integrity, cabinet organization, and long-term system reliability. Sourcing a verified original TU818 spare is essential for any maintenance team managing ABB AC800M or AC800F controller-based installations where unplanned downtime carries significant operational cost.

At KNMKS, every TU818 unit is sourced from authorized supply channels, pre-shipment tested for electrical continuity and connector integrity, and dispatched with a support terms confirmed by quotation. Our global stock program ensures rapid availability for emergency replacements, scheduled turnarounds, and annual maintenance kits — reducing lead-time risk for facilities that cannot afford extended outages.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or inspecting the TU818 in an S800 I/O cabinet, a disciplined maintenance engineer will treat the termination unit replacement as a trigger for a broader cabinet health check. The TU818 interfaces directly with field-side wiring and the I/O module above it — meaning any degradation in terminal contact resistance or connector seating can propagate signal errors upstream to the AC800M controller, causing false alarms, process deviations, or undetected I/O faults.

During a TU818 swap, it is standard practice to simultaneously inspect the mating I/O module — such as the AI810 analog input module or DI810 digital input module — for signs of connector wear, oxidation, or firmware version mismatch. The CI854 PROFIBUS communication interface module and CI857 Industrial Ethernet module should also be verified for active communication status, as I/O bus interruptions during maintenance windows can mask underlying network faults that only surface under load.

Power supply integrity is equally critical. The SD821 or SD822 24 VDC power supply units feeding the S800 rail should be load-tested and output voltage verified within ±1% tolerance before the cabinet is returned to service. Inline fuse holders and MCBs protecting the 24 VDC distribution rail must be inspected for thermal discoloration or contact fatigue — a common failure mode in cabinets with high cycle counts or poor ventilation.

For facilities running mixed analog and digital I/O on the same rail, signal isolation barriers between the TU818 field terminals and sensitive analog inputs should be checked for drift. Relay output modules such as the DO810 should have their output contacts tested for contact resistance, particularly in applications with inductive loads. Terminal blocks adjacent to the TU818 — especially those carrying 4–20 mA loops or RTD signals — should be re-torqued to manufacturer specification to prevent intermittent signal loss after vibration or thermal cycling.

Maintaining a minimum buffer of two TU818 units per S800 cabinet cluster is recommended for facilities with 24/7 production schedules. Combined with a documented spare parts list that includes compatible I/O modules, power supply units, and communication interfaces, this approach supports a proactive maintenance posture that minimizes emergency procurement lead times and protects against OEM discontinuation risk.

Site Replacement Workflow

Step 1 — Isolation: Place the affected I/O channel in manual or safe state via the AC800M controller. Confirm the channel is de-energized before disconnecting field wiring from the TU818 terminals.

Step 2 — Documentation: Photograph or record all field wiring terminal assignments on the existing TU818 before removal. Cross-reference with the as-built cabinet drawing to confirm wire labeling accuracy.

Step 3 — Module Removal: Disengage the I/O module from the TU818 by releasing the locking lever. Slide the TU818 off the DIN rail after loosening the rail locking tab. Inspect the DIN rail mounting surface for corrosion or deformation.

Step 4 — New Unit Installation: Clip the replacement TU818 onto the DIN rail and verify positive engagement. Reconnect field wiring per the documented terminal assignment. Torque all screw terminals to 0.5–0.6 Nm.

Step 5 — Module Re-engagement: Seat the I/O module onto the new TU818 and confirm the locking lever is fully engaged. Verify the module LED status indicators show normal operation after power restoration.

Step 6 — Functional Verification: From the AC800M engineering workstation, confirm all I/O channels on the replaced TU818 are reading correctly. Run a short-duration loop test on analog channels and a forced output test on digital channels before returning the loop to automatic control.

This workflow is compatible with hot-standby and redundant I/O configurations where the S800 system supports online module replacement. For non-redundant configurations, coordinate with the process control team to schedule a brief controlled shutdown window.

Spare Parts Support FAQ

Q1: Is the TU818 compatible with all S800 I/O modules?
The TU818 is designed for use with the standard S800 I/O module family, including AI810, AO810, DI810, DO810, DI811, and DO811 series modules. Compatibility with specific module variants should be confirmed against the ABB S800 I/O system hardware documentation. KNMKS technical support can assist with compatibility verification prior to order placement.

Q2: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects, electrical failure under normal operating conditions, and connector integrity. Units that fail within the confirmed support period are replaced or refunded. The confirmed support period begins from the date of dispatch. Pre-shipment testing records are available upon request.

Q3: How quickly can a TU818 be dispatched for an emergency replacement?
In-stock TU818 units are available for same-day or next-business-day dispatch depending on destination region. KNMKS maintains forward stock across multiple logistics hubs to support emergency maintenance scenarios. Contact [email protected] or +86 18359268345 for urgent availability confirmation.

Q4: Can the TU818 be used as a long-term replacement for discontinued or end-of-life S800 configurations?
Yes. The TU818 remains a current ABB catalog item and is fully supported for new installations and legacy system life extension. For facilities managing aging AC800M or AC800F systems beyond their original design life, maintaining a documented buffer stock of TU818 units — alongside compatible I/O modules and power supply spares — is a proven strategy for extending system operational life without full platform migration.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
