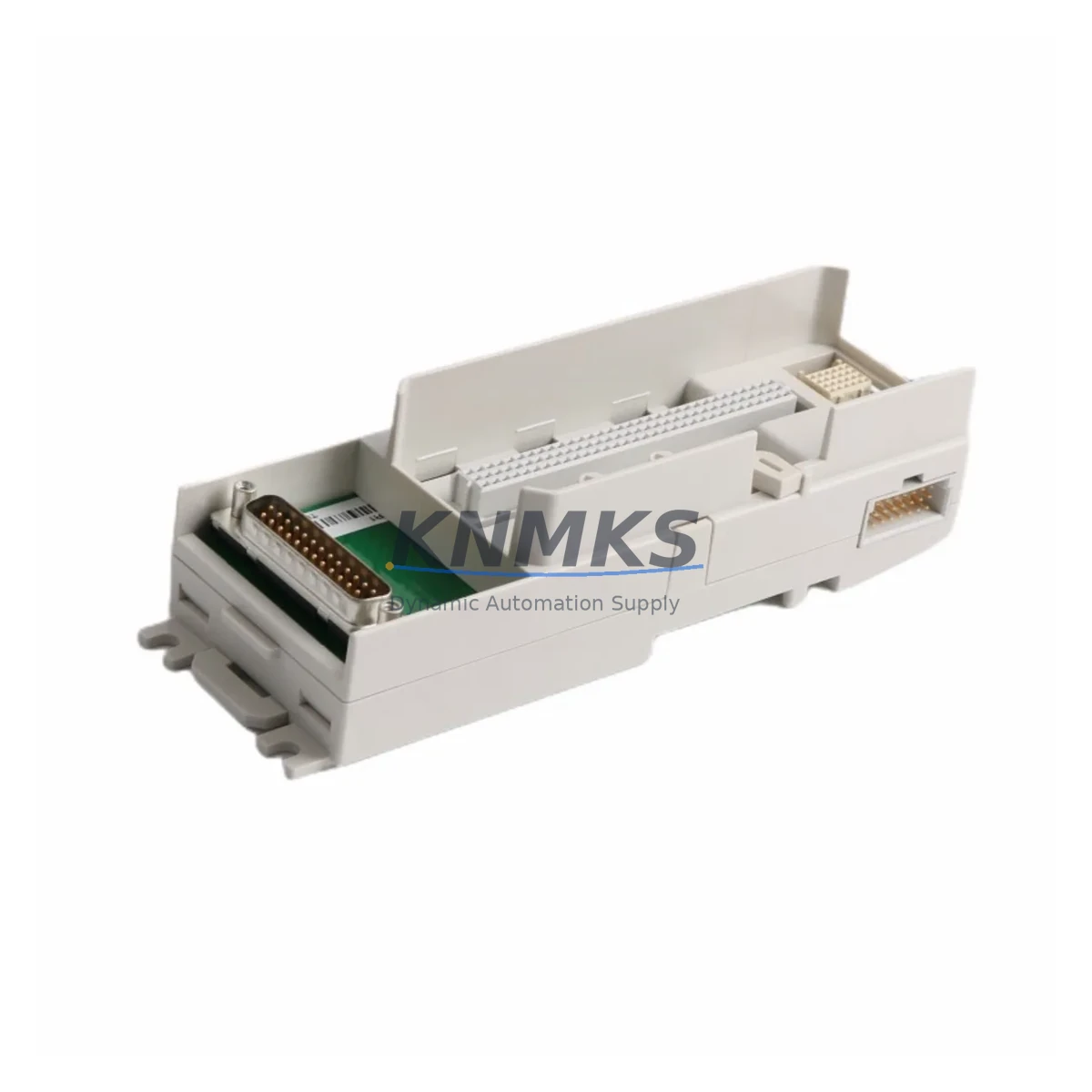

ABB TU812V1 3BSE013232R1 Maintenance-Proven Spare Part

Overview

ABB TU812V1 3BSE013232R1 Maintenance-Proven Spare Part for Factory Uptime

The ABB TU812V1 (3BSE013232R1) is a field-proven Termination Unit designed for the ABB S800 I/O system — one of the most widely deployed distributed I/O platforms in process automation, power generation, and continuous manufacturing environments. As a direct interface between field wiring and S800 I/O modules, the TU812V1 plays a critical role in signal integrity, channel isolation, and system availability. Maintaining a verified stock of this unit is a fundamental requirement for any maintenance team responsible for ABB Freelance, System 800xA, or AC800M-based control architectures.

Every TU812V1 3BSE013232R1 unit supplied by KNMKS is sourced from authorized channels, individually inspected, and shipped with a support terms confirmed by quotation. Pre-shipment functional testing covers terminal continuity, module locking mechanism integrity, and connector alignment — ensuring the unit is ready for immediate installation without additional bench verification.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

In ABB S800 I/O architectures, the TU812V1 termination unit is the mechanical and electrical anchor for every I/O module in the cabinet. When planning a scheduled overhaul or responding to an unplanned fault, maintenance engineers should treat the TU812V1 as part of a broader inspection scope rather than an isolated component.

During any TU812V1 replacement, it is standard practice to simultaneously inspect the associated AI810 or DI810 I/O module seated on the termination unit — terminal oxidation or mechanical stress on the TU often correlates with degraded module connector contacts. If the cabinet houses an ABB TB820V2 ModuleBus Modem or CI854B PROFIBUS DP Interface, verify that communication continuity is maintained throughout the swap; a brief bus interruption during hot-swap can trigger redundancy failover in 800xA systems.

Field wiring connected to the TU812V1 should be re-torqued to specification during replacement. Inspect the associated cable duct and marshalling terminal blocks for insulation wear, especially in high-vibration or high-temperature zones. If the system uses ABB DSAI 130 or DSAI 155 signal conditioning modules upstream, confirm that signal ranges remain within calibrated limits after reconnection.

For cabinets with mixed analog and digital I/O, check the 24 VDC field power supply rail — typically an ABB SD831 or SD832 power supply — for voltage stability before and after the module swap. A marginal power supply can cause intermittent I/O faults that are misdiagnosed as termination unit failures. Similarly, inspect any inline fuse holders or miniature circuit breakers protecting the field wiring circuits connected to the TU812V1 terminals.

For sites running legacy S800 I/O on extended lifecycle support, maintaining a minimum buffer stock of two TU812V1 units per control cabinet is a widely adopted practice among reliability engineers. This ensures that both a planned module upgrade and an emergency replacement can be executed without waiting on procurement lead times — a critical consideration when the controlled process cannot tolerate extended downtime.

Site Replacement Workflow

Step 1 — Compatibility Verification: Confirm the replacement TU812V1 3BSE013232R1 matches the installed variant. Check the label on the existing unit for revision suffix and terminal configuration. The TU812V1 is compatible with standard S800 I/O modules; however, verify against your system’s I/O list if custom wiring configurations have been applied.

Step 2 — Field Wiring Documentation: Before disconnecting any terminals, photograph or transcribe the existing wiring layout. Label each wire with its terminal number. This step eliminates reconnection errors and reduces recommissioning time significantly.

Step 3 — Module Removal: Power down the affected I/O channel or place the module in forced manual mode via the 800xA operator station if hot-swap is supported. Unlatch the I/O module from the TU812V1 using the module release lever. Slide the module clear of the termination unit.

Step 4 — Termination Unit Swap: Loosen all field wiring terminals and remove the wiring harness. Unclip the TU812V1 from the DIN rail or carrier. Install the replacement unit, ensuring the DIN rail clip engages fully. Reconnect field wiring in terminal order, torquing each screw to the manufacturer’s specification (typically 0.5–0.6 Nm for S800 screw terminals).

Step 5 — Module Reinstallation and Verification: Reseat the I/O module onto the new TU812V1. Restore power and confirm channel status in the 800xA faceplate or Freelance Control Builder. Verify all I/O signals against the process values before returning the loop to automatic control.

This workflow applies equally when upgrading from an older TU810 or TU811 variant to the TU812V1, which offers improved terminal density and enhanced module locking compared to earlier S800 termination unit generations.

Spare Parts Support FAQ

Q1: Is the TU812V1 3BSE013232R1 compatible with all S800 I/O modules?
The TU812V1 is designed for use with the standard S800 I/O module range, including AI810, AO810V2, DI810, DO810, DI814, DO814, AI820, and AO820. It is not compatible with S800 I/O modules that require a dedicated MTU (Modulebus Termination Unit) or fiber-optic carrier. Always cross-reference your system’s I/O hardware list before ordering.

Q2: What pre-shipment testing is performed on each TU812V1 unit?
Every unit undergoes terminal continuity testing, mechanical inspection of the module locking mechanism, and connector alignment verification before dispatch. Units that do not pass all checks are quarantined and not shipped. A test record is available upon request for quality-critical procurement.

Q3: How should the TU812V1 be stored as a long-term spare?
Store in original anti-static packaging in a dry environment at 15°C–30°C with relative humidity below 75% (non-condensing). Avoid storage near strong electromagnetic sources. Inspect terminals annually for oxidation if stored beyond 24 months. KNMKS can supply units on a rolling replenishment basis to support multi-year maintenance contracts.

Q4: What is the support terms coverage and what does it include?
All TU812V1 3BSE013232R1 units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects, terminal failure under normal operating conditions, and module interface faults attributable to the termination unit. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification. Support requests are processed within 5 business days of receipt of the returned unit.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

TU812V1 3BSE013232R1
S800 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB TU812V1 3BSE013232R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
