ABB TU810V1 3BSE013230R1 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB TU810V1 3BSE013230R1 Maintenance-Proven Spare Part for Factory Uptime

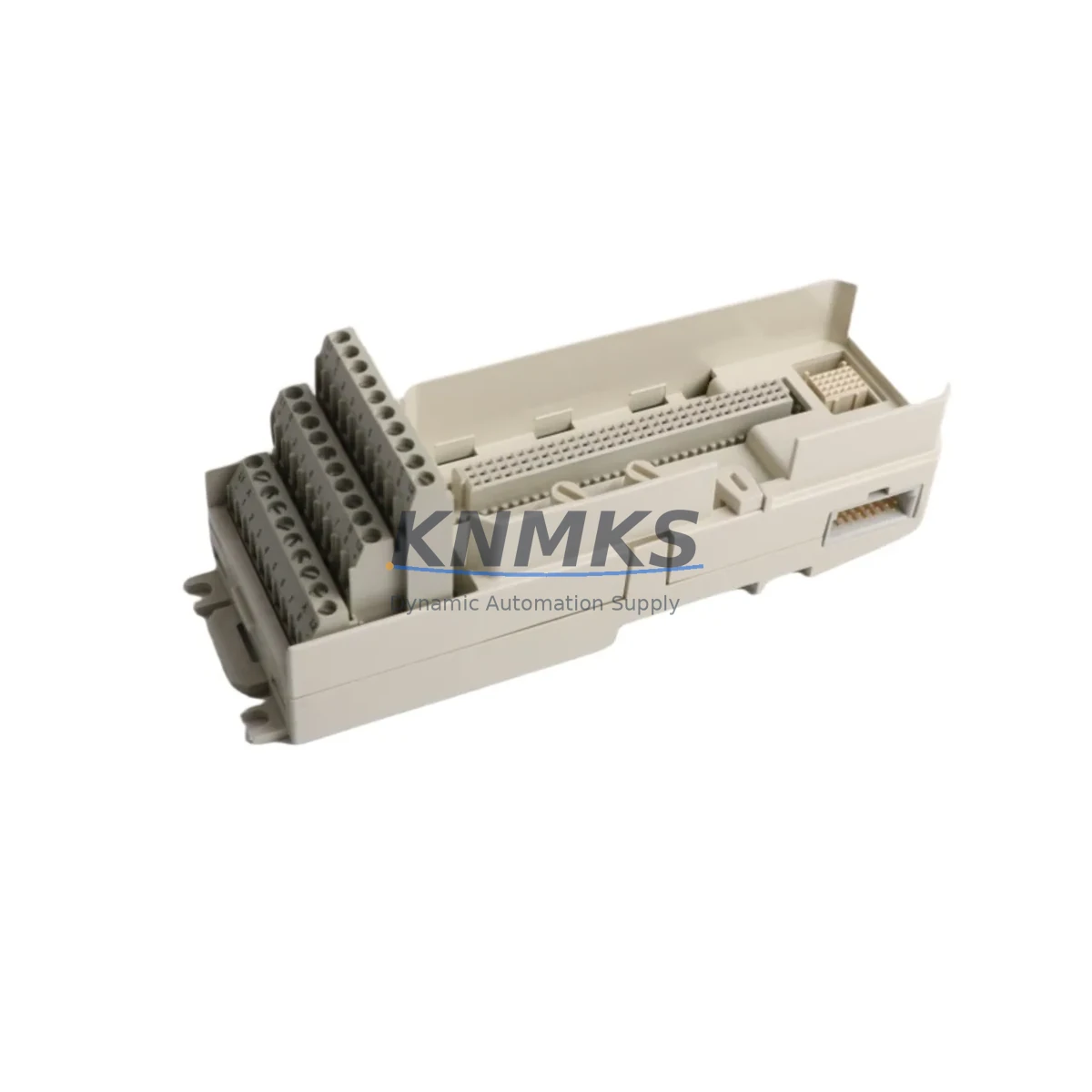

The ABB TU810V1 (3BSE013230R1) is an original S800 I/O Module Termination Unit designed for ABB’s AC800M and Freelance DCS/PLC control architectures. As a field-proven spare part, the TU810V1 serves as the critical interface between S800 I/O modules and the field wiring infrastructure — making it an indispensable component in any maintenance engineer’s spare parts inventory. Whether you are managing a continuous process plant, a discrete manufacturing line, or a utility control system, having a verified TU810V1 on the shelf is a direct investment in production uptime and rapid fault recovery.

At KNMKS, every TU810V1 unit is sourced, inspected, and dispatched with a support terms confirmed by quotation, ensuring that your procurement team can confidently plan long-term spare parts budgets without exposure to counterfeit or degraded components. Our global stock position supports both emergency same-day dispatch and scheduled annual maintenance procurement cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a TU810V1 termination unit fails or shows signs of terminal corrosion, loose wiring, or intermittent I/O faults, the replacement workflow extends beyond the unit itself. Experienced maintenance engineers know that a termination unit fault is often a symptom of broader wiring or module-level stress. During any TU810V1 replacement, the following components in the same I/O station and control cabinet should be inspected and, where necessary, replaced as part of a comprehensive corrective maintenance action:

• S800 I/O Modules (AI810 / DI810 / DO810) — Verify that the I/O module seated on the TU810V1 has not sustained damage from the same fault event. A failed termination unit can cause transient overvoltage on module input channels.
• SA811 / SA801 Power Supply Modules — Confirm that the 24 VDC field power supply feeding the I/O station is within specification. Voltage sags or ripple can accelerate terminal wear on the TU810V1.
• TB820V2 ModuleBus Optical Port — If the I/O station uses optical ModuleBus communication, inspect the TB820V2 for fiber connector contamination or bend-radius violations that may have contributed to intermittent I/O faults misdiagnosed as termination unit failures.
• Field Wiring and Cable Shields — Inspect all field cables terminated at the TU810V1 for insulation damage, shield continuity, and correct grounding. Unshielded or improperly grounded cables are a leading cause of premature terminal unit degradation in high-EMI environments.
• Fuse Terminals and Circuit Protection — Check inline fuse terminals protecting analog and digital field circuits. A blown fuse on a field loop is frequently the root cause of the I/O fault that triggered the TU810V1 investigation.
• Signal Isolators and Barriers — For intrinsically safe or hazardous-area installations, verify that Zener barriers or galvanic isolators in the same loop remain within calibration and have not been damaged by the fault event.

Proactive spare parts planning for S800 I/O stations should include at minimum one TU810V1 per I/O station type in the plant, alongside matched I/O modules and a set of replacement fuse terminals. Annual cabinet inspections should include torque verification of all TU810V1 field terminals, visual inspection for corrosion or discoloration, and a functional loop test of all connected channels.

Site Replacement Workflow

Replacing a TU810V1 in an operating S800 I/O station requires careful sequencing to minimize downtime and avoid introducing new faults. The following workflow is recommended for maintenance engineers performing a hot-swap or planned replacement:

1. Document field wiring — Before disconnecting any cables, photograph or record all terminal assignments on the existing TU810V1. Cross-reference with the as-built wiring diagram to confirm no undocumented field modifications have been made.
2. Isolate field circuits — De-energize field circuits connected to the affected termination unit. For analog loops, notify the control room to place affected control loops in manual mode to prevent process upsets during the swap.
3. Remove the I/O module — Unlatch and remove the S800 I/O module (e.g., AI810 or DI810) from the TU810V1 before removing the termination unit itself. This prevents mechanical stress on the module connector.
4. Install the replacement TU810V1 — Mount the new 3BSE013230R1 unit on the DIN rail or baseplate, reconnect all field wiring per the documented terminal assignments, and verify terminal torque to specification.
5. Re-seat the I/O module and restore power — Re-install the I/O module, restore field circuit power, and confirm channel-by-channel I/O status in the AC800M engineering tool or Freelance Control Builder.
6. Functional verification — Perform a loop test on all channels to confirm correct signal levels before returning the control loop to automatic mode.

This structured replacement approach ensures system compatibility is maintained, reduces the risk of wiring errors, and provides a documented audit trail for maintenance records — a requirement in ISO 55001-aligned asset management programs.

Spare Parts Support FAQ

Q1: Is the TU810V1 (3BSE013230R1) compatible with all S800 I/O modules?
The TU810V1 is designed for use with standard S800 I/O modules including the AI810, AO810, DI810, DO810, DI811, and DO811 series. It is not compatible with S800L or S900 I/O modules, which use different termination unit form factors. Always verify the module type against the termination unit compatibility matrix in the ABB S800 I/O System Product Guide before ordering.

Q2: How is each unit tested before shipment?
Every TU810V1 supplied by KNMKS undergoes a pre-shipment inspection covering physical terminal integrity, connector pin condition, and visual inspection for corrosion or mechanical damage. Units are packed in anti-static ESD-safe packaging with individual labeling. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can KNMKS support long-term or blanket order supply for TU810V1?
Yes. KNMKS maintains a standing inventory position for TU810V1 and related S800 I/O spare parts to support both emergency procurement and planned annual maintenance budgets. Blanket purchase orders with scheduled quarterly or semi-annual releases are available for customers managing multi-site ABB DCS installations. Contact our sales team to discuss volume pricing and supply commitment terms.

Q4: What should I do if the replacement TU810V1 does not resolve the I/O fault?
If replacing the TU810V1 does not clear the I/O fault, the fault source is likely upstream in the I/O module, the ModuleBus communication path, or the field wiring. Check the AC800M system log for module health alarms, inspect the TB820V2 optical port for communication errors, and perform a channel-by-channel loop test to isolate the fault to a specific field device or cable segment. KNMKS technical support is available to assist with fault diagnosis for customers who have purchased spare parts through our platform.
