ABB TB811 3BSE008568R1 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB TB811 3BSE008568R1 Maintenance-Proven Spare Part for Factory Uptime

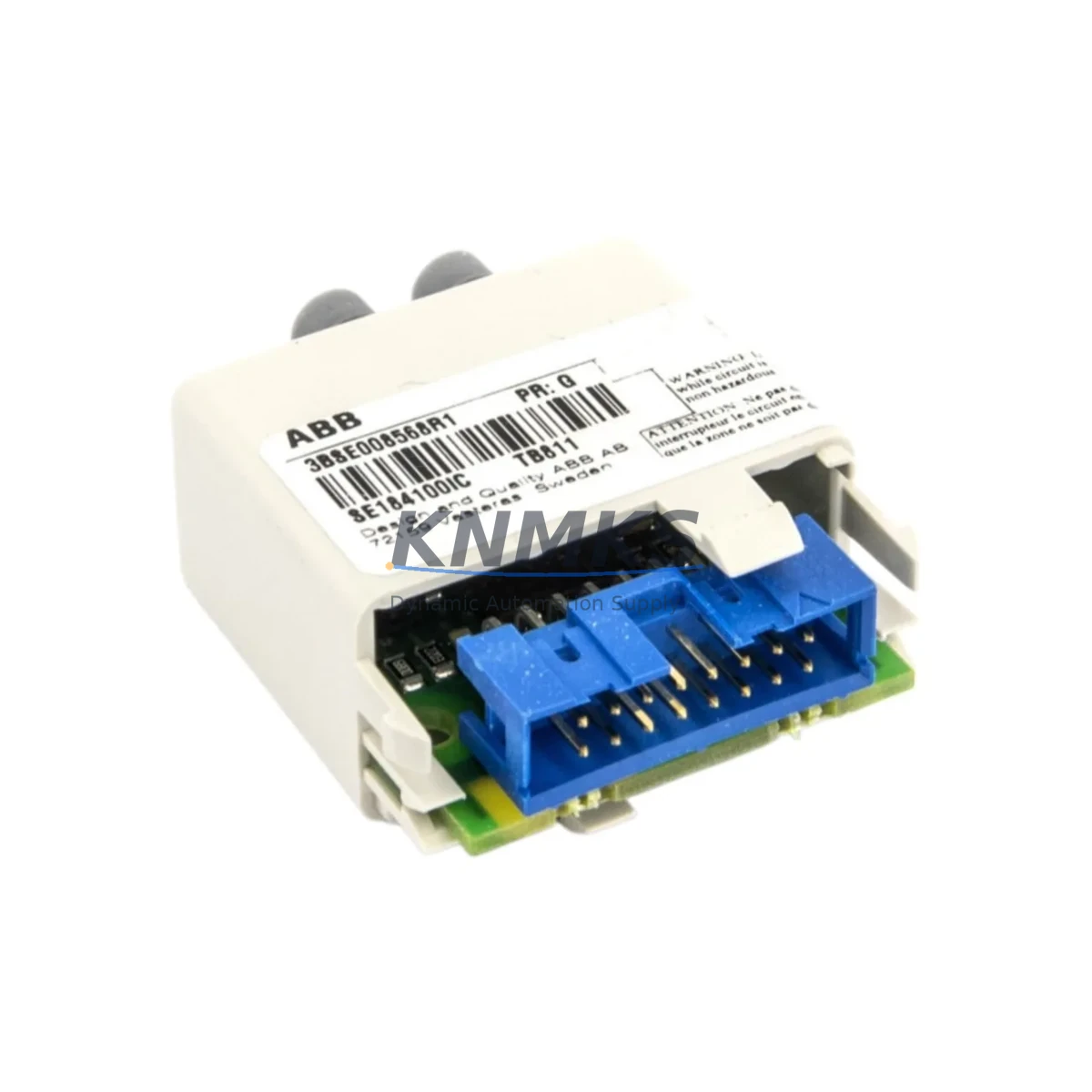

The ABB TB811 (3BSE008568R1) is an original OEM Modulebus Optical Communication Module designed for the S800 I/O system and AC 800M Distributed Control System (DCS). As a critical interface component, the TB811 manages optical Modulebus communication between I/O clusters and the controller, making it an essential spare part for any facility running ABB’s S800 series automation infrastructure. Maintaining a verified stock of TB811 units directly reduces mean time to repair (MTTR) and protects continuous production lines from unplanned downtime caused by communication faults.

For maintenance engineers and spare parts procurement teams, the TB811 3BSE008568R1 represents a high-priority line item in any S800-based control cabinet inspection checklist. Optical communication modules are subject to gradual degradation from vibration, thermal cycling, and connector contamination — failure modes that are often silent until a full communication loss event triggers a process shutdown. Proactive replacement during scheduled annual overhauls, rather than reactive replacement during emergency stoppages, is the industry-standard approach for this component class.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a control cabinet inspection or annual overhaul that involves the TB811 3BSE008568R1, maintenance engineers should treat the Modulebus optical link as part of a broader communication integrity audit. The TB811 does not operate in isolation — its reliability depends on the health of the entire S800 I/O cluster and the AC 800M controller backplane.

During a planned replacement of the TB811, the following associated components should be inspected or tested concurrently to avoid repeat call-outs and secondary failures:

Power Supply Modules: Verify that the SD821 or SD822 24 VDC power supply feeding the S800 I/O cluster is within voltage tolerance. Undervoltage conditions accelerate optical transceiver degradation and can cause intermittent Modulebus faults that mimic TB811 failure.

I/O Module Seating and Backplane Connectors: Inspect the backplane connectors on AI810 analog input modules and DI810 digital input modules for oxidation or mechanical looseness. A compromised backplane connection can generate false Modulebus errors that are incorrectly attributed to the TB811.

Optical Fiber Cables and Connectors: Clean and inspect all fiber optic patch cables connected to the TB811 optical ports. Contaminated or bent fiber connectors are a leading cause of optical link degradation. Replace any cables showing physical damage or excessive insertion loss.

Communication Modules and CI854 PROFIBUS Interface: If the S800 cluster is connected via a CI854 PROFIBUS DP/V1 communication interface module, verify its firmware version and communication parameters after TB811 replacement to ensure the Modulebus topology is correctly re-established.

Terminal Blocks and Field Wiring: Inspect TB820 or TB825 termination boards for loose field wiring connections. Loose terminals on analog or digital I/O circuits can introduce noise that stresses the Modulebus communication layer.

Fuses and Surge Protection: Check all fuse holders and surge protection devices in the control cabinet. A blown fuse on a field circuit can cause unexpected I/O module behavior that generates Modulebus alarms, leading to misdiagnosis of the TB811 as the root cause.

Procurement engineers should note that the TB811 3BSE008568R1 is a long-lifecycle ABB component, but availability from verified supply channels has become increasingly constrained as the S800 platform matures. Establishing a minimum stock level of 1–2 units per AC 800M controller node is a recognized best practice for facilities with high-availability requirements. KNMKS maintains long-term supply agreements to support ongoing replenishment needs.

Site Replacement Workflow

Replacing the TB811 3BSE008568R1 on-site is a structured process that, when executed correctly, minimizes control system downtime to under 30 minutes for a prepared maintenance team.

Step 1 — Pre-Replacement Verification: Before removing the existing TB811, confirm the replacement unit’s part number (3BSE008568R1) and firmware compatibility with the installed AC 800M controller version using ABB’s System Version Information tool in Control Builder M. Document the current Modulebus topology configuration.

Step 2 — Safe Isolation: Place the affected I/O cluster in manual control mode at the DCS operator station. Notify the process control team and obtain a permit-to-work. De-energize the S800 cluster power supply following site lockout/tagout (LOTO) procedures.

Step 3 — Module Removal: Disconnect optical fiber cables from the TB811 optical ports, labeling each cable for correct re-termination. Release the module locking mechanism and slide the TB811 out of the cluster termination position.

Step 4 — Replacement Installation: Insert the new TB811 3BSE008568R1 into the cluster position until the locking mechanism engages. Reconnect optical fiber cables to the correct ports. Re-energize the S800 cluster power supply.

Step 5 — Communication Re-establishment: From Control Builder M, perform a Modulebus scan to confirm the new TB811 is recognized by the AC 800M controller. Verify all I/O modules in the cluster report online status. Check for any Modulebus error codes in the controller event log.

Step 6 — Return to Automatic: Once all I/O modules confirm healthy communication, return the process loop to automatic control. Monitor the Modulebus communication quality indicators for 15 minutes before closing the work order.

This workflow is compatible with both hot-standby and simplex AC 800M controller configurations. For redundant controller systems, the replacement can often be performed without a full process shutdown by switching control to the standby controller during the maintenance window.

Spare Parts Support FAQ

Q1: Is the TB811 3BSE008568R1 compatible with all AC 800M controller versions?
The TB811 is designed for use with the full AC 800M controller family, including PM851, PM856, PM860, PM861, PM864, and PM866 processor modules. Compatibility with specific firmware versions should be verified against ABB’s S800 I/O System Product Manual (3BSE020924). KNMKS can provide pre-shipment compatibility verification upon request.

Q2: What testing is performed before shipment?
Each TB811 3BSE008568R1 unit supplied by KNMKS undergoes functional verification including optical port continuity testing, power-on self-test confirmation, and visual inspection for physical damage. A test report is available upon request. All units are shipped with ESD-protective packaging to prevent transit damage.

Q3: What is the support terms coverage and what does it include?
All TB811 3BSE008568R1 units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. KNMKS provides direct replacement or documented resolution support for any unit that fails within the confirmed support period, with no requirement to return to the original manufacturer.

Q4: Can KNMKS support long-term supply for multi-site maintenance programs?
Yes. KNMKS specializes in long-term spare parts supply for legacy and current-generation ABB automation systems. We maintain standing inventory of TB811 3BSE008568R1 and related S800 I/O components to support annual maintenance contracts, multi-site procurement programs, and emergency replenishment requirements. Contact our technical sales team to discuss volume pricing and reserved stock arrangements.
