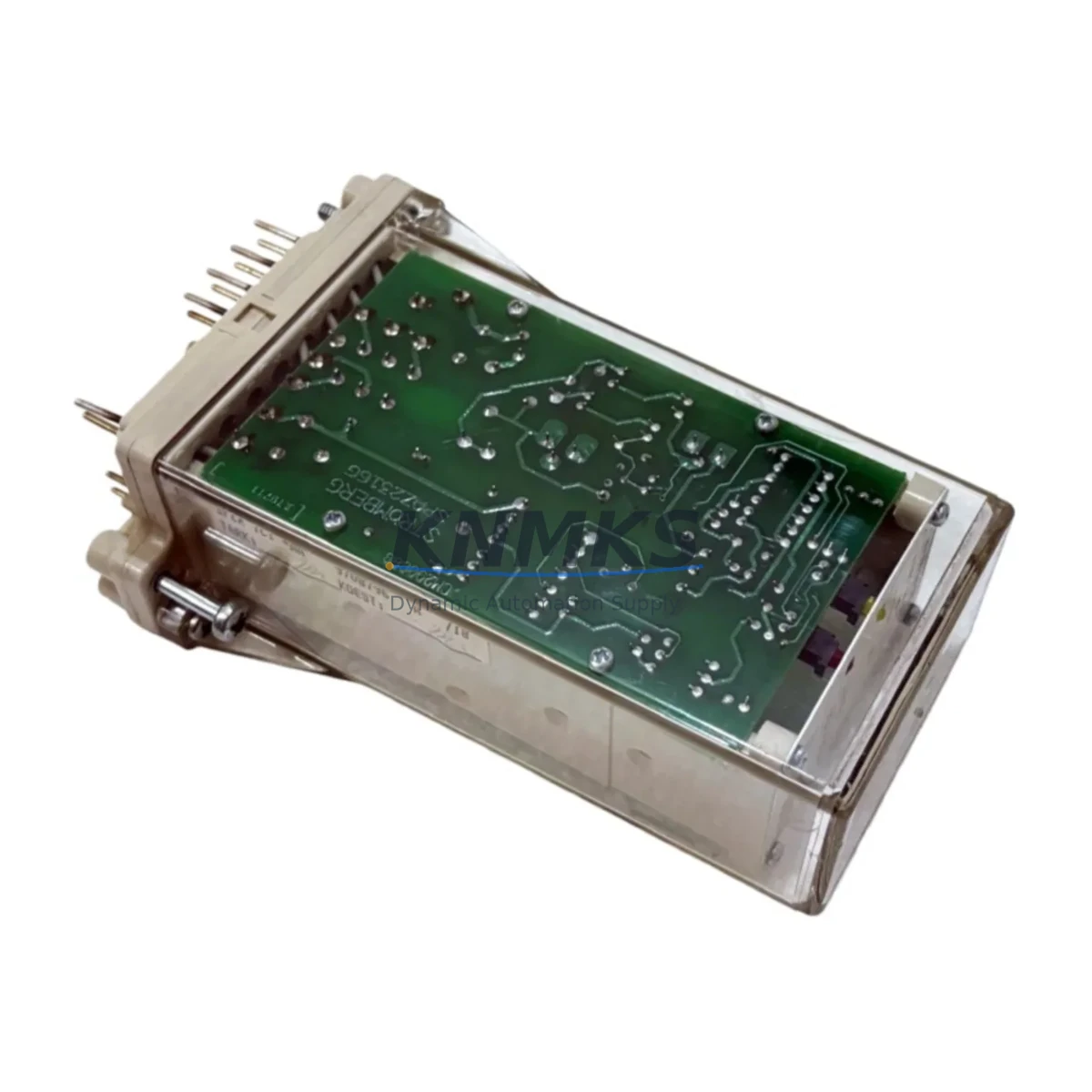

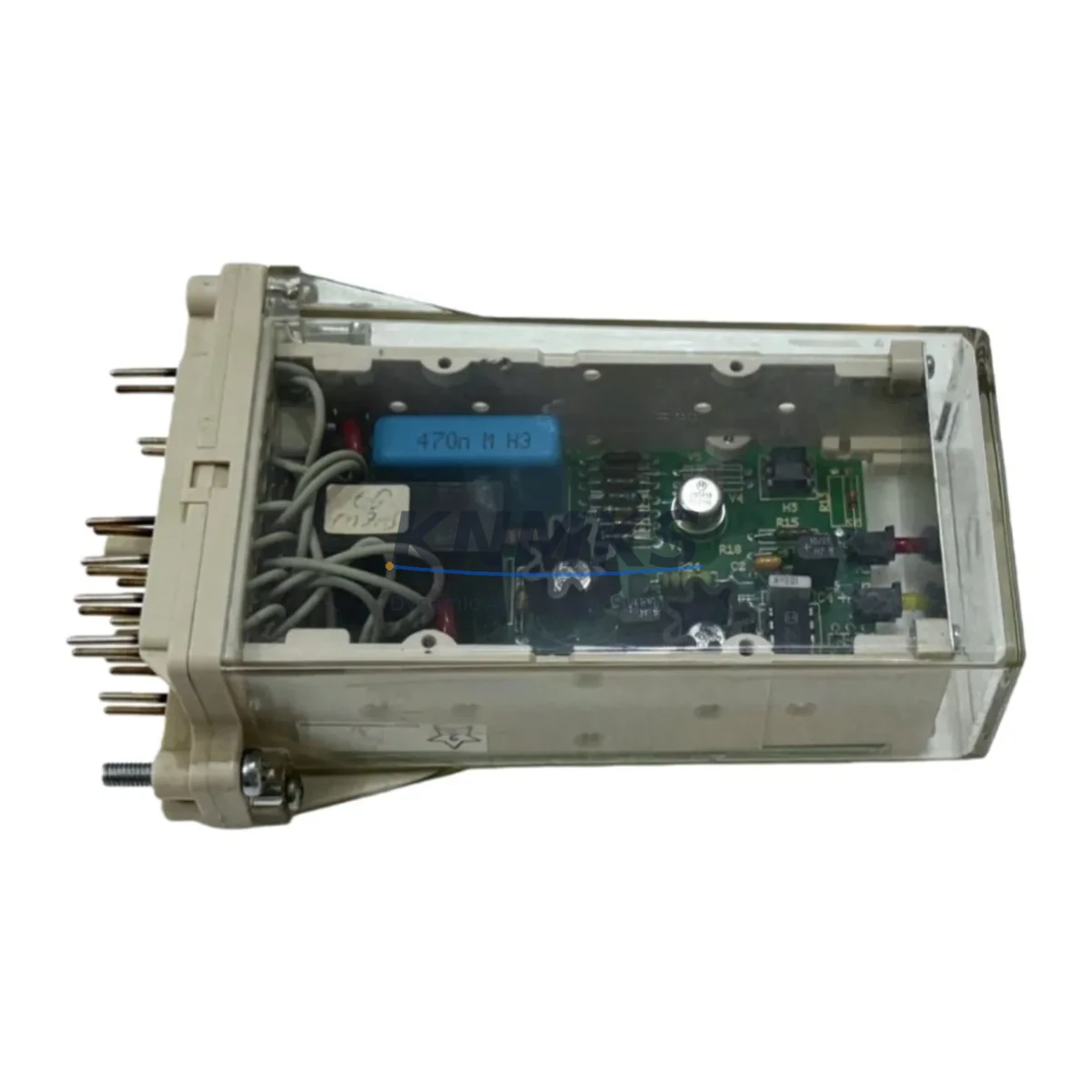

ABB SPER-1C1-AAJ Fail-Safe Trip Supervision Relay

Overview

ABB SPER-1C1-AAJ Fail-Safe Trip Supervision Relay: Fault-Proof Protection for Critical Industrial Control

The ABB SPER-1C1-AAJ is a high-reliability trip circuit supervision relay from ABB’s proven SPER Series, engineered to deliver continuous, fail-safe monitoring of trip coil circuits in protection panels, switchgear cabinets, and safety-critical interlock systems. Designed for demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, and heavy manufacturing lines — this relay ensures that your protection circuit remains fully operational at all times, eliminating the risk of silent trip failures that could lead to catastrophic equipment damage or unplanned production shutdowns.

In high-stakes control environments, a failed trip circuit that goes undetected is one of the most dangerous failure modes in electrical protection. The SPER-1C1-AAJ continuously supervises the integrity of the trip coil and associated wiring, providing immediate alarm output upon detection of open-circuit faults, coil degradation, or wiring discontinuity — before a protection event occurs. This proactive fault detection capability is essential for compliance with IEC 61511 functional safety requirements and IEC 60255 protection relay standards.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered protection panel or MCC (Motor Control Center), the SPER-1C1-AAJ functions as the first line of defense for trip circuit integrity. It is typically installed alongside the ABB REF615 feeder protection relay, which handles overcurrent, earth fault, and arc flash detection. Together, they form a complete protection chain: the REF615 issues the trip command, while the SPER-1C1-AAJ continuously verifies that the trip coil circuit is ready to execute that command without failure.

For power supply stability within the same cabinet, the ABB CP-E 24/5.0 DIN rail power supply provides regulated 24 V DC to auxiliary circuits, ensuring that supervision relays and communication modules receive clean, stable power even during grid disturbances. Surge protection devices such as the ABB OVR T2 surge arrester are recommended at the cabinet’s incoming supply to protect sensitive relay electronics from transient overvoltages caused by nearby switching operations or lightning-induced surges on field cabling.

In safety interlock architectures, the SPER-1C1-AAJ integrates naturally with ABB SPAJ 140 C combined overcurrent and earth fault relays and hardwired safety relay modules such as the ABB JSBR4 safety relay, forming a redundant, fail-safe shutdown loop that meets SIL 2 requirements for process safety systems. For communication-intensive panels using IEC 61850 GOOSE messaging, the relay’s alarm output can be wired to digital input modules on the ABB COM600 substation gateway, enabling real-time supervision status reporting to the SCADA system without manual inspection.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments where emergency shutdown (ESD) systems must respond within milliseconds, the SPER-1C1-AAJ ensures that every trip coil in the ESD panel is permanently supervised. A silent trip coil failure in a refinery’s compressor protection circuit could result in catastrophic overpressure events. This relay eliminates that risk by providing immediate alarm before a protection demand occurs.

Power Generation & Transmission Substations: Generator protection panels and HV/MV transformer feeders rely on trip circuit supervision to maintain protection system availability. The SPER-1C1-AAJ is widely deployed in 110 kV and 220 kV substation panels, where it supervises the trip coils of SF6 circuit breakers and vacuum interrupters, ensuring that protection relay commands are always executable.

Mining & Mineral Processing: Underground mining operations and surface processing plants face extreme vibration, dust ingress, and humidity. The SPER-1C1-AAJ’s robust construction and wide operating temperature range make it suitable for MCC panels in crusher stations, conveyor drive rooms, and ventilation control centers, where unplanned motor trips due to protection system failures carry significant safety and production consequences.

Water & Wastewater Treatment: Pump station protection panels in water utilities require continuous supervision of trip circuits for high-voltage pump motors. The SPER-1C1-AAJ provides the supervisory function required by IEC 61511 for safety instrumented systems (SIS) in water infrastructure, supporting regulatory compliance and reducing maintenance inspection frequency.

Metallurgy & Steel Mills: In arc furnace and rolling mill environments, high electromagnetic interference from large power electronics and frequent switching transients challenge relay reliability. The SPER-1C1-AAJ’s IEC 61000-4-5 Level 4 surge immunity and EFT immunity ratings ensure stable supervision performance even in the most electrically noisy industrial environments.

Safety and Quality FAQ

Q1: What support terms does the SPER-1C1-AAJ carry?
All SPER-1C1-AAJ units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing including output contact verification, auxiliary supply range testing, and supervision circuit continuity checks before dispatch.

Q2: How is the SPER-1C1-AAJ tested before shipment?
Every unit is subject to outgoing quality inspection: auxiliary supply energization across the full rated voltage range, output relay operation verification, and supervision current injection testing. A test record is available upon request for critical project applications requiring full traceability documentation.

Q3: Is the SPER-1C1-AAJ compatible with existing ABB REF, RET, and RED series protection relays?
Yes. The SPER-1C1-AAJ is designed as a universal trip circuit supervision relay compatible with any protection relay that uses a standard trip coil circuit, including ABB REF615, RET615, RED615, and legacy SPAJ/SPAU series relays. It is also compatible with non-ABB protection relays from Siemens, Schneider Electric, GE, and SEL, provided the trip coil voltage falls within the relay’s rated auxiliary supply range.

Q4: Can KNMKS support long-term supply and replacement for the SPER-1C1-AAJ?
Yes. KNMKS maintains stock of the SPER-1C1-AAJ and equivalent SPER Series variants to support ongoing maintenance, spare parts programs, and emergency replacement requirements. For projects requiring guaranteed long-term supply commitments or frame agreements, please contact our sales team directly to discuss inventory reservation and lead time arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

SPER-1C1-AAJ

Product Family

Relays & Interface

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Interface range

Relays, isolation and signal modules

Common needs

Coil voltage and contact rating

Project support

Panel wiring and signal protection

Inquiry Support

• Relay base and module matching
• Signal isolation and protection options
• Panel accessory inquiry support

What to Send Us

• Brand and exact model number: ABB SPER-1C1-AAJ
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
