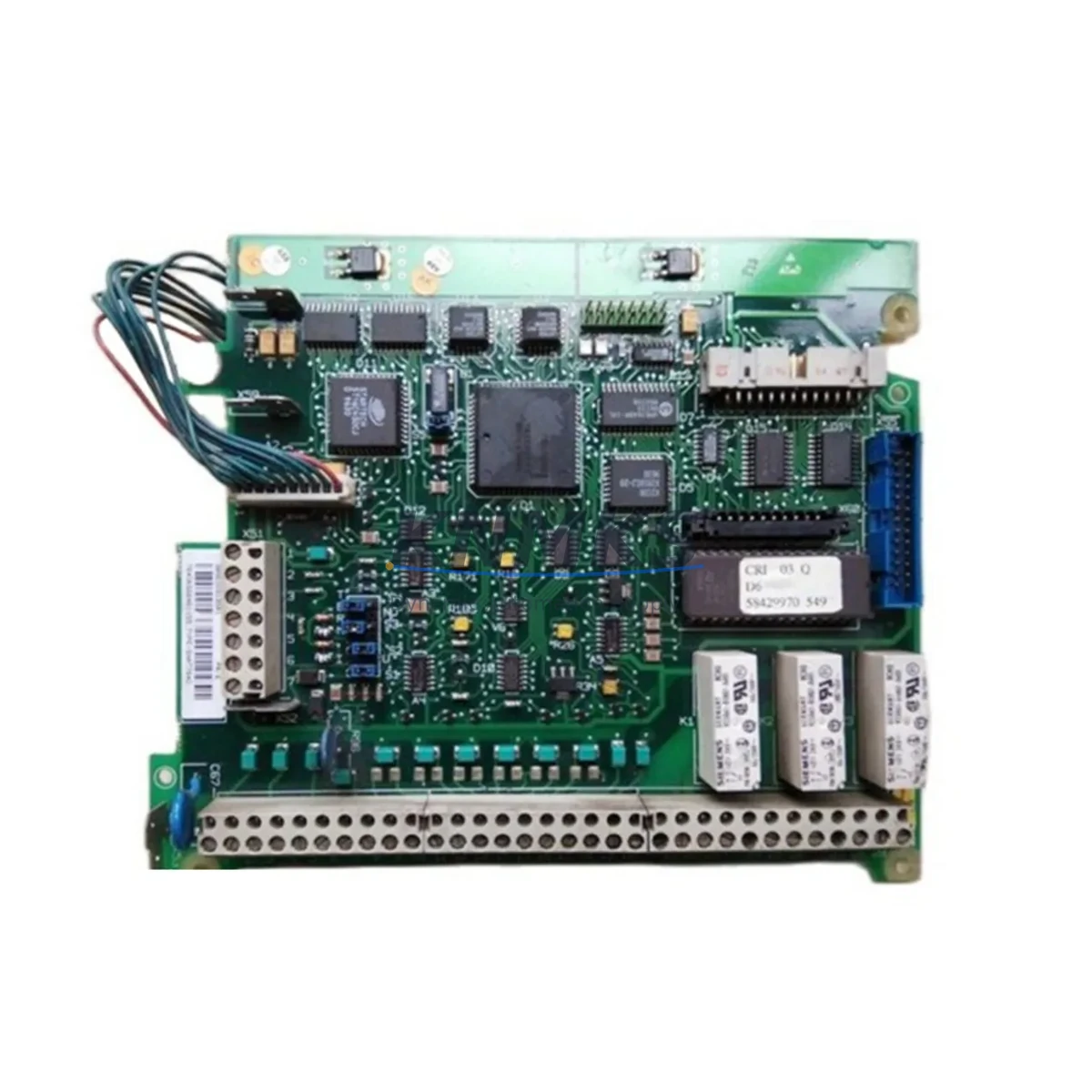

ABB SNAT7640 3BSE003195R1 Migration-Ready AC Drive Card

Overview

ABB SNAT7640 3BSE003195R1 Migration-Ready AC Drive Controller Card: Legacy System Migration and Compatible Upgrade

The ABB SNAT7640 (part number 3BSE003195R1) is a high-performance AC drive controller card engineered for the ACS600 and ACS800 series variable frequency drive platforms. As legacy ACS600 installations continue to age across process industries — including pulp and paper, oil and gas, marine propulsion, and heavy manufacturing — the SNAT7640 has become a critical component in both planned retrofit programs and emergency spare-part replacements. This card governs core drive control functions including speed reference processing, flux control, torque regulation, and fault diagnostics within the SNAT Series control architecture.

For maintenance engineers and automation integrators managing aging drive cabinets, sourcing a verified, tested SNAT7640 replacement is often the difference between a controlled migration and an unplanned production shutdown. KNMKS maintains ready inventory of the SNAT7640 / 3BSE003195R1, with each unit subject to pre-shipment functional testing and backed by a support terms confirmed by quotation.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful SNAT7640 retrofit begins well before the card arrives on site. Engineers should retrieve the full parameter backup from the existing ACS600 or ACS800 drive using DriveWindow or DriveStudio software, and confirm that the backup file is complete and readable before the old card is removed. This parameter set governs motor data, speed references, ramp times, protection thresholds, and application-specific logic — restoring it accurately to the replacement SNAT7640 is the single most important commissioning step.

In multi-drive installations, the SNAT7640 typically operates alongside the NAMC-11 or NAMC-03 application controller board, which handles higher-level application logic and communicates with the SNAT7640 via the internal SNAT bus. If the NAMC board is also aged or showing intermittent faults, it is advisable to evaluate its condition during the same maintenance window rather than risk a second unplanned outage. Similarly, the NDCO-01 DDCS communication adapter, which bridges the drive to a fieldbus master or DCS via fiber-optic DDCS protocol, should be inspected for connector integrity and fiber cable condition.

For sites running PROFIBUS DP or Modbus RTU integration, the RPBA-01 PROFIBUS adapter or RMBA-01 Modbus adapter mounted in the drive’s option slot must be verified for compatibility with the replacement card’s firmware version. A firmware mismatch between the SNAT7640 and the fieldbus adapter can cause communication timeouts that are difficult to diagnose under production pressure.

Power supply integrity is another critical pre-retrofit check. The SNAT Series internal SMPS (switched-mode power supply) board provides regulated DC rails to the controller cards. If the power supply has not been serviced recently, voltage ripple or rail sag under load can cause the new SNAT7640 to exhibit erratic behavior that mimics a card fault. Measuring the +5V, +15V, and −15V rails under loaded conditions before card installation eliminates this variable.

For I/O-intensive applications, the AINT-02 or AINT-14 interface boards handling analog and digital I/O signals should be mapped against the original wiring schedule. Terminal numbering on the SNAT7640 is consistent with the SNAT Series standard, but field wiring modifications made over the years may not match the original documentation. A point-by-point I/O verification before the first motor run prevents nuisance trips and protects downstream equipment.

Finally, HMI panels connected to the drive — whether ABB CDP312R local control panels or SCADA screens pulling drive status via OPC — should be tested for correct data display after the card swap. Speed feedback, current readings, fault codes, and run/stop status must all be confirmed before returning the drive to automatic control.

Downtime Control During System Migration

Minimizing downtime during a SNAT7640 replacement requires a structured pre-outage preparation protocol. The most effective approach is to stage the replacement card on the bench, restore the parameter backup, and perform a bench-level power-on test before the production drive is taken offline. This confirms that the replacement unit is functional and correctly configured, reducing the in-cabinet swap to a mechanical exchange and final I/O verification rather than a full commissioning exercise.

Where a parameter backup is unavailable — a common situation with drives that have been in service for 15 or more years without documented maintenance — the commissioning team must reconstruct the parameter set from motor nameplate data, original engineering drawings, and process knowledge. KNMKS recommends requesting the original ABB commissioning report from the site’s engineering archive, as this document typically contains the as-commissioned parameter list and motor ID run results.

For critical process lines where even a brief interruption is unacceptable, a hot-standby strategy using a pre-configured spare SNAT7640 held in the site’s spare parts store is the most reliable risk mitigation. The spare card should be stored in an ESD-safe enclosure, parameter-loaded, and tested annually to confirm readiness. This approach reduces mean time to repair (MTTR) to under two hours for most ACS600/ACS800 installations.

During the physical swap, observe standard ESD precautions — the SNAT7640 contains sensitive CMOS components that can be damaged by electrostatic discharge even when the drive cabinet is de-energized. Allow the DC bus capacitors to fully discharge (minimum 5 minutes after power-off, confirmed by bus voltage measurement) before handling any internal cards. After installation, perform a controlled no-load test run before reconnecting the mechanical load, and monitor drive current, temperature, and fault registers during the first 30 minutes of loaded operation.

Retrofit Support FAQ

Q1: Is the SNAT7640 / 3BSE003195R1 a direct replacement for the unit currently installed in my ACS600 or ACS800 drive?
Yes. The SNAT7640 with part number 3BSE003195R1 is a direct card-slot replacement for the same model in ACS600 and ACS800 SNAT Series drives. No mechanical modification is required. Firmware version and parameter backup compatibility should be confirmed before installation to ensure seamless operation.

Q2: What pre-shipment testing does KNMKS perform on the SNAT7640?
Each SNAT7640 unit is functionally tested prior to shipment to verify power-on integrity, bus communication, and I/O response. Units are shipped in ESD-safe packaging with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q3: My site does not have a parameter backup. Can the drive still be commissioned after the card replacement?
Yes, but the commissioning process will require reconstruction of the parameter set from motor nameplate data, engineering drawings, and process requirements. A motor identification run (Motor ID) will need to be performed to establish accurate flux and torque control parameters. KNMKS recommends consulting the original ABB commissioning documentation if available, and engaging a qualified ABB drive engineer for sites without backup data.

Q4: How quickly can KNMKS ship the SNAT7640, and is stock available?
KNMKS maintains ready inventory of the SNAT7640 / 3BSE003195R1. Standard lead time is 3–7 business days for international shipments. For urgent breakdown situations, expedited shipping options are available. Contact [email protected] or call +86 18359268345 to confirm current stock and arrange priority dispatch.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

SNAT7640 SNAT 7640 3BSE003195R1
S800 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB SNAT7640 SNAT 7640 3BSE003195R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
