ABB SNAT-7070 Maintenance-Proven Spare Part for Factory Uptime

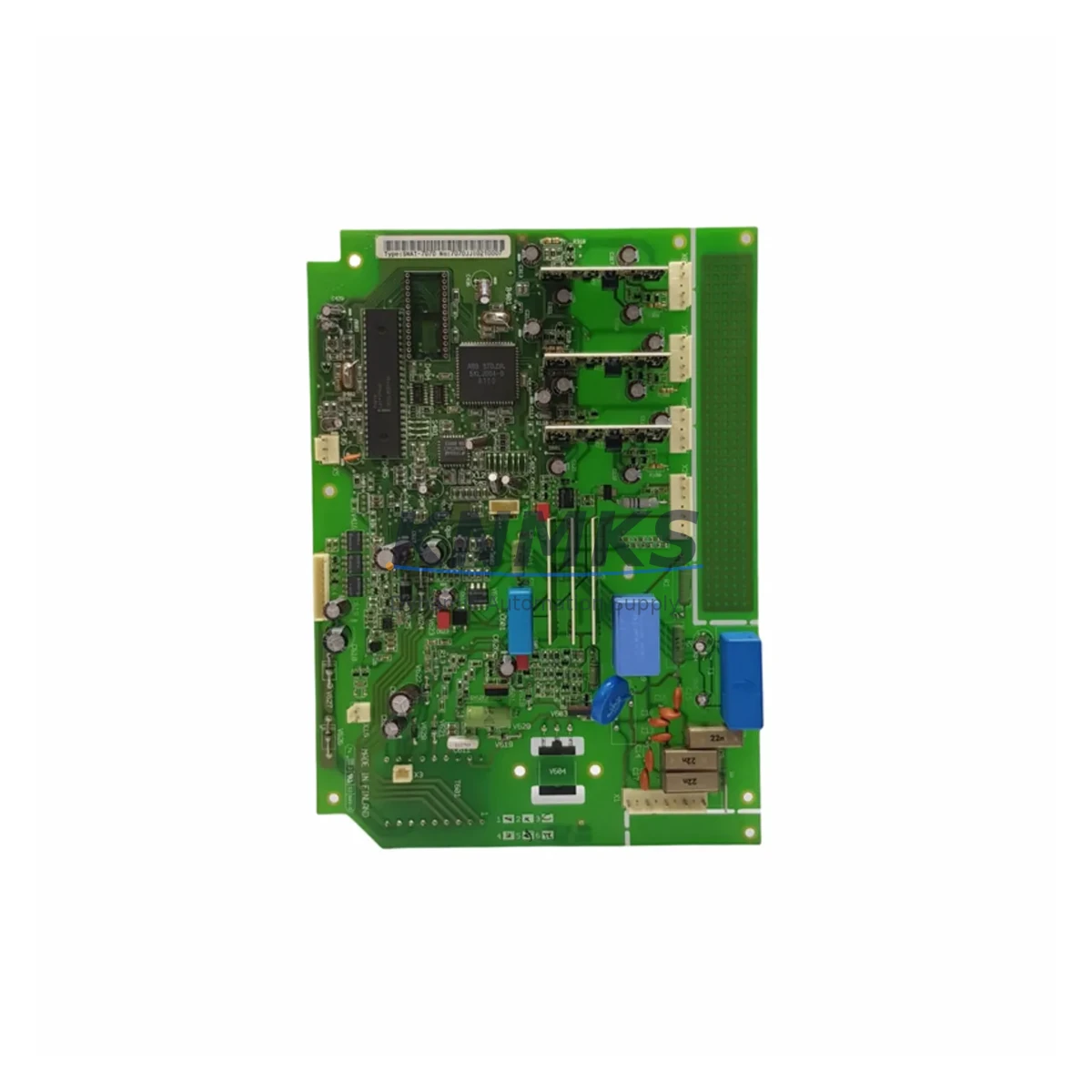

The ABB SNAT-7070 (also referenced as SNAZ 7070 J) is an encoder interface board engineered for ABB ACS800 and ACS600 series variable frequency drives. In high-demand industrial environments — from paper mills and steel processing lines to chemical plants and material handling systems — the SNAT-7070 serves as a critical feedback link between the drive control unit and the motor encoder. Its failure directly impacts speed regulation accuracy, torque control, and closed-loop positioning, making it one of the highest-priority spare parts in any ACS800-based control cabinet.

Sourced as an original ABB spare, each SNAT-7070 unit undergoes pre-shipment functional testing to verify encoder signal integrity, board-level communication, and connector condition before dispatch. With a support terms confirmed by quotation and multi-region stock availability, this board supports both emergency breakdown recovery and planned annual maintenance cycles. Procurement engineers managing legacy ACS800 fleets can rely on consistent supply without the lead-time uncertainty common with discontinued or end-of-life drive components.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the SNAT-7070 encoder interface board during a scheduled or emergency maintenance event, a thorough inspection of the surrounding drive components is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should begin by verifying the integrity of the encoder cable and connector — a degraded or shielded-improperly encoder cable is a common root cause of SNAT-7070 signal faults and should be replaced alongside the board if wear is detected.

The AINT-02C or AINT-11C main control board within the ACS800 cabinet should be inspected for firmware version compatibility and any latent fault codes that may have been masked by the encoder fault. Power supply rails feeding the drive control section — typically the APOW-01C power supply board — should be measured to confirm stable 24 VDC and 5 VDC outputs, as undervoltage conditions accelerate interface board degradation. If the drive is equipped with an RDCO-02 or RDCO-03 DDCS communication module for fieldbus integration, verify that communication parameters remain intact after board replacement.

For drives operating in dusty or high-humidity environments, the I/O terminal block and any connected RAIO-01 analog I/O extension modules should be cleaned and torque-checked. Fuse condition on the drive input section and any upstream MCC (Motor Control Center) protection components should be confirmed before re-energizing. Where the ACS800 interfaces with a DCS or SCADA system via a PROFIBUS or MODBUS adapter, signal continuity tests on the communication wiring should be completed as part of the restoration checklist. Documenting the replacement event with encoder pulse count verification during commissioning ensures the closed-loop control loop is correctly re-established before returning the drive to production.

Site Replacement Workflow

Step 1 — Isolation & Lockout: De-energize the ACS800 drive and apply LOTO (Lockout/Tagout) per site safety procedures. Allow the DC bus to fully discharge (minimum 5 minutes after power-off) before opening the drive cabinet.

Step 2 — Fault Documentation: Record all active and historical fault codes from the ACS800 panel (CDP312R or ACS-CP-C control panel) before removing any boards. Photograph the existing SNAT-7070 installation, connector orientation, and cable routing.

Step 3 — Board Removal: Disconnect the encoder cable connector from the SNAT-7070 board. Release the board retention clips and carefully extract the board from its slot. Inspect the slot connector for bent pins or corrosion.

Step 4 — Replacement Installation: Insert the new SNAT-7070 board into the correct slot, ensuring full connector seating. Reconnect the encoder cable, verifying correct pin assignment against the ACS800 hardware manual (3AFE64527592).

Step 5 — Commissioning & Verification: Re-energize the drive and navigate to the encoder feedback parameters (Group 50 in ACS800 standard program). Verify encoder pulse count, direction, and speed feedback accuracy at low speed before returning to full production load. Clear any residual fault history and confirm no new alarms are generated.

This workflow supports a direct replacement of legacy SNAT-7070 units without requiring drive re-parameterization in most ACS800 standard configurations, minimizing downtime to under two hours for experienced maintenance teams.

Spare Parts Support FAQ

Q1: Is the SNAT-7070 compatible with both ACS800 and ACS600 series drives?
Yes. The SNAT-7070 encoder interface board is designed for use across the ABB ACS800 series and is also referenced in ACS600 maintenance documentation. Always verify the drive hardware revision and slot assignment against the ABB hardware manual before installation to confirm direct compatibility with your specific drive variant.

Q2: What pre-shipment testing is performed on each SNAT-7070 unit?
Each board is functionally tested prior to dispatch, including encoder signal path verification, connector integrity check, and board-level communication validation. Units that do not pass testing are not shipped. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: How should the SNAT-7070 be stored if purchased as a buffer spare?
Store in original anti-static packaging in a dry, temperature-controlled environment (recommended: 10–40°C, <70% RH non-condensing). Avoid proximity to strong magnetic fields or high-vibration areas. Inspect the board annually if held in long-term storage and verify connector condition before installation.

Q4: Can long-term supply of the SNAT-7070 be guaranteed for aging ACS800 fleets?
Multi-region stock is maintained to support ongoing procurement for legacy ACS800 installations. For facilities managing large drive fleets or planning multi-year maintenance contracts, volume reservation and scheduled delivery arrangements are available. Contact the sales team to discuss supply continuity planning for your site.
