ABB SINT4610C Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB SINT4610C Maintenance-Proven Spare Part for Factory Uptime

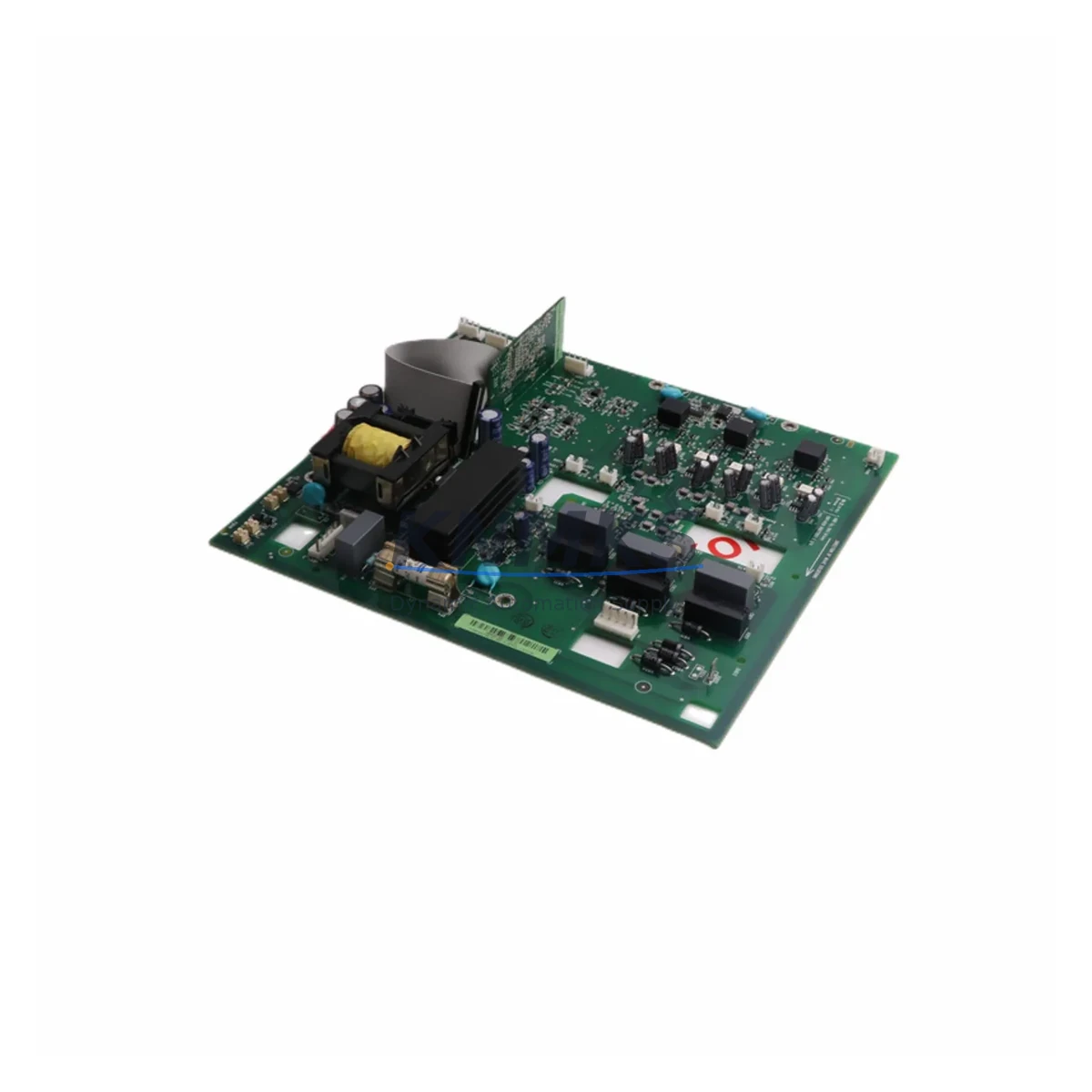

The ABB SINT4610C is an original inverter drive plate designed for the ACS800 series variable frequency drives — one of ABB’s most widely deployed drive platforms in heavy industrial environments. Whether you are managing a scheduled annual overhaul, responding to an unplanned drive fault, or building a strategic spare parts inventory for a critical production line, the SINT4610C is a high-priority component to stock. Its role in the ACS800 power conversion circuit makes it a direct factor in drive availability, motor control precision, and overall line uptime.

Maintenance engineers working with ACS800 drives understand that inverter drive plate failures often manifest as overcurrent trips, IGBT fault codes, or erratic motor behavior under load. When these symptoms appear, rapid identification and replacement of the SINT4610C can mean the difference between a two-hour recovery and a multi-day production halt. Sourcing an original ABB spare — not a counterfeit or unverified aftermarket substitute — ensures that the replacement meets the exact electrical tolerances the ACS800 control system expects.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the SINT4610C in an ACS800 drive, a thorough site inspection of the surrounding electrical system is essential to prevent repeat failures and ensure a clean restart. Maintenance engineers should begin by verifying the integrity of the ACS800 AINT board (the main control interface board), as gate drive faults on the SINT4610C are sometimes triggered by upstream signal anomalies from the AINT rather than a failed drive plate itself.

The DC bus capacitor bank within the ACS800 should be inspected for capacitance degradation — aged capacitors can produce voltage ripple that stresses the inverter drive plate beyond its rated tolerance. Similarly, the RINT rectifier board should be checked for diode integrity and thermal discoloration, as rectifier-side faults can propagate destructive voltage spikes to the SINT4610C.

On the control side, inspect the RDCO-03 or RDCO-04 DDCS communication module if the ACS800 is integrated into a DCS or fieldbus network. Communication faults during a drive restart can mask the true cause of the original trip. The RAIO-01 analog I/O extension module and any connected RTAC-01 pulse encoder interface should also be verified for correct signal levels before returning the drive to service.

Do not overlook the main input fuses and the DC fuse assembly — a shorted IGBT on the drive plate can blow protection fuses that are not immediately visible during a visual inspection. Replacing the SINT4610C without checking fuse continuity risks immediate re-failure on power-up. Finally, confirm that the cooling fan assembly and heatsink thermal interface are in good condition; inadequate cooling is a leading cause of premature drive plate degradation in high-ambient industrial enclosures.

Site Replacement Workflow

Step 1 — Isolate and De-energize: Follow LOTO (Lockout/Tagout) procedures. Confirm DC bus voltage has discharged below 50 V before opening the drive cabinet. ACS800 drives retain dangerous DC bus charge for several minutes after power removal.

Step 2 — Fault Code Documentation: Record all active and historical fault codes from the ACS800 panel or DriveWindow software before clearing. Fault history provides critical diagnostic context that guides the replacement decision and helps confirm whether the SINT4610C is the root cause or a secondary failure.

Step 3 — Board Removal: Disconnect all gate drive signal connectors and power terminals from the SINT4610C. Note connector positions and cable routing with photographs before removal. Handle the board by its edges to avoid ESD damage.

Step 4 — Visual Inspection of Cavity: Before installing the replacement SINT4610C, inspect the drive frame cavity for signs of carbon tracking, burnt insulation, or moisture ingress. Clean the heatsink contact surface and apply fresh thermal compound if required.

Step 5 — Install Replacement: Seat the new SINT4610C, reconnect all signal and power connectors in the documented sequence, and torque all fasteners to specification.

Step 6 — Pre-Power Verification: Perform insulation resistance checks on the motor cable before re-energizing. Confirm all I/O signals are within expected ranges using the ACS800 diagnostic menu.

Step 7 — Controlled Restart: Power up the drive in local control mode at reduced speed reference. Monitor current waveforms and drive temperature for the first 30 minutes of operation before returning to full production load.

This structured replacement workflow minimizes re-failure risk, reduces total downtime, and provides a documented maintenance record that supports long-term asset management for aging ACS800 installations.

Spare Parts Support FAQ

Q1: Is the SINT4610C compatible with all ACS800 drive frame sizes?
The SINT4610C is specific to particular ACS800 frame configurations. Compatibility depends on the drive’s power rating and frame size. Please provide your full ACS800 drive nameplate data (type code and frame designation) when ordering to confirm fitment. Our technical team verifies compatibility before shipment.

Q2: How is the SINT4610C tested before shipment?
Each SINT4610C unit undergoes functional verification prior to dispatch. We inspect for physical integrity, check gate drive signal paths, and confirm the board meets OEM electrical specifications. A test report is available upon request for critical maintenance applications.

Q3: What is the support terms coverage and what does it include?
All SINT4610C units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the ACS800’s rated parameters.

Q4: Can you support long-term or repeat supply of the SINT4610C for fleet maintenance programs?
Yes. We maintain stock of ACS800 series spare parts to support planned maintenance programs, annual shutdowns, and multi-site fleet operations. Blanket orders and scheduled delivery arrangements are available for procurement teams managing large ACS800 drive populations. Contact us to discuss volume pricing and supply agreements.
