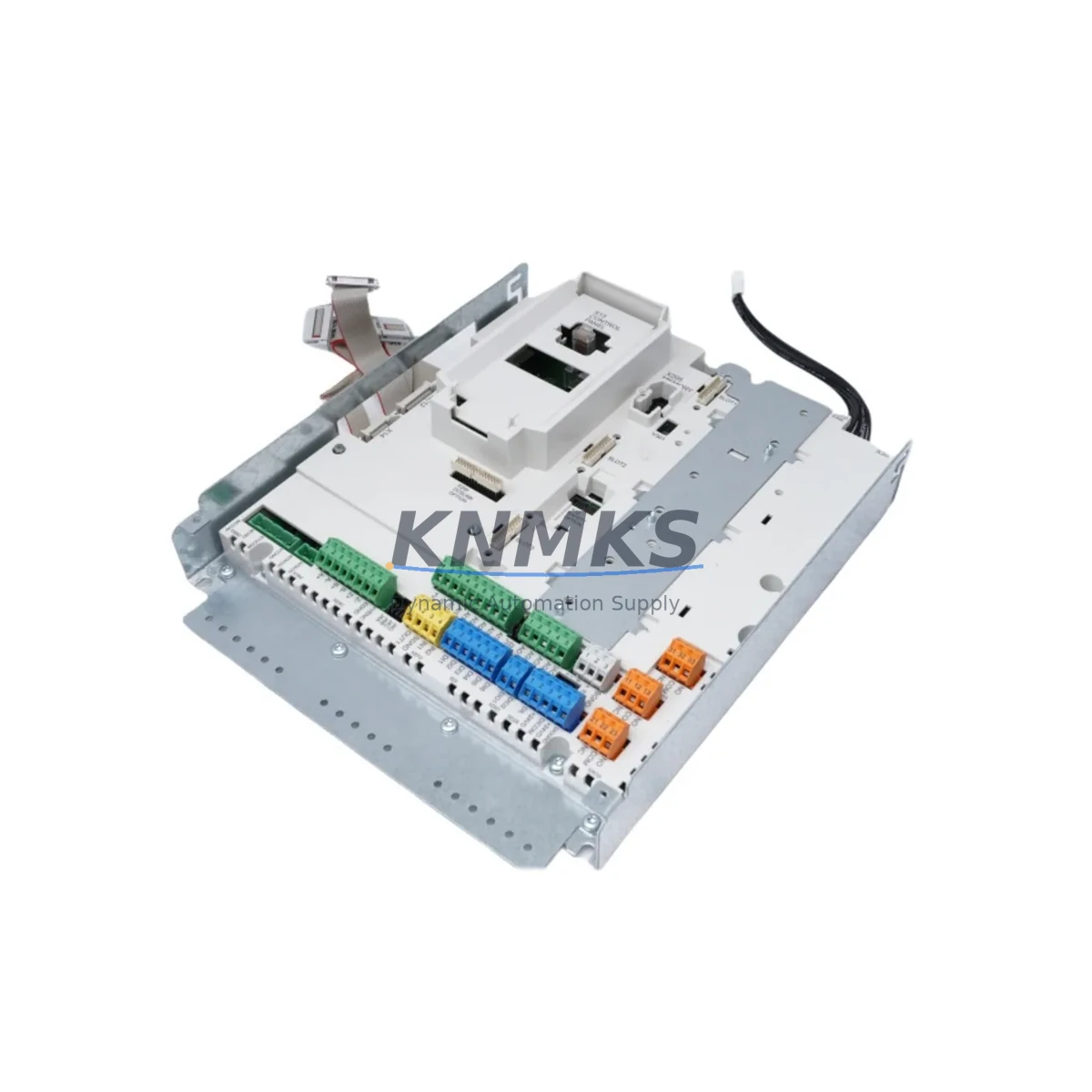

ABB SDCS-CON-H01 3ADT320000R1501 Maintenance-Proven Spare

Overview

ABB SDCS-CON-H01 3ADT320000R1501 Maintenance-Proven Spare for Factory Uptime

The ABB SDCS-CON-H01 (part number 3ADT320000R1501) is the original control board for the ABB DCS800 series DC drive platform — one of the most widely deployed variable-speed DC drive families in heavy industrial environments including steel mills, paper machines, extruders, winding lines, and marine propulsion systems. As a direct replacement for failed or degraded control boards, the SDCS-CON-H01 restores full drive functionality without requiring firmware reconfiguration or hardware adaptation, making it the preferred spare for maintenance engineers managing aging DCS800 installations.

Sourced from verified ABB supply channels and subject to pre-shipment functional testing, each unit is dispatched with a support terms confirmed by quotation covering manufacturing defects and operational failures under normal industrial service conditions. Stock is maintained across regional warehouses to support emergency procurement and planned annual maintenance programs alike.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DCS800 drive trips on a control board fault — typically flagged as fault codes F501, F502, or communication loss alarms — the SDCS-CON-H01 is the primary replacement target. However, experienced maintenance engineers know that a control board failure rarely occurs in isolation. Before returning the drive to service, a structured inspection of the surrounding electrical environment is essential to prevent repeat failures and unplanned downtime.

Begin with the SDCS-POW-1 or SDCS-POW-3 power supply board, which provides the 24 VDC logic rail to the SDCS-CON-H01. A degraded power supply delivering ripple or undervoltage is a common root cause of control board damage. Measure output voltage under load before installing the new control board. Similarly, inspect the SDCS-IOB-3 I/O extension board for burnt traces or failed optocouplers, particularly on digital input channels connected to emergency stop or interlock circuits — these are high-stress signal paths in most drive applications.

Check the DDCS fiber optic communication links connecting the DCS800 to the master controller or NDBU-95 branching unit. Degraded or cracked fiber cables cause intermittent communication faults that can be misdiagnosed as control board failures. Replace any discolored or physically stressed fiber segments as part of the maintenance cycle. If the drive communicates via a SDCS-COM-8 PROFIBUS adapter or equivalent fieldbus module, verify the adapter’s firmware version and connector integrity before commissioning the replacement board.

On the power section side, inspect the DC bus fuses and semiconductor fuses protecting the thyristor bridge. A blown fuse that went undetected can indicate a transient overcurrent event that may have stressed the control board. Replace fuses to rated specification and document the event in the maintenance log. For drives in continuous duty applications such as paper machine sections or winding lines, also verify the condition of the SDCS-FEX-2 field excitation module — field current irregularities can generate feedback signals that overload control board analog input circuits.

Finally, confirm that the drive cabinet ventilation fans and thermal sensors are operational. Elevated ambient temperature inside the cabinet is a leading cause of premature control board failure in high-cycle industrial environments. A complete spare kit for a DCS800 installation should include the SDCS-CON-H01 control board, a SDCS-POW power supply board, at least one set of DC bus fuses, and a spare DDCS fiber cable — this combination covers the majority of field-replaceable fault scenarios and supports a target mean-time-to-repair of under two hours.

Site Replacement Workflow

Replacing the SDCS-CON-H01 in a live production environment requires a structured approach to minimize drive downtime and avoid configuration loss. Before beginning, use the DCS800 DriveWindow or DriveWindow Light software to export the full parameter set from the existing drive. Save the parameter file to a secure location — this backup is critical if the replacement board ships with default firmware settings.

Power down the drive completely and follow lockout/tagout (LOTO) procedures. Discharge the DC bus capacitors and verify zero voltage with a calibrated meter before opening the drive cabinet. Remove the SDCS-CON-H01 by disconnecting all ribbon cables, fiber optic connectors, and the main board connector in the sequence specified in the DCS800 Hardware Manual (3ADW000379). Handle the replacement board with ESD precautions — use a grounded wrist strap and anti-static mat.

Install the new SDCS-CON-H01, reconnect all cables in reverse order, and power up the drive in parameter restore mode. Load the saved parameter file and verify all analog and digital I/O assignments match the original configuration. Run the drive at no-load first, then at reduced load, before returning to full production speed. Document the replacement in the equipment maintenance record, noting the serial number of the removed board and the installation date of the replacement unit.

This workflow is directly applicable to legacy DCS500 installations being migrated to DCS800 hardware — the SDCS-CON-H01 supports back-to-back mechanical and electrical compatibility within the DCS800 platform, eliminating the need for cabinet modifications in most retrofit scenarios.

Spare Parts Support FAQ

Q1: Is the SDCS-CON-H01 3ADT320000R1501 compatible with all DCS800 drive frame sizes?
The SDCS-CON-H01 is the standard control board for the ABB DCS800 series across multiple frame sizes. Compatibility depends on the drive’s firmware version and hardware revision. We recommend confirming the drive’s nameplate data and existing board revision before ordering. Our technical team can assist with compatibility verification based on your drive serial number.

Q2: What pre-shipment testing is performed on each unit?
Each SDCS-CON-H01 unit undergoes functional verification including power-on self-test, communication interface check, and I/O signal integrity testing before dispatch. Units that do not pass all test criteria are not shipped. A test report is available upon request for critical applications.

Q3: Can you support long-term supply for annual maintenance programs?
Yes. We maintain regional stock of the SDCS-CON-H01 and can support blanket purchase orders for annual maintenance programs, ensuring guaranteed availability and fixed pricing over a defined contract period. This is particularly valuable for facilities operating multiple DCS800 drives where a single control board failure can affect production output.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and operational failures under normal industrial service conditions from the date of dispatch. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental limits. Support requests are processed with priority turnaround to minimize impact on production schedules.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

SDCS-CON-H01 3ADT320000R1501
S800 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB SDCS-CON-H01 3ADT320000R1501
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
