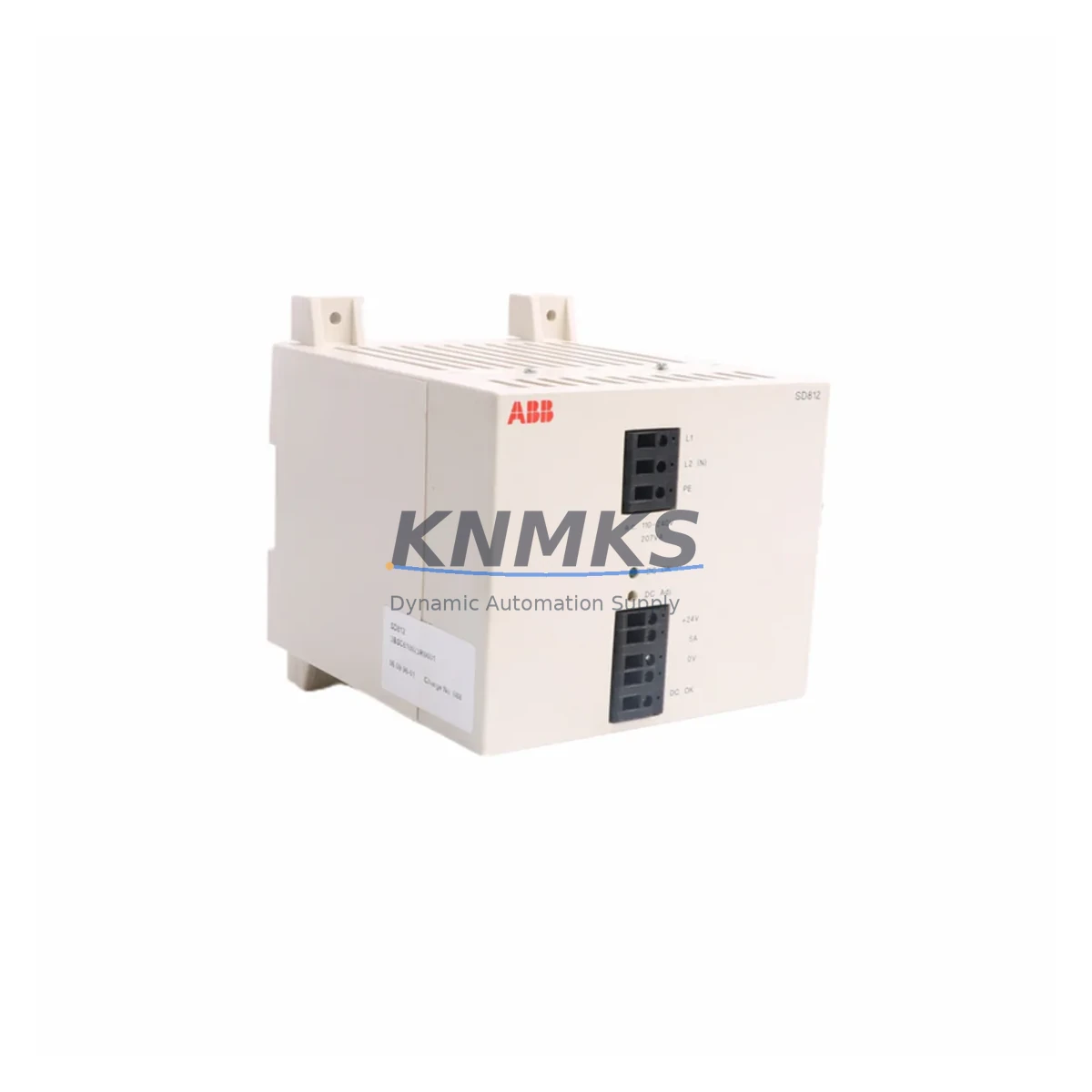

ABB SD812 3BSC610023R0001 Migration-Ready Power Supply

Overview

ABB SD812 3BSC610023R0001 Migration-Ready Power Supply for Legacy Control Systems

The ABB SD812 (3BSC610023R0001) is a 24 VDC power supply module designed for the ABB AC500 PLC platform, widely deployed in legacy process automation, machine control, and building management systems. As original equipment reaches end-of-life and spare parts become increasingly scarce, the SD812 remains a critical component for engineers managing brownfield retrofits, control cabinet upgrades, and system continuity programs. Whether you are replacing a failed unit in an aging production line or pre-stocking inventory for a multi-site maintenance contract, the SD812 provides a verified drop-in solution that minimizes engineering rework and reduces unplanned downtime.

The SD812 mounts directly onto the AC500 CPU rack and interfaces with the PM5xx and PM5xx-ETH CPU modules through the standard backplane connector. Its compact form factor is compatible with the TB5xx terminal base family, making it straightforward to integrate into existing cabinet layouts without requiring additional DIN rail space or wiring modifications. Engineers migrating from earlier AC31 or S500 control architectures will find that the SD812 supports the same 24 VDC bus topology, simplifying the transition while preserving existing field wiring and I/O termination points.

Before installation, it is essential to verify the total power budget of the target rack. The SD812 supplies a defined current capacity to the backplane; when combined with communication modules such as the CM572-DP PROFIBUS master or the CM589-PNIO PROFINET adapter, plus digital and analog I/O modules like the DC532 or AX522, the aggregate load must remain within the module’s rated output. Failure to account for the full rack load is one of the most common causes of intermittent faults during retrofit commissioning. A detailed power budget calculation, referencing the AC500 System Technology manual, should be completed before ordering replacement units.

Terminal wiring compatibility is another key consideration. The SD812 connects to the 24 VDC supply through the TB5xx terminal base, and the input voltage range must be confirmed against the site’s panel power supply output. In installations where the original panel supply has been upgraded or replaced, the input ripple and voltage tolerance of the SD812 should be cross-checked to avoid nuisance tripping or premature module failure. Where the existing wiring uses ferrules or specific terminal torque specifications, these should be maintained during replacement to comply with the original installation standard.

Program compatibility is preserved across SD812 replacements because the module does not store application logic; all PLC programs reside in the CPU module’s flash memory or on the SD card slot of the PM5xx series. This means a direct hardware swap of the SD812 does not require a program reload or re-download in most cases, significantly reducing the risk window during live system maintenance. However, engineers should confirm the firmware version of the resident CPU module — particularly for PM564-T and PM566-T variants — to ensure compatibility with any recent Automation Builder software updates applied to the project file.

For sites running Modbus TCP, PROFIBUS DP, or CANopen communication networks, the SD812 replacement does not affect the communication layer directly, as protocol handling is managed by the dedicated CM-series communication modules. Nevertheless, a full communication link check — including node address verification, baud rate confirmation, and network diagnostic scan — is recommended after any power supply replacement to confirm that all slave devices have re-established their connections correctly following the power cycle.

HMI screen updates are typically not required following an SD812 swap, provided the CPU module retains its IP address and the HMI project references the controller by fixed IP rather than hostname. For installations using CP600 or CP620 operator panels connected via Ethernet, a brief communication timeout may occur during the power cycle, which should be accounted for in the maintenance window planning. Operators should be informed of the expected restart sequence to avoid false alarm acknowledgements during the transition.

All SD812 3BSC610023R0001 units supplied by KNMKS are sourced from verified industrial channels, individually inspected, and subjected to pre-shipment functional testing to confirm output voltage stability, backplane interface integrity, and thermal performance under load. Each unit is covered by a support terms confirmed by quotation from the date of shipment. Stock is maintained to support both immediate replacement orders and longer-term supply agreements for multi-site maintenance programs requiring 12 to 36 months of forward inventory coverage.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful SD812 retrofit begins with a complete audit of the existing rack configuration. In a typical AC500 installation, the CPU rack may host a PM564-T or PM566-T processor module alongside a CM572-DP PROFIBUS master module, one or more DC532 digital input/output modules, and an AX522 analog I/O module. The SD812 must supply sufficient current to all installed modules simultaneously; any expansion of the I/O complement since the original commissioning date should be factored into the power budget review.

Where the original installation includes a TB5600 terminal base or a TB5650 terminal base with extended I/O capacity, the physical mounting and wiring interface of the SD812 remains unchanged, allowing the replacement to proceed without disturbing field wiring. Engineers should photograph the existing wiring arrangement before removal and verify that all terminal screws are re-torqued to specification after installation of the replacement module.

For control cabinets that also house a CP635 touch panel HMI or a legacy CP430 operator panel, the power supply replacement should be coordinated with the HMI operator to ensure that any active alarm states are acknowledged and logged before the power cycle. After restoration, the HMI communication link to the AC500 CPU should be verified by navigating to the diagnostic screen and confirming that all configured data points are updating correctly.

In multi-rack configurations where a TB5600 expansion rack is connected to the main CPU rack via the internal bus, the SD812 in the main rack must be sized to account for the combined load of both racks. If the expansion rack uses its own dedicated power supply module, the inter-rack bus current draw should still be included in the main rack power budget calculation to avoid marginal loading conditions that may not manifest immediately but can cause intermittent faults under peak load.

Downtime Control During System Migration

Minimizing downtime during an SD812 replacement requires preparation before the maintenance window opens. The recommended approach is to export and archive the current PLC project from Automation Builder before any hardware work begins, ensuring that a verified backup of the application logic, hardware configuration, and communication settings is available in the event of an unexpected issue during the swap.

Because the SD812 does not store application data, the replacement procedure is limited to a controlled power-down of the rack, physical module exchange, re-torquing of terminal connections, and a supervised power-up sequence. In most installations, the total intervention time from power-down to confirmed normal operation is under 30 minutes, provided that the replacement module has been pre-tested and all tools and documentation are staged in advance.

For processes where even a brief interruption is operationally sensitive, a cold standby strategy using a pre-configured spare SD812 held in the local maintenance store is the most effective risk mitigation. KNMKS supports this approach by offering forward stocking agreements that place verified, tested units at the customer’s facility under a 12-month rolling support terms, eliminating the lead time risk associated with emergency procurement from the open market.

After power restoration, the sequence of checks should include: confirmation of CPU module RUN status, verification of all I/O module diagnostic LEDs, a communication network scan to confirm all PROFIBUS or PROFINET slave devices are online, and a review of the HMI alarm summary to confirm no latent faults were triggered during the power cycle. This structured restart protocol protects the integrity of the original control logic and ensures that the system returns to its pre-maintenance operating state without residual configuration drift.

Retrofit Support FAQ

Q: Is the ABB SD812 3BSC610023R0001 a direct replacement for the original module without any configuration changes?
A: Yes. The SD812 is a direct hardware replacement within the AC500 platform. No changes to the PLC program, hardware configuration file, or communication settings are required. The CPU module retains all application data independently of the power supply module.

Q: What pre-shipment testing is performed on each SD812 unit?
A: Each unit undergoes output voltage stability testing, backplane interface verification, and thermal performance assessment under simulated load conditions before dispatch. A test record is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q: Can the SD812 be used in an AC500 rack that also hosts CM572-DP and multiple I/O modules?
A: Yes, provided the total rack current draw does not exceed the SD812’s rated output capacity. A power budget calculation referencing the AC500 System Technology manual is recommended before installation, particularly in racks with a high density of analog I/O modules such as the AX522.

Q: What is the available stock lead time and can long-term supply agreements be arranged?
A: Units are held availability confirmed by RFQ for immediate dispatch with global shipping. For maintenance programs requiring 12 to 36 months of forward inventory coverage, KNMKS offers supply agreements that guarantee unit availability and pricing stability. Contact [email protected] or call +86 18359268345 to discuss your requirements.
