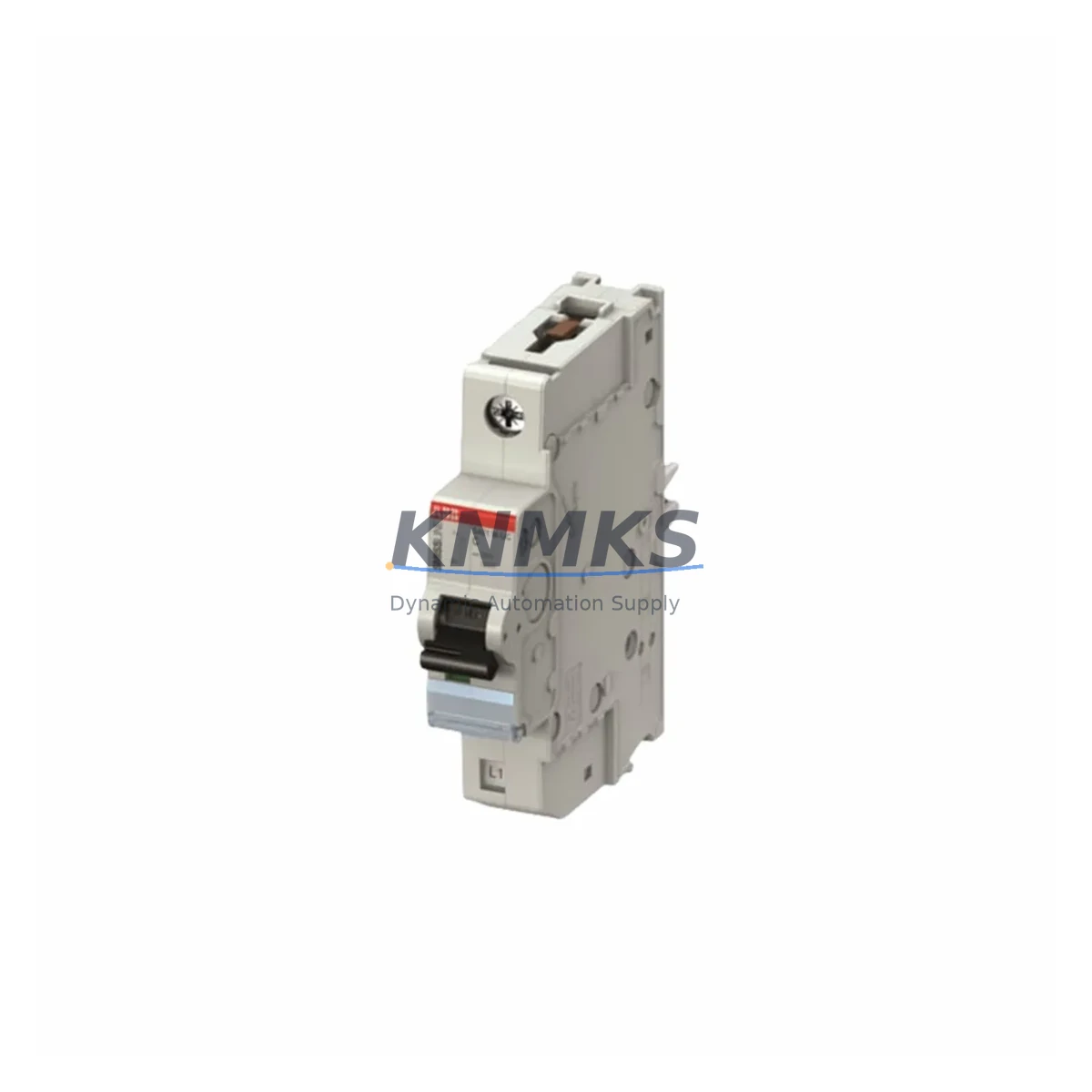

ABB S401M-UCC25 Migration-Ready MCB for Legacy Control Systems

Overview

ABB S401M-UCC25 Migration-Ready MCB for Legacy Control Systems

The ABB S401M-UCC25 is a 1-pole, 25 A, 10 kA miniature circuit breaker from the S400M UCC series, manufactured to IEC 60898-1 and designed as a direct, migration-ready replacement for aging S400M-series protection devices in legacy industrial control panels, motor control centers (MCCs), and distribution boards. With DIN EN 50022 rail mounting and a C-curve trip characteristic, the S401M-UCC25 is the preferred drop-in upgrade for facilities managing end-of-life circuit protection across automation cabinets, PLC power distribution rails, and field panel assemblies.

When engineering teams plan a control system retrofit — whether migrating from an older ABB SACE Isomax distribution architecture, upgrading a legacy Siemens SIMATIC S7-300 power distribution cabinet, or modernizing a Schneider Electric Altivar drive panel — circuit protection at the incoming supply and branch circuit level is a critical first step. The S401M-UCC25 addresses this need directly: it occupies the same DIN rail footprint as its predecessors, requires no busbar modification, and is fully compatible with ABB’s existing accessory ecosystem including auxiliary contacts, shunt trips, and surge arresters.

Before committing to a replacement order, engineering teams should verify the following parameters against the existing installation: rated current (25 A confirmed), number of poles (1P), breaking capacity (10 kA at 230/400 V AC), trip curve (C-curve for general-purpose and motor branch circuits), terminal torque specifications (typically 2–3 N·m for solid and stranded conductors up to 25 mm²), and DIN rail clip condition. In panels where the original MCB was paired with an ABB S2C-H6R auxiliary contact block or an ABB SH201 surge protective device, these accessories remain mechanically and electrically compatible with the S401M-UCC25 without adapter plates.

For legacy systems where the original S400M-series MCBs have reached end-of-support and spare parts are no longer available through standard distribution channels, the S401M-UCC25 provides a validated migration path. Facilities running ABB AC500 PLCs with distributed I/O racks, or those operating Honeywell Experion PKS field controller cabinets, frequently require branch circuit protection upgrades as part of a broader panel modernization. In these environments, the S401M-UCC25 can be installed alongside ABB’s CP range of DIN rail power supplies and ABB’s S800 I/O modules without requiring changes to the cabinet’s internal wiring harness or terminal block layout.

Communication protocol migration projects — particularly those transitioning from PROFIBUS DP to PROFINET or from Modbus RTU to EtherNet/IP — often require simultaneous cabinet upgrades that include replacing aged circuit protection. The S401M-UCC25 is routinely specified in these projects because its compact 17.5 mm width per pole preserves installation space for new communication modules, gateway devices, and managed Ethernet switches that must be accommodated within the existing cabinet footprint. Engineers should confirm available DIN rail space and verify that the new MCB’s depth (68 mm) does not conflict with cable duct routing or door-mounted HMI panels.

Firmware and program compatibility are not directly affected by MCB replacement; however, teams should document the pre-retrofit power distribution topology and verify that the replacement MCB’s trip curve does not introduce nuisance tripping under the inrush current profiles of connected loads — particularly variable frequency drives such as the ABB ACS580 or Schneider Altivar Process ATV630, which can draw 6–8× rated current during startup. A C-curve characteristic is appropriate for most of these applications, but D-curve variants should be evaluated for high-inrush motor loads exceeding 10× rated current.

All S401M-UCC25 units supplied by KNMKS are pre-shipment tested, verified against ABB factory specifications, and covered by a support terms confirmed by quotation from the date of dispatch. Multi-region stock is maintained to support emergency replacement orders and scheduled outage windows with short lead times.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins with a complete audit of the existing panel’s power distribution architecture. For cabinets housing ABB AC500 PLCs with CI502-PNIO PROFINET communication modules or TB5600 terminal base assemblies, the incoming supply protection must be sized to handle both the controller’s continuous draw and the transient demands of connected I/O modules. The S401M-UCC25 is well-suited for branch circuits supplying 24 VDC SMPS units — such as the ABB CP-E 24/5.0 DIN rail power supply — which in turn power distributed I/O racks and field instruments.

In panels where legacy Yokogawa CENTUM VP field control stations are being modernized, engineers frequently replace the entire low-voltage distribution section, including MCBs, terminal blocks, and cable ducts. The S401M-UCC25 can be installed in these panels alongside Weidmüller or Phoenix Contact terminal blocks without requiring changes to the existing wiring harness. Signal isolators — such as the ABB ISOFACE range or equivalent Pepperl+Fuchs barriers — installed on the same DIN rail section are not affected by the MCB replacement.

For GE Mark VI turbine control system upgrades, where the I/O marshalling cabinets are being re-engineered to accommodate new PROFINET-based I/O modules, the S401M-UCC25 provides reliable branch circuit protection for the 230 V AC supply rails feeding the new I/O infrastructure. Engineers should verify that the existing cable duct routing allows for the MCB’s 68 mm depth and that the DIN rail section is mechanically sound before installing the replacement unit.

Programming cable connections — such as USB-to-RS232 adapters used for legacy PLC programming sessions — and HMI panel power supplies should be protected on separate branch circuits. The S401M-UCC25 is appropriate for these low-current branch circuits, and its compact form factor allows multiple units to be installed side-by-side in space-constrained retrofit panels without requiring a larger enclosure.

Downtime Control During System Migration

Minimizing unplanned downtime during MCB replacement requires a structured pre-outage preparation process. Before the scheduled maintenance window, engineering teams should photograph the existing wiring topology, label all conductors connected to the outgoing terminals of the legacy MCB, and verify that the replacement S401M-UCC25 is on-site and has passed a pre-installation visual inspection. A calibrated trip injection tester should be available to perform a functional verification immediately after installation and before the circuit is re-energized.

The original PLC program logic does not require modification for an MCB replacement; however, teams should confirm that the control system’s power-on sequence is documented and that any UPS or battery-backed modules — such as those in ABB AC500 eCo controllers or Honeywell Experion C300 field controllers — are in a known state before the supply is interrupted. HMI screens should be reviewed to confirm that any power-loss alarms or interlock conditions triggered by the outage will not cause unintended actuator movements when the supply is restored.

Communication links — particularly PROFIBUS DP segments or Modbus RTU networks that pass through the panel being worked on — should be documented and their termination resistor states confirmed before the outage. After the S401M-UCC25 is installed and the circuit is re-energized, the communication link should be verified by checking the diagnostic LEDs on the connected communication modules and confirming that all remote I/O nodes have returned to normal operation before releasing the system to production.

KNMKS maintains multi-region stock of the S401M-UCC25 to support emergency replacement scenarios where an unplanned MCB failure has caused an unscheduled outage. Express dispatch is available from our Xiamen warehouse, with same-day shipping for orders confirmed before 14:00 CST. All units are dispatched with a pre-shipment test certificate and a support terms confirmed by quotation, ensuring that the replacement unit meets ABB factory specifications before it reaches the installation site.

Retrofit Support FAQ

Q1: Is the ABB S401M-UCC25 a direct drop-in replacement for all S400M-series 1P 25A MCBs?
A: Yes, for standard S400M UCC-series 1P 25A C-curve variants. The S401M-UCC25 shares the same DIN rail footprint (17.5 mm per pole), terminal capacity (up to 25 mm²), and accessory interface as the legacy S400M range. Verify the trip curve and breaking capacity of the original unit before ordering to confirm compatibility with your specific installation.

Q2: What commissioning steps are required after installing the S401M-UCC25?
A: After mechanical installation and conductor re-termination (torque to manufacturer specification, typically 2–3 N·m), perform a visual inspection to confirm correct rail engagement and accessory clip seating. Use a calibrated trip injection tester to verify the trip time at 1.13× and 1.45× rated current before energizing the protected circuit. Document the test results and retain them as part of the panel’s maintenance record.

Q3: Can the S401M-UCC25 be used with existing ABB auxiliary contacts and shunt trip accessories from the S400M range?
A: Yes. The S401M-UCC25 is compatible with ABB’s S2C-H6R auxiliary contact blocks and standard shunt trip accessories designed for the S400M series. Confirm mechanical engagement of the accessory clip before energizing. If the existing accessory shows signs of wear or damage, replace it simultaneously with the MCB to avoid a repeat outage.

Q4: What is the support terms coverage and how does KNMKS handle DOA (dead-on-arrival) units?
A: All S401M-UCC25 units supplied by KNMKS carry a support terms confirmed by quotation from the date of dispatch, backed by a pre-shipment test certificate. In the event of a DOA unit, contact [email protected] with the order reference and test results. KNMKS will arrange priority replacement dispatch from multi-region stock to minimize your downtime exposure.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

S401M-UCC25
Legacy Control Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: ABB S401M-UCC25
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
