ABB RMIO-11C 3AUA0000035408 Migration-Ready I/O Board: Legacy System Retrofit & Compatibility Upgrade

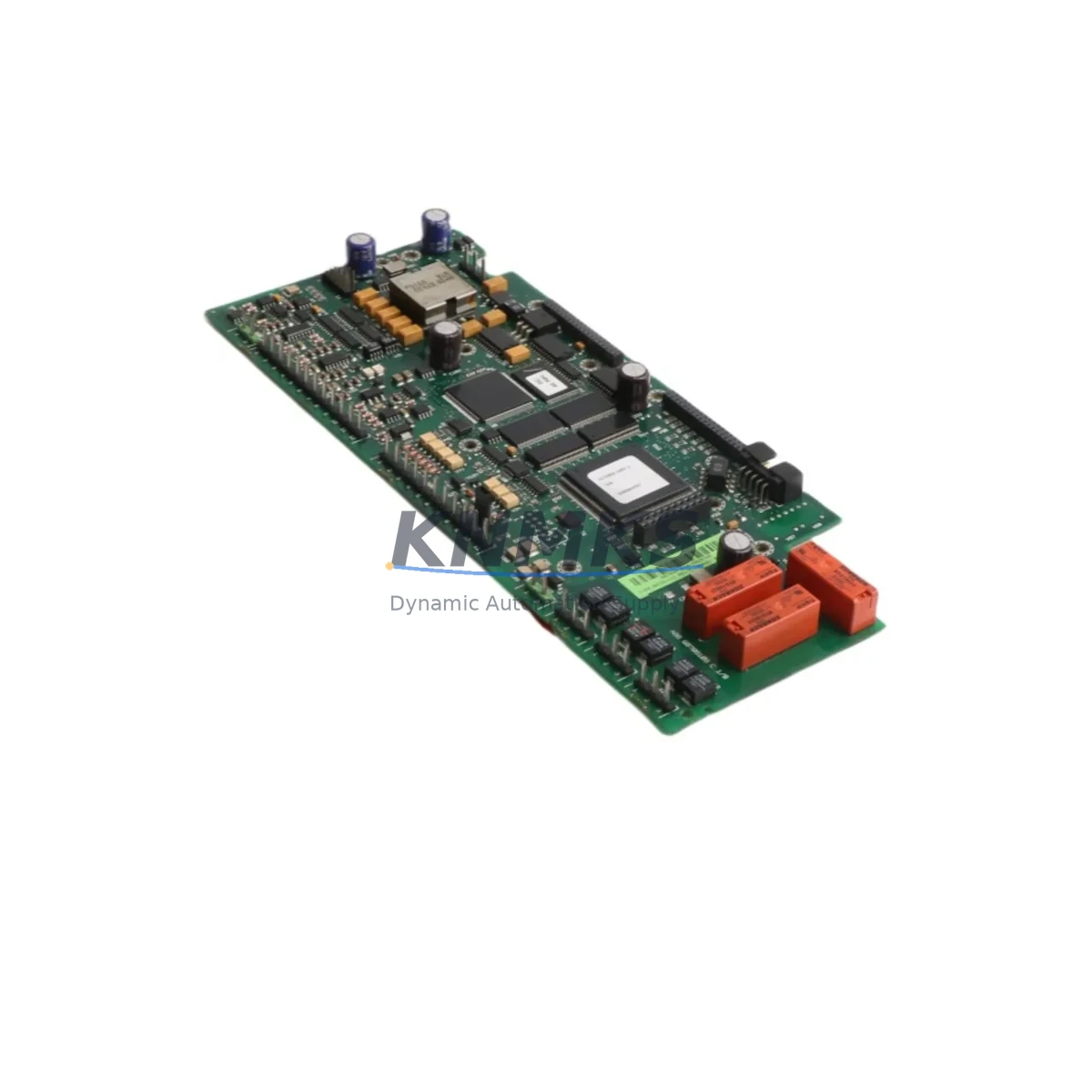

The ABB RMIO-11C (part number 3AUA0000035408) is a dedicated I/O and control interface board engineered for the ACS800 series variable frequency drive platform. As industrial facilities worldwide face the challenge of maintaining aging automation infrastructure, the RMIO-11C has become a critical component in legacy system migration projects — enabling engineers to restore full drive functionality without replacing the entire ACS800 cabinet or rewriting established control logic.

This board serves as the primary communication and I/O interface within the ACS800 drive, managing analog and digital signal routing, fieldbus communication, and real-time control feedback. When the original RMIO-11C fails or reaches end-of-service life, the consequences can include unplanned production shutdowns, loss of process control, and costly emergency procurement. Sourcing a verified replacement from KNMKS ensures continuity of operations with a board that has been functionally tested prior to shipment.

Before initiating a retrofit or replacement, engineers should confirm several key parameters: the existing power supply rail voltage within the drive cabinet (typically 24 VDC auxiliary), terminal block wiring assignments for analog inputs (AI1–AI3) and digital inputs (DI1–DI6), and the fieldbus adapter slot configuration. The RMIO-11C interfaces directly with the ACS800 main circuit board via the drive’s internal backplane connector — physical alignment and connector seating must be verified during installation. If the drive is equipped with an RDCO-01 or RDCO-02 DDCS fiber optic communication module, the fiber connections to the RMIO-11C must be re-routed and re-addressed following board replacement.

Firmware compatibility is another critical checkpoint. The RMIO-11C operates under the ACS800 standard application program, and the firmware version stored on the drive’s flash memory must be compatible with the replacement board’s hardware revision. In most retrofit scenarios, the existing firmware can be retained; however, if the drive was previously running a customized application macro, the parameter set — including motor nameplate data, PID tuning values, and speed reference scaling — should be backed up using the ACS800 control panel (ACS-CP-C or ACS-CP-D) or the DriveWindow Light PC tool before the board is swapped.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful RMIO-11C retrofit begins well before the replacement board arrives on site. The first step is a full audit of the existing ACS800 drive cabinet: document the current terminal wiring layout, photograph the existing board position and fiber optic routing, and record all drive parameters using the control panel. In multi-drive systems — for example, a production line running four or more ACS800 units coordinated via a DDCS fiber ring — the RMIO-11C in each drive must be individually addressed, and the RDCO-02 DDCS communication module node addresses must be re-confirmed after any board change to prevent communication conflicts on the fiber network.

For facilities upgrading from older ACS600 or DCS600 platforms to the ACS800 architecture, the RMIO-11C plays a central role in the I/O migration strategy. The analog signal scaling and digital input logic that previously resided in the ACS600’s NAMC control board must be re-mapped to the RMIO-11C’s terminal assignments. In many cases, the existing field wiring can be reused with minor terminal adapter changes, significantly reducing retrofit labor costs.

When the ACS800 drive is integrated into a PLC-controlled system — for example, a Siemens S7-300 or Allen-Bradley ControlLogix managing multiple drives via PROFIBUS-DP — the RMIO-11C’s fieldbus adapter slot must be populated with the correct RPBA-01 PROFIBUS adapter module. After board replacement, the PROFIBUS node address must be re-set on the adapter and confirmed in the PLC’s hardware configuration. Similarly, if the drive communicates via Modbus RTU to a SCADA system or HMI panel (such as an ABB CP600 or Siemens TP700), the communication parameters — baud rate, parity, and drive address — must be re-entered and verified before returning the drive to automatic mode.

I/O expansion requirements should also be assessed during the retrofit planning phase. If the existing control scheme requires more than the RMIO-11C’s native six digital inputs, an RAIO-01 analog I/O extension module or an RDIO-01 digital I/O extension module can be added to the drive’s option slot, providing additional signal capacity without modifying the main control board. Signal isolators between the field instruments and the RMIO-11C analog inputs are recommended in environments with high electrical noise, such as those near large motor starters or welding equipment.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any RMIO-11C replacement project. The recommended approach is to complete all preparation work — parameter backup, wiring documentation, spare parts staging, and firmware version verification — during a scheduled maintenance window rather than during an emergency breakdown. When a board failure occurs unexpectedly, having a pre-tested RMIO-11C availability confirmed by RFQ at the facility can reduce drive-down time from days to under two hours.

During the physical board swap, the ACS800 drive must be fully de-energized and the DC bus discharged before the control board is removed. The discharge time for larger ACS800 frames (R6 and above) can exceed five minutes; this must be confirmed with a DC bus voltage measurement before any internal work begins. Once the replacement RMIO-11C is seated and secured, the parameter set should be restored from the backup before the drive is powered up. If a parameter backup was not available prior to the failure, the motor nameplate data and key application parameters must be re-entered manually — a process that typically requires 30 to 60 minutes for an experienced commissioning engineer.

To protect the original program logic and HMI screen configurations, it is strongly recommended to maintain a current parameter backup file for every ACS800 drive in the facility. The DriveWindow Light software (available from ABB) can store complete parameter sets and restore them to a replacement board in minutes, preserving all speed references, PID configurations, fault history settings, and I/O assignments. This approach ensures that the control system returns to its pre-failure state without requiring a full recommissioning cycle, keeping production interruption to an absolute minimum.

Retrofit Support FAQ

Q1: Is the RMIO-11C (3AUA0000035408) a direct drop-in replacement for the earlier RMIO-11 and RMIO-01C boards?
A: Yes. The RMIO-11C is the current production revision and is backward compatible with all ACS800 drive frames that previously used the RMIO-11 or RMIO-01C. Terminal assignments, backplane connector pinout, and firmware compatibility are maintained across revisions. No mechanical modification to the drive cabinet is required.

Q2: What commissioning steps are required after installing the replacement board?
A: After physical installation, restore the parameter backup via the ACS-CP-C or ACS-CP-D control panel, or use DriveWindow Light via the drive’s RS-232 service port. Verify motor nameplate parameters (Group 99), confirm I/O assignments (Groups 10–15), re-set the fieldbus adapter address if applicable, and perform a no-load test run before returning the drive to production. Total commissioning time is typically 1–3 hours depending on system complexity.

Q3: How do I verify wiring compatibility before the replacement board arrives?
A: Document the existing terminal block wiring on the current RMIO-11C using the ACS800 Hardware Manual (3AFE64382101). The terminal layout on the RMIO-11C is standardized across all ACS800 frames, so existing field wiring can be transferred directly to the replacement board without modification. Photograph the existing wiring before removal as a reference during reinstallation.

Q4: What does the support terms confirmed by quotation cover, and what is the stock availability?
A: All RMIO-11C boards supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to dispatch, and a test report is available upon request. Stock is maintained for immediate dispatch; lead time for in-stock units is typically 1–3 business days. Contact [email protected] or +86 18359268345 for real-time stock confirmation and expedited shipping options.
