ABB RMIO-01C Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB RMIO-01C Maintenance-Proven Spare Part for Factory Uptime

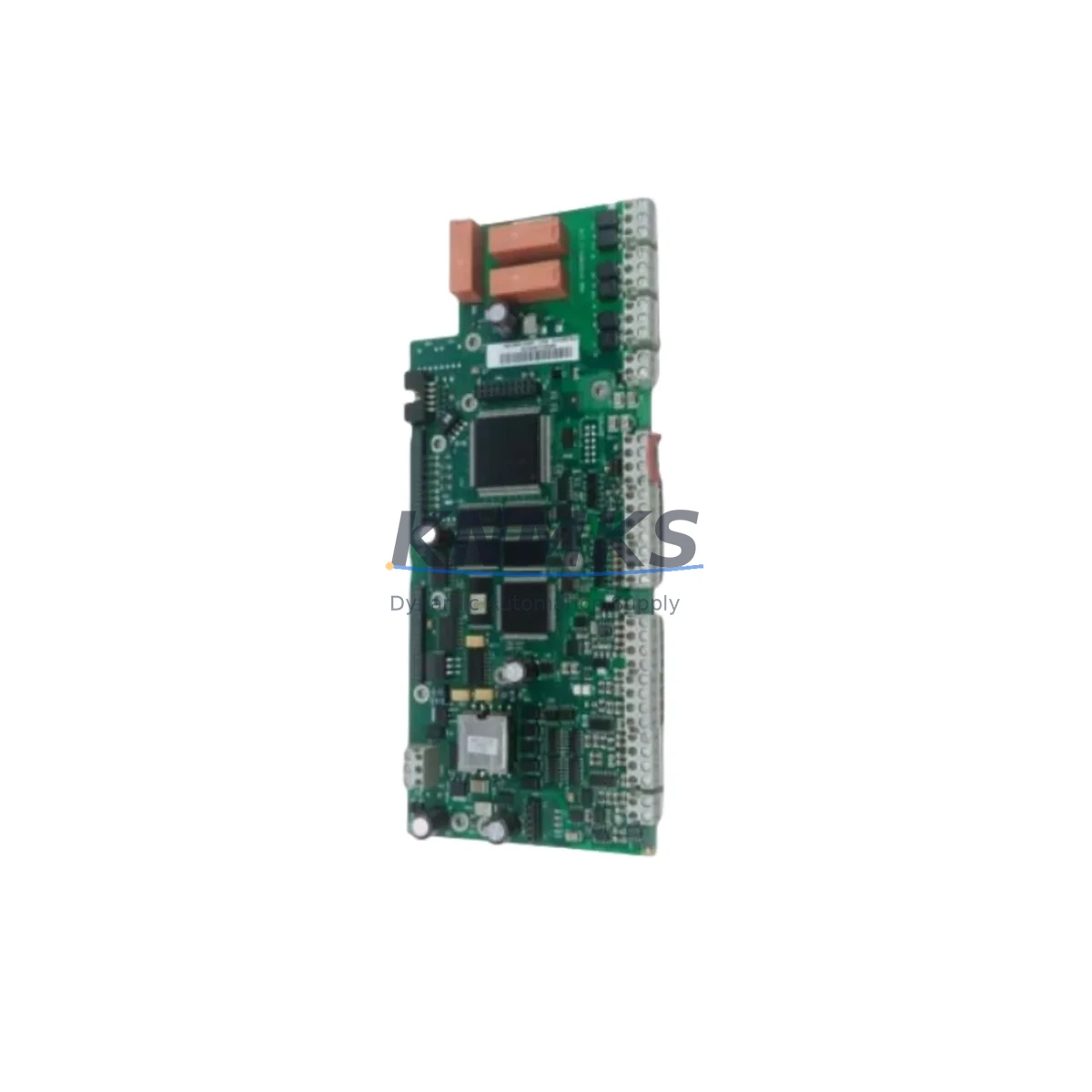

The ABB RMIO-01C is the main control board for the ACS800 series variable frequency drive, one of ABB’s most widely deployed drive platforms across petrochemical, power generation, water treatment, mining, and heavy manufacturing facilities. As a core intelligence module governing motor control logic, I/O processing, fieldbus communication, and drive protection functions, the RMIO-01C is a critical spare part for any maintenance team operating ACS800 drives in continuous-process or high-uptime environments.

When an ACS800 drive trips on a fault code pointing to control board failure — such as FF52, FF61, or persistent communication loss — rapid replacement of the RMIO-01C is the fastest path to restoring motor control and resuming production. Keeping a verified, pre-tested RMIO-01C in your spare parts inventory eliminates the lead time risk associated with sourcing a replacement during an unplanned outage. Our stock units are inspected, function-tested, and shipped with a support terms confirmed by quotation to support your maintenance planning with confidence.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the RMIO-01C in an ACS800 drive is rarely an isolated task. Maintenance engineers performing a control board swap should conduct a systematic inspection of the surrounding electrical environment to prevent repeat failures and confirm full system restoration.

Begin with the drive’s internal 24 VDC power supply rail — a degraded APBU-44C or APBU-12C pulse encoder interface board can introduce signal noise that stresses the control board. Inspect the AINT-02C or AINT-14C inverter control interface boards for signs of thermal damage or connector wear, as these communicate directly with the RMIO-01C over the DDCS fiber-optic link. If the drive uses a fieldbus adapter such as the RDCO-03 (PROFIBUS-DP) or RDCO-04 (DeviceNet), verify that the adapter firmware is compatible with the replacement RMIO-01C firmware version to avoid communication initialization errors after restart.

Check the drive’s I/O terminal block wiring — X1 through X4 — for loose connections, corrosion, or insulation breakdown, particularly in high-humidity or chemically aggressive environments. Inspect the RMBA-01 or RMBA-02 analog I/O extension modules if installed, as these interface directly with the control board and may mask underlying wiring faults. For drives in cabinet configurations, verify the condition of the RDCU-12C or RDCU-02C drive control units and confirm that the fiber-optic DDCS cables connecting the control board to the inverter section are undamaged and properly seated.

Annual maintenance schedules for ACS800 installations should include a functional test of the RMIO-01C’s digital and analog I/O channels, a review of drive fault history logs, and a firmware version audit. Proactive spare parts planning — maintaining at least one RMIO-01C per drive type in your cabinet inventory — is the most effective strategy for minimizing unplanned downtime in facilities where ACS800 drives control critical pumps, compressors, fans, or conveyors.

Site Replacement Workflow

Before removing the existing RMIO-01C, record the full drive parameter set using the ACS800 control panel (CDP312R) or DriveWindow software. This ensures that all motor control parameters, PID settings, fieldbus node addresses, and I/O configurations can be restored to the replacement board without re-commissioning from scratch.

Power down the drive and follow ABB’s lockout/tagout procedure. Allow the DC bus capacitors to discharge fully (minimum 5 minutes after power removal). Remove the control panel, disconnect the DDCS fiber-optic cables, and carefully unplug all I/O and fieldbus connectors from the RMIO-01C. Note the firmware version label on the existing board before removal — confirm that the replacement unit carries a compatible or updated firmware revision.

Install the new RMIO-01C, reconnect all cables and connectors in reverse order, and restore the saved parameter set. Perform a no-load test run before reconnecting the motor load, verifying that all I/O signals, fieldbus communication, and drive protection functions respond correctly. Document the replacement in your maintenance log with the date, drive serial number, and new board firmware version for future reference.

This workflow applies equally to ACS800 single drives, multi-drive systems, and cabinet drive configurations. The RMIO-01C is a direct replacement for earlier RMIO-01 and RMIO-11C revisions in most ACS800 hardware generations — confirm hardware compatibility against the drive’s type designation plate before installation.

Spare Parts Support FAQ

Q: Is the RMIO-01C compatible with all ACS800 drive variants?
A: The RMIO-01C is the standard main control board for the ACS800 single drive and multi-drive series. Compatibility depends on the drive’s hardware generation and firmware baseline. We recommend confirming the drive’s type code and existing firmware version before ordering. Our technical team can assist with compatibility verification.

Q: What pre-shipment testing is performed on the RMIO-01C?
A: Each unit undergoes functional inspection covering power-up initialization, I/O channel verification, DDCS communication interface check, and visual inspection for component damage or corrosion. Units that do not pass all checks are not shipped. A support terms confirmed by quotation is included with every order.

Q: Can you support long-term or repeat supply of the RMIO-01C for multi-site maintenance programs?
A: Yes. We maintain stock of the RMIO-01C to support planned maintenance programs, annual overhaul schedules, and multi-site spare parts standardization. Contact our team to discuss volume requirements, lead times, and consignment stock arrangements.

Q: What should I do if the replacement RMIO-01C does not resolve the drive fault?
A: If the fault persists after board replacement, the issue may originate in the DDCS fiber-optic link, the inverter control interface board, the fieldbus adapter, or the drive’s power supply section. We recommend a systematic fault isolation process and can provide technical guidance to support your maintenance team’s diagnosis.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

RMIO-01C
S800 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB RMIO-01C
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
