ABB RINT-5513C Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB RINT-5513C Maintenance-Proven Spare Part for Factory Uptime

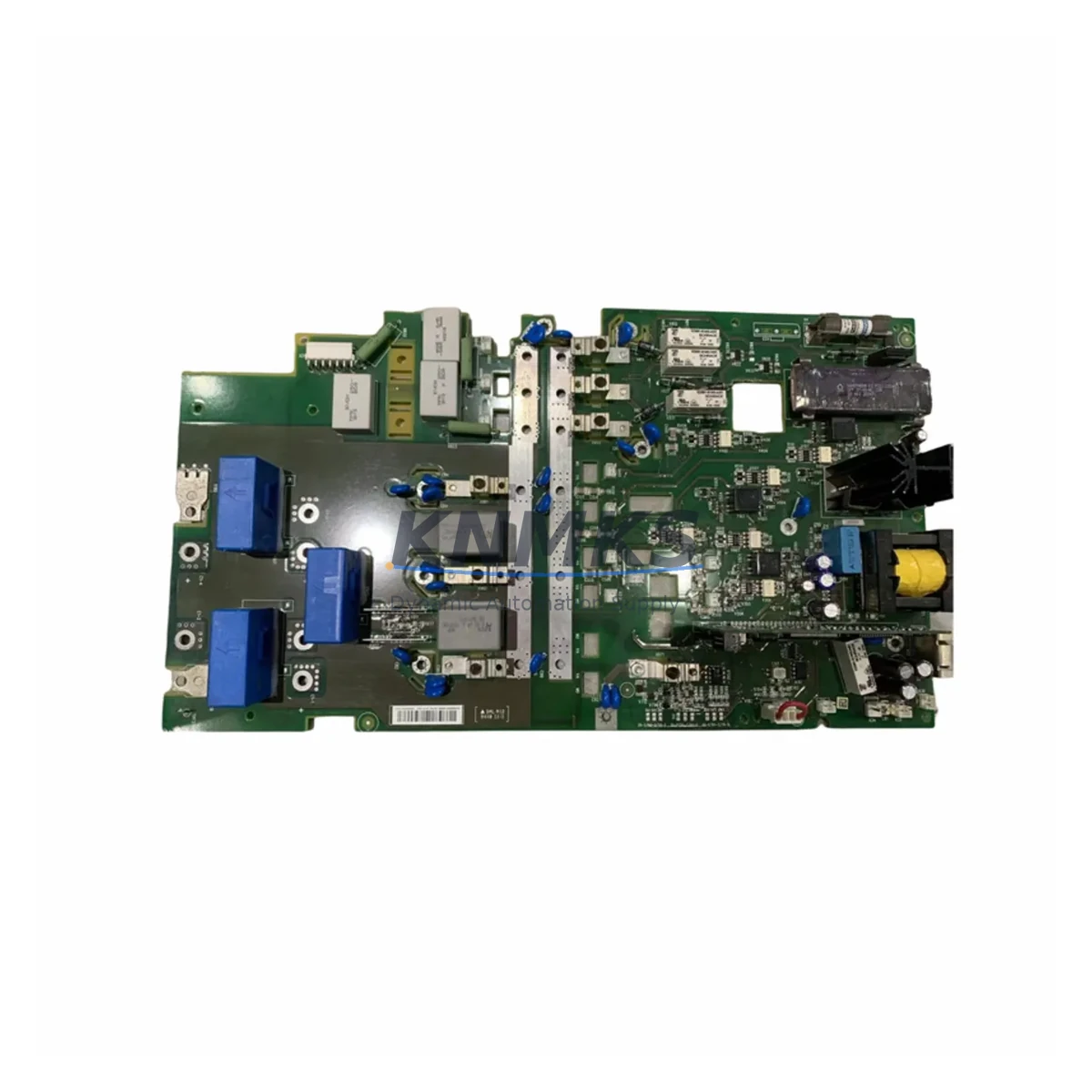

The ABB RINT-5513C is a drive interface board engineered for the ACS800 series variable speed drives — one of ABB’s most widely deployed drive platforms across pulp and paper, metals, oil and gas, water treatment, and heavy manufacturing. As a direct interface between the drive control unit and the power stage, the RINT-5513C plays a critical role in gate signal transmission, fault detection, and drive synchronization. When this board degrades or fails, the entire drive becomes inoperable, causing unplanned downtime that can cost thousands per hour in lost production.

At KNMKS, every RINT-5513C unit is sourced as an original ABB spare, individually pre-tested before dispatch, and backed by a support terms confirmed by quotation. Multi-region stock ensures global delivery details confirmed by RFQ for both emergency replacements and scheduled maintenance outages.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The RINT-5513C does not operate in isolation. In any ACS800 drive cabinet, the interface board works in close coordination with the AINT-02 or AINT-24 control boards, which handle the high-level drive logic and parameter management. A recurring gate fault or IGBT overcurrent trip that points to the RINT-5513C should also prompt inspection of the APOW-01 power supply board, since an unstable auxiliary supply voltage is a common root cause of interface board stress and premature failure.

Maintenance engineers should simultaneously verify the condition of the AGPS-21C or AGPS-11C gate power supply units, which provide isolated gate drive power to the IGBT modules. If the RINT-5513C is being replaced due to a hard fault, the IGBT power modules themselves — typically the R8i or R7i frame modules in ACS800 configurations — should be tested for gate-emitter leakage before the drive is returned to service. Replacing the interface board without confirming IGBT integrity risks immediate re-failure.

For procurement engineers building a resilient spare parts inventory, the RINT-5513C should be stocked alongside the AINT-02 control board and at least one APOW-01 auxiliary power supply. These three components together cover the majority of ACS800 drive failures encountered in field service. Additionally, the fiber optic cables connecting the RINT-5513C to the control board are a common wear item in high-vibration environments and should be included in the annual inspection checklist. Maintaining a minimum of one RINT-5513C per critical drive in the facility eliminates the lead time risk associated with sourcing this board during an emergency outage.

Site Replacement Workflow

Step 1 — Fault Isolation: Retrieve the active fault log from the ACS800 panel or DriveWindow software. Gate fault codes (e.g., FF8E, FF8F) or IGBT overcurrent trips that persist after a power cycle are primary indicators of RINT-5513C degradation.

Step 2 — Safe Isolation: Isolate the drive from the main supply and allow the DC bus to fully discharge (minimum 5 minutes after power-off, confirm with a DC bus voltage meter). Lock out / tag out per site safety procedures.

Step 3 — Board Removal: Disconnect all fiber optic links and ribbon connectors from the RINT-5513C. Note connector positions and cable routing before removal. Remove the board using the appropriate ESD-safe handling procedure.

Step 4 — Compatibility Confirmation: Verify the replacement RINT-5513C part number and revision against the drive’s hardware configuration label. Confirm firmware compatibility with the installed AINT control board version if applicable.

Step 5 — Installation and Test: Install the replacement board, reconnect all fiber and ribbon cables, and restore power. Clear fault history and perform a no-load test run before returning the drive to full production load. Document the replacement in the site maintenance log.

This workflow minimizes drive downtime to under two hours for a prepared maintenance team with the spare in hand, compared to days or weeks waiting for emergency procurement.

Spare Parts Support FAQ

Q1: Is the RINT-5513C compatible with all ACS800 drive variants?
The RINT-5513C is designed for the ACS800 series and is compatible with the majority of single-drive and multi-drive cabinet configurations. Compatibility depends on the specific drive frame size and hardware revision. We recommend confirming the drive’s hardware label and existing board revision before ordering. Our technical team can assist with compatibility verification prior to dispatch.

Q2: How is each unit tested before shipment?
Every RINT-5513C unit undergoes pre-shipment functional testing to verify gate signal integrity and board-level electrical performance. Units that do not pass testing are not dispatched. A test report is available upon request for critical applications.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental range. Support requests are processed with priority to minimize site downtime.

Q4: Can KNMKS support long-term supply agreements for the RINT-5513C?
Yes. For facilities operating multiple ACS800 drives or managing multi-year maintenance contracts, KNMKS offers long-term supply agreements with reserved stock allocation, fixed pricing, and priority dispatch. Contact our team to discuss a supply agreement tailored to your maintenance schedule and inventory strategy.
