ABB RDIO-01 64379216D Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB RDIO-01 64379216D Maintenance-Proven Spare Part for Factory Uptime

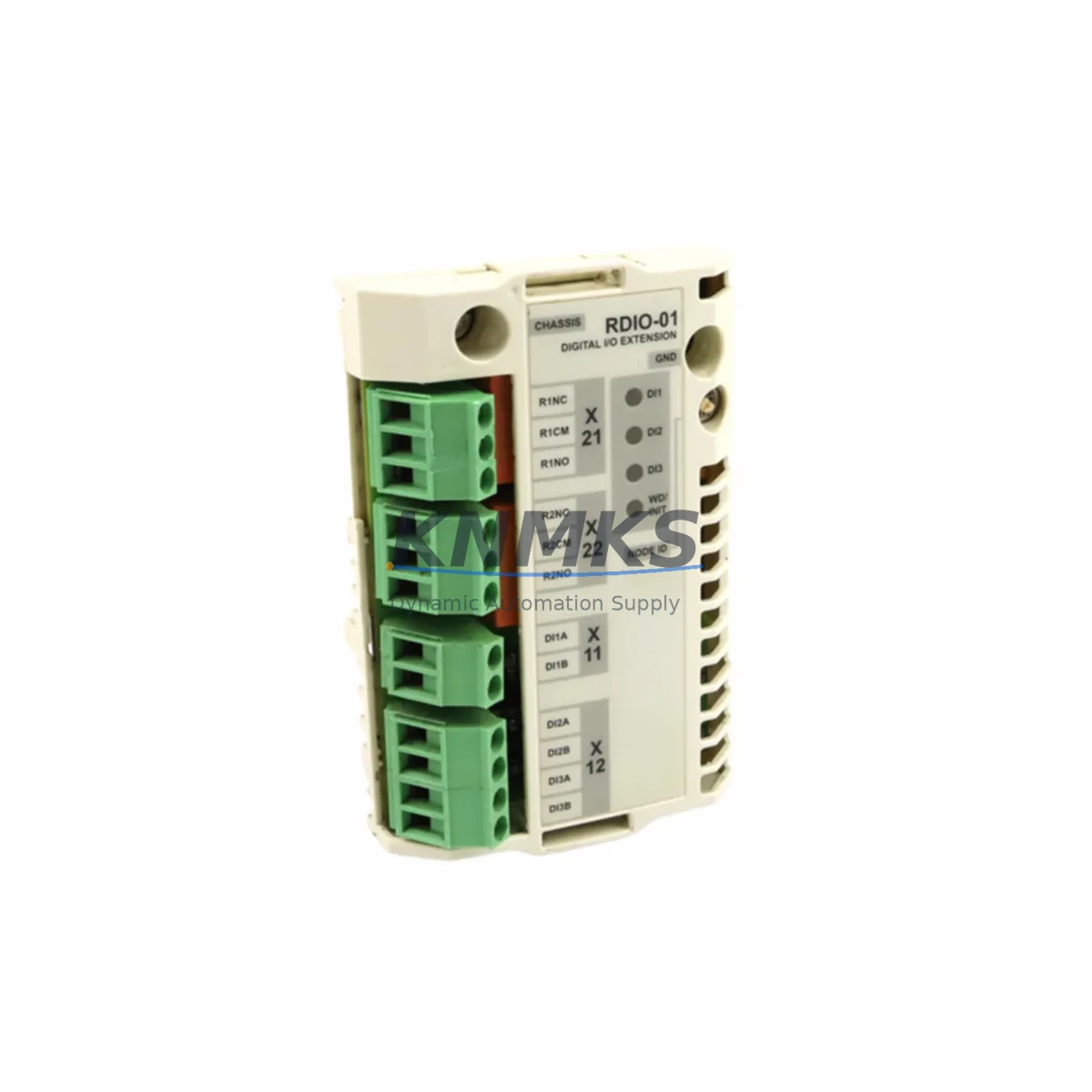

The ABB RDIO-01 (part number 64379216D) is a digital I/O extension module designed for use with ABB ACS800 and ACS600 series variable speed drives. In industrial maintenance environments where drive-based automation must remain continuously available, the RDIO-01 provides critical digital input and output expansion capability — enabling process interlocks, motor control feedback, and safety signal routing directly through the drive’s option slot. Sourced as an original ABB spare, each unit supplied by KNMKS is pre-tested, inspected, and dispatched with a support terms confirmed by quotation to support both emergency replacements and planned maintenance outages.

For maintenance engineers managing ACS800 drive cabinets in pulp and paper, oil and gas, water treatment, or heavy manufacturing, the RDIO-01 is a high-priority spare. Its failure typically manifests as loss of digital feedback signals, unexpected drive trips, or inability to execute remote start/stop commands — all of which result in unplanned downtime. Keeping a verified spare on the shelf eliminates the lead time risk associated with sourcing obsolete or end-of-life ABB drive option boards.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the RDIO-01 64379216D in an ACS800 drive cabinet, a thorough site inspection of the surrounding electrical circuit is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should verify the integrity of the 24 VDC auxiliary power supply feeding the digital input circuit — a degraded or noisy power rail is a common root cause of I/O module faults that goes undetected until the module itself fails.

The drive’s RMIO-11 or RMIO-12 main control board should be inspected for firmware version compatibility with the RDIO-01, as mismatched firmware can cause option module recognition errors even with a new spare installed. Wiring terminations at the X1 and X2 connector blocks on the RDIO-01 should be re-torqued and inspected for corrosion or loose strands, particularly in high-vibration or high-humidity environments. If the drive is equipped with an RDCO-01 or RDCO-02 communication adapter for PROFIBUS or DeviceNet, verify that the fieldbus node address and I/O mapping parameters are correctly restored after module swap — these settings are stored in the drive’s parameter memory and may require re-entry following a cold replacement.

For cabinets running multiple ACS800 units in a common DC bus configuration, also inspect the RBUS-01 or RBCO-01 bus adapter and the shared DC fuse assembly. A blown DC bus fuse or a degraded RBCO-01 can produce symptoms that mimic RDIO-01 failure, leading to unnecessary module replacement. Additionally, if the drive controls a safety-critical application, the RTAC-01 pulse encoder interface module and any associated safety relay modules in the cabinet should be function-tested after the RDIO-01 is replaced to confirm that all interlocks and emergency stop circuits are operating correctly.

Site Replacement Workflow

Before removing the RDIO-01 64379216D, record all drive parameters using the ACS800 control panel (ACS-CP-C or DriveWindow software) or export the parameter file via the RDCO communication adapter. This ensures that I/O function assignments, inversion settings, and filter time constants configured on the RDIO-01 option slot can be restored exactly after the new module is seated.

Power down the drive and lock out / tag out (LOTO) the incoming supply. Remove the option module cover and extract the RDIO-01 from its slot by releasing the retention latch. Seat the replacement RDIO-01 64379216D firmly until the latch clicks. Reconnect the X1/X2 field wiring, restore power, and allow the drive to complete its self-test sequence. Confirm that the drive’s parameter group 98 (Option Modules) correctly identifies the RDIO-01 in the installed slot. Re-enter any I/O configuration parameters that were not retained in non-volatile memory. Perform a functional test of all digital inputs and outputs before returning the drive to service. Total replacement time for a prepared maintenance team is typically 30–60 minutes, minimizing production downtime.

Spare Parts Support FAQ

Q1: Is the RDIO-01 64379216D compatible with both ACS800 and ACS600 drives?
Yes. The RDIO-01 is compatible with ACS800 single drives and ACS600 series drives that support the standard ABB option module slot. Always verify the drive’s option slot type and firmware version against the RDIO-01 hardware manual (3AFE64485733) before installation to confirm compatibility with your specific drive revision.

Q2: How do I verify the RDIO-01 spare is genuine and has been tested before shipment?
All RDIO-01 units supplied by KNMKS are sourced as original ABB components and undergo pre-shipment functional testing covering digital input signal detection and relay output switching. Each unit ships with a test report and is traceable to its part number 64379216D. The support terms confirmed by quotation cover defects in materials and workmanship from the date of dispatch.

Q3: What is the recommended inventory strategy for RDIO-01 spares in a multi-drive facility?
For facilities operating 5 or more ACS800 drives, KNMKS recommends maintaining a minimum of 2 RDIO-01 spares on-site. Given that this module is approaching end-of-active-production status, procurement engineers should consider a long-term supply agreement to secure stock at current pricing and avoid future availability risk. KNMKS maintains multi-region inventory to support both emergency same-week dispatch and scheduled annual maintenance outage kitting.

Q4: Can KNMKS support long-term or blanket purchase orders for RDIO-01 64379216D?
Yes. KNMKS supports long-term supply agreements, blanket POs, and annual maintenance kitting for the RDIO-01 and related ACS800 option modules. Contact our team at [email protected] or +86 18359268345 to discuss volume pricing, lead time commitments, and consignment stock arrangements tailored to your maintenance schedule.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

RDIO-01-64379216D
S800 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB RDIO-01-64379216D
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
