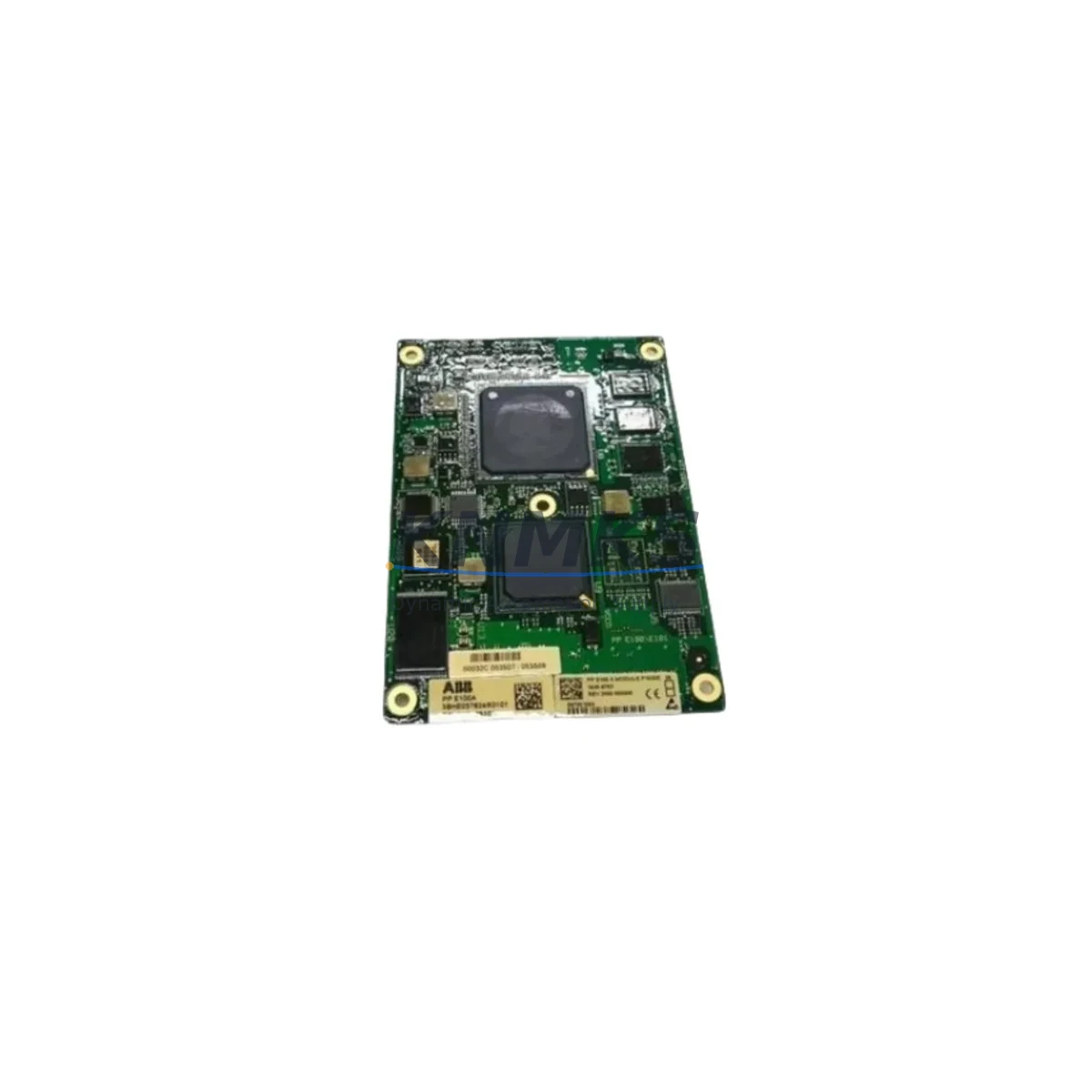

The ABB PPE100A (part number 3BHE037824R0101) is an original drive processor board engineered for the ACS800 series of industrial AC drives. In maintenance-critical environments — from paper mills and cement plants to steel processing lines and water treatment facilities — this processor board governs the core control logic of the drive unit. When it fails, the entire drive goes offline. Stocking a verified replacement is the single most effective strategy to minimize unplanned downtime and protect production continuity.

Sourced from authorized supply chains and subjected to pre-shipment functional testing, each PPE100A unit shipped by KNMKS is validated against ABB’s original performance specifications. Our support terms confirmed by quotation cover defects in materials and workmanship, giving maintenance engineers and procurement teams the confidence to plan ahead rather than react under pressure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A drive processor board failure rarely occurs in isolation. When replacing the PPE100A 3BHE037824R0101, experienced maintenance engineers treat the event as a trigger for a broader cabinet inspection. The ACS800 drive unit depends on a tightly integrated set of components, and stress on the processor board often correlates with degradation elsewhere in the electrical circuit.

Begin by inspecting the AINT-02C or AINT-14C interface board, which handles the fiber-optic communication between the control section and the IGBT power module. A faulty interface board can cause recurring processor faults even after a board swap. Next, verify the condition of the APOW-01C power supply board — an unstable internal DC supply is a leading cause of processor board damage and should be replaced proactively if voltage ripple is detected.

Check the RDCO-01 or RDCO-04 communication adapter if the drive is integrated into a PROFIBUS, DeviceNet, or Modbus network. Communication timeouts during the fault event may indicate adapter degradation rather than a pure processor failure. Similarly, inspect the RAIO-01 analog I/O extension module if the drive receives speed or torque reference signals from a DCS or PLC — signal integrity issues at the I/O layer can mask or mimic processor faults.

For drives installed in high-ambient-temperature environments, examine the cooling fan assembly and thermistor circuit. Overtemperature events accelerate processor board aging. If the drive cabinet includes an AGPS-21C gate driver board, inspect it for carbon tracking or discoloration, as gate driver faults can generate back-EMF spikes that stress the processor board.

Finally, review the main contactor, input fuses, and DC bus capacitor bank. A weakened capacitor bank causes voltage sags that can corrupt processor memory and trigger spurious faults. Replacing the PPE100A without addressing upstream power quality issues risks repeat failures within months.

Site Replacement Workflow

Step 1 — Isolation & Lockout: De-energize the ACS800 drive and apply LOTO (Lockout/Tagout) per site safety procedures. Allow the DC bus to discharge fully (minimum 5 minutes after power-off; verify with a calibrated multimeter).

Step 2 — Parameter Backup: Before removing the existing processor board, back up all drive parameters using the ACS800 control panel (parameter group 99) or DriveWindow software. Store the backup file with the equipment maintenance record.

Step 3 — Board Removal: Disconnect all ribbon cables and fiber-optic connectors from the existing PPE100A. Note connector positions and label if necessary. Remove the board from its mounting slot using the extraction handles.

Step 4 — Replacement Installation: Insert the new 3BHE037824R0101 board into the correct slot. Reconnect all cables and fiber-optic links. Verify that the firmware version on the replacement board is compatible with the installed AINT and APOW boards — refer to ABB ACS800 firmware release notes for version compatibility matrices.

Step 5 — Parameter Restore & Commissioning: Restore the parameter backup. Perform a no-load test run and verify drive response to speed reference signals. Check fault log for any residual errors. Document the replacement in the site maintenance log.

This workflow supports a direct like-for-like replacement that preserves system compatibility, avoids re-engineering costs, and restores production within a single maintenance window.

Spare Parts Support FAQ

Q1: Is the PPE100A 3BHE037824R0101 compatible with all ACS800 variants?
The PPE100A is designed for the ACS800 series. Compatibility depends on the specific drive frame size and firmware revision. KNMKS recommends confirming the drive’s hardware revision code (visible on the drive nameplate) before ordering. Our technical team can assist with compatibility verification prior to shipment.

Q2: How is each unit tested before shipment?
Every PPE100A unit undergoes pre-shipment functional inspection including visual inspection for physical damage, connector integrity check, and where test bench facilities permit, power-on verification. A test report is available upon request for critical maintenance projects.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or environmental contamination. Support requests are processed within 5 business days of receipt of the returned unit.

Q4: Can KNMKS support long-term spare parts supply for ACS800 fleets?
Yes. KNMKS maintains ongoing sourcing relationships for ACS800 series components including processor boards, interface boards, power supply boards, and communication adapters. For facilities operating multiple ACS800 units, we recommend establishing a standing spare parts agreement to ensure priority allocation and stable pricing over a 12–36 month horizon.
