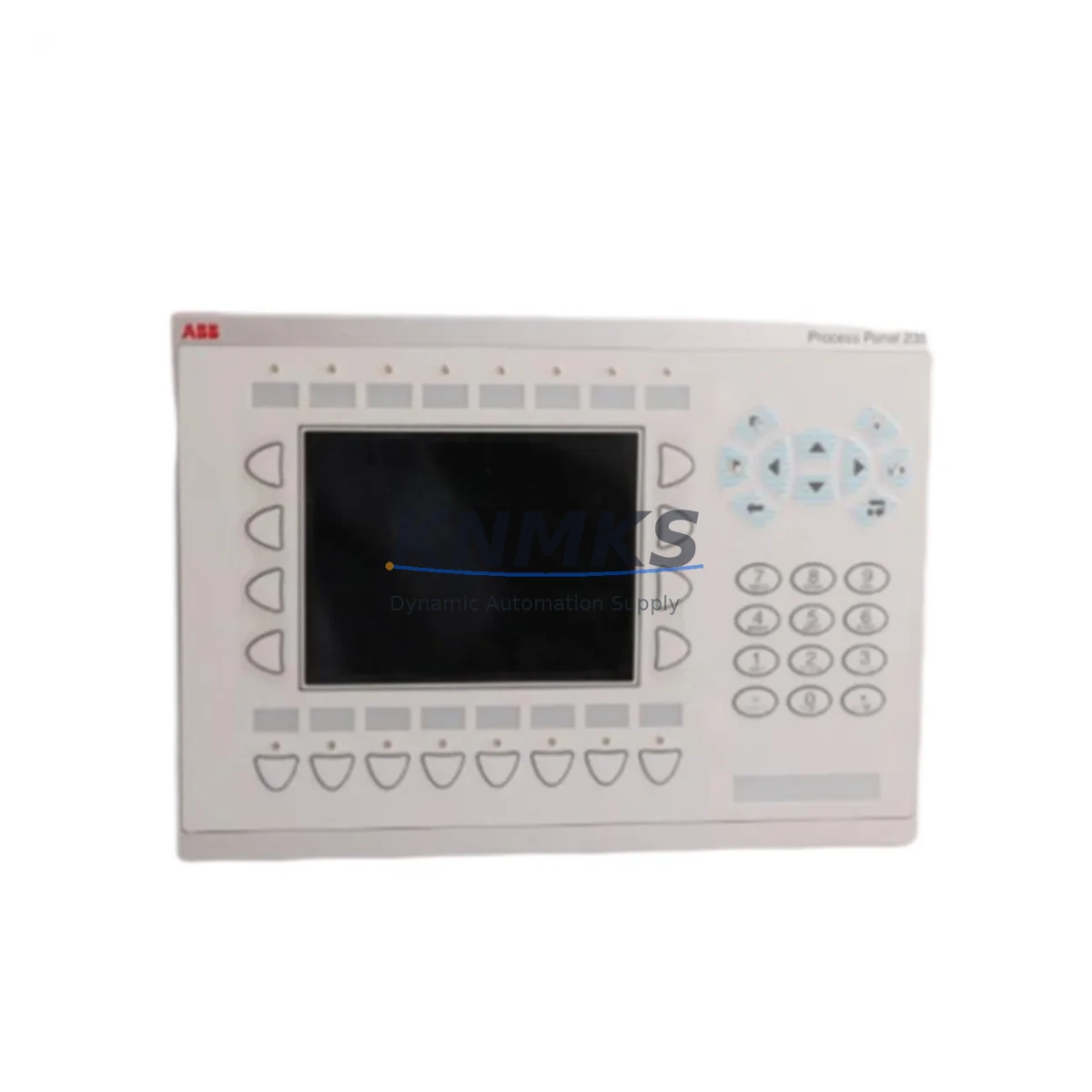

ABB PP235 3BSC690102R2 Fail-Safe HMI Panel

Overview

ABB PP235 3BSC690102R2 Fail-Safe HMI Panel: Fault Protection & Critical Industrial Reliability

In continuous production environments where control interruptions carry real safety and financial consequences, the ABB PP235 3BSC690102R2 HMI Operator Panel delivers the fault-tolerant, fail-safe human-machine interface performance that critical industrial sites demand. Engineered as part of ABB’s CP600 HMI series and fully compatible with the AC500 PLC platform, the PP235 3BSC690102R2 is purpose-built to maintain stable operator visibility and control command integrity even under high electromagnetic interference, power fluctuation, surge events, and the mechanical stresses of vibration-intensive or thermally demanding field installations.

Unlike general-purpose display panels, the PP235 3BSC690102R2 is designed with industrial safety at its core. Its robust housing and sealed front panel resist ingress from dust, moisture, and airborne contaminants — conditions routinely encountered in petrochemical processing units, water treatment facilities, mining headframes, and port logistics control rooms. The panel’s internal power conditioning circuitry suppresses surge impulses and voltage transients that would otherwise cause screen lockups, communication dropouts, or unplanned reboots — all of which translate directly into unplanned downtime and potential safety incidents in critical interlock loops.

Signal integrity is maintained through the PP235’s shielded communication architecture, which interfaces cleanly with ABB AC500 CPU modules such as the PM573-ETH and PM591-ETH via the internal CS31 bus or Ethernet-based PROFINET connections. In control cabinet installations where the HMI shares enclosure space with variable frequency drives, contactors, and high-current switching gear, the PP235’s EMI immunity ensures that operator commands are executed without signal drift or false triggering — a non-negotiable requirement in safety-rated interlock and emergency shutdown (ESD) circuits.

The panel integrates seamlessly into control architectures that also include ABB’s TB811 and TB825 I/O terminal units, enabling a unified wiring and commissioning approach across the control cabinet. When paired with ABB’s SD802F redundant power supply modules, the PP235 3BSC690102R2 benefits from clean, regulated DC input that eliminates the power quality issues most commonly responsible for HMI instability in heavy industrial environments. For installations requiring remote diagnostics or SCADA integration, the PP235 supports standard OPC-UA and Modbus TCP communication, allowing it to coexist within broader DCS or SCADA architectures without protocol conversion overhead.

Every unit supplied by KNMKS undergoes pre-shipment functional verification, including display integrity checks, communication port validation, and power input range testing. Units are sourced from verified supply channels and arrive with full traceability documentation. A support terms confirmed by quotation covers all hardware defects, and our technical team provides compatibility confirmation and replacement support for the full AC500 and CP600 product families. Long-term stock availability is maintained to support both planned maintenance schedules and emergency spare part requirements.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the ABB PP235 3BSC690102R2 within a well-engineered control cabinet requires a layered protection approach. The panel should be mounted in a thermally managed enclosure with adequate ventilation or active cooling to keep internal temperatures within the 0–50 °C operating range, particularly in high-ambient-temperature environments such as outdoor substations or foundry control rooms.

On the power supply side, pairing the PP235 with an ABB SD802F redundant power supply module ensures that a single PSU failure does not interrupt HMI operation or cause loss of operator visibility during a critical process phase. Surge protection at the cabinet’s incoming power rail — using devices such as the ABB OVR surge protective device series — prevents transient overvoltages from reaching the panel’s internal electronics.

For I/O integration, the ABB TB811 and TB825 I/O terminal units provide a structured, noise-isolated wiring interface between field sensors and the AC500 CPU, reducing the risk of signal crosstalk that could produce false readings on the PP235 display. In safety-critical interlock loops, the ABB AC500-S Safety PLC modules (such as the SM560-S) provide the SIL-rated logic layer that the PP235 visualizes, ensuring that operators always have accurate, real-time status of safety function states.

Communication cabling between the PP235 and the AC500 CPU should use shielded Ethernet or RS-485 cables with proper grounding at one end to prevent ground loop interference — a common source of communication anomalies in electrically noisy environments such as arc furnace control rooms or variable-speed drive installations.

Critical Industrial Safety Applications

The ABB PP235 3BSC690102R2 is deployed across a wide range of safety-critical and continuous-process industrial environments:

Petrochemical & Refinery Plants: The PP235 serves as the local operator interface for burner management systems (BMS) and emergency shutdown (ESD) panels, where operators must have immediate, reliable access to process status and interlock override controls. Its IP65 front panel withstands hydrocarbon vapor exposure and high-pressure washdown cleaning cycles.

Electric Power Generation & Substation Control: In generator control panels and HV/MV substation automation cabinets, the PP235 provides fault annunciation and control command visualization for protection relay systems, where display reliability during fault events is essential for safe operator response.

Mining & Mineral Processing: Conveyor control systems, crusher automation, and ventilation safety circuits in underground and open-cut mining operations rely on HMI panels that can withstand high dust loading, vibration from blasting and heavy machinery, and wide temperature swings — all conditions the PP235 is rated to handle.

Water & Wastewater Treatment: Pump station control, chemical dosing automation, and SCADA-connected remote terminal units (RTUs) in water infrastructure use the PP235 for local operator control, benefiting from its sealed front panel in high-humidity pump rooms.

Metallurgy & Steel Production: Rolling mill control cabinets and continuous casting automation systems require HMI panels that maintain display and communication stability in environments with intense electromagnetic interference from large induction furnaces and high-current bus bars.

Port & Marine Logistics: Crane control systems, ship-to-shore loader automation, and vessel engine room control panels use the PP235 for its vibration tolerance and ability to operate reliably in salt-air, high-humidity marine environments.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the ABB PP235 3BSC690102R2?
The support terms confirmed by quotation cover all hardware manufacturing defects, including display panel failures, communication port faults, and power input circuit failures. Support requests are supported with replacement unit dispatch and full technical documentation. The confirmed support period begins from the date of shipment from KNMKS.

Q2: What pre-shipment testing is performed on each PP235 unit?
Every ABB PP235 3BSC690102R2 unit undergoes a structured pre-shipment inspection that includes: display power-on and pixel integrity verification, Ethernet and serial communication port functional testing, power input range validation at 24 V DC nominal, and physical inspection for connector integrity and housing condition. Test records are available upon request.

Q3: Is the PP235 3BSC690102R2 compatible with all AC500 PLC CPU versions?
The PP235 is designed for use with the ABB AC500 PLC platform and CP600 HMI software. It is compatible with AC500 V2 and V3 CPU modules including the PM573-ETH, PM591-ETH, and PM595 series. Compatibility with specific firmware versions and project configurations should be confirmed against the ABB CP600 compatibility matrix. KNMKS technical support can assist with compatibility verification prior to order.

Q4: Can KNMKS support long-term and emergency spare part supply for the PP235?
Yes. KNMKS maintains standing inventory of the ABB PP235 3BSC690102R2 to support both planned maintenance spare part programs and emergency replacement requirements. For sites operating continuous processes where unplanned downtime carries significant cost, we recommend establishing a consignment or buffer stock arrangement. Contact our sales team to discuss volume pricing and dedicated stock reservation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

PP235 3BSC690102R2
AC500 Series

Product Family

HMI & Displays

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Display range

Operator panels and touch screens

Common needs

Screen size, interface and version matching

Project support

Retrofit, spare unit and panel replacement

Inquiry Support

• Panel size and interface confirmation
• Replacement unit inquiry for discontinued HMIs
• Protective packaging for display shipment

What to Send Us

• Brand and exact model number: ABB PP235 3BSC690102R2
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
