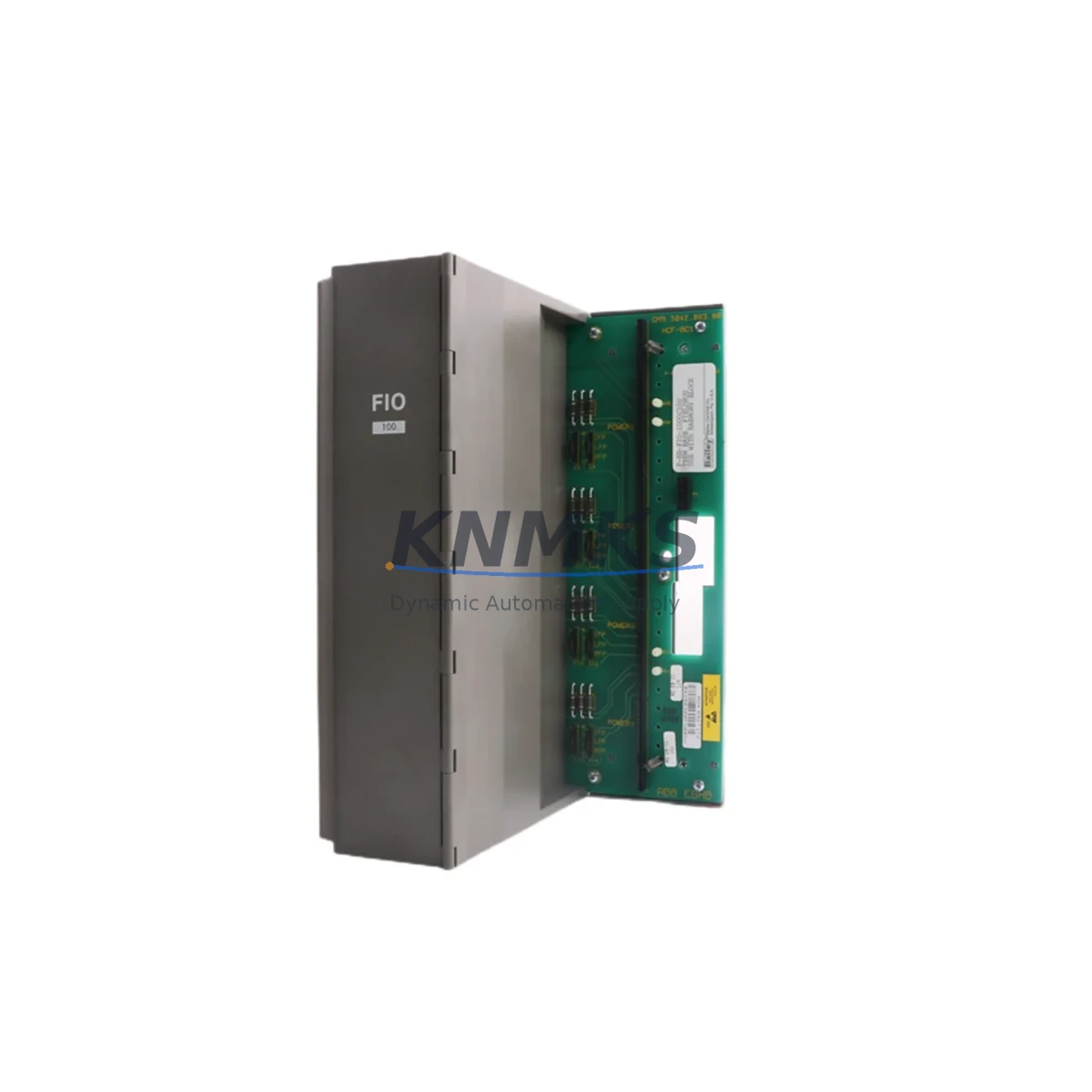

ABB P-HB-FIO-1000C100 Migration-Ready Fieldbus Termination Base

Overview

ABB P-HB-FIO-1000C100 Migration-Ready Fieldbus Termination Base: Legacy System Migration and Compatible Upgrade

The ABB P-HB-FIO-1000C100 is a Fieldbus Termination Base designed for the ABB S800 FIO (Field I/O) platform, widely deployed in process automation, power generation, and continuous manufacturing environments. As legacy DCS and PLC control architectures approach end-of-life, the P-HB-FIO-1000C100 serves as a critical migration component — enabling engineers to replace discontinued termination bases, extend the operational life of existing S800 FIO racks, and maintain field wiring continuity without redesigning the entire control cabinet.

For facilities running ABB Advant, MOD 300, or early AC 800M-based systems, the P-HB-FIO-1000C100 provides a verified drop-in replacement path. Its mechanical footprint and terminal block layout are compatible with standard S800 FIO rack mounting, allowing direct substitution with minimal rewiring. Before installation, engineers should confirm the backplane slot assignment, verify that the existing FIO module — such as the AI810, AO810, DI810, or DO810 — is correctly addressed in the control program, and ensure that the fieldbus segment (PROFIBUS DP or MasterBus 300) remains within its rated node count and cable length limits.

Power supply compatibility is a key checkpoint during retrofit. The S800 FIO system typically draws 24 VDC from a dedicated field power rail; the incoming supply capacity must be verified against the total I/O load after adding or replacing termination bases. If the existing PS810 or TB820 power supply is operating near its rated output, a supplementary power module should be considered before commissioning the replacement base.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the P-HB-FIO-1000C100 requires a structured approach that accounts for the interdependencies within the S800 FIO architecture. The termination base is the mechanical and electrical interface between the field wiring and the I/O module; replacing it without a clear plan can introduce signal interruptions, address conflicts, or communication faults on the fieldbus segment.

Begin by documenting the existing wiring schedule for the affected termination base. Each field cable — whether carrying 4–20 mA analog signals, discrete 24 VDC inputs, or relay outputs — must be labeled and photographed before disconnection. The terminal numbering on the P-HB-FIO-1000C100 follows the standard S800 FIO convention, so reconnection is straightforward if the original wiring documentation is available.

Next, confirm the I/O module type seated in the base. Modules such as the AI810 (8-channel analog input), DI810 (8-channel digital input), or DO810 (8-channel digital output) each have specific signal conditioning requirements. If the module itself is also being replaced as part of a broader upgrade — for example, migrating from an AI810 to an AI820 for HART communication support — the control program in the AC 800M controller must be updated to reflect the new module type and any changed channel parameters.

For systems where the fieldbus segment runs PROFIBUS DP, verify that the GSD file for the replacement module is loaded in the engineering tool (ABB Control Builder or equivalent) and that the node address is correctly assigned. If the segment includes other devices — such as a CI854 PROFIBUS DP communication interface module, additional FIO racks, or third-party field devices — the total segment load and termination resistor placement must be rechecked after any hardware change.

Where the control cabinet also houses an HMI panel linked to the S800 FIO system, confirm that the HMI tag database references the correct I/O addresses after the retrofit. Signal names, engineering units, and alarm limits should be verified against the updated I/O list before returning the system to automatic control. If the cabinet includes a TB820 ModuleBus modem or a CI830 fieldbus adapter, these communication links should be tested end-to-end as part of the commissioning checklist.

Finally, if the retrofit is part of a phased migration toward a newer ABB AC 800M or AC 500 platform, the P-HB-FIO-1000C100 can serve as an interim solution that preserves existing field wiring while the new control architecture is engineered and validated in parallel. This approach minimizes capital expenditure and allows production to continue uninterrupted during the transition period.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a fieldbus termination base in a live production environment. The P-HB-FIO-1000C100 replacement procedure can typically be completed within a planned maintenance window of two to four hours, provided that all preparatory steps — wiring documentation, spare module verification, and control program backup — are completed in advance.

Before beginning the physical replacement, export a full backup of the AC 800M controller program and the S800 FIO configuration from ABB Control Builder. This backup protects against accidental parameter loss and provides a recovery baseline if the commissioning process encounters unexpected faults. Store the backup on an offline medium independent of the control network.

During the replacement, maintain field power to unaffected I/O racks to preserve the control status of other process loops. Only the rack segment containing the P-HB-FIO-1000C100 being replaced needs to be de-energized. Coordinate with the process control team to place affected control loops in manual mode before disconnecting field wiring, and confirm with the operations team that the process is in a safe hold state.

After reconnecting field wiring and reseating the I/O module, perform a channel-by-channel signal verification before returning loops to automatic control. Use the ABB Control Builder online diagnostic view or the local module LED indicators to confirm that each channel is reading correctly. Check the fieldbus communication status on the CI854 or equivalent interface module to confirm that the segment has re-established without errors. Document the commissioning results and update the maintenance record before closing the work order.

For facilities with strict uptime requirements, consider maintaining a pre-configured spare P-HB-FIO-1000C100 in the site spare parts inventory. A pre-tested spare — with the correct terminal labeling and module address confirmed — can reduce the active replacement time to under one hour in an emergency scenario.

Retrofit Support FAQ

Q1: Is the P-HB-FIO-1000C100 a direct replacement for the original ABB S800 FIO termination base?
Yes. The P-HB-FIO-1000C100 is a direct drop-in replacement for the original unit of the same part number. The mechanical dimensions, backplane connector, and terminal block layout are identical, allowing the existing field wiring and I/O module to be reused without modification. Verify the module address and fieldbus node assignment after installation.

Q2: What pre-shipment testing is performed on each unit?
Each P-HB-FIO-1000C100 unit is functionally tested before shipment to verify backplane connector integrity, terminal block continuity, and mechanical fit. A support terms confirmed by quotation is provided from the date of shipment. Units are packaged in anti-static protective packaging suitable for industrial spare parts storage.

Q3: Can this termination base be used with both PROFIBUS DP and MasterBus 300 fieldbus segments?
The P-HB-FIO-1000C100 is compatible with both PROFIBUS DP and MasterBus 300 communication architectures as used in the ABB S800 FIO system. The fieldbus protocol is determined by the communication interface module (e.g., CI854 for PROFIBUS DP) connected to the FIO rack, not by the termination base itself. Confirm the active fieldbus protocol in your system configuration before ordering.

Q4: What is the typical lead time and stock availability?
We maintain stock of the P-HB-FIO-1000C100 to support urgent retrofit and emergency replacement requirements. Standard orders are processed and shipped within 1–3 business days. For large-quantity orders or scheduled maintenance projects, contact our sales team to confirm availability and arrange priority allocation. Contact: [email protected] | +86 18359268345

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

P-HB-FIO-1000C100
S800 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB P-HB-FIO-1000C100
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
