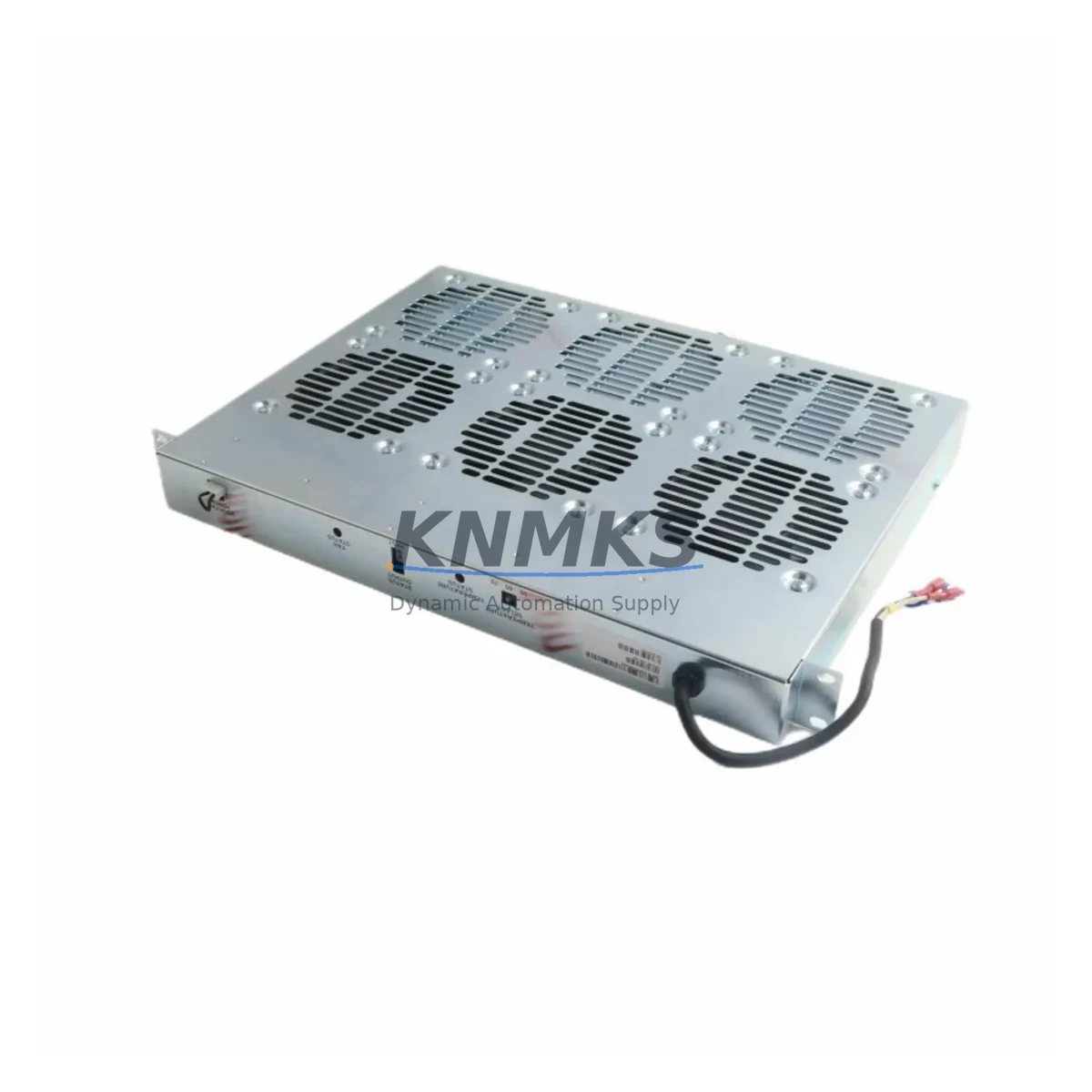

ABB P-HA-RPS-FAN03000 Maintenance-Proven Spare Part

Overview

ABB P-HA-RPS-FAN03000 Maintenance-Proven Spare Part for Factory Uptime

The ABB P-HA-RPS-FAN03000 is an original cooling fan module engineered for ABB RPS (Redundant Power Supply) systems, widely deployed in process automation, power distribution, and continuous manufacturing environments. Thermal management is a critical but often overlooked element of control cabinet reliability — a failed cooling fan can trigger cascading thermal shutdowns across power supply units, I/O racks, and communication backplanes within minutes. Stocking the P-HA-RPS-FAN03000 as a verified spare is a fundamental step in any proactive maintenance program targeting zero unplanned downtime.

Maintenance engineers working on ABB Symphony Plus, AC500 PLC systems, or legacy Advant OCS installations frequently encounter fan degradation as a root cause of intermittent power supply faults. The P-HA-RPS-FAN03000 is designed for direct hot-swap replacement in compatible RPS enclosures, minimizing the intervention window during scheduled or emergency maintenance. Its original ABB manufacturing specification ensures airflow volume, bearing life, and vibration tolerance are matched to the thermal design envelope of the host cabinet — a critical factor when third-party alternatives introduce airflow mismatches that accelerate component aging.

From a procurement engineering perspective, the P-HA-RPS-FAN03000 represents a low-cost, high-impact spare. A single unit in the maintenance inventory can prevent multi-hour production stoppages caused by thermal protection trips in the RPS module. Procurement teams managing aging ABB installations should treat this fan module with the same priority as fuses, relay modules, and power supply boards — components whose failure cost far exceeds their unit price.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the P-HA-RPS-FAN03000, a thorough control cabinet inspection is essential to prevent repeat failures and ensure the new fan module operates within its design parameters. Maintenance engineers should begin by verifying the condition of the RPS power supply module itself — if the fan has failed due to thermal stress, the associated ABB RPS power supply board may show signs of electrolytic capacitor degradation or output voltage drift that warrants proactive replacement.

Simultaneously, inspect the cabinet’s terminal blocks and wiring harnesses for heat-induced insulation brittleness, particularly on DC bus connections feeding the I/O modules. ABB AI810 or AO810 analog I/O modules installed in the same rack should be checked for calibration drift if the cabinet has experienced elevated temperatures. The communication backplane connecting the RPS to the main CPU module — such as the ABB PM891 or PM864A processor module — should be reseated and inspected for oxidized connector pins, as thermal cycling accelerates contact resistance buildup.

Signal isolators and surge protection devices on field wiring terminals are also worth inspecting during this maintenance window. Fuse holders on the 24 VDC distribution rail should be tested for continuity and replaced if the fuse clips show signs of arcing or discoloration. If the installation includes an ABB CP600 HMI panel mounted in the same cabinet, verify that its internal ventilation slots are unobstructed, as HMI thermal failures often correlate with cabinet-level cooling degradation. Finally, confirm that the replacement P-HA-RPS-FAN03000 airflow direction matches the original installation — incorrect orientation will reduce cooling efficiency and may void the support terms claim on associated components.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the installed fan part number matches P-HA-RPS-FAN03000 or its alias PHARPSFAN03000. Cross-reference the RPS enclosure label and ABB documentation to validate compatibility before removing the existing unit.

Step 2 — Safe isolation: Where hot-swap is not supported by the specific RPS variant, follow the site lockout/tagout (LOTO) procedure. Notify the control room of the planned maintenance window. For redundant RPS configurations, switch load to the secondary supply before isolating the primary.

Step 3 — Module extraction: Release the fan module retention clips or screws per the ABB RPS installation manual. Disconnect the fan power connector carefully — do not pull by the cable. Note the airflow direction arrow on the fan housing before removal.

Step 4 — Installation of P-HA-RPS-FAN03000: Insert the replacement module, ensuring the airflow direction matches the original. Reconnect the power connector and secure all retention hardware. Verify the fan spins freely before restoring power.

Step 5 — Post-replacement validation: Restore power and monitor the RPS status LEDs for normal operation. Check cabinet temperature at the outlet grille after 15 minutes of operation. Log the replacement in the site maintenance record with the new unit’s serial number and installation date.

This workflow supports legacy system life extension by maintaining the original thermal design intent of the ABB RPS architecture, avoiding the compatibility risks associated with non-OEM fan substitutes.

Spare Parts Support FAQ

Q1: Is the P-HA-RPS-FAN03000 compatible with all ABB RPS variants?
The P-HA-RPS-FAN03000 is designed for ABB RPS redundant power supply enclosures. Compatibility should be verified against the specific RPS model number and cabinet revision. Contact our technical team with your RPS enclosure label details for confirmation before ordering.

Q2: How is the unit tested before shipment?
Every P-HA-RPS-FAN03000 unit undergoes functional testing including motor start verification, bearing noise inspection, and airflow measurement prior to packaging. A test report is available upon request. Units are shipped in anti-static, shock-protected packaging to prevent transit damage.

Q3: What is the recommended spare inventory strategy for this fan module?
For facilities operating more than two ABB RPS units, we recommend maintaining a minimum of one P-HA-RPS-FAN03000 on-site at all times. Fan modules are wear items with a typical service life of 3–5 years under continuous operation. Annual inspection and proactive replacement at the first sign of bearing noise is more cost-effective than reactive replacement after a thermal shutdown event.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or operation outside the specified environmental range. Support requests are supported with a return merchandise authorization (RMA) process and replacement dispatch within 5 business days.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

P-HA-RPS-FAN03000 PHARPSFAN03000
AC500 Series

Product Family

Power Supplies

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Power range

DIN rail and switching power supplies

Common needs

Voltage, current and mounting style

Project support

Control cabinet and panel-builder inquiries

Inquiry Support

• 24VDC and cabinet power selection support
• Stable power support for PLC and HMI systems
• Batch inquiry support for panel builders

What to Send Us

• Brand and exact model number: ABB P-HA-RPS-FAN03000 PHARPSFAN03000
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
