ABB NTDI01-A Migration-Ready Digital I/O Termination

Overview

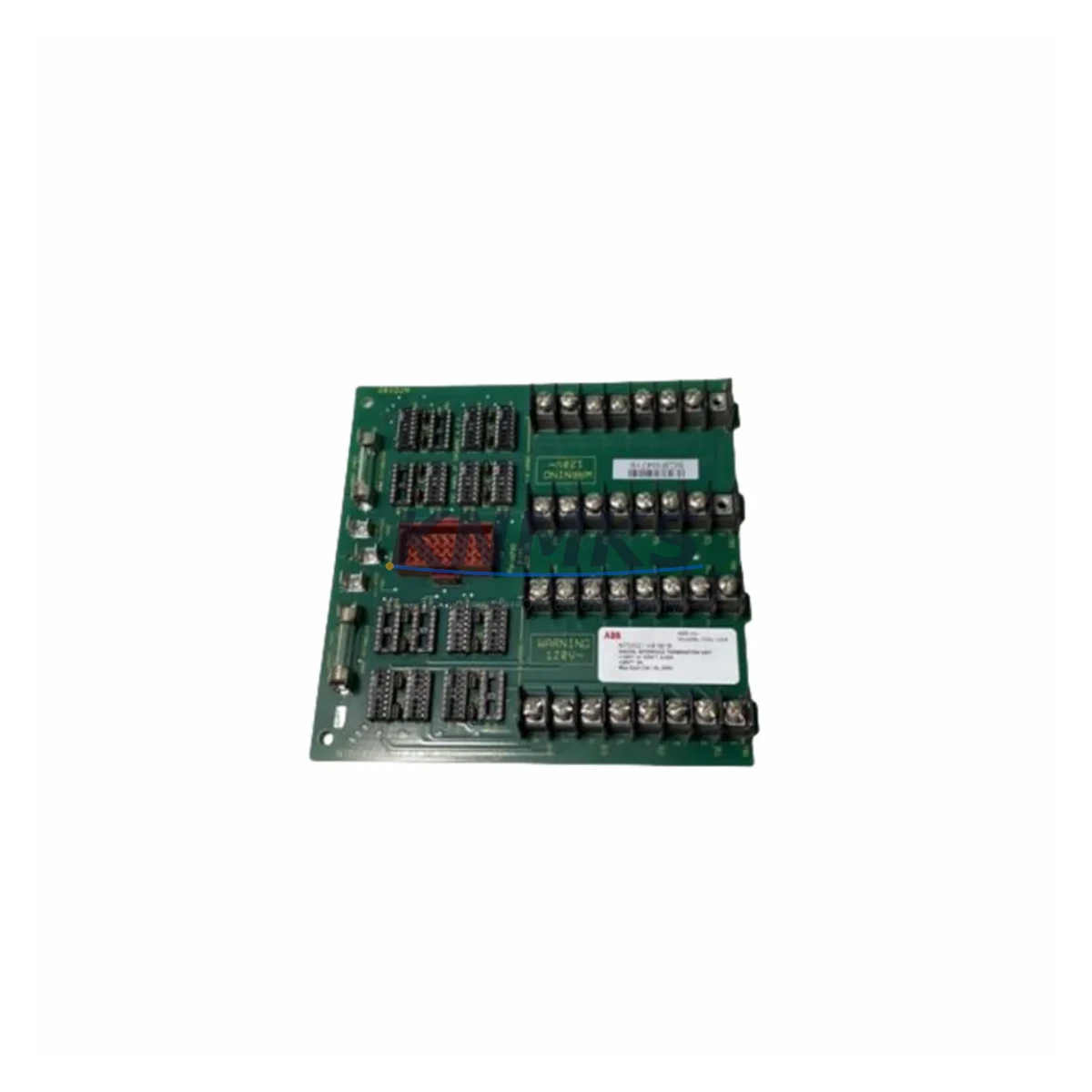

ABB NTDI01-A Migration-Ready Digital I/O Termination for Legacy Control Systems

The ABB NTDI01-A is a migration-ready digital I/O termination unit engineered for direct replacement within ABB S800 I/O series installations. As legacy distributed control systems approach end-of-support milestones, engineering teams managing ABB Freelance, ABB 800xA, or Symphony Plus platforms increasingly rely on verified drop-in replacements to sustain operational continuity without triggering full-system redesigns. The NTDI01-A addresses this need precisely — it maintains the original terminal block layout, backplane connector pinout, and module addressing scheme of the S800 series, allowing field wiring to remain intact during swap-out procedures.

For plants running ABB S800 I/O modules such as the AI810, DI810, or DO810 alongside their associated termination units, the NTDI01-A serves as the critical interface layer between field cables and the I/O module itself. Replacing a worn or failed termination unit without disturbing the field wiring harness is one of the most time-sensitive tasks during a scheduled outage or emergency recovery. The NTDI01-A’s screw-terminal design and labeled channel markings allow technicians to complete the swap, verify continuity, and restore loop integrity within a single maintenance window.

Each unit is pre-tested prior to shipment and covered by a support terms confirmed by quotation, with multi-region stock maintained to support both emergency dispatch and planned outage schedules.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the NTDI01-A into an existing S800 installation requires a structured pre-replacement checklist. Before removing the legacy termination unit, engineers should document the existing field wiring assignments against the channel labeling on the original unit. In most S800 configurations, the termination unit is paired with a specific I/O module — for example, a DI810 digital input module or a DO810 digital output module — and the channel-to-terminal mapping must be preserved exactly to avoid signal inversion or open-circuit faults after reinstatement.

Power supply capacity is a key verification point. The S800 rack is typically powered by an ABB SD821 or SD822 power supply unit, and the total current draw across all populated slots must be recalculated if the rack configuration has changed since the original commissioning. Termination units themselves draw negligible power, but any concurrent replacement of active I/O modules — such as swapping an AI810 analog input module or adding an AO810 analog output module — should be factored into the power budget before the outage window begins.

Communication continuity is maintained through the S800 I/O coupler, typically an CI810B or CI830B Fieldbus Communication Interface, which manages the PROFIBUS DP or Modulebus link between the S800 rack and the ABB AC800M controller. Since the NTDI01-A is a passive termination unit, replacing it does not interrupt the communication link, and the I/O coupler does not require a restart. However, if the replacement is performed while the system is live, the associated I/O module should be placed in a safe state through the control system’s forced-output or manual-override function before disconnecting field wiring.

For installations where the S800 rack is mounted in a congested control cabinet alongside other components — such as an ABB CP430 or CP450 operator panel, signal isolators, or marshalling terminal blocks — installation space should be confirmed before ordering. The NTDI01-A occupies a standard S800 slot width and does not require additional clearance beyond the original unit it replaces.

Where the retrofit scope extends beyond a single termination unit and includes upgrading the I/O coupler or migrating from an older Modulebus topology to PROFIBUS DP, a programming cable such as the TK212A or TK501 may be required to update the CI810B coupler configuration. In such cases, the ABB Control Builder M engineering tool should be used to verify that the new coupler address and I/O module list match the existing controller program before the system is returned to automatic mode.

Downtime Control During System Migration

Minimizing unplanned downtime during a termination unit replacement depends on preparation quality, not execution speed. The most effective approach is to complete all pre-replacement verification steps — wiring documentation, power budget review, spare module staging, and control system backup — before the maintenance window begins. When the NTDI01-A arrives on site, it should be inspected against the pre-shipment test certificate and visually compared to the unit being replaced to confirm terminal count and connector type.

During the swap, the original program logic in the ABB AC800M controller does not need to be modified. Because the NTDI01-A maintains the same physical interface as the original S800 termination unit, the controller continues to address the associated I/O module at the same rack slot and channel offset. HMI screens built in ABB Operate IT or System 800xA do not require reconfiguration, as the underlying tag structure remains unchanged.

After reinstallation, a loop check should be performed on each channel before returning the system to automatic control. For digital input channels, this involves verifying that field device state changes are correctly reflected in the controller’s input image. For digital output channels, a forced-output test confirms that the field device responds correctly to controller commands. This structured commissioning sequence — inspect, install, loop-check, release — typically allows a single termination unit replacement to be completed within a two-hour maintenance window, even in complex multi-rack S800 installations.

Multi-region stock availability ensures that emergency replacement orders can be dispatched within 24 hours to most industrial regions, reducing the risk of extended unplanned outages caused by long lead times on legacy spare parts.

Retrofit Support FAQ

Q1: Is the NTDI01-A a direct replacement for the original ABB S800 digital I/O termination unit?
Yes. The NTDI01-A is designed as a direct drop-in replacement within the ABB S800 I/O series. It uses the same backplane connector, terminal block layout, and slot dimensions as the original unit. Field wiring does not need to be re-routed, and no changes to the controller program or I/O coupler configuration are required.

Q2: Does replacing the NTDI01-A require a controller restart or communication interruption?
No. As a passive termination unit, the NTDI01-A does not participate in the PROFIBUS DP or Modulebus communication chain. The I/O coupler (e.g., CI810B or CI830B) and the AC800M controller continue operating normally during the swap. The associated I/O module should be placed in a safe state before field wiring is disconnected, but no controller restart is needed.

Q3: What pre-shipment testing is performed on each NTDI01-A unit?
Every NTDI01-A unit undergoes full continuity testing across all terminals and electrical isolation verification between channels before dispatch. Units are shipped with a test certificate confirming functional readiness. Each unit is also covered by a support terms confirmed by quotation against manufacturing defects and functional failure from the date of receipt.

Q4: How quickly can the NTDI01-A be dispatched for emergency replacement orders?
KNMKS maintains multi-region stock of the NTDI01-A to support both planned outage schedules and emergency replacement scenarios. In-stock units are typically dispatched within 24 hours of order confirmation. For time-critical situations, contact [email protected] or call +86 18359268345 to confirm current stock availability and expedited shipping options.
