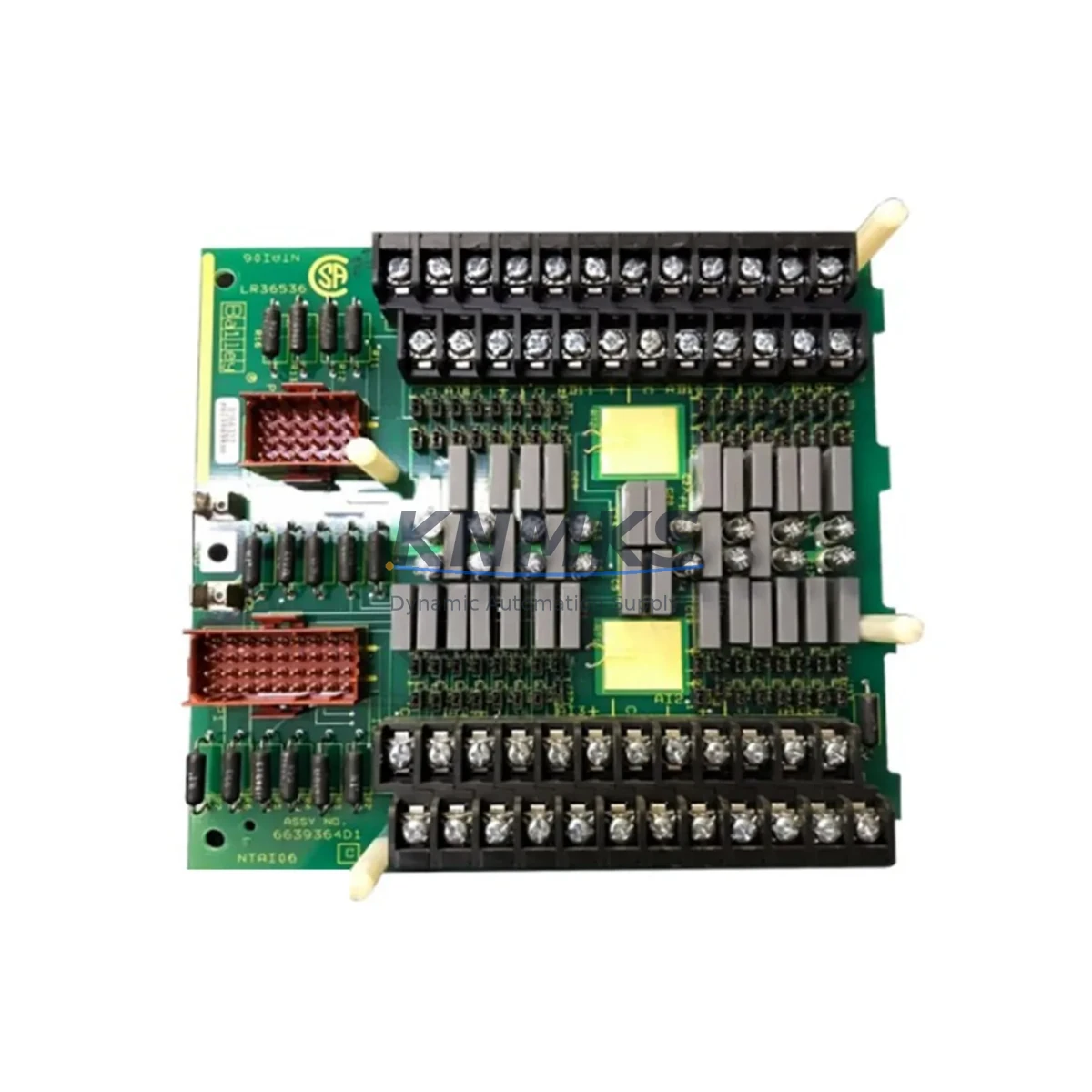

ABB NTAI06 Fail-Safe Analog Input Termination for Industrial Control

Overview

ABB NTAI06 Fail-Safe Analog Input Termination for Industrial Control Reliability

The ABB NTAI06 is a 6-channel passive analog input termination module designed for the ABB S800 I/O system — one of the most widely deployed distributed I/O platforms in process automation. Built to operate reliably in demanding industrial environments, the NTAI06 provides a robust, fail-safe interface between field instrumentation and the control system, minimizing the risk of signal drift, loop interruption, and unplanned process shutdowns.

In continuous production facilities — including petrochemical plants, power generation stations, water treatment works, and metallurgical operations — analog signal integrity is critical. A single degraded input channel can trigger false alarms, cause control loop instability, or mask a genuine process deviation. The NTAI06 addresses this by providing a clean, passive termination path with built-in surge protection, ensuring that 4–20 mA and voltage signals from transmitters, sensors, and analyzers reach the AI810 or AI820 analog input modules without distortion or attenuation.

The module is engineered for direct mounting on the S800 I/O ModuleBus, integrating seamlessly with the ABB AC800M controller family and compatible DCS architectures. Its passive design eliminates active component failure modes, while the surge-protected terminal blocks guard against transient overvoltage events common in high-EMI environments such as motor control centers, variable frequency drive cabinets, and high-voltage switchgear rooms.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered S800 I/O control cabinet, the NTAI06 termination module works as part of a layered protection architecture. Field signals entering the cabinet first pass through surge-protective terminal blocks before reaching the NTAI06, which then routes clean, conditioned signals to the AI810 analog input module — the active acquisition layer responsible for digitizing process values for the AC800M controller. This separation of termination and acquisition functions is a deliberate ABB design choice that simplifies maintenance and reduces the risk of costly module replacement during field wiring faults.

For cabinets operating in environments with significant power quality issues — such as those near large motor starters or welding equipment — the NTAI06 is typically deployed alongside the ABB SD831 or SD832 24 VDC power supply modules, which provide regulated, filtered DC power to the I/O bus. Stable power delivery is essential for accurate analog measurement; even minor supply ripple can introduce offset errors in sensitive 4–20 mA loops. The TB820 ModuleBus Modem handles communication between the I/O cluster and the controller, and its reliability directly depends on the signal quality maintained by termination modules like the NTAI06.

In safety-critical interlock circuits, the NTAI06 is often paired with AI895 or AI893 HART-enabled analog input modules to support HART device diagnostics — enabling predictive maintenance without interrupting the live control loop. For redundant configurations, dual NTAI06 modules may be deployed in parallel termination arrangements, ensuring that a single wiring fault or module failure does not compromise the integrity of the safety instrumented function. The CI854 PROFIBUS DP communication interface is commonly found in the same control architecture, linking field device networks to the AC800M platform.

Critical Industrial Safety Applications

The ABB NTAI06 is deployed across a broad range of safety-critical and continuous-process industries where analog signal reliability is non-negotiable:

Petrochemical and Refining: In distillation columns, reactor temperature monitoring, and pressure control loops, the NTAI06 ensures that transmitter signals reach the DCS without degradation. Signal loss or drift in these applications can trigger emergency shutdowns or, worse, mask a developing overpressure condition. The module’s surge protection is particularly valuable in areas classified as Zone 2 or Division 2, where transient events from nearby electrical equipment are common.

Power Generation: Turbine control systems and boiler management platforms rely on accurate analog inputs for combustion optimization and load balancing. The NTAI06’s passive, low-impedance termination design minimizes ground loop interference — a persistent challenge in large power station earthing systems.

Mining and Mineral Processing: Conveyor load monitoring, crusher control, and flotation cell level measurement all depend on stable 4–20 mA loops operating in environments with extreme vibration, dust ingress, and wide temperature swings. The NTAI06’s robust mechanical design and passive architecture make it well-suited to these conditions.

Water and Wastewater Treatment: Flow, pH, turbidity, and dissolved oxygen measurements feed directly into dosing control loops. In these applications, signal accuracy directly affects regulatory compliance and public safety. The NTAI06 provides the reliable termination infrastructure needed to maintain measurement integrity over long cable runs from remote field instruments.

Metallurgy and Steel Production: High-temperature furnace control, rolling mill tension regulation, and continuous casting level control all require analog inputs that remain stable despite intense electromagnetic interference from induction heating equipment and large DC drives. The NTAI06’s surge-protected design provides a critical first line of defense against transient damage to the I/O system.

Port and Marine Automation: Crane load monitoring, ballast control, and engine room automation systems on vessels and port terminals benefit from the NTAI06’s compact form factor and compatibility with the ABB S800 I/O platform, which is widely used in marine-grade control systems.

Safety and Quality FAQ

Q1: What support terms does the NTAI06 carry?
Every NTAI06 unit supplied by KNMKS is covered by a 12-month quality support terms from the date of shipment. If the module fails under normal operating conditions within this period, we will arrange replacement or repair at no additional cost.

Q2: Is the NTAI06 tested before shipment?
Yes. All units undergo functional verification and visual inspection prior to dispatch. We test for terminal integrity, passive circuit continuity, and surge protection element condition. A test record is available upon request for critical applications.

Q3: Is this module compatible with all ABB S800 I/O analog input modules?
The NTAI06 is designed specifically for use with ABB S800 series analog input modules, including the AI810 and AI820. It mounts directly on the S800 ModuleBus rail and is fully compatible with AC800M-based DCS architectures. For HART-enabled applications, please confirm compatibility with your specific AI module variant before ordering.

Q4: Can KNMKS support long-term and emergency replacement supply?
Yes. KNMKS maintains stock of the NTAI06 and a broad range of ABB S800 I/O modules and termination units to support both planned maintenance schedules and emergency breakdown situations. We offer global delivery details confirmed by RFQ and can provide documentation support for import clearance. Contact our team at [email protected] or +86 18359268345 for availability and lead time confirmation.
