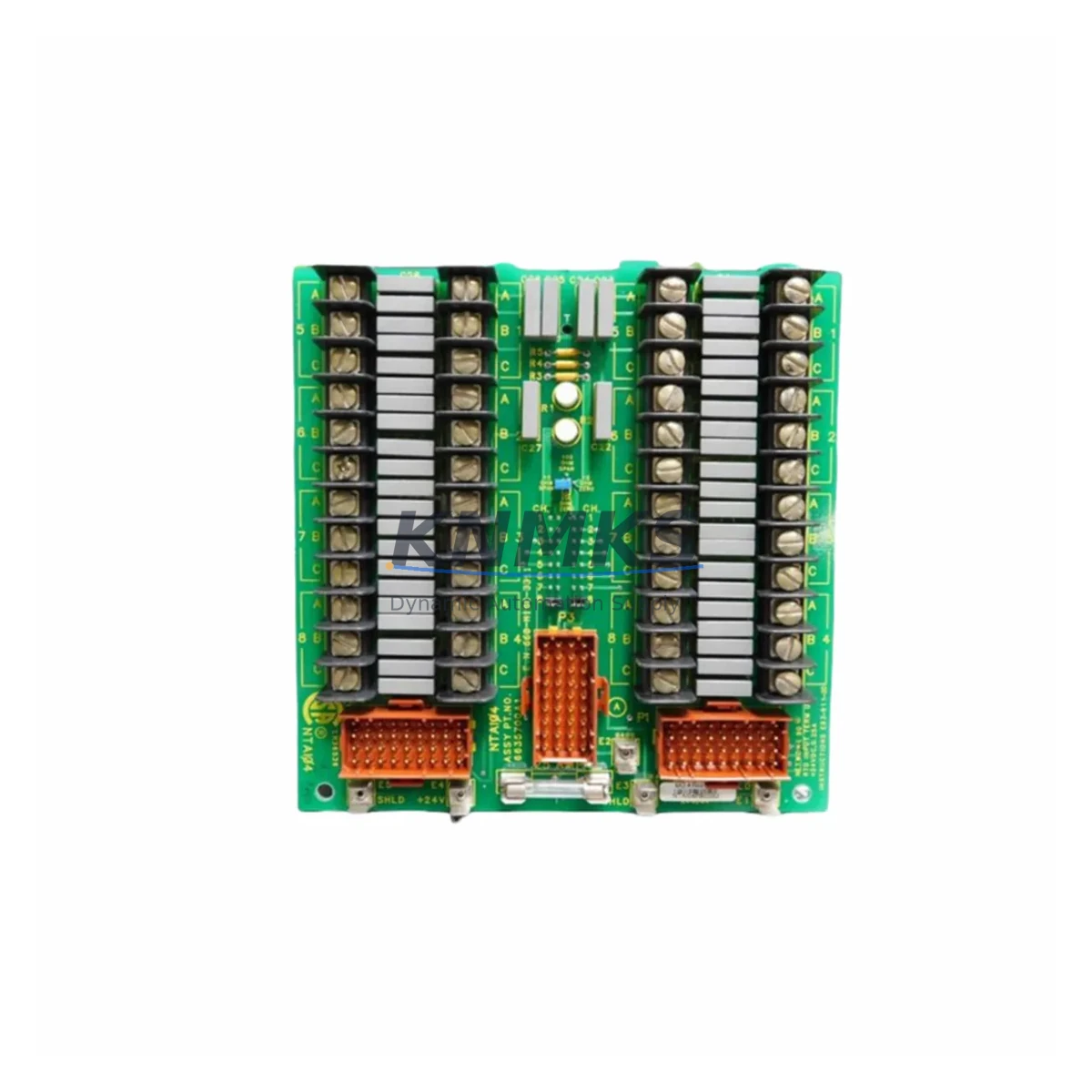

ABB NTAI04 Migration-Ready Analog Input Termination

Overview

ABB NTAI04 Migration-Ready Analog Input Termination for Legacy Control Systems

The ABB NTAI04 is a field-proven analog input termination unit designed for the S800 I/O platform, widely deployed across process industries including oil & gas, pulp & paper, power generation, and chemical processing. As ABB’s legacy DCS and hybrid control architectures approach end-of-support milestones, the NTAI04 has become a critical component in both emergency spare part strategies and structured migration programs. Whether you are executing a phased replacement of an ABB Advant OCS or Freelance 2000 system, or modernizing a Harmony or Symphony Plus environment, the NTAI04 provides a verified drop-in termination path that preserves existing field wiring and minimizes panel rework.

Each NTAI04 unit supplied by KNMKS is sourced from controlled inventory, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation. Units are dispatched from multi-region stock to support both scheduled outage windows and unplanned emergency replacements. Lead times are confirmed at order placement, and expedited dispatch is available for critical process shutdowns.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the NTAI04 into a legacy ABB control environment requires a structured pre-installation review. Engineers should begin by auditing the existing S800 baseplate configuration, confirming the number of occupied slots and the available power headroom from the installed SA811 or SA812 power supply module. In systems where the baseplate is shared with digital I/O modules such as the DI810 or DO810, slot allocation must be verified against the current hardware configuration file in the AC800M controller project.

Terminal wiring should be documented before removal of the legacy NTAI04. In most installations, the field cable terminations are made directly to the NTAI04 terminal block, and the replacement unit accepts the same wiring layout without modification. However, in older Advant OCS installations where custom marshalling panels were used, engineers should verify that the terminal numbering convention matches the replacement unit’s pinout before energizing the loop.

Where the NTAI04 is paired with an AI830A HART analog input module, the HART communication path must be re-validated after module swap. This includes confirming that the HART modem address assignments in the DCS database match the physical channel mapping on the new termination unit. In Symphony Plus and System 800xA environments, the Control Builder M project should be backed up prior to any hardware change, and the module object should be set offline before physical removal to prevent spurious alarms on the operator station.

For sites running Profibus DP communication via the TB820V2 interface module, the GSD file version and Profibus node address should be recorded before the swap. After installation of the replacement NTAI04, the Profibus segment should be re-scanned and the module diagnostics verified in the DCS engineering station. In multi-drop Profibus segments, confirm that the termination resistor settings on the TB820V2 are not disturbed during the physical swap.

In control cabinets where space is constrained, the physical dimensions of the NTAI04 should be confirmed against the available rail depth and adjacent module clearance. This is particularly relevant in older Advant Rack installations where cable management trays may limit module extraction travel. Where the NTAI04 is installed alongside an SA812 redundant power supply, ensure that the power feed connectors are not stressed during module removal.

Downtime Control During System Migration

Minimizing process downtime during an NTAI04 replacement requires advance preparation of the replacement unit, a clear isolation and reinstatement procedure, and coordination with the control room operator. The recommended approach is to place the affected AI module offline in the DCS prior to physical removal, suppressing field alarms and preventing spurious trips on interlock logic that references the analog input channels served by the NTAI04.

Where the process cannot tolerate a full channel outage, a temporary signal bypass using a portable signal simulator can be used to hold the DCS input at a safe value while the termination unit is exchanged. This approach is commonly used in continuous process plants where flow, pressure, or temperature inputs feed active control loops. After installation of the replacement NTAI04, each channel should be verified against the field instrument reading before the module is brought back online in the DCS.

Program logic should not require modification for a like-for-like NTAI04 replacement. The DCS tag database, scaling parameters, and alarm limits remain unchanged. HMI faceplates referencing the affected analog inputs will resume normal display once the module is online and the field signals are confirmed healthy. For sites using ABB’s Asset Vision or System 800xA Asset Optimization, the maintenance record for the replaced module should be updated in the asset management system to reflect the swap date and the new unit’s serial number.

Post-installation commissioning should include a loop check on all channels served by the NTAI04, confirmation of HART device communication where applicable, and a review of the DCS event log to ensure no unexpected alarms were generated during the swap. The full replacement procedure, including isolation, swap, and reinstatement, can typically be completed within a planned maintenance window of two to four hours for a single baseplate position.

Retrofit Support FAQ

Q1: Is the NTAI04 a direct drop-in replacement for the existing unit in my S800 baseplate?
Yes. The NTAI04 is designed for direct slot replacement within the S800 I/O baseplate. No baseplate modification is required. Field wiring terminations are retained on the replacement unit using the same terminal block layout as the original. Confirm the paired AI module type (AI810, AI820, or AI830A) before installation to ensure signal range and HART capability alignment.

Q2: What pre-shipment testing is performed on NTAI04 units supplied by KNMKS?
Each unit undergoes functional verification prior to dispatch, including terminal continuity checks and interface validation. Units are packaged in anti-static protective packaging and shipped with a test record. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can the NTAI04 be used in a System 800xA migration from an older Advant OCS platform?
Yes. The NTAI04 is compatible with System 800xA S800 I/O configurations. When migrating from Advant OCS, the S800 I/O hardware is typically retained and integrated into the 800xA environment via the TB820V2 Profibus DP interface. The NTAI04 termination unit does not require replacement as part of the controller migration itself; however, units showing signs of wear or age should be replaced proactively to reduce the risk of field failures during the post-migration stabilization period.

Q4: What is the typical lead time and do you hold stock for emergency orders?
KNMKS maintains multi-region inventory of the NTAI04 to support both scheduled maintenance and emergency replacement scenarios. Standard lead time is confirmed at order placement. Expedited dispatch is available for critical process shutdowns. Contact the sales team directly for stock confirmation and urgent order processing.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

NTAI04
S800 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB NTAI04
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
