ABB NTAI02 Fail-Safe Analog Input Termination Unit

Overview

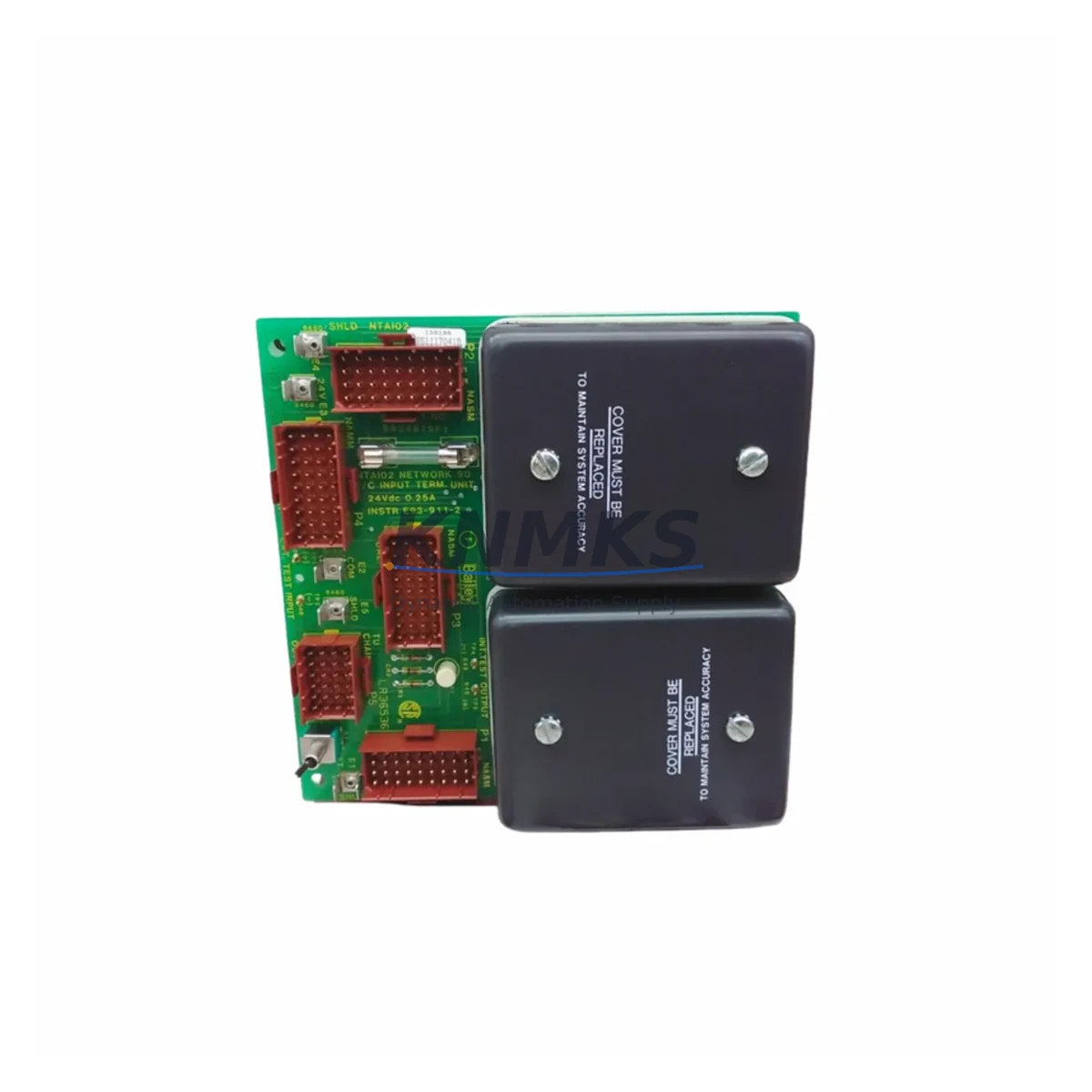

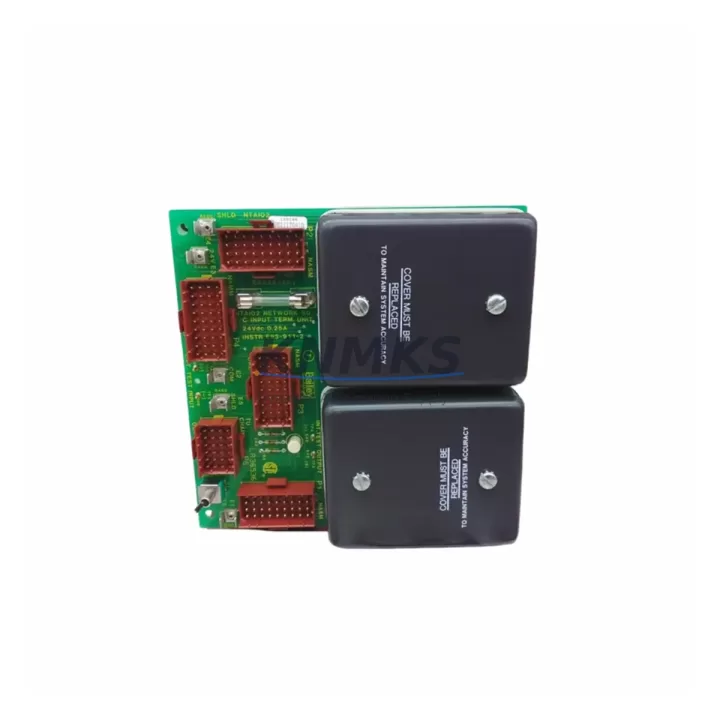

ABB NTAI02 Fail-Safe Analog Input Termination Unit: Fault-Protected Reliability for Critical Industrial Control

The ABB NTAI02 is a precision-engineered analog input termination unit designed for the ABB S800 I/O system — one of the most widely deployed distributed I/O platforms in continuous process industries. In critical control environments where signal integrity directly determines process safety, the NTAI02 delivers structured fault protection across every analog channel it serves. Whether installed in a petrochemical DCS cabinet, a power generation marshalling panel, or a water treatment SCADA enclosure, this termination unit provides the electrical interface discipline that prevents signal drift, surge damage, and unplanned control interruptions.

At its core, the NTAI02 functions as the hardwired bridge between field instrumentation — transmitters, sensors, and transducers — and the ABB S800 AI810 or AI820 analog input modules. By consolidating field wiring terminations at a dedicated, shielded terminal block assembly, it eliminates the risk of cross-wiring errors during maintenance, reduces loop resistance variability, and enforces consistent cable entry discipline across all analog channels. In high-density control cabinets where dozens of 4–20 mA loops converge, this structural separation between field and system wiring is not a convenience — it is a safety requirement.

Signal drift and measurement error are among the most insidious failure modes in analog control loops. The NTAI02 addresses this through its low-resistance, gold-plated terminal contacts and shielded cable routing architecture, which together suppress common-mode noise and reduce the impact of electromagnetic interference from adjacent variable frequency drives, contactors, and high-current bus bars. In facilities where ABB ACS880 or ACS580 drives operate in close proximity to control marshalling panels, the NTAI02’s passive shielding design provides a measurable reduction in induced noise on sensitive 4–20 mA and 1–5 V analog signals.

Surge and transient protection is a persistent challenge in field-connected analog loops, particularly in outdoor installations, long cable runs across industrial sites, and environments subject to lightning exposure. The NTAI02 is designed to work in conjunction with ABB’s S800 I/O surge protection accessories, providing a coordinated protection layer that limits transient energy before it reaches the AI810 or AI820 input circuitry. This coordination is critical in mining, port, and offshore applications where cable runs may exceed several hundred meters and ground potential differences introduce additional transient risk.

In safety instrumented systems and critical interlock loops, the NTAI02 supports the signal path integrity required by IEC 61511 functional safety architectures. When paired with the ABB AC800M controller platform and S800 I/O modules such as the AI810, AO810, and DI810, the NTAI02 forms part of a validated, traceable signal chain from field sensor to control logic. This traceability is essential during safety audits, HAZOP reviews, and SIL verification exercises in petrochemical, pharmaceutical, and power generation facilities.

Thermal management within control cabinets is a frequently underestimated reliability factor. The NTAI02’s passive, low-dissipation design contributes minimal heat load to the cabinet environment, supporting the thermal budget of adjacent active components including the S800 I/O bus coupler, power supply modules, and communication interface units. In high-density cabinets operating in ambient temperatures above 40°C, every watt of unnecessary heat generation increases the risk of premature component failure and unplanned shutdown.

For maintenance teams managing aging S800 I/O installations, the NTAI02 is a direct, plug-compatible replacement that requires no firmware changes, no reconfiguration of the AI810 or AI820 module, and no modification to existing cable schedules. This drop-in compatibility significantly reduces the maintenance window duration during scheduled outages and eliminates the risk of configuration errors that can accompany more complex replacement procedures. KNMKS maintains verified stock of the NTAI02 with pre-shipment functional testing completed on every unit prior to dispatch.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust S800 I/O control cabinet deployment extends well beyond the NTAI02 termination unit itself. In a fully protected analog input architecture, the NTAI02 works in close coordination with the ABB AI810 8-channel analog input module, which performs the actual A/D conversion and communicates process values to the AC800M controller via the S800 I/O bus. The bus coupler — typically the TB820V2 or TB840A — manages the optical communication link between the I/O cluster and the controller, and its integrity is as critical as the termination unit’s signal conditioning role.

On the power supply side, the S800 I/O system relies on the SD821 or SD822 24 VDC power supply modules to deliver stable, regulated power to the I/O bus. Voltage fluctuations or ripple on the 24 VDC rail can introduce measurement errors in sensitive analog loops, making power supply quality a direct factor in analog signal accuracy. In cabinets where the NTAI02 supports safety-critical measurement loops, a redundant power supply configuration using dual SD822 units with automatic changeover is strongly recommended.

For digital interlock and safety relay circuits operating alongside the analog measurement loops, the ABB DI810 digital input module and DO810 digital output module provide the discrete signal handling required for emergency shutdown, permissive logic, and alarm annunciation. Coordinating the analog measurement data from the NTAI02/AI810 path with the discrete interlock signals from the DI810 within the AC800M controller logic creates a unified, auditable safety architecture that supports both process control and functional safety objectives.

In environments with high electromagnetic interference — such as motor control centers, variable speed drive panels, or arc furnace control rooms — additional cabinet-level protection measures including ferrite core suppressors on signal cables, shielded cable trays, and physical separation between power and signal wiring complement the NTAI02’s passive shielding to maintain analog signal integrity across the full operating range.

Critical Industrial Safety Applications

The ABB NTAI02 is deployed across a broad range of critical industrial sectors where analog signal integrity is directly linked to process safety and operational continuity.

In petrochemical and refinery facilities, the NTAI02 supports the analog measurement loops that feed pressure, temperature, and flow data into DCS safety interlock systems. Accurate, noise-free analog signals are essential for detecting abnormal process conditions before they escalate to emergency shutdown events. The NTAI02’s structured termination discipline reduces the risk of measurement errors that could mask developing process hazards or trigger spurious shutdowns.

In power generation plants — including coal, gas, and hydroelectric facilities — the NTAI02 is used in turbine control, boiler management, and generator excitation monitoring systems. These applications demand continuous, uninterrupted analog signal paths with zero tolerance for signal dropout or drift during load transitions and grid disturbances.

In mining and mineral processing operations, the NTAI02 supports analog measurement in crusher control, conveyor load monitoring, and flotation cell management systems. The harsh environment — characterized by heavy vibration, dust ingress, and wide temperature swings — places particular demands on termination unit mechanical integrity and contact reliability.

In water and wastewater treatment facilities, the NTAI02 is used in flow measurement, chemical dosing control, and effluent quality monitoring loops. Regulatory compliance requirements in these facilities demand traceable, accurate analog measurement with documented calibration and maintenance records — all of which are supported by the NTAI02’s structured, auditable termination architecture.

In metallurgical and steel production environments, the NTAI02 supports temperature measurement and process control in furnace management, rolling mill control, and continuous casting systems. The combination of high ambient temperatures, strong electromagnetic fields from induction heating equipment, and vibration from heavy machinery makes the NTAI02’s passive, robust design particularly well-suited to these demanding conditions.

Safety and Quality FAQ

Q: What support terms coverage does KNMKS provide for the ABB NTAI02?
A: Every NTAI02 unit supplied by KNMKS carries a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our support terms process includes direct technical support and expedited replacement dispatch to minimize any impact on your production schedule.

Q: Is pre-shipment testing performed on every NTAI02 unit?
A: Yes. Every NTAI02 unit undergoes functional verification testing before dispatch. This includes terminal continuity checks, contact resistance measurement, and visual inspection for mechanical integrity. Test records are available upon request for quality-critical procurement processes.

Q: Is the NTAI02 directly compatible with existing ABB S800 I/O installations without reconfiguration?
A: Yes. The NTAI02 is a direct plug-compatible replacement for existing S800 I/O analog input termination units. No firmware updates, module reconfiguration, or cable schedule modifications are required. This drop-in compatibility is specifically designed to minimize maintenance window duration and eliminate configuration risk during replacement.

Q: Can KNMKS support long-term or scheduled supply agreements for the NTAI02?
A: Yes. KNMKS maintains multi-region inventory of the NTAI02 and can support both emergency replacement orders and scheduled maintenance supply agreements. For facilities managing planned outage spare parts programs or multi-year maintenance contracts, our team can provide volume pricing, reserved stock arrangements, and priority dispatch commitments. Contact [email protected] or +86 18359268345 to discuss your supply requirements.
