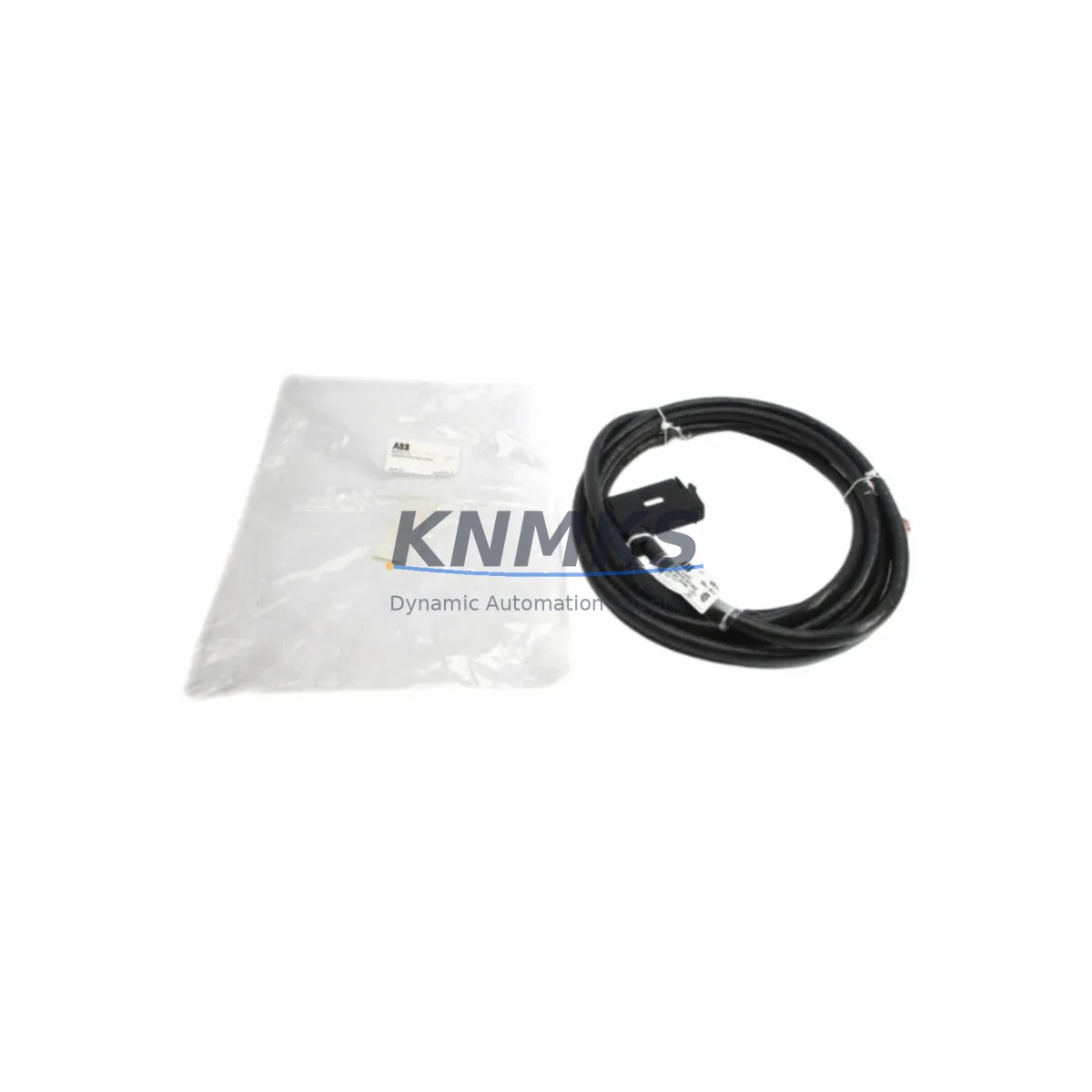

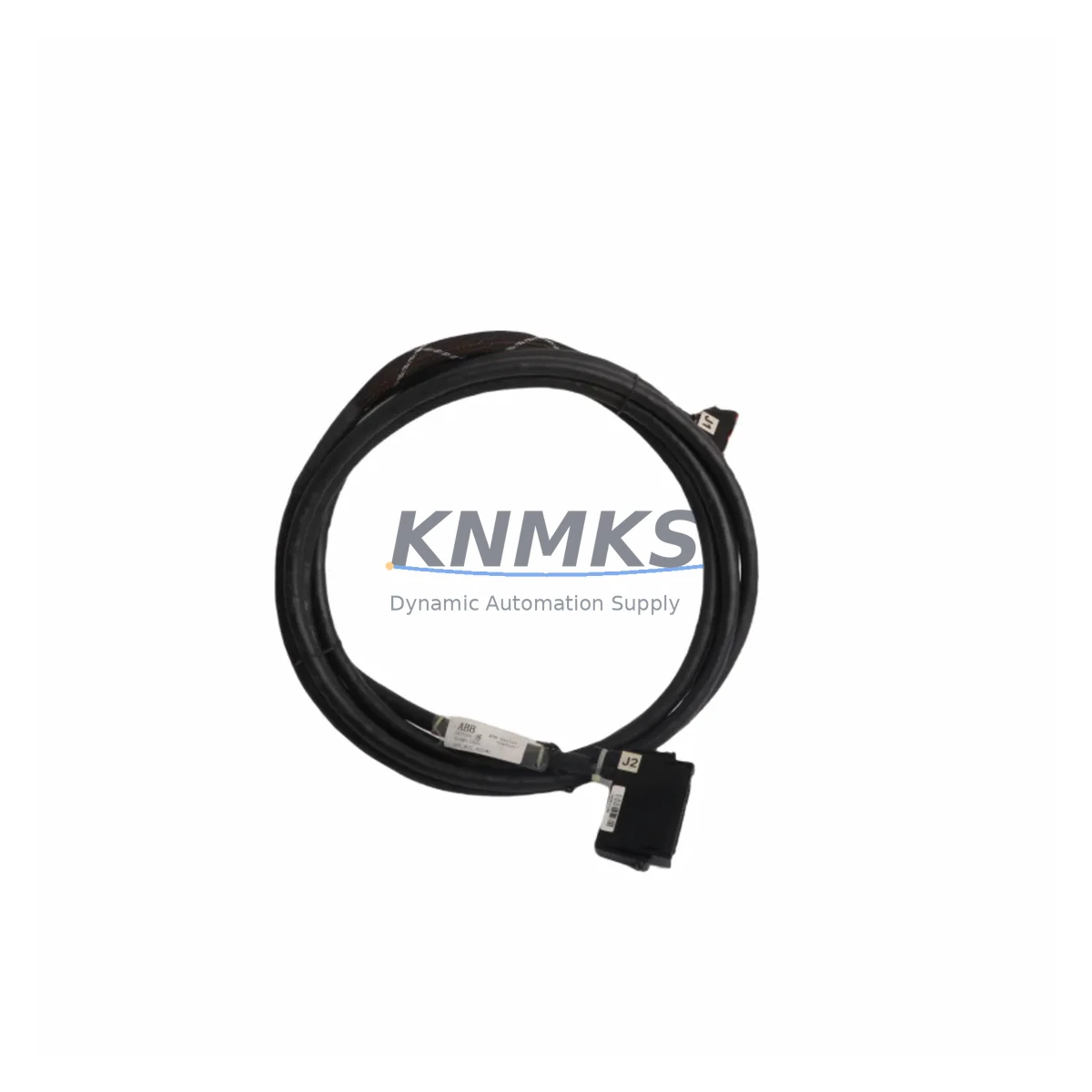

ABB NKTU01-15 Migration-Ready DCS Terminal Unit

Overview

ABB NKTU01-15 Migration-Ready DCS Terminal Unit for Legacy Control Systems

The ABB NKTU01-15 is a migration-ready DCS terminal unit engineered for direct replacement and retrofit integration within ABB NKTU Series distributed control system architectures. Designed to address the growing demand for end-of-life spare parts and discontinued module replacements, the NKTU01-15 supports engineering teams executing phase 1 and phase 2 migration projects across petrochemical, power generation, pulp and paper, and continuous process industries. Each unit is pre-tested prior to shipment, backed by a support terms confirmed by quotation, and dispatched from multi-region stock to minimize lead times during scheduled outages and emergency replacement scenarios.

When replacing a legacy NKTU01-15 in an existing ABB Advant or Symphony Plus DCS environment, engineers must verify several critical parameters before installation. Power supply capacity at the marshalling cabinet must be confirmed to support the terminal unit’s 24 VDC loop requirements. Terminal block wiring assignments — including signal type, polarity, and shielding continuity — should be mapped against the original as-built drawings before any field disconnection. Backplane slot addressing and module position within the I/O rack must match the original configuration to avoid address conflicts that could trigger controller faults or force a cold restart of the associated ABB AC450 or AC800M controller node.

Program compatibility is a key concern during NKTU01-15 replacement. Control logic referencing specific I/O channel assignments in ABB Control Builder or Composer must be validated against the replacement unit’s channel mapping. HMI faceplates configured in ABB 800xA or Operate IT that reference tag names tied to the original terminal unit should be reviewed to confirm display continuity. Communication links — particularly PROFIBUS DP or FOUNDATION Fieldbus H1 segments connected through associated ABB CI854 or CI801 communication interface modules — must remain active or be safely isolated during the swap to prevent upstream controller alarms.

Installation space confirmation is essential in dense marshalling cabinets. The NKTU01-15 occupies a standard DIN rail footprint consistent with the NKTU series form factor, but engineers should verify clearance for adjacent modules such as the ABB NTAI05 analog input termination unit or NTDI09 digital input termination unit, which are commonly installed in the same marshalling row. Firmware version alignment between the replacement terminal unit and the active controller firmware should be confirmed with ABB release notes prior to commissioning. Field calibration and loop checks should be completed channel by channel, with process values verified against the historian or DCS trend display before returning the loop to automatic control.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful NKTU01-15 retrofit projects require a structured approach that accounts for the full scope of the marshalling cabinet and control system architecture. Before removing the legacy terminal unit, engineers should document all field wiring terminations, including signal type (AI, AO, DI, DO), cable shielding connections, and any jumper configurations specific to the installed loop. The ABB NTAI05 analog input termination unit and NTDI09 digital input termination unit, frequently installed alongside the NKTU01-15 in the same marshalling row, should be inspected for wear and terminal integrity as part of the same maintenance window to avoid repeat outages.

Power distribution within the cabinet should be assessed using the ABB NKPS02 or equivalent power supply module to confirm that adding or replacing the NKTU01-15 does not exceed the available current budget. Signal isolation requirements should be reviewed — in applications where field signals cross hazardous area boundaries or require galvanic separation, signal isolators compatible with the NKTU series wiring standard should be confirmed as part of the retrofit bill of materials.

For projects involving communication protocol migration — for example, transitioning from legacy serial HART to PROFIBUS DP or FOUNDATION Fieldbus — the ABB CI854 PROFIBUS DP communication interface module or CI801 FOUNDATION Fieldbus interface module must be verified as active and correctly addressed on the controller backplane before the NKTU01-15 is brought online. Programming cables and laptop-based engineering tools (ABB Control Builder M or Composer) should be on-site during commissioning to allow real-time program edits if channel mapping discrepancies are identified during loop checks.

Where I/O expansion is part of the retrofit scope, additional NKTU series terminal units or compatible ABB S800 I/O modules may be required to accommodate new measurement points introduced during the control system upgrade. Rack space and DIN rail capacity should be confirmed in the cabinet layout drawing before procurement to avoid installation delays.

Downtime Control During System Migration

Minimizing downtime during NKTU01-15 replacement requires advance preparation that begins well before the maintenance window opens. A complete backup of the controller program — including all function block configurations, loop tuning parameters, and alarm setpoints — should be exported from ABB Control Builder or Composer and stored on a secure engineering workstation before any hardware is disturbed. This backup protects the original control logic and allows rapid restoration if the replacement unit introduces unexpected behavior during commissioning.

Field control continuity can be maintained during the swap by placing affected loops in manual mode at the DCS operator station prior to disconnecting the terminal unit. Operators should be briefed on the expected duration of the maintenance window and the specific loops that will be temporarily unavailable. Where process safety requirements demand continuous monitoring, portable field instruments can be deployed to maintain visibility of critical measurements during the hardware exchange.

The physical replacement of the NKTU01-15 should follow a structured sequence: isolate field wiring, label all terminals before disconnection, remove the legacy unit, install the replacement, reconnect field wiring in sequence, and perform a point-by-point loop check before returning loops to automatic. Firmware version confirmation and any required parameter downloads should be completed before the loop check begins. With pre-tested units and a well-prepared engineering team, total downtime for a single NKTU01-15 replacement can typically be contained within a planned four-hour maintenance window, reducing the risk of unplanned production loss and protecting the integrity of the surrounding control system.

Retrofit Support FAQ

Q1: Is the NKTU01-15 a direct drop-in replacement for the discontinued ABB NKTU01-15 installed in my existing DCS?
Yes. The NKTU01-15 supplied by KNMKS is sourced to match the original ABB specification, including terminal block layout, DIN rail mounting footprint, and signal channel configuration. Engineers should verify wiring assignments against as-built drawings and confirm backplane slot addressing before installation to ensure seamless integration without controller reconfiguration.

Q2: What commissioning steps are required after installing the replacement NKTU01-15?
After physical installation and field wiring reconnection, confirm firmware version alignment with the active controller, perform a channel-by-channel loop check with process values verified at the DCS trend display or historian, and return each loop to automatic control only after signal integrity is confirmed. Any discrepancies in I/O channel mapping should be resolved in ABB Control Builder or Composer before automatic mode is restored.

Q3: How do I confirm wiring compatibility between the replacement unit and my existing field cables?
Map the terminal block assignments on the replacement NKTU01-15 against the original as-built wiring drawings. Pay particular attention to signal polarity, shielding continuity, and any jumper configurations that were applied to the original unit. If as-built drawings are unavailable, photograph the existing terminal connections before disconnection and use the photographs as a reference during reconnection.

Q4: What support terms and pre-shipment testing does KNMKS provide for the NKTU01-15?
Every NKTU01-15 unit dispatched by KNMKS undergoes full functional testing prior to shipment to verify electrical integrity and channel performance. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Multi-region stock is maintained to support fast global dispatch for both emergency replacements and scheduled maintenance outages.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

NKTU01-15

Product Family

HMI & Displays

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Display range

Operator panels and touch screens

Common needs

Screen size, interface and version matching

Project support

Retrofit, spare unit and panel replacement

Inquiry Support

• Panel size and interface confirmation
• Replacement unit inquiry for discontinued HMIs
• Protective packaging for display shipment

What to Send Us

• Brand and exact model number: ABB NKTU01-15
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
