ABB NIOC-01C 3BSE009858R1 Fail-Safe I/O Control

Overview

ABB NIOC-01C 3BSE009858R1 Fail-Safe I/O Control: Fault Protection & Critical Industrial Reliability

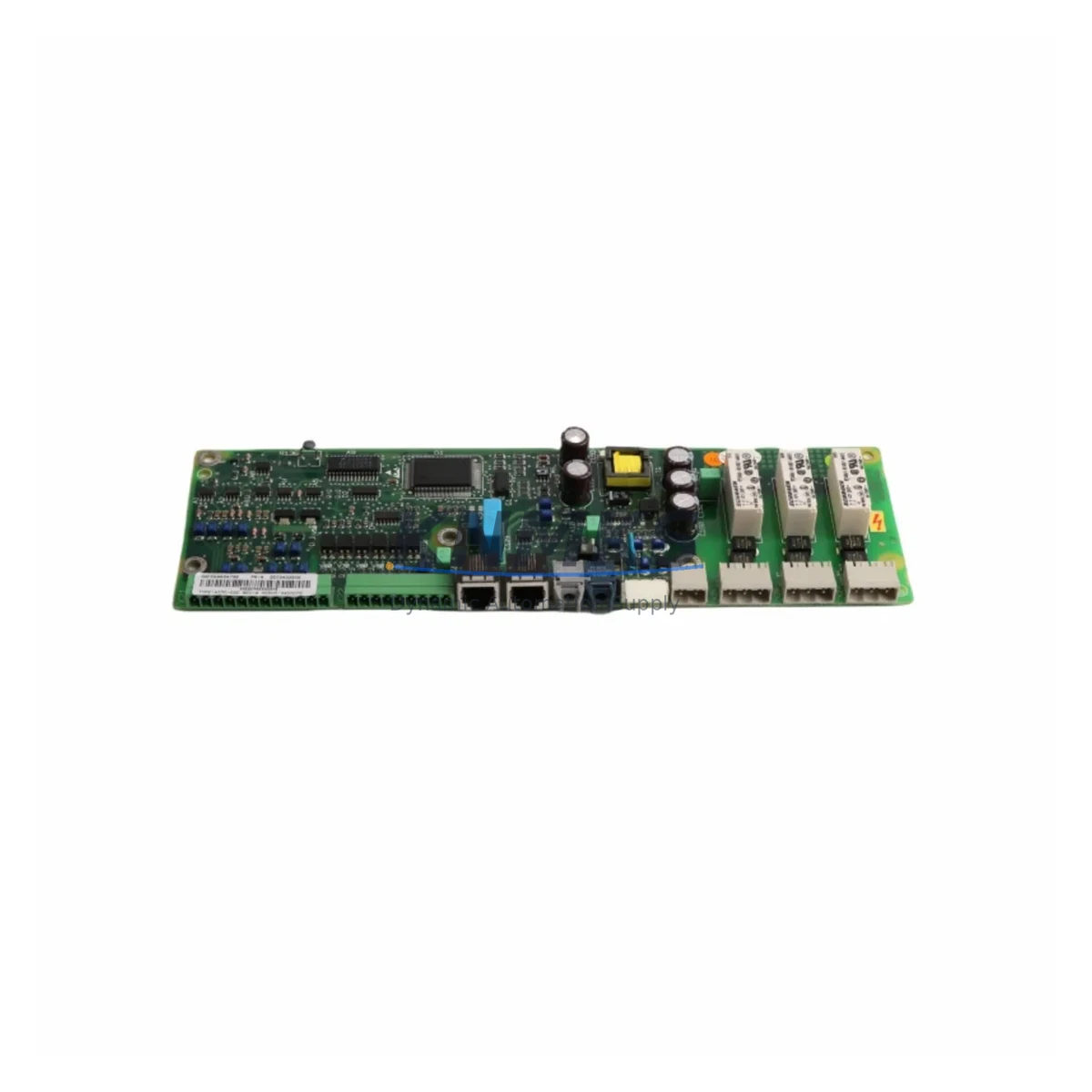

The ABB NIOC-01C (3BSE009858R1) is a safety-enhanced drive I/O control module engineered for the ACS800 series variable frequency drive platform. Designed to operate reliably in the most demanding industrial environments — including high electromagnetic interference zones, dusty and humid process areas, high-temperature motor control cabinets, and continuous-production facilities where unplanned downtime is unacceptable — this module delivers the fail-safe signal integrity and control loop stability that modern industrial automation demands.

In critical control architectures, a single point of I/O failure can cascade into process shutdowns, equipment damage, or safety interlock trips. The NIOC-01C addresses this risk by providing robust, isolated I/O channels with built-in surge suppression and EMI immunity, ensuring that digital and analog control signals remain stable even when the surrounding cabinet environment is electrically noisy or thermally stressed. Whether integrated into a petrochemical compressor drive train, a mine hoist control system, or a continuous steel rolling mill, this module maintains signal fidelity across the full operating cycle.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The NIOC-01C does not operate in isolation — it is one critical node within a layered control cabinet protection strategy. In a well-engineered ACS800 drive cabinet, the NIOC-01C works in concert with the ABB RDCO-03C (3AFE64539543) DriveWindow communication adapter, which handles the fiber-optic DDCS communication link between the drive and the upper-level control system. Any signal anomaly at the I/O layer that is not caught by the NIOC-01C’s isolation circuitry can propagate upstream through the communication bus — making the integrity of both modules interdependent.

On the power supply side, the NIOC-01C relies on stable 24 VDC auxiliary power. In cabinets where power quality is a concern — particularly in facilities with heavy motor starting loads or frequent switching transients — pairing the drive system with an ABB APBU-44C (3AFE68573714) branching unit or a dedicated 24 V redundant power supply module ensures that control logic remains energized even during main bus fluctuations. Power interruptions to the I/O module, even momentary ones, can cause the drive to trip on a control fault, interrupting production.

For applications involving safety interlocks — such as emergency stop circuits, safety door monitoring, or overspeed protection — the NIOC-01C is typically installed alongside a ABB AINT-02C (3AFE68784367) interface board or equivalent safety relay module that monitors the drive’s safe torque off (STO) input. The I/O module’s digital inputs serve as the physical interface for these interlock signals, and their reliability directly determines whether the safety function activates correctly under fault conditions.

In high-vibration environments such as mining conveyors or offshore pump drives, the mechanical integrity of the module’s connector interface is equally important. Supplementing the NIOC-01C installation with ABB NINT-41C (3AFE64527592) interface boards and properly torqued, vibration-resistant terminal connections prevents the intermittent contact faults that are a leading cause of nuisance drive trips in mobile or vibrating plant equipment.

Finally, for thermal management within the control cabinet, ensuring adequate spacing around the NIOC-01C and neighboring modules such as the ABB RMIO-11C (3AFE64527592) motor control board prevents heat soak that can degrade signal accuracy on analog I/O channels over time. Thermal derating of electronic components is a well-documented failure mode in densely packed drive cabinets operating in high-ambient-temperature environments.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process facilities handling flammable or toxic media, the NIOC-01C supports the drive control loops for booster pumps, compressors, and agitators where any unplanned stop triggers a process safety event. Its surge-protected I/O channels maintain interlock signal integrity even when high-voltage switching equipment operates in adjacent switchgear rooms.

Electric Power Generation & Transmission: Auxiliary drive systems in power plants — including cooling water pumps, induced draft fans, and fuel feed conveyors — rely on stable I/O control to maintain generation output. The NIOC-01C’s EMI immunity is particularly valuable in substations and generator halls where strong magnetic fields from transformers and bus bars can induce noise on unprotected signal wiring.

Mining & Mineral Processing: Hoist drives, conveyor drives, and crusher motor controls in underground and open-pit mining operations are subject to extreme vibration, dust ingress, and wide temperature swings. The NIOC-01C’s robust construction and isolated I/O architecture reduce the risk of spurious trips that can strand personnel or damage equipment in these safety-critical environments.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities operate continuously, with pump and blower drives that must respond correctly to level sensor signals and flow control commands. The NIOC-01C ensures that analog input signals from field transmitters are accurately received by the drive without drift or noise corruption, supporting precise process control and regulatory compliance.

Metallurgy & Steel Production: Rolling mill drives, ladle transfer cars, and furnace exhaust fan drives in steel plants demand I/O modules that can withstand intense electromagnetic interference from arc furnaces and induction heating equipment. The NIOC-01C’s shielded signal architecture maintains control loop stability in these electrically hostile environments.

Port & Marine Applications: Container crane drives, ship-to-shore conveyor systems, and vessel propulsion auxiliary drives require I/O control modules that perform reliably in salt-air, high-humidity environments with significant mechanical vibration. The NIOC-01C’s environmental tolerance makes it a dependable choice for port automation and marine drive systems.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the ABB NIOC-01C 3BSE009858R1?
The support terms confirmed by quotation cover functional failure of the module under normal operating conditions from the date of shipment. If the module fails to perform its specified I/O control functions due to a manufacturing or component defect, we will provide a replacement or repair at no additional cost. The support terms does not cover damage resulting from incorrect installation, overvoltage beyond rated limits, or physical mishandling.

Q2: How is the NIOC-01C tested before shipment?
Every NIOC-01C unit undergoes a 100% functional outgoing inspection prior to dispatch. This includes verification of digital I/O channel response, analog signal accuracy, communication interface integrity, and visual inspection for physical damage. Test records are retained and can be provided upon request for quality-critical procurement processes.

Q3: Is the NIOC-01C 3BSE009858R1 compatible with all ACS800 drive variants?
The NIOC-01C is designed for the ABB ACS800 series drive platform. Compatibility depends on the specific ACS800 variant and firmware version in your installation. We recommend confirming the drive’s option slot configuration and firmware revision against ABB’s technical documentation before installation. Our technical team can assist with compatibility verification based on your drive’s nameplate data and existing option board configuration.

Q4: Can you support long-term or repeat supply of the NIOC-01C for ongoing maintenance programs?
Yes. We maintain dedicated stock of the NIOC-01C 3BSE009858R1 to support planned maintenance schedules, emergency spare parts programs, and capital project procurement. For facilities managing multiple ACS800 drives — such as those in continuous process industries — we can discuss framework supply agreements to ensure consistent availability and pricing. Contact our sales team to discuss your annual consumption requirements and lead time expectations.
