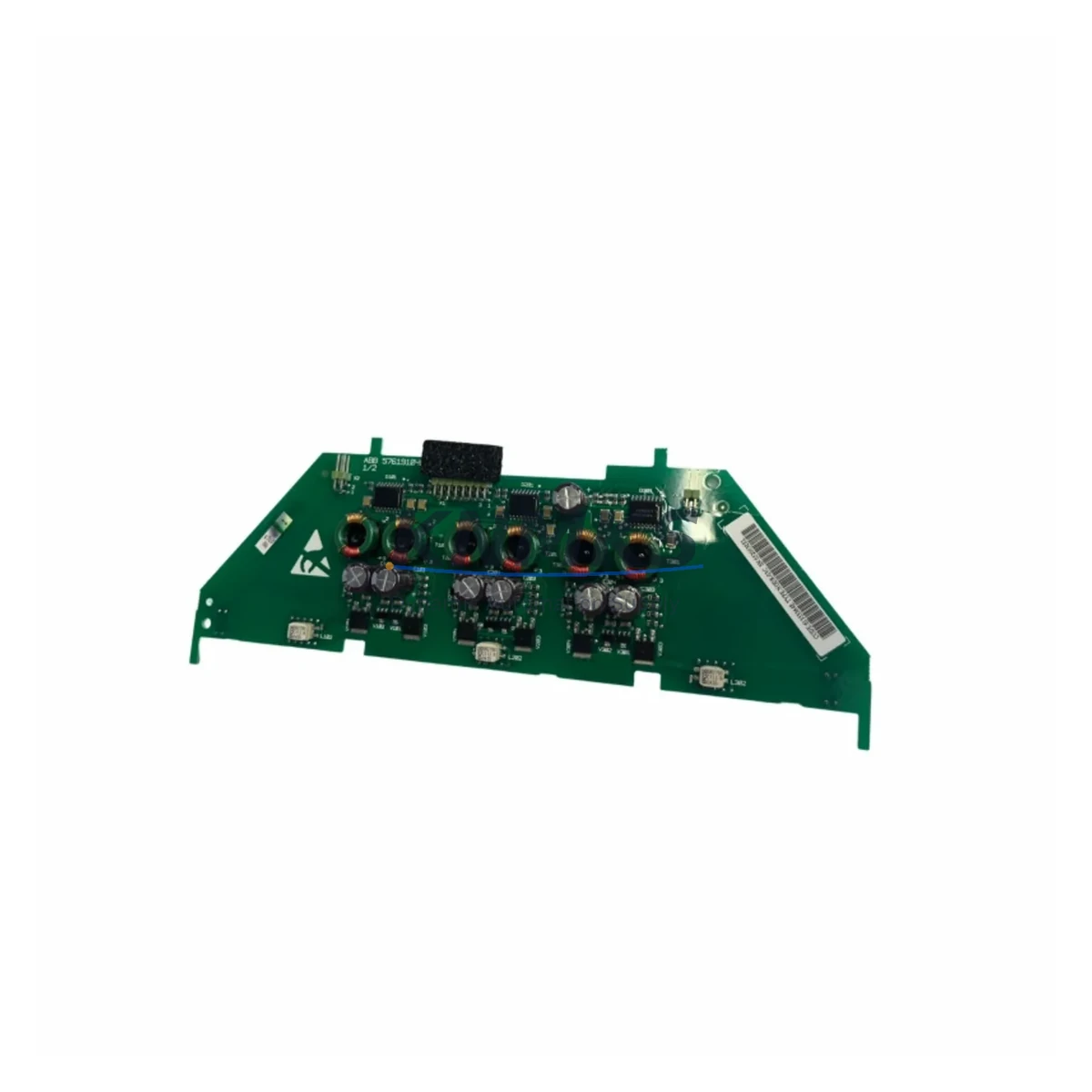

The ABB NGDR-03C (Part No. 58976539) is an original IGBT gate drive circuit card engineered for the ABB ACS800 series variable frequency drives. As a critical interface between the drive’s control logic and its IGBT power modules, the NGDR-03C governs switching signals, overcurrent protection, and thermal feedback — making it one of the most maintenance-sensitive components in any ACS800-based motor control system. For maintenance engineers managing continuous production lines, pump stations, compressor banks, or conveyor systems, having a verified spare of the NGDR-03C on the shelf is a non-negotiable element of any serious uptime strategy.

At KNMKS, every NGDR-03C unit is sourced from authorized supply chains, individually inspected, and tested prior to shipment. Our support terms confirmed by quotation cover verified original parts, giving procurement engineers the confidence to stock spares without risk. Whether you are responding to an emergency drive fault, executing a planned annual overhaul, or building a regional spare parts buffer for multi-site ACS800 installations, the NGDR-03C is available for immediate dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The NGDR-03C does not operate in isolation. In any ACS800 drive cabinet, the gate drive card is part of a tightly coupled electrical ecosystem. When a drive fault is traced to the NGDR-03C — whether through an IGBT overcurrent trip, a gate signal failure, or a thermal protection event — experienced maintenance engineers know that adjacent components must be evaluated before the replacement card is energized.

Begin with the IGBT power module itself: a failed or degraded IGBT can destroy a new gate drive card within seconds of power-up. Verify collector-emitter saturation voltage and gate threshold integrity before installing the NGDR-03C. Next, inspect the AINT or AINP interface board — the communication bridge between the NGDR-03C and the drive’s main control board (RMIO or RDCU). A corrupted signal path here will prevent the gate drive from receiving valid PWM commands even after replacement.

Check the DC bus capacitor bank for capacitance loss or ESR drift, particularly in drives with more than five years of service. Degraded capacitors create voltage ripple that stresses gate drive circuitry and accelerates failure cycles. Inspect the 24 VDC auxiliary power supply feeding the control and gate drive boards — undervoltage or ripple on this rail is a common root cause of intermittent NGDR-03C faults that are misdiagnosed as board failures.

For drives in dusty or humid environments, examine the cooling fan assembly and heatsink for blockage. Thermal stress is the leading cause of IGBT gate drive degradation in ACS800 units installed in non-climate-controlled cabinets. If the drive includes an RDIO or RAIO I/O extension module, verify that analog and digital I/O signals are within specification — out-of-range inputs can trigger protective shutdowns that mimic gate drive faults. Finally, review the fiber optic cables connecting the gate drive to the IGBT modules: contaminated or bent fibers cause intermittent gate signal loss that is difficult to diagnose without a spare NGDR-03C for substitution testing.

For procurement engineers building a regional spare parts kit for ACS800 installations, a practical minimum inventory includes: one NGDR-03C gate drive card, one RMIO or RDCU main control board, one set of IGBT modules matched to the drive frame size, one auxiliary power supply board, and one set of fiber optic patch cables. This kit covers the majority of field-replaceable fault scenarios and supports same-day restoration for most ACS800 drive failures.

Site Replacement Workflow

Step 1 — Fault Isolation: Record all active fault codes (F-codes) from the ACS800 panel or DriveWindow software. Confirm that the fault pattern is consistent with gate drive failure (e.g., F-0022 IGBT overtemperature, F-0001 overcurrent) rather than a motor or load-side issue.

Step 2 — Safe Isolation: Isolate the drive from mains supply and allow the DC bus to discharge fully (minimum 5 minutes after power-off; verify with a calibrated DC voltmeter). Lock out / tag out per site safety procedures.

Step 3 — IGBT Module Check: Before removing the NGDR-03C, perform a static IGBT health check using a multimeter or dedicated IGBT tester. Do not install the new gate drive card if the IGBT module shows signs of short-circuit or open-circuit failure.

Step 4 — Board Replacement: Remove the faulty NGDR-03C by disconnecting fiber optic cables, gate signal connectors, and the board mounting screws. Install the replacement NGDR-03C, ensuring all connectors are fully seated and fiber optic cables are clean and undamaged.

Step 5 — Power-Up and Verification: Restore auxiliary power first and verify 24 VDC rail stability. Apply mains power and monitor for fault codes. Run the drive at low speed under no-load conditions before returning to full production load. Document the replacement in the site maintenance log.

This workflow minimizes re-failure risk and ensures the replacement NGDR-03C is not exposed to pre-existing fault conditions that caused the original failure. KNMKS recommends retaining the removed card for depot-level analysis to identify root cause and prevent recurrence.

Spare Parts Support FAQ

Q1: Is the NGDR-03C (58976539) compatible with all ACS800 frame sizes?
The NGDR-03C is designed for specific ACS800 frame sizes and IGBT module configurations. Compatibility depends on the drive’s power rating and frame designation. Please provide your ACS800 drive nameplate data (type code and frame size) when ordering to confirm direct interchangeability. KNMKS technical staff can verify compatibility before shipment.

Q2: What testing is performed before the NGDR-03C ships?
Every NGDR-03C unit dispatched by KNMKS undergoes functional verification including gate signal output checks and visual inspection for component damage, solder joint integrity, and connector condition. A test report is available upon request. The support terms confirmed by quotation cover verified original parts against manufacturing defects and covers failures under normal operating conditions.

Q3: Can the NGDR-03C be used as a long-term replacement for discontinued ABB part numbers?
Yes. The NGDR-03C (58976539) is an original ABB part that remains available through authorized spare parts channels. For sites running legacy ACS800 installations where ABB has discontinued direct support, KNMKS maintains stock to support long-term maintenance programs. We recommend procuring a minimum of two units per site to cover emergency replacement and planned overhaul cycles.

Q4: What is the recommended spare parts stocking strategy for ACS800 drives?
For critical production drives, maintain at least one NGDR-03C gate drive card, one main control board (RMIO/RDCU), and one matched IGBT module set in on-site inventory. For multi-drive installations, a shared regional spare kit covering 10–20% of installed drive count is a practical benchmark. KNMKS supports blanket purchase orders and scheduled delivery programs for customers managing large ACS800 fleets.
