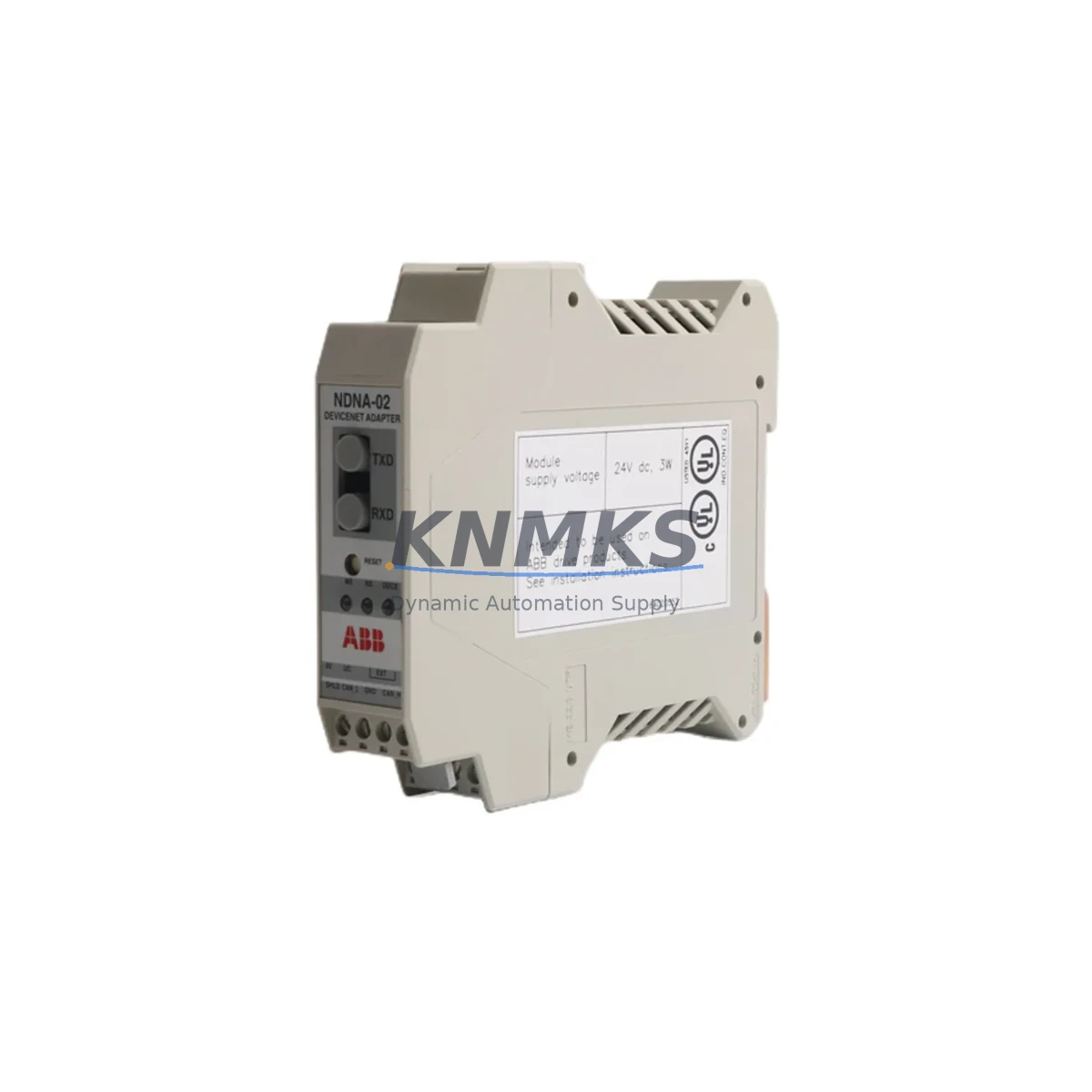

The ABB NDNA-02 (also supplied as NDNA-02-KIT) is an original DeviceNet fieldbus adapter module engineered for ABB ACS-series variable frequency drives. Designed for seamless integration into ACS355 and ACS800 drive platforms, this adapter enables real-time DeviceNet communication between the drive and the plant-level control network — a critical link in any automated production environment. For maintenance engineers managing aging drive systems or procurement teams building strategic spare parts inventories, the NDNA-02 represents a high-priority stocking item: its failure directly interrupts fieldbus communication, halts process control, and triggers unplanned downtime.

At KNMKS, every NDNA-02 unit is sourced as an original ABB spare, individually inspected, and shipped with a support terms confirmed by quotation. We support fast replacement cycles for emergency breakdowns and long-term supply agreements for planned maintenance programs. Whether you are restoring a tripped drive on the production floor or pre-positioning spares ahead of an annual shutdown, our team provides verified stock, technical confirmation, and reliable lead times.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the NDNA-02 in a live ACS355 or ACS800 installation, a disciplined site inspection prevents secondary failures and ensures the drive returns to full network operation without repeat callouts. Maintenance engineers should treat the adapter replacement as an opportunity to audit the surrounding electrical environment.

Begin with the drive power supply and DC bus: verify that the ACS355 or ACS800 input voltage is within specification and that no transient overvoltage events have stressed the option slot circuitry. A faulty ABB AINT-02C or AINT-07C interface board can damage adapter modules over time — inspect these boards if the NDNA-02 failure appears premature.

Next, inspect the DeviceNet trunk cable and drop cable terminations. Loose or corroded connectors at the 5-pin Micro or Mini connector are a leading cause of intermittent communication faults that are often misdiagnosed as adapter failures. Verify that the 121-ohm termination resistors are correctly installed at both ends of the trunk. Check the DeviceNet network power supply (typically a 24 VDC isolated supply) for correct voltage and adequate current capacity — an undersized or failing network power supply will cause node dropouts even after a new adapter is installed.

Review the ABB ACS drive parameter group 51 (Fieldbus Adapter) settings to confirm that the node address, baud rate, and communication timeout parameters are correctly configured for the replacement module. If the drive is part of a larger ABB AC500 PLC or third-party PLC system, verify the DeviceNet scanner configuration and EDS file assignment to ensure the new node is recognized without requiring a full network re-scan.

For cabinet-level inspection, check the 24 VDC auxiliary power rail feeding the control logic, any Phoenix Contact or Weidmüller terminal blocks on the DeviceNet signal circuit, and the condition of the cabinet door seals and ventilation filters — excessive heat or humidity ingress accelerates adapter degradation. If the installation includes signal isolators or surge protection devices on the fieldbus line, verify their integrity before commissioning the replacement NDNA-02.

For sites running multiple ACS-series drives on a single DeviceNet segment, it is best practice to stock at least one NDNA-02 per five drives as a minimum buffer. Pairing this with a spare ABB NMBP-01 or NMBP-02 multi-drive adapter panel and a set of pre-configured drive parameter backup files reduces mean time to repair (MTTR) to under 30 minutes for experienced technicians.

Site Replacement Workflow

Step 1 — Isolate and de-energize: Follow site LOTO (Lockout/Tagout) procedures. Confirm the ACS drive is fully de-energized and the DC bus has discharged (minimum 5 minutes after power-off).

Step 2 — Remove the faulty NDNA-02: Release the option slot locking tab, slide the module out, and inspect the slot connector for bent pins or contamination.

Step 3 — Install the replacement NDNA-02: Align the module with the option slot guide rails and press firmly until the locking tab engages. Do not force the module — misalignment will damage the connector.

Step 4 — Reconnect DeviceNet cabling: Reconnect the 5-pin DeviceNet connector. Verify cable polarity (V+, V-, CAN_H, CAN_L, Shield) against the NDNA-02 installation manual.

Step 5 — Power up and configure: Restore power to the drive. Navigate to parameter group 51 and set the node address and baud rate to match the previous configuration. Save parameters to the drive memory.

Step 6 — Network verification: From the PLC or DeviceNet scanner, confirm the NDNA-02 node is online and responding. Run a short jog cycle to verify drive control via the fieldbus before returning the system to production.

Step 7 — Document and close: Record the replacement in the site maintenance log, update the spare parts inventory, and flag the next scheduled inspection date.

This workflow is compatible with both direct NDNA-02 replacements and upgrades from legacy adapter variants. The NDNA-02-KIT includes all mounting hardware required for a complete installation without additional parts sourcing.

Spare Parts Support FAQ

Q1: Is the NDNA-02 compatible with both ACS355 and ACS800 drives?
Yes. The NDNA-02 is designed for ABB ACS-series drives that feature a standard option slot. It is confirmed compatible with ACS355 and ACS800 platforms. For other ACS variants, please provide your drive type code when enquiring so our technical team can confirm slot compatibility before shipment.

Q2: How does KNMKS verify the NDNA-02 before shipping?
Each unit undergoes a pre-shipment inspection covering physical condition, connector integrity, and firmware label verification. Units are packed in anti-static packaging with original or equivalent protective materials. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can the NDNA-02 replace older or discontinued ABB DeviceNet adapter variants?
In most cases, yes. The NDNA-02 is the current production spare for ABB ACS-series DeviceNet communication. If your site is running an older adapter variant, our team can advise on parameter migration and any firmware considerations to ensure a transparent replacement with minimal reconfiguration.

Q4: What is the recommended stocking strategy for the NDNA-02?
For facilities operating three or more ACS-series drives on a DeviceNet network, we recommend holding a minimum of one NDNA-02 as an on-site hot spare. For larger installations or sites with extended lead times from local distributors, a buffer of two to three units is advisable. KNMKS supports blanket order agreements and scheduled release programs for customers requiring long-term supply continuity.
