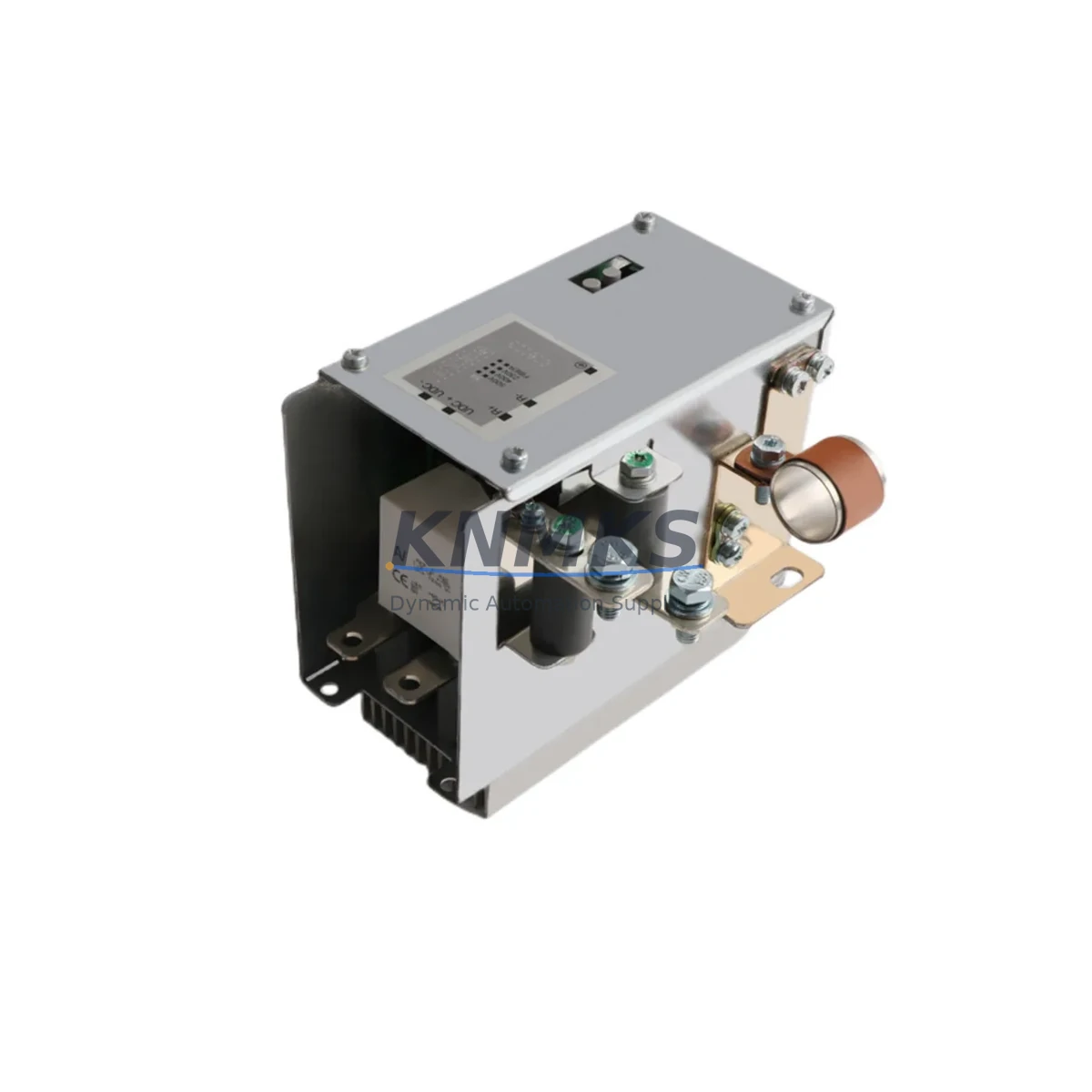

ABB NBRA-656C Fail-Safe Brake Chopper for Industrial Control

Overview

ABB NBRA-656C Fail-Safe Brake Chopper for Industrial Control Reliability

The ABB NBRA-656C is a precision-engineered brake chopper module designed for the ABB DCS800 series DC drive platform. In continuous production environments — from petrochemical plants and power generation facilities to mining hoists, port cranes, and metallurgical rolling mills — uncontrolled DC bus overvoltage during motor deceleration is a leading cause of drive trips, equipment damage, and unplanned downtime. The NBRA-656C eliminates this risk by providing a dedicated, fail-safe braking energy dissipation path, ensuring that regenerative energy is safely absorbed rather than allowed to destabilize the DC bus.

Engineered to ABB’s industrial-grade standards, the NBRA-656C integrates seamlessly into DCS800 drive cabinets operating in high electromagnetic interference (EMI) environments, dusty or humid process areas, and high-temperature or high-vibration installations. Its robust design supports critical interlock circuits and heavy-duty control cabinet architectures where signal drift, power fluctuation, and communication anomalies cannot be tolerated.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered DCS800 drive cabinet, the NBRA-656C works as part of a layered protection strategy. During high-inertia load deceleration — common in rolling mill drives, mine winders, and large centrifugal fans — the regenerative energy fed back into the DC bus must be managed precisely. Without a properly rated brake chopper, the ABB DCS800 drive’s internal overvoltage protection will trip the drive, causing a process interruption.

To build a complete and resilient control cabinet, the NBRA-656C is typically deployed alongside the ABB DCS800 main drive unit, which provides the core DC motor control. The braking resistor bank — connected externally to the NBRA-656C — must be correctly sized for the application’s peak regenerative power and duty cycle. For cabinet-level power quality, an ABB ACH580 or ACS880 series line filter or du/dt filter on the AC input side reduces harmonic distortion and protects upstream switchgear. Within the same cabinet, ABB SDCS-CON control boards manage the DCS800’s firing pulses and interlock logic, and their reliable operation depends on a stable DC bus — exactly what the NBRA-656C ensures.

For communication integrity in high-EMI environments, ABB RDCO-02 or RDCO-03 DDCS fiber optic communication modules are recommended to eliminate ground loop interference between the drive and the PLC or DCS. On the power supply side, a dedicated 24 VDC SITOP or ABB CP series panel power supply for control circuits ensures that transient surges on the main DC bus — which the NBRA-656C is actively suppressing — do not propagate into the control logic and cause spurious trips or relay misoperation.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In compressor and pump drive systems operating in Zone 2 classified areas, the NBRA-656C prevents DC bus overvoltage events that could trigger emergency shutdowns or damage explosion-protected motor windings. Its fail-safe braking function supports safe process deceleration without relying on mechanical brakes alone.

Power Generation & Utilities: Coal pulverizer drives, induced draft fan drives, and boiler feed pump motors in thermal power stations demand continuous, uninterrupted operation. The NBRA-656C absorbs regenerative energy during load shedding events, protecting the DCS800 drive from overvoltage trips that would force a manual restart and risk boiler instability.

Mining & Mineral Processing: Hoist drives, conveyor belt drives, and crusher drives in underground and open-pit mining environments are subject to extreme vibration, dust ingress, and wide temperature swings. The NBRA-656C’s robust construction and EMC compliance ensure reliable braking performance even in these demanding conditions, reducing the risk of runaway loads during emergency stops.

Water & Wastewater Treatment: Large centrifugal pump and blower drives in municipal water treatment plants require smooth, controlled deceleration to prevent water hammer and pipeline surge. The NBRA-656C enables precise braking energy management, supporting safe shutdown sequences and protecting both the drive and the process infrastructure.

Metallurgy & Steel Mills: Rolling mill main drives and coiler/uncoiler drives generate significant regenerative energy during tension control and speed reversal. The NBRA-656C dissipates this energy safely, preventing DC bus instability that could cause roll gap errors, strip breaks, or drive faults during critical production sequences.

Port Cranes & Ship Loaders: Container crane hoist and trolley drives must perform reliable emergency stops under full load. The NBRA-656C ensures that braking energy is safely managed during emergency deceleration, supporting the crane’s safety interlock system and preventing overvoltage-induced drive faults that could leave a load suspended mid-air.

Safety and Quality FAQ

Q1: What support terms does the ABB NBRA-656C carry?
All NBRA-656C units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support terms support includes technical diagnosis, replacement coordination, and documentation for your maintenance records.

Q2: How is each unit tested before shipment?
Every NBRA-656C undergoes a pre-shipment functional inspection including visual examination for physical integrity, verification of part markings and serial numbers against ABB documentation, and electrical continuity checks. Units showing any sign of prior field use, repair, or non-original components are excluded from our inventory.

Q3: Is the NBRA-656C compatible with all DCS800 drive variants?
The NBRA-656C is designed for the ABB DCS800 series DC drive platform. Compatibility depends on the specific DCS800 frame size and DC bus voltage rating of your installation. We recommend confirming your DCS800 model number and DC bus voltage before ordering. Our technical team can assist with compatibility verification based on your drive nameplate data.

Q4: Can KNMKS support long-term and repeat supply of the NBRA-656C?
Yes. KNMKS maintains dedicated inventory of ABB DCS800 series accessories including the NBRA-656C to support planned maintenance programs, emergency replacements, and MRO procurement for industrial facilities. We offer stable pricing, consistent lead times, and documentation support for your procurement and engineering teams.
