ABB LD MTR-01 Fail-Safe Motor Control for Industrial Reliability

Overview

ABB LD MTR-01 Fail-Safe Motor Control for Industrial Reliability: Fault Protection for Critical Industrial Sites

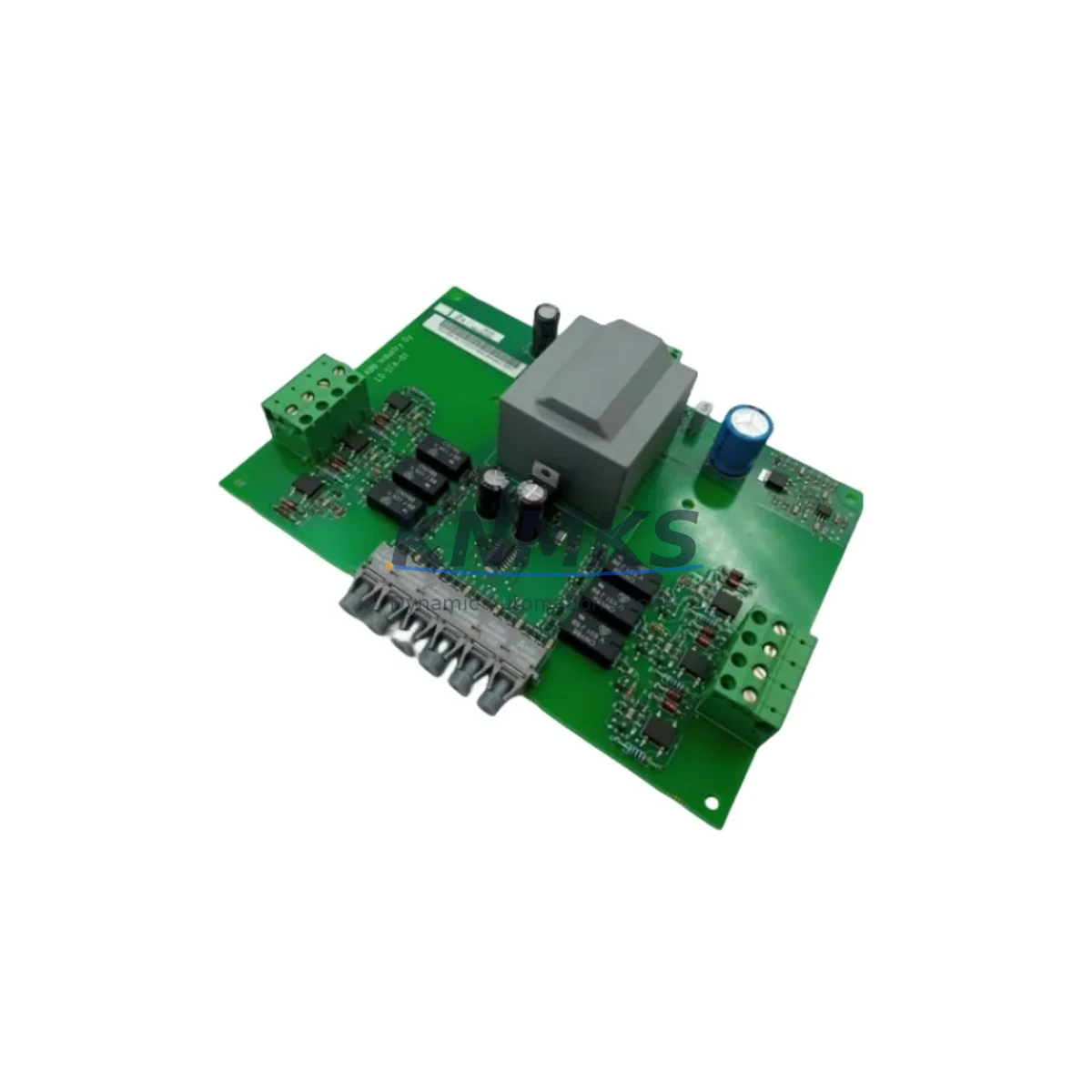

The ABB LD MTR-01 is a precision-engineered motor control module designed for deployment in the most demanding industrial environments. Built to integrate seamlessly with ABB ACS800 series variable frequency drives, this module delivers fail-safe motor control performance across continuous production lines, critical interlock circuits, and high-load control cabinets where unplanned downtime carries severe operational and safety consequences.

In industries where process continuity is non-negotiable — petrochemical refining, electric power generation, mining extraction, water treatment, metallurgical processing, port logistics, and marine propulsion — the LD MTR-01 provides the control-layer reliability that keeps rotating equipment running safely and predictably. Its robust design addresses the full spectrum of field-level hazards: electromagnetic interference, voltage surges, signal drift, thermal stress, mechanical vibration, dust ingress, and high-humidity condensation.

Every unit shipped by KNMKS undergoes pre-delivery functional testing against ABB factory specifications, ensuring that the module you install performs identically to OEM-new hardware — even when sourced as a certified spare or migration-ready replacement component.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The LD MTR-01 does not operate in isolation — its fail-safe value is maximized when integrated within a well-engineered control cabinet architecture. In high-load motor control centers (MCCs) and drive panels, the module works in concert with the ABB ACS800 main drive unit to regulate motor speed, torque, and direction with precision, eliminating the risk of uncontrolled acceleration or deceleration that can damage mechanical couplings and process equipment.

For fieldbus communication and predictive fault detection, pairing the LD MTR-01 with an ABB NPBA-12 PROFIBUS adapter module ensures that drive status, fault codes, and motor feedback are continuously transmitted to the supervisory control layer — enabling early fault identification before a trip event occurs. In cabinets where power supply stability is critical, a dedicated 24 VDC regulated power supply module provides clean, filtered voltage to the control board, preventing brownout-induced resets that can corrupt drive parameters and trigger nuisance trips.

In safety-critical interlock loops — such as those protecting compressors, pumps, and conveyor drives — the LD MTR-01 is commonly deployed alongside ABB RDCO-02 or RDCO-03 DDCS communication option boards, which extend the drive’s fiber-optic communication capability for noise-immune, long-distance signal transmission across large industrial facilities. The ABB AINT-02 analog input extension board further enhances the control architecture by providing additional process variable inputs for closed-loop motor regulation in complex multi-drive systems.

Where cabinet thermal management is a concern in high-ambient-temperature environments, supplementary thermostat-controlled cabinet cooling assemblies protect the LD MTR-01 and adjacent drive components from thermal derating and premature failure. This layered protection strategy — combining the LD MTR-01 with compatible communication, power, and thermal management components — forms a resilient control architecture capable of sustaining continuous operation through electrical disturbances, load transients, and environmental stress events.

Critical Industrial Safety Applications

Petrochemical & Refining: In refinery pump and compressor drives, the LD MTR-01 maintains precise motor control under fluctuating load conditions and high ambient temperatures. Its surge suppression capability protects against voltage transients generated by large inductive loads switching on shared power buses — a common cause of drive faults in process plant environments.

Electric Power Generation: Auxiliary motor drives in power stations — cooling water pumps, induced draft fans, and fuel handling conveyors — demand uninterrupted control module performance. The LD MTR-01’s EMI-hardened design ensures stable operation in environments saturated with high-frequency interference from generators, transformers, and switchgear.

Mining & Mineral Processing: Underground and surface mining operations subject control hardware to extreme vibration, dust, and humidity. The LD MTR-01’s conformal-coated PCB and robust mechanical construction maintain signal integrity and control accuracy in conveyor drives, crusher motors, and ventilation fan systems operating in these conditions.

Water & Wastewater Treatment: Pump station motor drives in water treatment facilities require fail-safe control to prevent overflow events and process contamination. The LD MTR-01 supports reliable interlock integration, ensuring that pump motors respond correctly to level sensor signals and emergency stop commands even after extended continuous operation.

Metallurgy & Steel Production: Rolling mill and furnace auxiliary drives operate in environments with intense heat radiation, heavy vibration, and aggressive electromagnetic fields from arc furnaces. The LD MTR-01’s thermal tolerance and EMI immunity make it a dependable control component in these high-stress production environments.

Port Logistics & Marine: Crane drives, hoist motors, and ship propulsion auxiliary systems require motor control modules that perform reliably in salt-air, high-humidity, and vibration-intensive conditions. The LD MTR-01’s environmental resilience and compatibility with ACS800 marine-grade drive configurations support safe, continuous operation in port and vessel applications.

Safety and Quality FAQ

Q1: What support terms coverage does the ABB LD MTR-01 carry?
Every ABB LD MTR-01 supplied by KNMKS is backed by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides support terms support including fault diagnosis, replacement dispatch, and installation guidance throughout the confirmed support period.

Q2: How is each unit tested before shipment?
All LD MTR-01 modules undergo a comprehensive pre-delivery functional test protocol benchmarked against ABB OEM specifications. Testing covers power-up initialization, I/O signal verification, communication interface integrity, and thermal performance checks. Units that do not meet specification thresholds are quarantined and not dispatched — ensuring that every module delivered to site is field-ready.

Q3: Is the LD MTR-01 compatible with all ACS800 drive variants?
The LD MTR-01 is designed for integration with the ABB ACS800 drive series. Compatibility depends on the specific ACS800 variant, firmware version, and control board configuration in your installation. KNMKS technical staff can verify compatibility against your drive’s nameplate data and software version prior to order confirmation — contact us with your drive model and serial number for a pre-sale compatibility check.

Q4: Can KNMKS guarantee long-term supply for ongoing maintenance programs?
Yes. KNMKS maintains dedicated stock buffers for high-demand ABB ACS800 series spare parts, including the LD MTR-01, to support planned maintenance schedules and emergency replacement requirements. For customers operating large fleets of ACS800 drives, we offer framework supply agreements that guarantee stock reservation and priority dispatch — minimizing the risk of extended downtime due to spare part unavailability during OEM lead time gaps.
