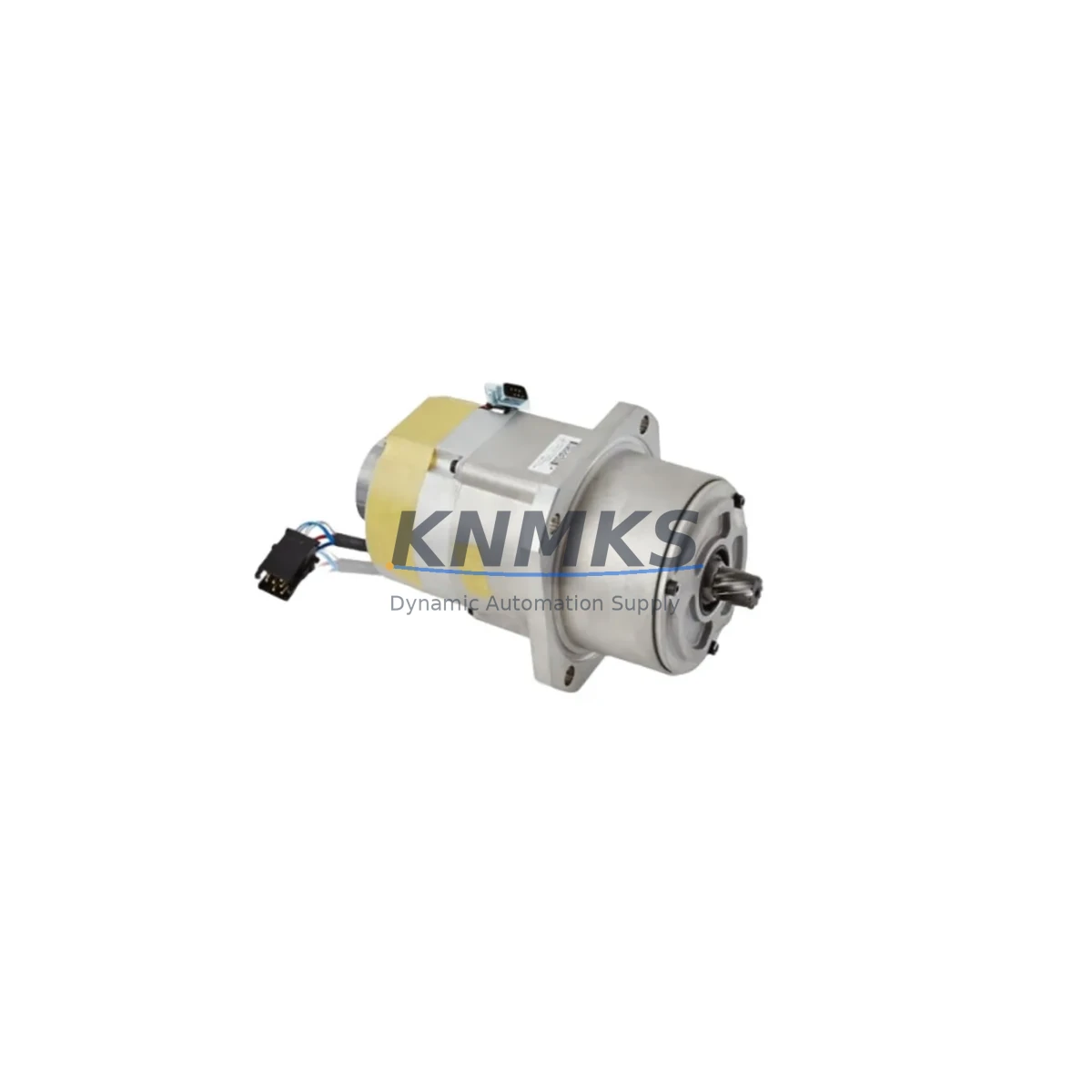

ABB IRB5803HNP 03386-1 Migration-Ready Servo Motor

Overview

ABB IRB5803HNP 03386-1 Migration-Ready Servo Motor: Legacy IRB 5803 System Retrofit and Upgrade

The ABB IRB5803HNP 03386-1 is a migration-ready servo motor engineered as a direct replacement for the discontinued IRB5803HNM 10963-1 and 3HNM 10963-1 units. Designed for the ABB IRB 5803 robot series, this motor supports seamless integration into existing IRC5 controller architectures without requiring structural modifications to the robot arm or control cabinet. For maintenance engineers managing aging robotic cells, the IRB5803HNP 03386-1 provides a validated upgrade path that minimizes downtime and preserves existing program logic.

Each unit is pre-shipment tested, supplied with a support terms confirmed by quotation, and available from in-stock inventory for immediate dispatch. Whether you are executing a planned overhaul or responding to an unplanned axis failure, this motor is ready to support your retrofit timeline.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a servo motor in an active robotic cell requires careful coordination across multiple system layers. Before removing the legacy IRB5803HNM 10963-1, engineers should document the current axis calibration data stored on the Serial Measurement Board (SMB). The SMB retains resolver offset values that are critical for restoring accurate axis positioning after the motor swap. If the SMB battery is depleted — a common issue in systems that have been in service for more than five years — the calibration data may be lost, requiring a full fine calibration procedure using the FlexPendant teach pendant.

The IRC5 controller drive module must be verified for compatibility with the replacement motor’s resolver signal characteristics. In installations where the drive module has been upgraded or replaced independently, confirm that the axis computer firmware version supports the resolver interface of the IRB5803HNP 03386-1. In some legacy cells, the drive unit may also need a firmware update via the RobotWare service tool before the new motor is recognized correctly.

Wiring and connector integrity is another critical checkpoint. The motor power cable and resolver cable should be inspected for insulation degradation, particularly at the cable entry points near the robot wrist and base. If the existing harness shows signs of wear, replacing it alongside the motor — rather than reusing it — significantly reduces the risk of intermittent faults after commissioning. The connector pinout for the IRB5803HNP 03386-1 is compatible with the original harness design, but a continuity check is recommended before powering up.

For cells where the ABB FlexPendant (IRC5 teach pendant) is used for operator interaction, verify that the HMI screens referencing axis positions and speed limits remain valid after the motor replacement. In most cases, the RAPID program logic does not require modification, but any axis-specific motion parameters — such as maximum speed, acceleration ramps, and zone data — should be reviewed against the replacement motor’s rated specifications.

If the retrofit is part of a broader control cabinet upgrade, consider the interaction between the servo motor replacement and other components being changed simultaneously. For example, if the ABB DSQC 661 axis computer or the DSQC 663 drive unit is being replaced in the same maintenance window, the sequence of firmware updates and calibration steps must be planned carefully to avoid conflicts. Similarly, if the installation includes an ABB DSQC 1000 main computer upgrade, ensure that the RobotWare version loaded onto the new computer is compatible with the motor and drive combination being installed.

In multi-robot cells sharing a common IRC5 MultiMove controller, the axis replacement on one robot must not disrupt the coordinated motion programs running on adjacent robots. Isolate the affected robot from the MultiMove configuration before beginning the motor swap, and restore it only after calibration is confirmed and a dry-run cycle has been completed without errors.

Downtime Control During System Migration

Minimizing unplanned downtime during a servo motor replacement on an ABB IRB 5803 robot requires a structured pre-maintenance protocol. Begin by backing up the complete robot system — including RAPID programs, configuration files, and calibration data — to a USB drive or network share via the FlexPendant backup function. This backup preserves the full system state and allows rapid restoration if any step in the replacement process introduces an unexpected fault.

Schedule the motor replacement during a planned maintenance window rather than responding reactively to a motor failure. If the IRB5803HNM 10963-1 is showing early signs of degradation — such as increased axis following error, abnormal temperature readings, or intermittent resolver faults — order the IRB5803HNP 03386-1 as a precautionary spare before the motor reaches end-of-life. Having the replacement unit on-site before the failure occurs is the single most effective way to reduce unplanned downtime.

During the physical swap, follow the ABB product manual torque specifications for all fasteners on the motor flange and cable connectors. Incorrect torque on the resolver connector in particular is a common source of post-installation signal faults that can be difficult to diagnose. After mechanical installation, perform the resolver offset calibration procedure as documented in the IRC5 maintenance manual before running any production program.

Once calibration is complete, run a low-speed dry cycle through the full range of motion for the affected axis before restoring production speed. Monitor the axis following error and motor temperature during this verification cycle. If both parameters remain within normal limits, the robot can be returned to production. Document the replacement date, the new motor serial number, and the post-installation calibration values for future maintenance reference.

Retrofit Support FAQ

Q: Is the IRB5803HNP 03386-1 a direct replacement for the IRB5803HNM 10963-1 and 3HNM 10963-1?
A: Yes. The IRB5803HNP 03386-1 is the current replacement reference for both the IRB5803HNM 10963-1 and the 3HNM 10963-1. It shares the same mechanical envelope and mounting interface, making it a drop-in fit for the IRB 5803 robot series. Axis calibration is required after installation.

Q: What calibration steps are required after installing the IRB5803HNP 03386-1?
A: After mechanical installation, the resolver offset must be updated using the fine calibration procedure on the FlexPendant. If the SMB battery was replaced or the calibration data was lost, a full fine calibration from a known reference position is required. Refer to the IRC5 maintenance manual for the axis-specific calibration sequence.

Q: Has this unit been tested before shipment?
A: Yes. Every IRB5803HNP 03386-1 unit supplied by KNMKS undergoes pre-shipment functional testing to verify mechanical integrity and electrical continuity. Each unit ships with a support terms confirmed by quotation covering defects in materials and workmanship under normal operating conditions.

Q: What is the lead time and stock availability?
A: The IRB5803HNP 03386-1 is available from in-stock inventory and is ready for immediate dispatch. Contact our sales team to confirm current stock levels and shipping options for your region. For urgent requirements, same-day dispatch may be available depending on your location.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

IRB5803HNP 03386-1 IRB5803HNM 10963-1 3HNM 10963-1
IRC5 Series

Product Family

Servo Systems

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Motion range

Servo drives, motors and cable sets

Common needs

Power, encoder and brake confirmation

Project support

Motion upgrade and spare-part supply

Inquiry Support

• Motor, drive and cable set coordination
• Power rating and encoder type checking
• Motion control replacement support

What to Send Us

• Brand and exact model number: ABB IRB5803HNP 03386-1 IRB5803HNM 10963-1 3HNM 10963-1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
