ABB HSS13 SPHSS13 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB HSS13 SPHSS13 Maintenance-Proven Spare Part for Factory Uptime

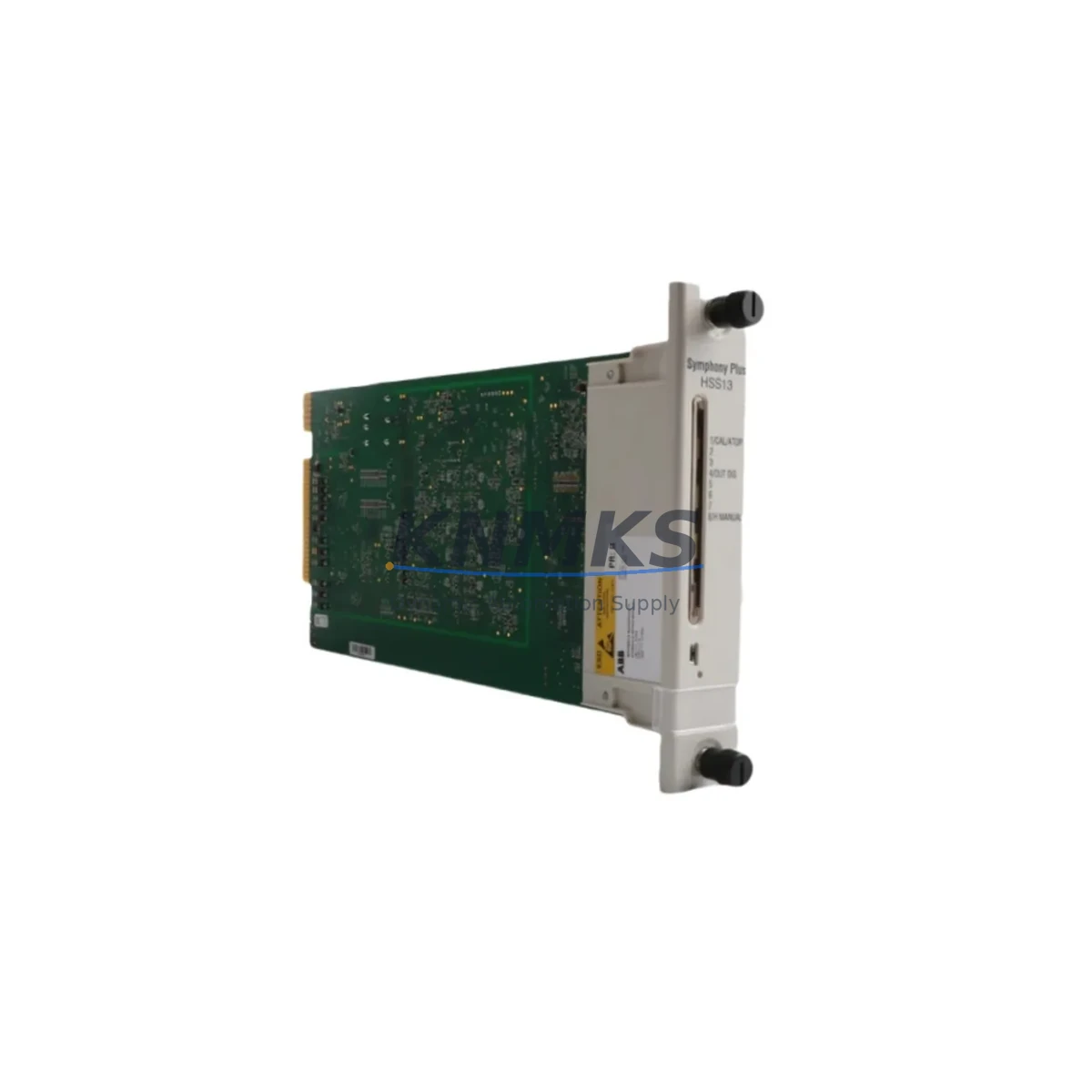

The ABB HSS13 (SPHSS13) is a hydraulic servo interface module designed for integration within the ABB AC500 PLC platform — one of the most widely deployed programmable logic controller families in process automation, machine control, and heavy industrial environments. For maintenance engineers managing aging control cabinets or executing planned annual overhauls, securing a verified original HSS13 spare is a critical step in protecting production continuity. Unplanned downtime caused by a failed servo interface module can cascade across an entire hydraulic axis, halting press lines, injection moulding machines, steel rolling mills, or offshore hydraulic actuator systems within minutes.

The SPHSS13 module interfaces directly with the AC500 CPU backplane, translating PLC command signals into precise servo valve drive outputs. Its failure modes — including loss of position feedback, erratic valve response, or complete axis dropout — are often misdiagnosed as hydraulic faults, wasting valuable diagnostic time. Holding a pre-tested HSS13 spare on-site eliminates this ambiguity: swap the module, restore the axis, and return to production while the failed unit is sent for root-cause analysis.

KNMKS supplies the ABB HSS13 SPHSS13 as an original spare, sourced from verified distribution channels, pre-shipment tested for electrical integrity, and backed by a support terms confirmed by quotation from date of dispatch. Rapid global dispatch supports emergency breakdown recovery as well as scheduled maintenance windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or inspecting the HSS13 SPHSS13 module, a disciplined maintenance engineer will not stop at the module itself. The hydraulic servo control loop is a tightly coupled system, and adjacent components in the same control cabinet or electrical circuit should be evaluated simultaneously to prevent repeat failures and maximise the value of each planned maintenance window.

Begin with the AC500 CPU module (such as the PM564 or PM573) that hosts the HSS13 in its backplane slot. Verify firmware version compatibility and check for any logged axis fault codes that may indicate upstream command signal issues rather than a module hardware fault. Next, inspect the AC500 backplane bus coupler — a degraded backplane connector can cause intermittent communication errors that mimic servo module failure.

The 24 V DC power supply module feeding the AC500 rack is a frequent contributor to unexplained module resets. Measure output voltage under load and check for ripple exceeding OEM tolerance. If the cabinet also contains an ABB CI502-PNIO or CI504-PNIO PROFINET communication module, verify that network cycle time settings are consistent with the servo axis update rate — mismatched timing can cause position loop instability that appears as a servo module fault.

On the field wiring side, inspect the servo valve connector and shielded signal cable running from the HSS13 output terminals to the hydraulic proportional valve amplifier. Cable shield continuity and correct grounding at a single point are critical for noise immunity in high-current hydraulic environments. Check terminal blocks and ferrules on the feedback encoder wiring — loose connections on SSI or incremental encoder lines are a leading cause of position feedback loss.

For cabinets operating in high-vibration or high-temperature environments, also inspect miniature circuit breakers and fuse holders protecting the 24 V DC supply rail. A marginally rated fuse that has experienced repeated inrush events may exhibit increased resistance without blowing, causing voltage sag under load. Finally, if the system includes an ABB CP600 or CP620 HMI panel connected to the same AC500 network, confirm that operator alarm history does not reveal recurring axis fault patterns that predate the current module failure — this data is invaluable for root-cause analysis and spare parts planning.

Site Replacement Workflow

Step 1 — Isolation and Safety: Follow site LOTO (Lockout/Tagout) procedure. De-energise the AC500 rack and confirm zero voltage on the 24 V DC supply rail before removing the HSS13 module from the backplane slot.

Step 2 — Documentation: Record the existing module firmware version, axis parameter set, and any DIP switch or jumper configuration visible on the module face. Photograph wiring connections to the servo output and encoder feedback terminals.

Step 3 — Module Removal: Release the backplane locking lever and slide the HSS13 module clear of the slot. Inspect the backplane connector pins for corrosion or mechanical damage before inserting the replacement unit.

Step 4 — Replacement Installation: Insert the new HSS13 SPHSS13 into the correct backplane slot. Confirm the slot address matches the original configuration in the AC500 project file (Automation Builder or Control Builder Plus). Reconnect all field wiring per the documented terminal layout.

Step 5 — Parameter Restore and Commissioning: Power up the rack and download the existing axis parameter set to the replacement module. Perform a slow-speed axis jog to verify position feedback direction and servo valve polarity before returning to automatic mode.

Step 6 — Functional Verification: Run the axis through its full working stroke under controlled conditions. Confirm position error, velocity response, and alarm status are within normal operating limits before releasing the machine to production.

This workflow supports direct replacement of legacy HSS13 units without requiring PLC program modification, preserving system compatibility and minimising total downtime to typically under two hours for a prepared maintenance team.

Spare Parts Support FAQ

Q1: Is the HSS13 SPHSS13 supplied as a new original or refurbished unit?
KNMKS supplies the HSS13 SPHSS13 in both new original and refurbished-tested configurations depending on availability. All refurbished units undergo full electrical and functional testing prior to dispatch and carry the same support terms confirmed by quotation as new stock. The unit condition is clearly stated on the order confirmation.

Q2: How do I confirm compatibility with my specific AC500 CPU and backplane version?
The HSS13 SPHSS13 is designed for the ABB AC500 backplane platform. Compatibility depends on the CPU family (PM5xx series) and the Automation Builder project configuration. Provide your CPU part number and project firmware version to our technical team at [email protected] and we will confirm compatibility before shipment.

Q3: What is the recommended inventory strategy for the HSS13 in a critical production environment?
For facilities operating hydraulic servo axes on a continuous production schedule, we recommend holding a minimum of one HSS13 SPHSS13 spare per installed axis, with a second unit as a cabinet-level buffer for multi-axis systems. Annual review of spare consumption and lead-time data supports forward stock planning. KNMKS offers long-term supply agreements to lock pricing and guarantee availability for 12-month rolling programmes.

Q4: What pre-shipment checks are performed before the HSS13 is dispatched?
Every HSS13 SPHSS13 unit dispatched by KNMKS undergoes a pre-shipment inspection covering visual condition, connector integrity, electrical continuity, and where applicable, functional bench testing against AC500 backplane simulation. Units are packed in anti-static ESD packaging with a test record included. The support terms confirmed by quotation period begins from the date of dispatch as confirmed on the shipping documentation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
