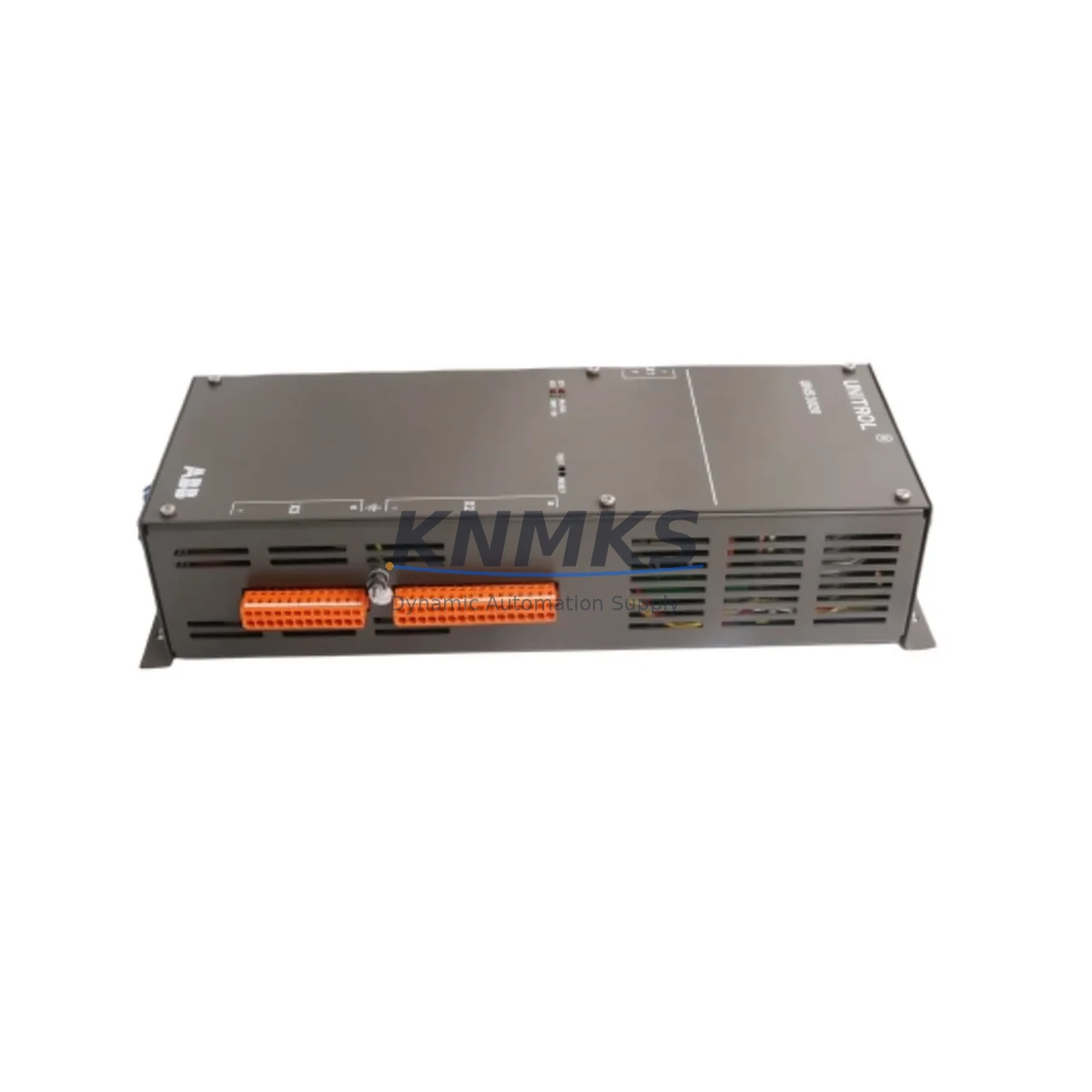

ABB HIEE205010R0003 Fail-Safe Ground Fault Relay Industrial

Overview

ABB HIEE205010R0003 Fail-Safe Ground Fault Relay Industrial

The ABB HIEE205010R0003 (UNS3020A-Z V3) is a precision-engineered ground fault protection relay designed for continuous operation in the most demanding industrial environments. Built to ABB’s rigorous safety standards, this relay provides reliable ground fault detection and isolation across high-voltage distribution systems, motor control centers, and safety-critical control cabinets where unplanned downtime carries severe operational and safety consequences.

In petrochemical plants, power generation facilities, mining operations, and water treatment infrastructure, ground fault events represent one of the most common causes of equipment damage, arc flash incidents, and unplanned process shutdowns. The HIEE205010R0003 addresses this risk directly by delivering fast, accurate fault detection with a response architecture that minimizes nuisance tripping while ensuring genuine fault conditions are isolated within milliseconds. Its fail-safe design ensures that a loss of power or internal component failure defaults to a safe, de-energized state — a critical requirement in SIL-rated safety loops and IEC 61511-compliant process safety systems.

The UNS3020A-Z V3 variant incorporates enhanced surge immunity, making it particularly well-suited for installations near variable frequency drives, large motor starters, and high-current bus systems where conducted and radiated electromagnetic interference can compromise relay accuracy. In metallurgical and port operations, where heavy crane drives and arc furnaces generate significant harmonic distortion and transient voltage spikes, this relay maintains measurement integrity without false trips or missed fault events.

For control cabinet integrators managing complex safety architectures, the HIEE205010R0003 is designed to work within ABB’s broader protection and control ecosystem. It is commonly deployed alongside ABB REF615 feeder protection relays, ABB REX640 multi-function protection units, and ABB SPAJ 140 C combined overcurrent and earth fault relays to form a layered protection strategy. In power supply circuits, pairing this ground fault relay with ABB UPS modules and surge protection devices from the OVR series ensures that both upstream and downstream fault conditions are captured and isolated before they propagate to sensitive PLC I/O modules or safety controllers. Communication-wise, the relay supports integration with ABB COM600 substation gateways and SCADA systems via standard protocols, enabling centralized fault logging and alarm management without additional signal conditioning hardware.

In high-humidity, dust-laden, or high-temperature enclosures — common in cement plants, offshore platforms, and chemical processing units — the relay’s robust housing and conformal-coated PCB assemblies resist corrosion and condensation-induced tracking. Vibration resistance ensures stable contact performance even in environments subject to mechanical shock from compressors, pumps, and rotating machinery mounted in close proximity to the control cabinet.

Every HIEE205010R0003 unit shipped by KNMKS undergoes pre-shipment functional verification, including insulation resistance testing, trip threshold calibration checks, and output relay contact integrity confirmation. This ensures that replacement units arrive site-ready, reducing commissioning time and eliminating the risk of installing a defective spare into a live safety circuit. Long-term spare parts availability is a core part of our supply strategy — we maintain stock of the HIEE205010R0003 and its compatible accessories to support 12–36 month maintenance planning horizons for asset-intensive industries.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Effective ground fault protection does not operate in isolation. In a well-designed industrial control cabinet, the HIEE205010R0003 functions as a critical node within a multi-layer protection architecture. At the feeder level, ABB REF615 feeder protection relays provide overcurrent and directional earth fault protection, while the HIEE205010R0003 handles sensitive ground fault detection at the load side — catching low-level insulation faults before they escalate to full ground faults or arc flash events.

Power quality upstream is managed through ABB OVR surge protection devices, which clamp transient overvoltages before they reach relay measurement circuits. For installations with critical UPS-backed control power, ABB’s DIN-rail UPS modules ensure that the relay remains energized and monitoring during mains supply interruptions — a key requirement in safety interlock circuits where loss of monitoring is itself a hazardous condition.

In safety PLC architectures, the HIEE205010R0003 output contacts are wired into safety relay modules or directly into the digital input cards of safety controllers such as the ABB AC500-S Safety PLC, ensuring that ground fault events trigger immediate safe-state transitions in the process control logic. For distributed I/O systems, ABB S800 I/O modules provide the field interface layer, with the ground fault relay status integrated into the safety loop via hardwired or fieldbus connections depending on the SIL requirement of the application.

This layered approach — combining ground fault detection, surge protection, UPS-backed control power, and safety PLC integration — forms a robust cabinet protection strategy that significantly reduces the probability of dangerous failure modes in continuous process environments.

Critical Industrial Safety Applications

Petrochemical & Refinery: In hazardous area control rooms and motor control centers serving pump and compressor drives, the HIEE205010R0003 provides ground fault isolation that prevents insulation breakdown from escalating into ignition sources in Zone 1 and Zone 2 classified areas. Fast fault isolation is essential to maintaining process continuity and personnel safety in these environments.

Power Generation: In auxiliary power distribution boards serving boiler feed pumps, cooling water systems, and turbine control panels, ground fault protection ensures that single-phase-to-earth faults are detected and isolated before they cause transformer damage or force emergency unit trips. The relay’s compatibility with ABB substation automation systems enables seamless integration into existing SCADA and DCS architectures.

Mining & Mineral Processing: Underground and surface mining operations subject electrical systems to extreme mechanical vibration, dust ingress, and moisture. The HIEE205010R0003’s robust construction and conformal-coated electronics maintain reliable operation in these conditions, protecting conveyor drives, crusher motors, and ventilation fan circuits from ground fault-induced failures.

Water & Wastewater Treatment: Pump station MCC panels and SCADA-controlled valve actuator circuits benefit from sensitive ground fault detection that identifies insulation degradation in submersible pump cables before complete cable failure occurs. Early fault detection reduces emergency repair costs and prevents untreated effluent discharge events caused by unplanned pump outages.

Metallurgy & Steel: Arc furnace and rolling mill environments generate severe harmonic distortion and electromagnetic interference. The enhanced EMI immunity of the UNS3020A-Z V3 variant ensures accurate ground fault measurement in these electrically noisy environments, preventing false trips that would interrupt production and cause costly reheating cycles.

Port & Marine: Shore power distribution systems and crane drive control panels in port operations require ground fault protection that can withstand salt-laden air, vibration from vessel movements, and the high inrush currents of large crane hoist motors. The HIEE205010R0003 provides the measurement stability and environmental robustness required for reliable operation in these demanding coastal and marine environments.

Safety and Quality FAQ

Q: What support terms does KNMKS provide for the HIEE205010R0003?
A: Every HIEE205010R0003 unit is covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, component failures, and functional non-conformance identified under normal operating conditions. Our support terms support includes technical diagnosis, replacement unit dispatch, and root cause documentation to support your maintenance records.

Q: What pre-shipment testing is performed before dispatch?
A: Each unit undergoes a structured pre-shipment verification protocol including insulation resistance measurement, trip threshold calibration confirmation, output relay contact continuity and resistance testing, and visual inspection for physical damage or connector integrity issues. Test records are available upon request for quality-critical procurement processes.

Q: Is the HIEE205010R0003 compatible with existing ABB protection relay systems?
A: Yes. The UNS3020A-Z V3 is a direct form-fit-function replacement for earlier UNS3020A variants and is compatible with ABB’s standard relay mounting hardware, terminal block configurations, and communication interfaces. It integrates with ABB COM600 gateways and is suitable for use in SIL-rated safety loops compliant with IEC 61511. Always verify firmware and configuration compatibility with your system integrator before installation in safety-critical applications.

Q: Can KNMKS support long-term spare parts supply for this model?
A: Yes. We maintain dedicated stock of the HIEE205010R0003 and its compatible accessories to support 12–36 month maintenance planning horizons. For asset-intensive industries with multi-site deployments, we offer framework supply agreements and priority allocation to ensure spare parts availability aligns with your planned maintenance schedules and emergency response requirements. Contact admin@knmks.com to discuss your long-term supply requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

HIEE205010R0003-UNS3020A-Z-V3

Product Family

Relays & Interface

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Interface range

Relays, isolation and signal modules

Common needs

Coil voltage and contact rating

Project support

Panel wiring and signal protection

Inquiry Support

• Relay base and module matching
• Signal isolation and protection options
• Panel accessory inquiry support

What to Send Us

• Brand and exact model number: ABB HIEE205010R0003-UNS3020A-Z-V3
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
