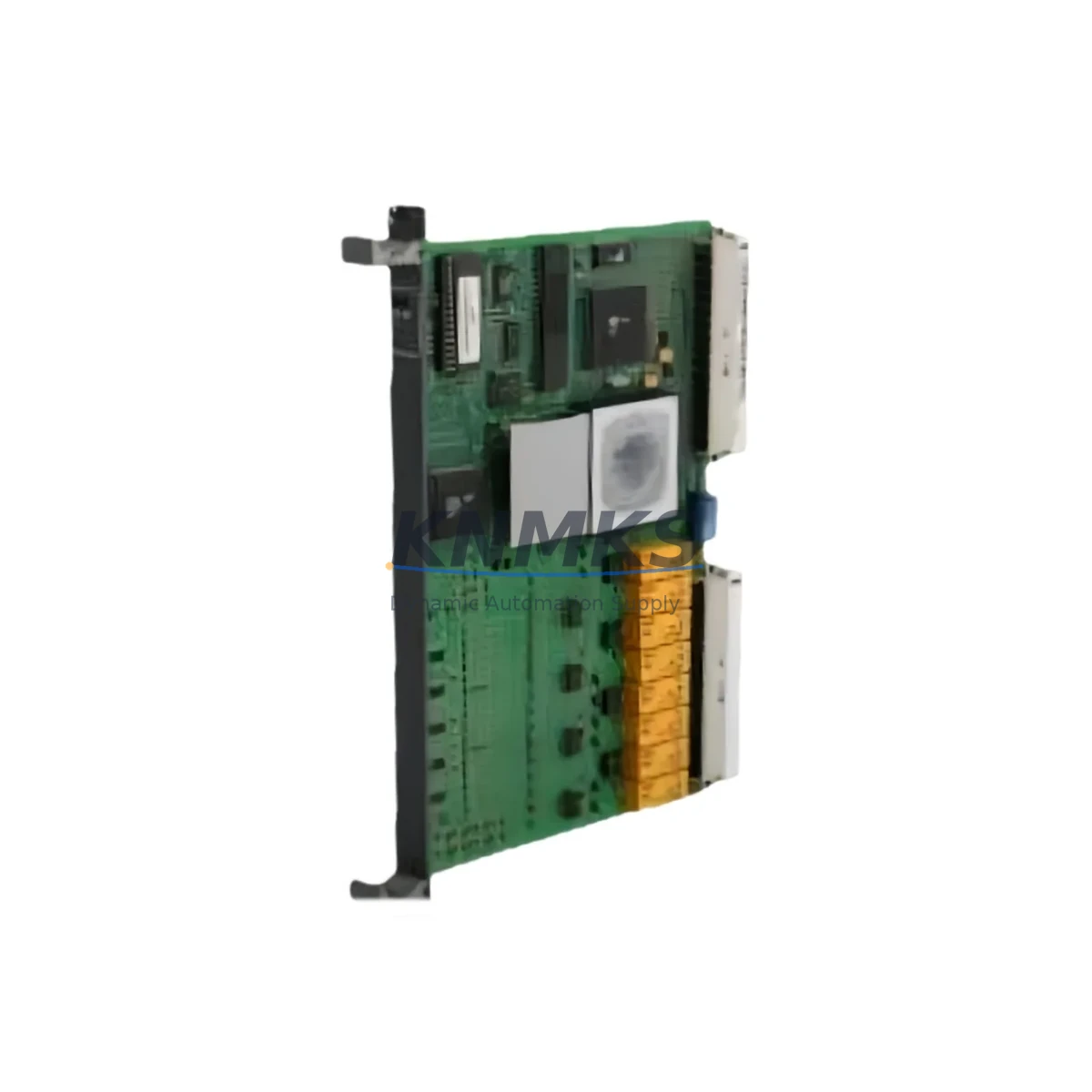

ABB GJR2329800R0100-88UM01 Fail-Safe I/O Module S800: Fault-Tolerant Control for Critical Industrial Sites

The ABB GJR2329800R0100-88UM01 is a ruggedized, fail-safe I/O module from ABB’s proven S800 I/O series, engineered for deployment in the most demanding industrial control environments. Designed to integrate seamlessly with ABB AC800M controllers and Symphony Plus DCS platforms, this module delivers deterministic signal processing, robust fault isolation, and continuous availability — the three pillars of industrial safety architecture. Whether installed in a petrochemical interlock cabinet, a power plant distributed control system, or a mining hoist control panel, the GJR2329800R0100-88UM01 is built to keep critical processes running safely and without interruption.

In high-stakes industrial operations, a single I/O failure can cascade into unplanned shutdowns, equipment damage, or personnel hazards. The GJR2329800R0100-88UM01 addresses this risk through hardware-level fault detection, channel-level diagnostics, and fail-safe output behavior — ensuring that any detected fault drives outputs to a predefined safe state rather than leaving the process in an undefined condition. This behavior is essential for SIL-rated safety loops, emergency shutdown (ESD) systems, and fire and gas (F&G) detection circuits.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The GJR2329800R0100-88UM01 is rarely deployed in isolation. In a well-engineered industrial control cabinet, it operates as part of a layered protection architecture. The module connects to the ABB AC800M PM866 processor module via the S800 optical ModuleBus, which provides galvanic isolation between the field wiring and the controller backplane — a critical feature in environments with ground loops or high common-mode voltage. Alongside the GJR2329800R0100-88UM01, engineers typically install ABB TB820V2 ModuleBus Optical Port modules to extend the I/O bus across cabinet sections without signal degradation.

Power integrity is equally critical. The S800 I/O rail is typically fed through ABB SD831 or SD832 24VDC power supply modules, which provide regulated, filtered DC power with built-in redundancy support. Voltage dips, micro-interruptions, or supply ripple that would cause lesser I/O modules to latch or misreport are absorbed before they reach the GJR2329800R0100-88UM01’s input circuits. For safety-critical loops, a dedicated ABB CI854A PROFIBUS DP communication interface may be used to relay diagnostic data to the safety PLC layer, enabling real-time health monitoring without interrupting the primary control path.

In high-vibration or thermally stressed enclosures — common in compressor stations, offshore platforms, and steel mill drive rooms — the GJR2329800R0100-88UM01’s conformal-coated PCB and optical bus interface provide a significant reliability advantage over conventional copper-backplane I/O systems. Pairing this module with ABB AI810 analog input modules and ABB DO810 digital output modules within the same S800 rack creates a homogeneous, diagnostics-rich I/O tier that simplifies maintenance, reduces spare part complexity, and supports rapid online replacement during scheduled turnarounds.

Critical Industrial Safety Applications

The GJR2329800R0100-88UM01 has established a strong track record across industries where control system failure is not an option:

Petrochemical and Refinery Plants: In hydrocarbon processing, the module is deployed in emergency shutdown (ESD) panels and burner management systems (BMS). Its fail-safe output behavior ensures that on any detected wiring fault or module error, associated valves and actuators are driven to their safe position — closed for fuel valves, open for vent valves — without requiring operator intervention. This directly supports IEC 61511 functional safety requirements for SIL 2 and SIL 3 loops.

Power Generation and Grid Substations: Turbine control and generator protection systems demand microsecond-level response to fault conditions. The GJR2329800R0100-88UM01’s deterministic scan cycle and hardware watchdog ensure that protection relay signals are processed and acted upon within the required time window, preventing turbine overspeed or generator out-of-step conditions.

Mining and Mineral Processing: Hoist control, conveyor interlock, and crusher protection systems in underground and open-pit mines expose control hardware to extreme dust loading, vibration, and temperature cycling. The S800 module’s sealed construction and optical communication bus eliminate the contact oxidation and connector fretting that plague conventional I/O in these environments.

Water and Wastewater Treatment: SCADA-integrated pump station control and chemical dosing systems rely on accurate, drift-free analog and digital I/O. The GJR2329800R0100-88UM01’s per-channel diagnostics detect sensor wire breaks and short circuits before they cause dosing errors or pump cavitation events, protecting both equipment and water quality compliance.

Port and Maritime Automation: Ship-to-shore crane drives, ballast control systems, and cargo handling automation operate in salt-laden, high-humidity environments. The module’s corrosion-resistant design and optical isolation make it a preferred choice for marine-grade control panels where conventional I/O modules suffer accelerated degradation.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the GJR2329800R0100-88UM01?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional non-conformance under normal operating conditions. Each unit undergoes pre-shipment functional testing including power-on self-test (POST), channel continuity verification, and communication bus handshake confirmation. If a support terms claim is required, KNMKS provides direct replacement support with documented test records.

Q2: How is the module tested before shipment?
Every GJR2329800R0100-88UM01 unit is tested against ABB factory acceptance criteria prior to dispatch. Testing includes power supply rail verification, ModuleBus communication integrity, channel-level I/O response, and fault detection behavior. A test report is available upon request for quality-critical procurement processes.

Q3: Is the GJR2329800R0100-88UM01 compatible with existing AC800M and Symphony Plus installations?
Yes. The module is a direct fit for ABB AC800M controller racks and Symphony Plus DCS I/O clusters using the S800 ModuleBus architecture. No firmware modification or hardware adapter is required for standard replacement. Compatibility with specific firmware versions of the AC800M PM866 and PM891 processors has been verified. Consult your system’s hardware revision documentation or contact KNMKS for configuration-specific guidance.

Q4: Can long-term supply and replacement support be arranged?
KNMKS maintains standing inventory of the GJR2329800R0100-88UM01 and key S800 series components to support long-term maintenance contracts and planned turnaround schedules. Framework supply agreements with defined lead times, pricing, and quality documentation are available for facilities requiring guaranteed spare part availability over multi-year operational horizons.
