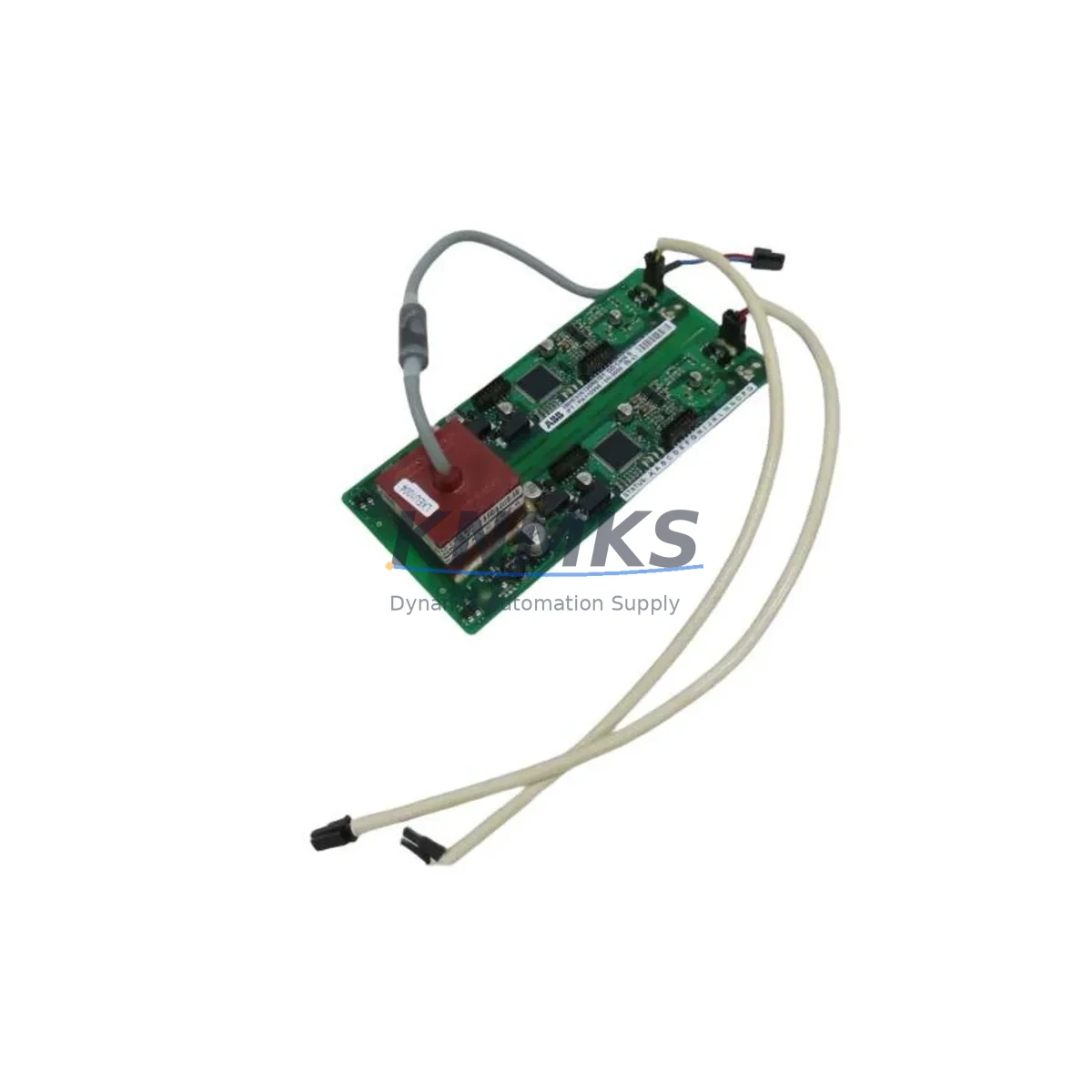

ABB GDC806B01 3BHE036290R0001 Spare Part for Factory Uptime

Overview

ABB GDC806B01 3BHE036290R0001 Spare Part for Factory Uptime

The ABB GDC806B01 (cross-reference: 3BHE036290R0001) is a drive control board engineered for the ACS800 series variable frequency drive platform — one of ABB’s most widely deployed industrial drive families across pulp and paper, metals, oil and gas, water treatment, and heavy manufacturing. As a maintenance-proven spare part, the GDC806B01 serves as the central intelligence of the ACS800 drive, managing closed-loop speed and torque control, I/O signal processing, fieldbus communication, and fault diagnostics. When this board fails, the entire drive becomes inoperable, making rapid replacement with a verified original spare the only path to restoring production continuity.

KNMKS stocks the GDC806B01 as a ready-to-ship spare, fully tested prior to dispatch, and backed by a support terms confirmed by quotation. Each unit is inspected for firmware compatibility, connector integrity, and functional output before packaging. Whether you are responding to an unplanned drive fault, executing a scheduled annual overhaul, or building a regional spare parts buffer for multi-drive installations, the GDC806B01 is a direct drop-in replacement that eliminates the lead-time risk associated with OEM procurement channels.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A GDC806B01 failure rarely occurs in isolation. The ACS800 drive is a tightly integrated system, and maintenance engineers responding to a control board fault should treat the event as an opportunity to audit the surrounding electrical environment before reinstalling a replacement board. Overlooking adjacent components is a leading cause of repeat failures within weeks of a spare part swap.

Begin with the drive’s internal 24 VDC auxiliary power supply. A degraded or out-of-tolerance power supply can deliver voltage spikes that damage control board logic circuits — replacing the GDC806B01 without verifying the APBU-44C or equivalent auxiliary power unit leaves the new board exposed to the same fault condition. Similarly, inspect the AINT-02C or AINP-01C interface boards that bridge the control board to the drive’s IGBT gate driver section; connector oxidation or hairline cracks on these boards are common in high-vibration environments.

Check all I/O terminal wiring at the X1 and X2 connector blocks on the GDC806B01. Loose or corroded terminals cause intermittent analog reference signal errors that are frequently misdiagnosed as control board faults. If the drive uses a fieldbus adapter — such as the RPBA-01 PROFIBUS adapter or RDNA-01 DeviceNet adapter — verify that the adapter firmware is compatible with the replacement board’s firmware revision before commissioning.

For drives operating in dusty or humid environments, inspect the drive cabinet’s input fuses and the main contactor. A weakened fuse or a contactor with worn contacts can cause undervoltage events that stress the control board’s power regulation circuits. The SNAT 7600 TAI or equivalent snubber and suppression components on the DC bus should also be checked during any planned maintenance window.

If the ACS800 installation includes a panel-mounted CDP312R control panel or a remote ACS-AP-I assistant control panel, verify panel communication cable continuity and connector seating. A faulty panel connection can generate false fault codes that complicate root-cause analysis during a drive recovery event. Finally, for multi-drive installations sharing a common DC bus, inspect the BAMU-01 or equivalent bus adapter module to confirm bus voltage balance before returning the drive to service.

Site Replacement Workflow

Step 1 — Fault Isolation: Record all active fault codes from the CDP312R or ACS-AP-I panel before powering down. Document the fault history log for post-replacement comparison.

Step 2 — Safe Isolation: Isolate the drive from mains supply and allow a minimum 5-minute discharge period for DC bus capacitors. Verify zero voltage with a calibrated meter before opening the drive cabinet.

Step 3 — Board Removal: Disconnect all ribbon cables and I/O connectors from the existing GDC806B01 in sequence. Photograph connector positions before removal to ensure correct reinstallation. Remove the board using the extraction handles — do not apply lateral force to the PCB.

Step 4 — Compatibility Verification: Confirm the replacement GDC806B01 firmware revision matches or is compatible with the drive’s existing software version. Refer to ABB ACS800 firmware release notes for cross-version compatibility guidance.

Step 5 — Installation: Seat the replacement board firmly into the backplane connector. Reconnect all I/O and ribbon cables in reverse removal order. Verify all connector locks are fully engaged.

Step 6 — Commissioning: Power up the drive and monitor the startup sequence. Clear any residual fault codes. Run a no-load test at low speed before returning the drive to full production load. Confirm all fieldbus communication signals are active and stable.

Step 7 — Documentation: Update the site maintenance log with the replacement date, board serial number, and firmware version. Replenish the spare parts inventory to maintain buffer stock for future events.

Spare Parts Support FAQ

Q: Is the GDC806B01 a direct replacement for all ACS800 drive variants?
A: The GDC806B01 is the standard control board for the ACS800 single-drive series. Compatibility should be verified against the specific ACS800 drive type code and firmware version. KNMKS technical support can assist with compatibility confirmation prior to order placement.

Q: What testing is performed before shipment?
A: Every GDC806B01 unit undergoes functional testing, connector integrity inspection, and firmware version verification before dispatch. A test report is available upon request. All units are shipped in anti-static packaging with protective foam inserts.

Q: What does the support terms confirmed by quotation cover?
A: The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the specified operating range.

Q: Can KNMKS support long-term supply for multi-site maintenance programs?
A: Yes. KNMKS maintains regional stock buffers and can support blanket purchase orders and scheduled release programs for customers managing large ACS800 drive populations across multiple facilities. Contact our sales team to discuss volume pricing and dedicated stock allocation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

GDC806B01,3BHE036290R0001
S800 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB GDC806B01,3BHE036290R0001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
