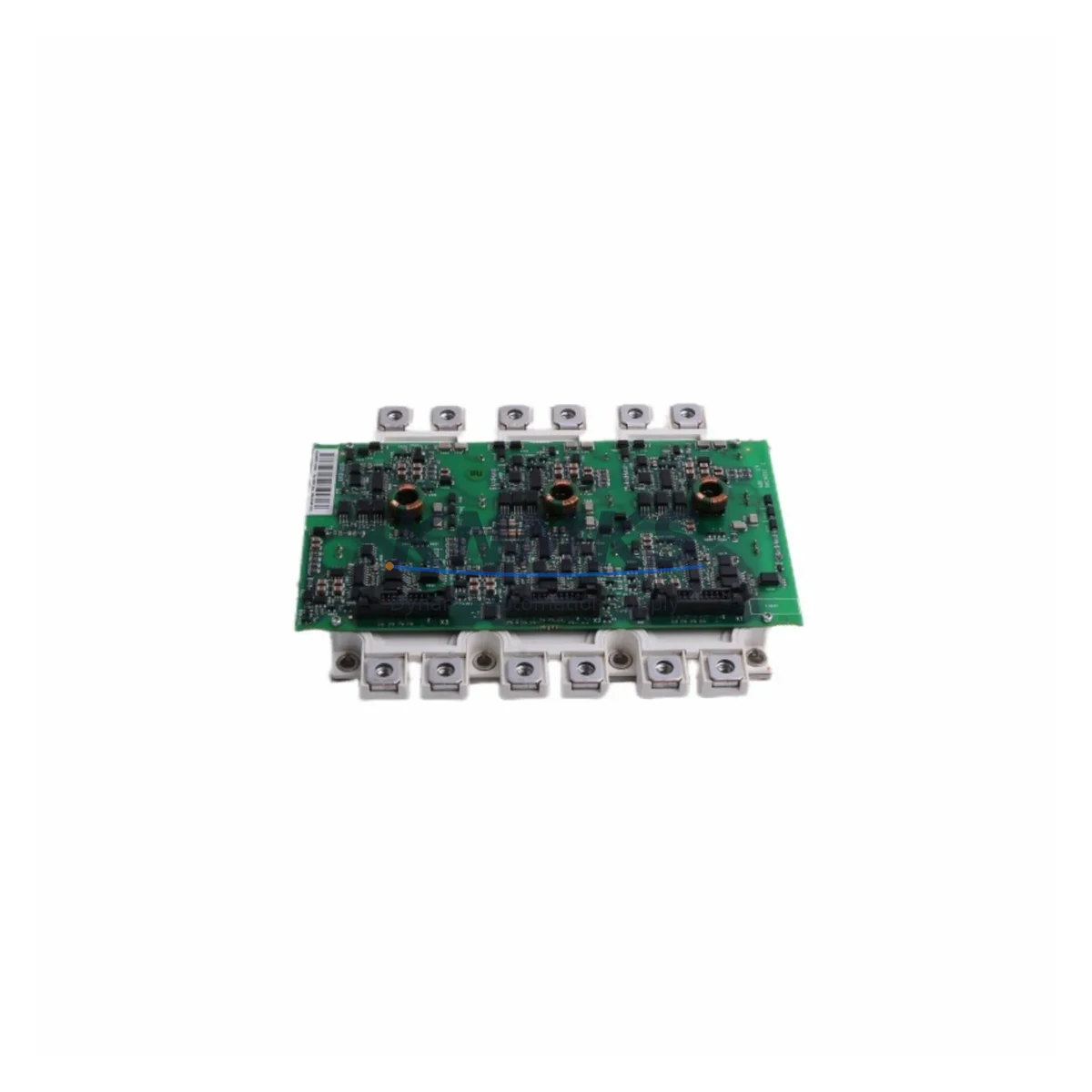

ABB FS450R17KE3/AGDR-72CS Migration-Ready IGBT Gate Driver

Overview

ABB FS450R17KE3/AGDR-72CS Migration-Ready IGBT Gate Driver for Legacy Control Systems

The ABB FS450R17KE3/AGDR-72CS is a high-performance IGBT gate driver board engineered for direct replacement and retrofit deployment within ABB ACS800 series variable frequency drives. As legacy ACS800 installations age and original spare parts become increasingly scarce, this module provides a verified migration path that preserves existing wiring configurations, control logic, and drive performance parameters — minimizing engineering rework and unplanned downtime during system modernization projects.

Designed to interface directly with the IGBT power module stack in ACS800 drive cabinets, the FS450R17KE3/AGDR-72CS maintains full electrical compatibility with the original gate signal architecture. Engineers undertaking retrofit projects can retain existing terminal wiring, fiber-optic communication links, and DC bus connections without modification, significantly reducing the scope of field work required during changeover.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the FS450R17KE3/AGDR-72CS into an aging ACS800 drive system requires a structured pre-retrofit assessment. Before removing the failed or end-of-life gate driver, engineers should document the existing fiber-optic routing between the AGDR-72CS and the AINT-02 interface board, noting channel assignments and cable lengths to ensure correct re-termination after module swap.

Power supply capacity within the drive cabinet must be confirmed prior to installation. The AGDR-72CS draws its auxiliary power from the drive’s internal APOW-01 power supply module; if the APOW-01 is also showing signs of degradation — a common occurrence in drives that have operated beyond their design service life — it is advisable to replace both units simultaneously to avoid a secondary failure shortly after commissioning. Similarly, the AINT-02 interface board, which manages the fiber-optic communication between the drive control board and the gate driver, should be inspected for capacitor aging and connector oxidation.

For installations where the ACS800 drive is integrated into a larger control architecture — for example, where a PROFIBUS DP or Modbus RTU fieldbus connects the drive to a supervisory PLC or DCS — the retrofit window should include a protocol continuity check. The RDCO-02 DDCS communication option board, if fitted, must remain undisturbed during the gate driver replacement to preserve the drive-to-controller communication link. Any interruption to the DDCS fiber ring during maintenance must be managed carefully to avoid triggering fault states in adjacent drives on the same ring.

I/O wiring connected to the drive’s RMIO-02 main control board — including analog speed references, digital start/stop commands, and fault relay outputs — should be photographed and labeled before any cabinet work begins. While the gate driver replacement does not directly affect RMIO-02 wiring, vibration from adjacent work can loosen terminal connections on aging terminal blocks. A full terminal torque check after installation is recommended standard practice.

Where the ACS800 is mounted in a multi-drive cabinet alongside other ABB drives sharing a common DC bus, the retrofit must be coordinated with the overall bus pre-charge sequence. Isolating the affected drive section while maintaining DC bus continuity to adjacent drives requires careful use of the cabinet’s bus sectionalizing contactors. The ACS800’s charging circuit and main contactor logic should be verified functional before returning the drive to service.

For sites operating older HMI panels — such as ABB CP600 series or third-party SCADA displays — the drive fault history and parameter set should be backed up using DriveWindow or Drive Composer software before the retrofit begins. This ensures that motor control parameters, speed references, PID tuning values, and application macro settings can be restored exactly after the module replacement, eliminating the need for a full recommissioning cycle.

Downtime Control During System Migration

Minimizing production downtime during an ACS800 gate driver replacement requires advance preparation and a disciplined on-site execution sequence. The FS450R17KE3/AGDR-72CS is supplied pre-tested and ready for installation, eliminating the need for bench-level gate driver characterization before fitting.

The recommended approach is to prepare a complete replacement kit — including the FS450R17KE3/AGDR-72CS gate driver, spare fiber-optic patch cables, and a set of terminal ferrules — before the maintenance window opens. With all materials staged at the cabinet, the physical swap can typically be completed within two to four hours for a single drive frame, depending on cabinet layout and accessibility.

Original program logic stored on the RMIO-02 control board is not affected by the gate driver replacement, as the AGDR-72CS operates purely at the power electronics layer. Drive parameters, application macros, and fault history remain intact on the control board throughout the procedure, provided the control board power supply is not interrupted. This is a critical advantage over full drive replacement scenarios, where complete parameter re-entry and motor re-identification runs would be required.

After installation, the recommended commissioning sequence includes: DC bus insulation resistance test, gate driver power-up check with drive in local control mode, no-load motor run at reduced speed to verify gate pulse symmetry, and a full-load test run with monitoring of IGBT junction temperature via the drive’s thermal model. This sequence can typically be completed within one to two hours, allowing the production line to return to service within a single shift maintenance window.

All units are dispatched with a factory test report confirming gate threshold voltage, on-state saturation voltage, and switching time measurements. This documentation supports site acceptance testing and provides a baseline for future condition monitoring.

Retrofit Support FAQ

Q: Is the FS450R17KE3/AGDR-72CS a direct replacement for the original AGDR-72CS fitted in my ACS800 drive?
A: Yes. The FS450R17KE3/AGDR-72CS is a direct form-fit-function replacement for the original ABB AGDR-72CS gate driver board. Mounting dimensions, fiber-optic connector positions, and auxiliary power connections are identical to the original part, allowing installation without mechanical modification to the drive frame.

Q: Do I need to update the ACS800 drive firmware before installing this gate driver?
A: No firmware update is required on the ACS800 control board (RMIO-02) when replacing the gate driver. The AGDR-72CS operates independently of the drive’s application software. However, it is recommended to verify that the installed firmware version is current as part of the overall retrofit assessment, particularly if the drive has not been serviced in several years.

Q: What pre-shipment testing is performed on each unit?
A: Every FS450R17KE3/AGDR-72CS unit undergoes full functional testing prior to dispatch, including gate drive signal integrity verification, auxiliary power supply load test, and fiber-optic transceiver sensitivity check. A test report is included with each shipment. Units are covered by a support terms confirmed by quotation from the date of shipment.

Q: What is the typical lead time and do you maintain stock?
A: Units are held availability confirmed by RFQ and are available for immediate dispatch. Standard international shipping typically delivers within 3–7 business days depending on destination. For urgent requirements, expedited freight options are available. Contact [email protected] or call +86 18359268345 to confirm current stock levels and arrange shipment.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

FS450R17KE3/AGDR-72CS
S800 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB FS450R17KE3/AGDR-72CS
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
