ABB FS450R17KE3/AGDR-61C Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB FS450R17KE3/AGDR-61C Maintenance-Proven Spare Part for Factory Uptime

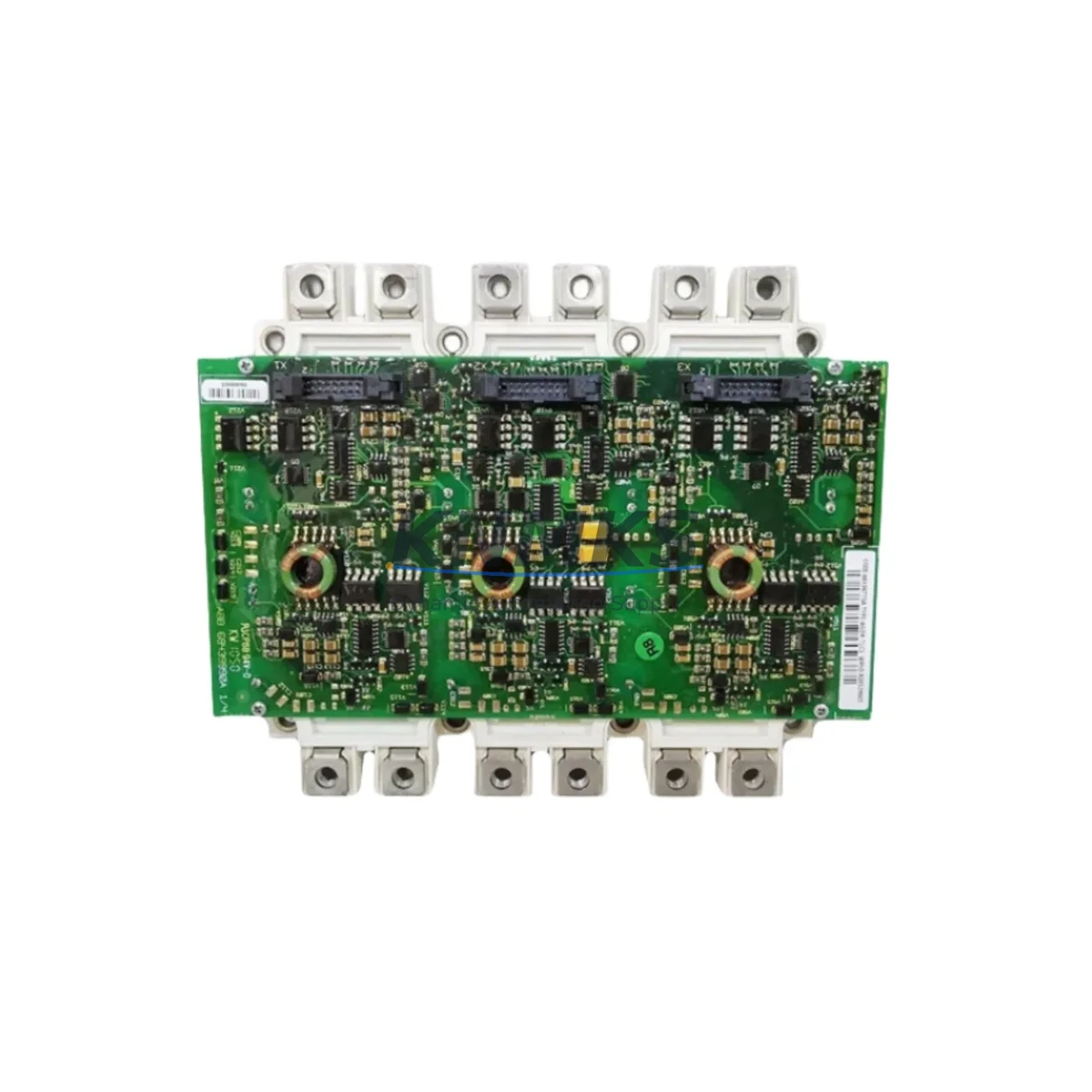

The ABB FS450R17KE3/AGDR-61C is a high-power IGBT module kit engineered for ABB ACS800 series industrial AC drives. Combining the FS450R17KE3 IGBT power module with the AGDR-61C gate driver board, this assembly forms the core switching and control interface of the ACS800 inverter stage. For maintenance engineers managing high-power motor drive systems in steel mills, paper machines, cement plants, marine propulsion, and heavy process industries, this spare part is a critical line item in any preventive maintenance program.

When an ACS800 drive trips on overcurrent, IGBT fault, or gate driver failure, production downtime begins immediately. Having a verified, pre-tested FS450R17KE3/AGDR-61C kit on the shelf is the single most effective way to restore inverter operation within hours rather than weeks. Our stock is sourced from authorized channels, inspected upon receipt, and subjected to functional testing prior to shipment — backed by a support terms confirmed by quotation from the date of delivery.

This listing is intended for procurement engineers, maintenance planners, and MRO buyers who require a reliable, long-term supply partner for ABB ACS800 drive components. We support single-unit emergency orders as well as annual blanket purchase agreements for multi-site operations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the FS450R17KE3/AGDR-61C kit is rarely an isolated task. In a properly structured ACS800 drive maintenance workflow, the IGBT module and gate driver replacement should be accompanied by a systematic inspection of all adjacent components in the power and control circuit.

Begin with the DC bus capacitor bank — capacitor aging is a leading cause of IGBT stress and premature failure. If the capacitors show elevated ESR or visible bulging, they must be replaced concurrently. Next, inspect the ACS800 AINT or AINT-xx interface board, which handles the fiber-optic communication between the control board and the AGDR-61C gate driver. A degraded fiber link can cause erratic gate signals and repeat IGBT failures even after a new module is installed.

The APOW-01 or APOW-02 power supply board within the ACS800 control section should be checked for output voltage stability — the gate driver requires a clean auxiliary supply to operate within switching timing tolerances. Similarly, the AINT or RDCU control unit should be verified for active fault logs and parameter integrity before the drive is recommissioned.

On the input side, inspect the AC input fuses and DC bus fuses (typically semiconductor-grade, such as Bussmann or Ferraz Shawmut types rated for the drive frame). A blown or weakened fuse that was not replaced after the original fault can cause immediate re-failure of the new IGBT module. The input choke or du/dt filter should also be checked for winding continuity and insulation integrity.

For drives connected to critical motor loads, verify the motor cable insulation resistance with a 1000V megger before reconnecting — a ground fault on the motor or cable is a common root cause of IGBT destruction. If the ACS800 is equipped with an IOEC I/O extension module or DDCS fiber ring for multi-drive coordination, confirm that all fiber connections are clean and seated correctly before restart.

Procurement engineers should consider maintaining a minimum stock of one FS450R17KE3/AGDR-61C kit per ACS800 frame size in service, alongside a spare APOW board and a set of DC bus fuses, to support a complete emergency recovery kit for each critical drive in the plant.

Site Replacement Workflow

The FS450R17KE3/AGDR-61C is a direct replacement for the original ABB factory-installed IGBT module kit in compatible ACS800 frames. The replacement procedure follows ABB’s standard inverter module exchange protocol:

1. Isolation and discharge: Isolate the drive from mains supply and allow the DC bus to fully discharge (minimum 5 minutes; verify with a calibrated DC voltmeter before touching any internal components).

2. Gate driver disconnection: Carefully disconnect the AGDR-61C fiber-optic cables and auxiliary power connectors. Label all connections before removal to ensure correct reinstallation.

3. IGBT module removal: Remove the bus bar connections and mounting bolts from the FS450R17KE3 module. Clean the heatsink surface thoroughly and apply fresh thermal interface compound before installing the new module.

4. New module installation: Mount the new FS450R17KE3 to the heatsink at the specified torque. Reconnect bus bars and install the AGDR-61C gate driver board, ensuring all fiber and power connections are secure.

5. Pre-power checks: Verify insulation resistance between DC bus and chassis. Confirm gate driver auxiliary supply voltage. Check all fiber connections for continuity.

6. Recommissioning: Power up the control section first, verify no active faults, then apply main power. Run the drive at low speed under no-load conditions before returning to full production load.

This workflow minimizes downtime and reduces the risk of repeat failure. Our technical team is available to support remote commissioning guidance for customers who require assistance during the replacement process.

Spare Parts Support FAQ

Q1: Is this FS450R17KE3/AGDR-61C kit compatible with all ACS800 frame sizes?
The FS450R17KE3/AGDR-61C combination is used in specific high-power ACS800 frames, typically in the R7 and R8 frame range for 690V input configurations. Compatibility depends on the exact drive type code and frame size. Please provide your ACS800 type code (found on the drive nameplate) when ordering to confirm fitment. We verify compatibility before shipment.

Q2: How is the unit tested before shipment?
Every FS450R17KE3/AGDR-61C kit undergoes functional verification and insulation resistance testing prior to dispatch. The IGBT module is checked for gate-emitter threshold voltage and collector-emitter leakage. The AGDR-61C gate driver is powered and verified for output signal integrity. A test report is available upon request. All units ship with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions.

Q3: Can you support long-term or blanket purchase agreements for this part?
Yes. We support annual supply agreements for maintenance teams managing multiple ACS800 drives across one or more sites. Blanket orders allow you to lock in pricing, reserve stock, and schedule phased deliveries aligned with your planned maintenance windows. Contact our sales team to discuss volume pricing and lead time commitments.

Q4: What should I do if the drive faults again after replacing the IGBT module?
Repeat IGBT failure after replacement is almost always caused by an unresolved root cause — most commonly a motor or cable insulation fault, a failed DC bus capacitor, a degraded gate driver power supply, or incorrect fiber-optic connections. Before re-energizing after a second fault, perform a full insulation resistance test on the motor and cable, verify DC bus capacitor ESR, and check the APOW auxiliary supply output. Our technical support team can assist with fault analysis remotely if needed.
