ABB FS450R12KE3/AGDR-71CS Maintenance-Proven Spare Part for Factory Uptime

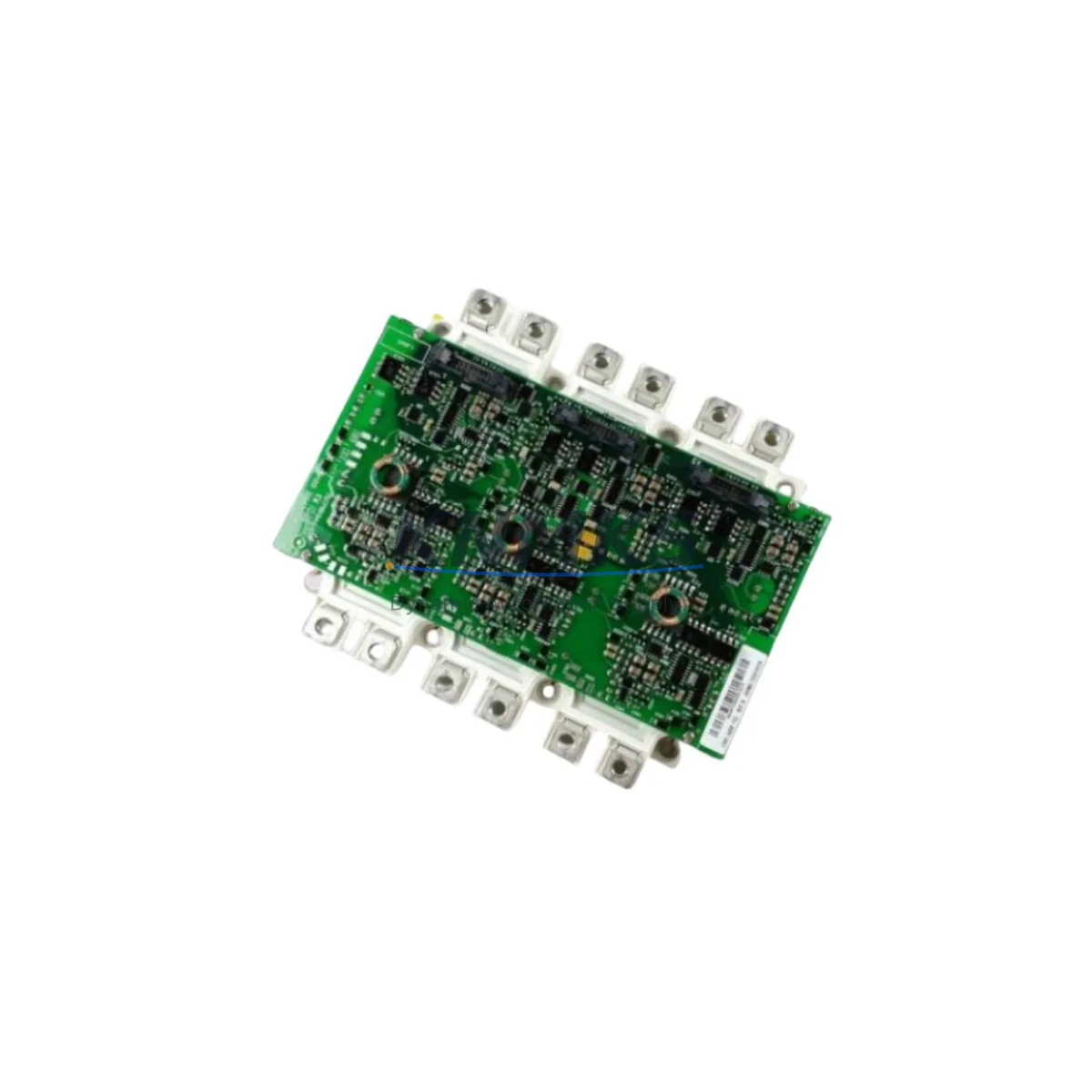

The ABB FS450R12KE3/AGDR-71CS is a high-power IGBT module assembly designed for use in ABB ACS800 series variable frequency drives. As a critical power conversion component, this module handles the switching of high-voltage DC bus power into controlled AC output for motor drive applications. In industrial environments where ACS800 drives manage compressors, pumps, fans, conveyors, and hoists, the FS450R12KE3/AGDR-71CS is a front-line maintenance spare that directly determines whether a production line stays running or faces unplanned downtime.

Maintenance engineers and procurement teams working with ABB ACS800 platforms recognize that IGBT module failures are among the most disruptive fault events in drive maintenance. The FS450R12KE3 power module, paired with the AGDR-71CS gate driver board, forms an integrated switching assembly. When either sub-component degrades — due to thermal cycling, overcurrent events, DC bus transients, or aging gate drive signals — the entire assembly must be replaced as a matched pair to restore drive performance and protection integrity. Sourcing a verified, pre-tested replacement unit is the fastest path to restoring motor control and resuming production.

Our FS450R12KE3/AGDR-71CS units are sourced from authorized supply channels, inspected upon receipt, and subjected to pre-shipment functional testing before dispatch. Each unit ships with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Multi-region stock is maintained to support both emergency same-week replacements and scheduled annual maintenance outages across global facilities.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the FS450R12KE3/AGDR-71CS in an ACS800 drive cabinet, a thorough site inspection of the surrounding electrical system is essential to prevent repeat failures and ensure long-term drive reliability. Maintenance engineers should treat this replacement as an opportunity to audit the full power conversion stack.

Begin with the DC bus capacitor bank — capacitor degradation is a leading contributor to IGBT overvoltage stress and premature module failure. Measure capacitance and ESR values against ABB’s service thresholds before re-energizing the drive. Next, inspect the ACS800 power supply board (AINT or APOW series), which provides regulated auxiliary voltages to the gate driver and control electronics; a marginal power supply can cause erratic gate signals that stress the new IGBT module.

The AGDR-71CS gate driver fiber optic cables connecting the control board to the IGBT module should be inspected for bend radius violations, connector contamination, and signal integrity. Degraded fiber links are a common root cause of nuisance overcurrent trips after module replacement. While the cabinet is open, verify the condition of the AINT-02C or RDCU control unit — firmware version compatibility and parameter backup should be confirmed before commissioning the replacement module.

On the input side, check the input line reactor or du/dt filter for signs of overheating or insulation breakdown, as these components protect the IGBT module from line-side transients. Inspect main contactor and pre-charge circuit components for contact wear, since a slow pre-charge sequence can expose the new module to inrush stress. Finally, review the thermal management system: clean or replace the drive’s cooling fans, verify heatsink thermal compound integrity, and confirm that cabinet ventilation airflow meets ABB’s minimum requirements for the installed power rating.

For drives operating in dusty or humid environments, this is also the right time to inspect I/O terminal blocks and signal wiring for corrosion, loose terminations, or ground loop issues that could cause false fault signals after restart.

Site Replacement Workflow

The FS450R12KE3/AGDR-71CS is a direct replacement for the original ABB factory-installed assembly in ACS800 drives of the corresponding power frame. No firmware modification is required for a like-for-like module swap, making this one of the faster field replacements in the ACS800 maintenance portfolio.

Step 1 — Isolation and discharge: De-energize the drive, lock out the main supply, and wait for the DC bus voltage to discharge below 50 V as indicated by the drive’s DC bus LED or a calibrated meter. Do not rely solely on the LED — verify with a meter.

Step 2 — Documentation: Photograph existing wiring, bus bar connections, and fiber optic routing before disassembly. Record the drive’s parameter set using the ACS800 control panel or DriveWindow software.

Step 3 — Module removal: Disconnect gate driver fiber optic connectors, remove bus bar bolts in the sequence specified in the ABB ACS800 hardware manual, and extract the IGBT module assembly. Handle the replacement module by its edges to avoid contaminating the thermal interface surface.

Step 4 — Installation: Apply fresh thermal interface material to the heatsink contact surface. Install the FS450R12KE3 module, torque bus bar connections to ABB specification, and reconnect the AGDR-71CS gate driver and fiber optic cables.

Step 5 — Commissioning: Restore power, verify DC bus pre-charge sequence, confirm no fault codes, and run a no-load motor test before returning the drive to full production load. Log the replacement in the site maintenance record.

This workflow minimizes downtime by eliminating guesswork and ensures the replacement module is commissioned correctly the first time, reducing the risk of a second callout.

Spare Parts Support FAQ

Q1: Is the FS450R12KE3/AGDR-71CS compatible with all ACS800 frame sizes?
The FS450R12KE3/AGDR-71CS is rated for 450 A / 1200 V and is used in specific ACS800 high-power frame sizes. Compatibility depends on the drive’s power rating and frame designation. Please provide your ACS800 drive type code (found on the nameplate) when ordering to confirm exact frame compatibility before shipment.

Q2: How do you verify the module is functional before shipment?
Each FS450R12KE3/AGDR-71CS unit undergoes pre-shipment functional testing covering gate drive signal integrity, IGBT switching response, and insulation resistance checks. A test record is available upon request. Units that do not pass testing are not dispatched.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions as defined by ABB’s ACS800 installation and maintenance guidelines. It does not cover damage resulting from incorrect installation, overvoltage events beyond rated limits, or operation outside the drive’s specified environmental parameters.

Q4: Can you support long-term or blanket purchase agreements for ACS800 spare parts?
Yes. For facilities operating multiple ACS800 drives or planning multi-year maintenance programs, we support long-term supply agreements with reserved stock allocation, priority dispatch, and fixed pricing. Contact our team to discuss a spare parts support plan tailored to your maintenance schedule and installed base.
