ABB FS450R12KE3/AGDR-71C Migration-Ready IGBT for Legacy Control Systems

Overview

ABB FS450R12KE3/AGDR-71C Migration-Ready IGBT for Legacy Control Systems

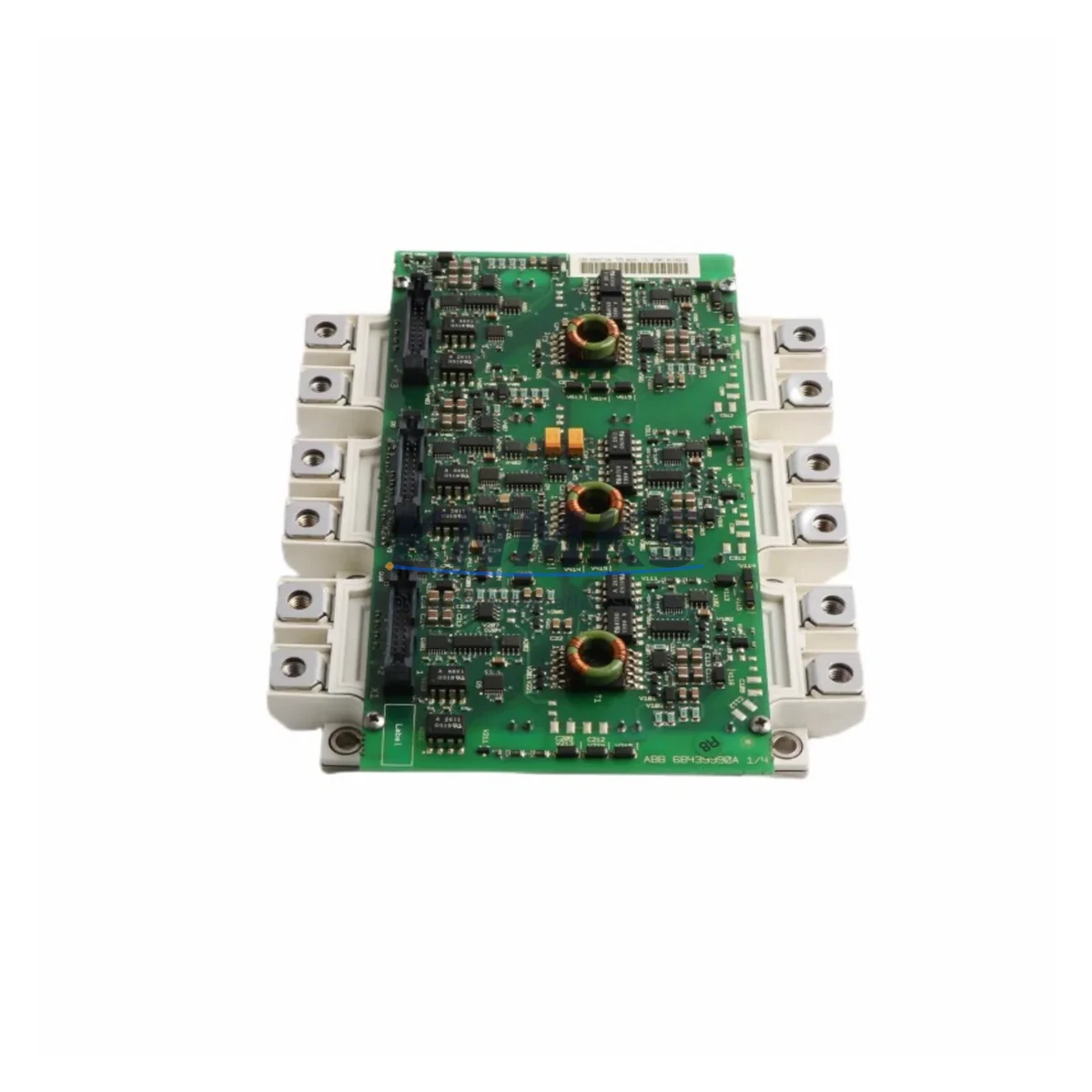

The ABB FS450R12KE3/AGDR-71C is a Six-Pack IGBT power module rated at 1200 V / 450 A, designed for high-power industrial drive applications and engineered to serve as a direct migration-ready replacement within the EconoPACK form factor. As legacy ACS800 and ACS880 drive platforms approach end-of-service milestones, the FS450R12KE3 paired with the AGDR-71C gate driver board provides a validated upgrade path that preserves existing cabinet geometry, DC bus connections, and thermal interface requirements. This combination is widely deployed in retrofit projects across steel mills, paper machines, marine propulsion systems, and large-scale HVAC installations where downtime tolerance is minimal and replacement lead times are critical.

The module integrates six IGBT chips in a single housing with co-packaged freewheeling diodes, reducing the component count during replacement and simplifying the thermal management interface. The AGDR-71C gate driver provides isolated gate drive signals, short-circuit protection, and desaturation detection — functions that must be verified against the original gate driver board specifications before installation. Engineers replacing earlier EconoPACK generations should confirm that the gate resistor values, supply voltage rails (typically ±15 V), and fiber-optic interface pinout on the AGDR-71C match the existing control board connections within the ACS800 or ACS880 drive chassis.

When planning a retrofit using the FS450R12KE3/AGDR-71C, the following parameters must be confirmed prior to installation: DC bus voltage rating and capacitor bank compatibility, heatsink thermal resistance and mounting torque specification, gate driver supply voltage and fiber-optic cable routing, module footprint and terminal pitch against the existing busbar layout, firmware version on the drive control unit (RDCU or RMIO board) to ensure IGBT protection thresholds are correctly mapped, and HMI parameter sets that reference drive-specific fault codes tied to the original module type. Failure to verify these points can result in nuisance trips, protection mismatch, or extended commissioning time.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the FS450R12KE3/AGDR-71C into an existing drive cabinet requires a structured approach that accounts for both the power stage and the surrounding control architecture. Before removing the failed or end-of-life module, engineers should document the existing wiring layout, photograph terminal connections, and record all active drive parameters using the ACS800 or ACS880 DriveWindow or panel keypad backup function. This parameter backup is essential because the RDCU-02C or RMIO-11C control board may need to be reloaded after the module swap if a firmware update is applied simultaneously.

In systems where the FS450R12KE3 is installed alongside an AINT-02C or AINT-11C interface board, the fiber-optic connections between the AGDR-71C and the control board must be re-routed carefully to avoid signal degradation. The AGDR-71C gate driver board should be bench-tested for supply voltage levels and gate pulse output before installation in the live cabinet. Where the original system used an older AGDR-61C gate driver, the AGDR-71C is the recommended upgrade path, but the mounting bracket and fiber-optic connector type must be verified for physical compatibility.

For drives that include an IOEC-04 or IOEC-07 I/O extension module for process feedback signals, the retrofit plan should confirm that analog and digital I/O wiring remains undisturbed during the power module replacement. Similarly, if the drive communicates via a PROFIBUS or Modbus RTU fieldbus adapter (such as the RPBA-01 or RMBA-01), the communication link should be tested immediately after power-up to confirm that the PLC or DCS still receives valid drive status words. In multi-drive systems sharing a common DC bus, the bus pre-charge sequence and inrush current management must be re-validated after the module replacement to protect both the new IGBT module and the shared capacitor bank.

Downtime Control During System Migration

Minimizing unplanned downtime during an IGBT module replacement is the primary operational concern for maintenance teams working on continuous process lines. The FS450R12KE3/AGDR-71C retrofit is designed to support a structured hot-swap preparation process: the replacement module and gate driver should be pre-staged, thermally prepared, and bench-verified before the production line is taken offline. A typical well-planned replacement on an ACS800 or ACS880 drive can be completed within a four-hour maintenance window when all preparatory steps are completed in advance.

To protect the original program logic, the drive parameter set should be backed up to both the control panel memory and an external PC using DriveWindow or Drive Composer before any hardware is disturbed. If the drive is part of a coordinated motion system or a process line with interlocked safety functions, the safety relay outputs and emergency stop circuits must be verified to remain active and correctly wired after the module replacement. HMI screens that display drive-specific fault codes or motor current values should be reviewed post-commissioning to confirm that the new module’s protection thresholds are correctly reflected in the operator interface.

Field commissioning after installation should include a no-load power-up test, a low-speed motor rotation check, a full-load ramp test, and a review of the drive’s event log for any desaturation or overcurrent events in the first 30 minutes of operation. These steps confirm that the FS450R12KE3/AGDR-71C is correctly seated, thermally coupled, and electrically matched to the surrounding drive system before the production line is returned to full-speed operation.

Retrofit Support FAQ

Q1: Is the FS450R12KE3/AGDR-71C a direct replacement for the original EconoPACK module in ACS800 drives?
A: Yes. The FS450R12KE3 uses the EconoPACK+ footprint and is dimensionally compatible with standard ACS800 and ACS880 frame sizes. The AGDR-71C gate driver is the current production replacement for earlier AGDR-6xC series boards. Verify fiber-optic connector type and gate resistor values before installation.

Q2: What pre-shipment testing is performed on the FS450R12KE3/AGDR-71C?
A: Each unit undergoes functional electrical testing prior to dispatch, including gate threshold voltage verification, leakage current measurement, and gate driver supply rail confirmation. A test report is available upon request. All units are covered by a support terms confirmed by quotation against manufacturing defects from the date of shipment.

Q3: Can the AGDR-71C gate driver be reused if only the IGBT module has failed?
A: In principle, yes — if the AGDR-71C shows no fault history and passes bench testing. However, in practice, gate drivers exposed to a module failure event (short-circuit or overvoltage) should be replaced together with the IGBT module to avoid latent damage that may cause premature failure of the new module. We recommend replacing both as a matched set.

Q4: What is the stock availability and lead time for the FS450R12KE3/AGDR-71C?
A: Stock is maintained in our warehouse to support urgent retrofit and breakdown replacement requirements. Standard orders ship within 1–3 business days. For volume orders or long-term supply agreements, contact our sales team to discuss buffer stock arrangements and extended support terms options.
