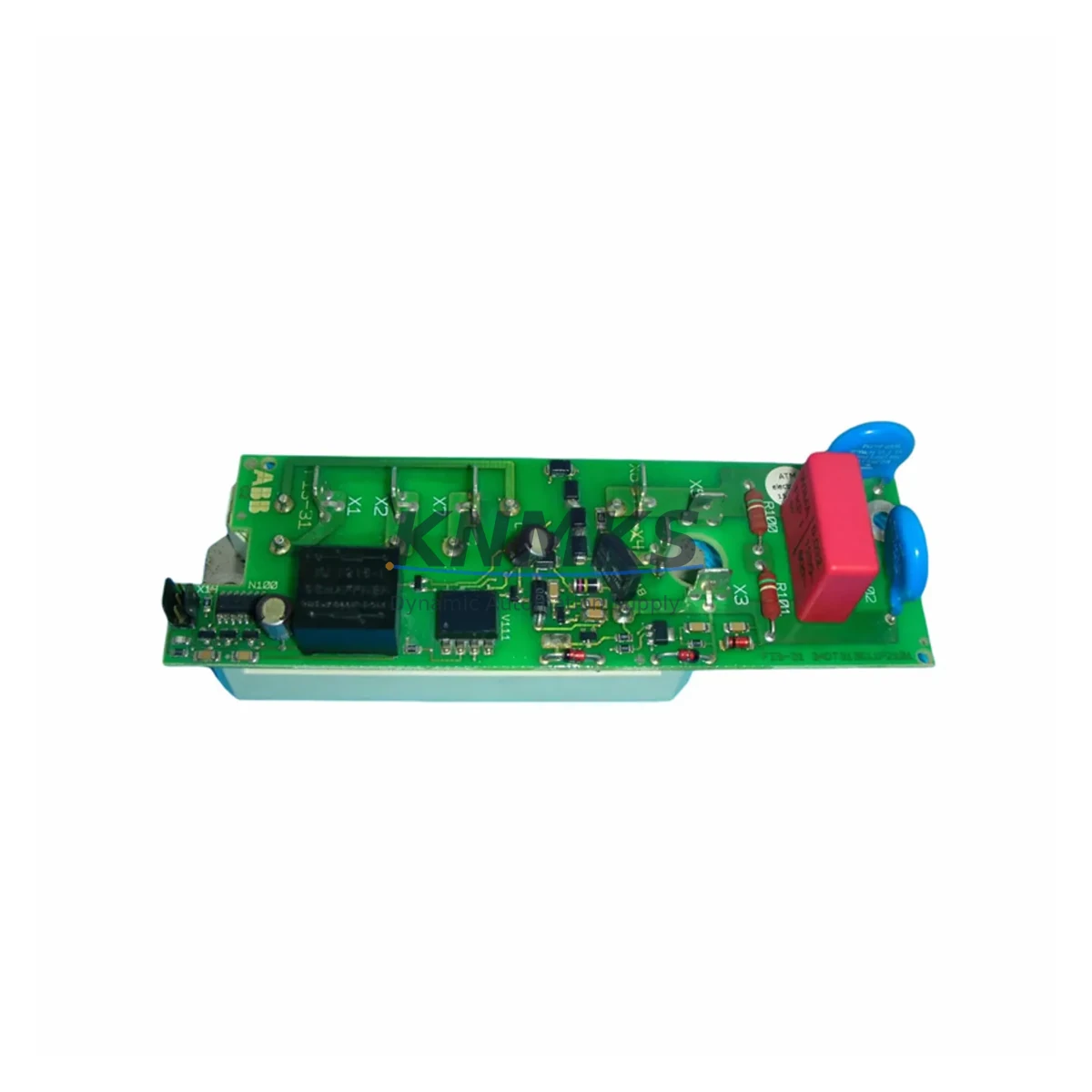

The ABB FIS-31 (part number 3ADT313600R1) is an original field excitation module designed for ABB DCS800 series DC drives. In industrial environments where motor control continuity is non-negotiable — including petrochemical plants, steel mills, paper machines, and heavy manufacturing lines — this module plays a critical role in regulating field current to DC motors, ensuring stable torque output and protecting motor windings from excitation faults. Sourced from verified supply channels, each unit undergoes functional testing prior to dispatch and is backed by a support terms confirmed by quotation, making it a reliable choice for both emergency replacement and planned maintenance stock.

Maintenance engineers working on DCS800 drive cabinets frequently encounter field excitation failures as a root cause of unexpected motor trips. The FIS-31 3ADT313600R1 is the factory-specified replacement module for these events. Its compact DIN-rail-compatible form factor and direct plug-in interface to the DCS800 control board reduce replacement time significantly, minimizing production downtime during fault recovery. Procurement engineers can confidently specify this part for annual maintenance budgets, knowing it carries full OEM compatibility and long-term supply availability through KNMKS.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the FIS-31 3ADT313600R1 in a DCS800 drive cabinet, a thorough site inspection is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should begin by verifying the integrity of the 24VDC auxiliary power supply feeding the control board — a degraded SDCS-POW-4 power supply module is a common co-failure that can damage replacement excitation modules if left unaddressed. The field wiring terminals (F+ and F−) should be inspected for oxidation, loose crimps, or insulation breakdown before reconnecting the motor field circuit.

The SDCS-CON-4 control board, which interfaces directly with the FIS-31, should be checked for firmware version compatibility and any fault history stored in the drive’s event log. If the drive has been in service for more than five years, it is advisable to simultaneously inspect the SDCS-IOB-3 I/O extension board for relay contact wear and signal drift on analog input channels. Fuse F1 on the field excitation circuit should be replaced as a matter of course during any FIS-31 swap — using the correct rated fuse prevents nuisance trips after recommissioning.

For drives integrated into a larger DCS or SCADA network via PROFIBUS or Modbus RTU, the RDCO-03 or RDCO-04 communication adapter should be verified for stable communication after the module replacement, as a drive reset can occasionally cause fieldbus address conflicts. Where the DCS800 is paired with an ACS800 in a coordinated drive system, the field excitation parameters (field current reference, field weakening curve) must be re-entered or restored from a parameter backup to ensure matched performance. Maintenance teams should also inspect the CDP-312R control panel connection and any RAIO-01 analog I/O extension modules for signal continuity before returning the drive to automatic mode.

Site Replacement Workflow

Replacing the ABB FIS-31 3ADT313600R1 on-site follows a structured sequence to minimize downtime and avoid commissioning errors. First, isolate the DCS800 drive from the main supply and discharge the DC bus capacitors per ABB’s lockout/tagout procedure — confirm zero voltage on the DC bus terminals before opening the cabinet. Remove the faulty FIS-31 by releasing the module latch and disconnecting the ribbon cable connector; note the orientation before removal to avoid incorrect reinstallation.

Insert the replacement 3ADT313600R1 module, ensuring the connector seats fully and the latch engages. Restore auxiliary power and navigate to the drive’s parameter group 99 (Start-Up Data) to verify that field excitation parameters — particularly parameter 99.02 (Motor Type) and the field current reference in group 28 — are correctly set for the connected motor. Run a field current measurement test at reduced speed before returning the drive to full production load. Document the replacement in the site maintenance log, including the module serial number, date, and post-replacement test results, to support support requests and future fault analysis.

For legacy DCS800 installations where the original FIS-31 has been discontinued or is difficult to source, the 3ADT313600R1 serves as the current production equivalent, maintaining full backward compatibility with existing wiring and parameter sets. This eliminates the need for drive reconfiguration or motor rewiring, significantly reducing the engineering effort required for older system life extension projects.

Spare Parts Support FAQ

Q1: Is the ABB FIS-31 3ADT313600R1 compatible with all DCS800 variants?
The FIS-31 3ADT313600R1 is compatible with the DCS800-S01, DCS800-S02, and DCS800-EP1 series. Compatibility with ACS800 configurations depends on the specific drive variant and control board revision. KNMKS recommends providing your full drive nameplate data (type code and firmware version) when ordering to confirm fitment before shipment.

Q2: What testing is performed before shipment?
Each FIS-31 3ADT313600R1 unit is functionally tested prior to dispatch to verify module communication, field current regulation response, and connector integrity. A test report is available upon request. Units are packed in anti-static protective packaging to prevent ESD damage during transit.

Q3: What is the recommended spare parts inventory strategy for DCS800 drives?
For critical production lines, KNMKS recommends holding a minimum of one FIS-31 module per drive cabinet as on-site cold standby. For facilities operating multiple DCS800 drives, a pooled spare strategy — typically one module per three to five drives — balances inventory cost against downtime risk. Annual inspection of stored spares for connector oxidation and storage condition compliance is advised.

Q4: What support terms and long-term supply commitment does KNMKS provide?
All FIS-31 3ADT313600R1 units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. KNMKS maintains long-term supply commitments for DCS800 series spare parts, supporting customers through extended maintenance contracts and scheduled annual procurement programs. For volume orders or long-term supply agreements, contact our technical sales team directly.
