ABB EB142355SPER 1C1-AA Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB EB142355SPER 1C1-AA Maintenance-Proven Spare Part for Factory Uptime

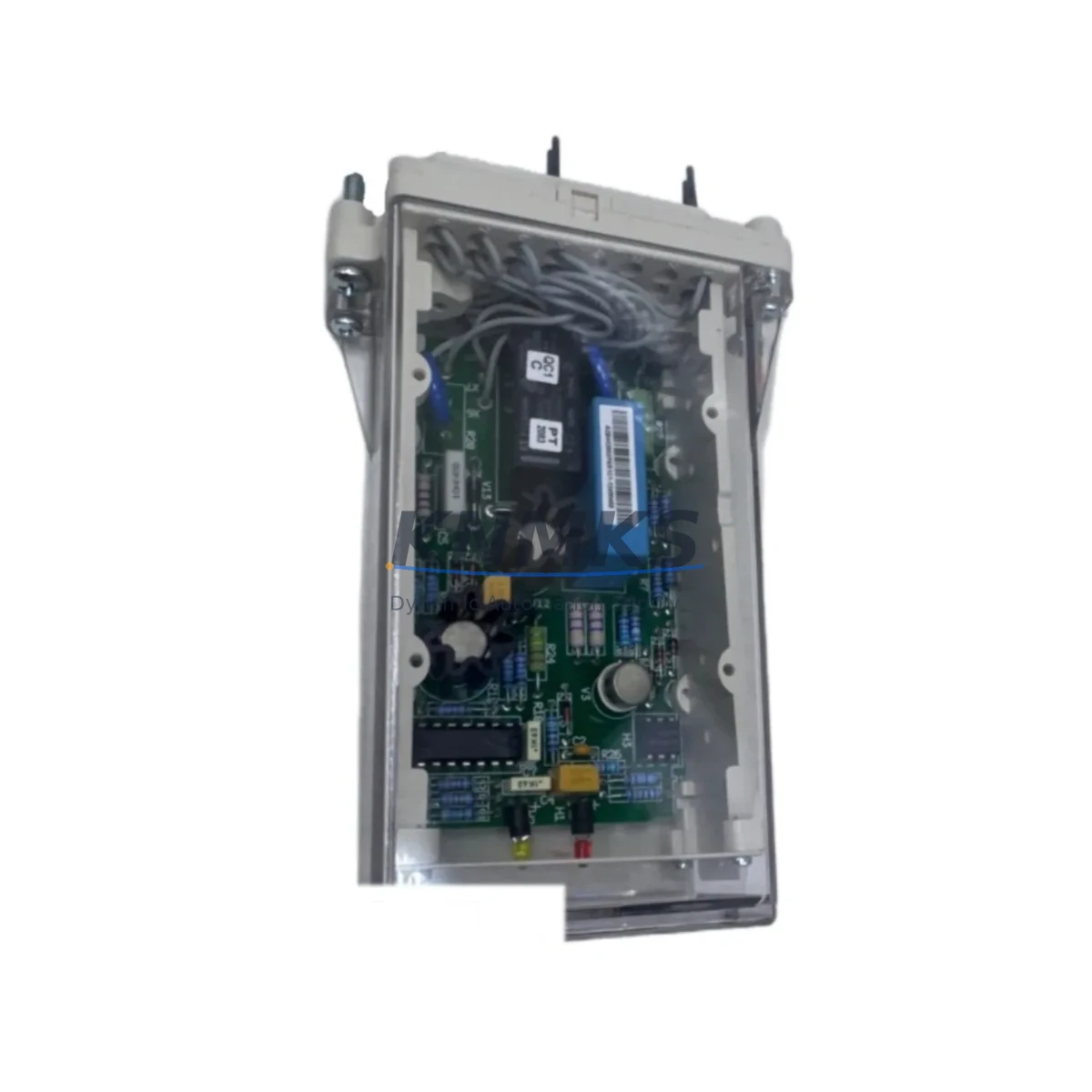

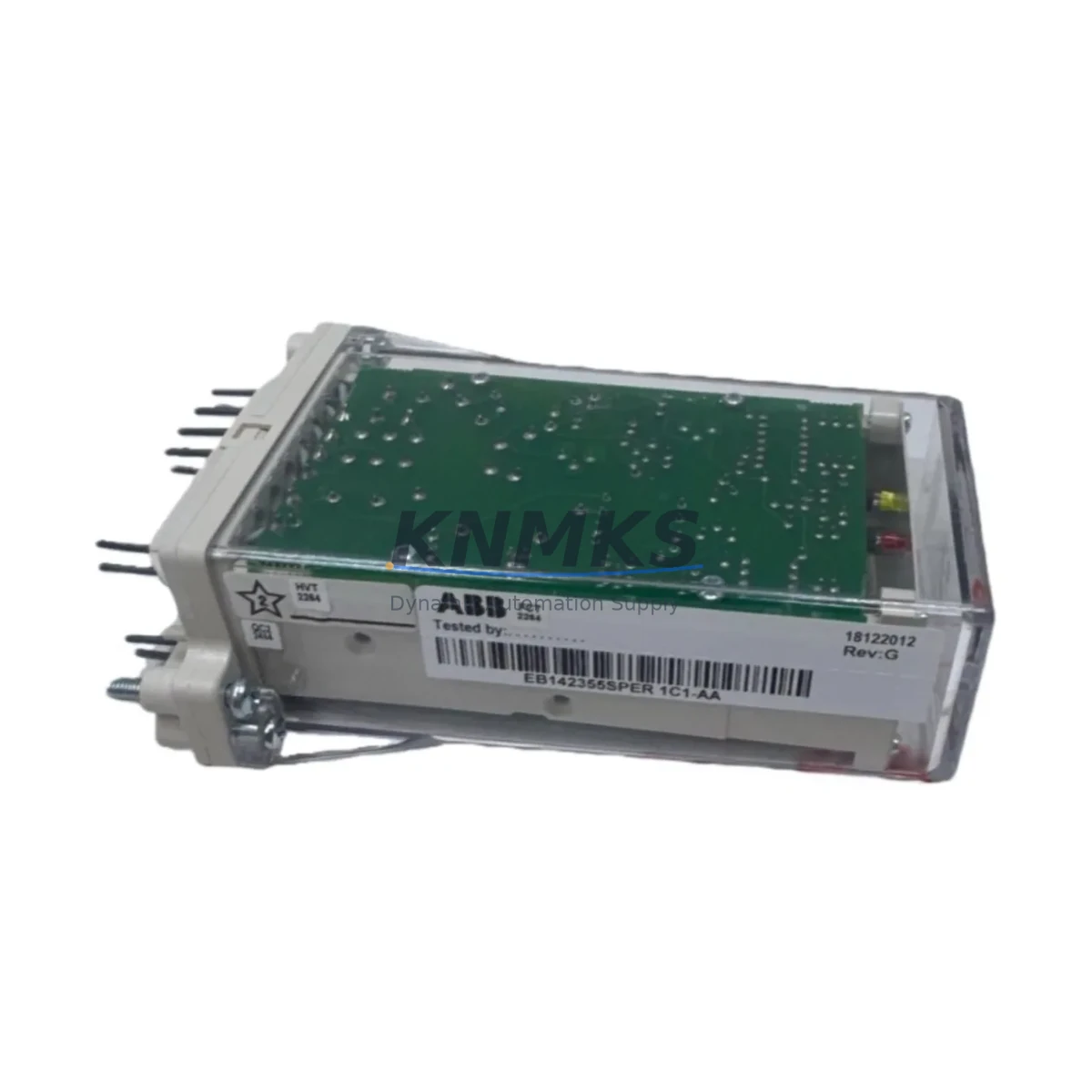

The ABB EB142355SPER 1C1-AA is an original trip circuit supervision relay designed for use within ABB’s REF protection relay series. Engineered for continuous monitoring of trip coil integrity in high-voltage switchgear and substation protection panels, this module plays a critical role in ensuring that protection circuits remain operational and ready to respond to fault conditions. For maintenance engineers managing aging protection systems, having a verified spare of the EB142355SPER 1C1-AA on hand is a fundamental element of any proactive uptime strategy.

This relay is widely deployed in energy generation, transmission substations, petrochemical plants, water treatment facilities, and heavy manufacturing environments where protection system availability is non-negotiable. The EB142355SPER 1C1-AA continuously supervises the trip coil circuit, detecting open circuits, short circuits, or loss of auxiliary supply before a fault event occurs — providing early warning that allows maintenance teams to intervene without forced outages.

Each unit supplied by KNMKS is sourced from authorized channels, inspected against ABB factory specifications, and function-tested prior to dispatch. All units are backed by a support terms confirmed by quotation and are available for immediate shipment to support emergency replacement and planned maintenance schedules alike.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the ABB EB142355SPER 1C1-AA, maintenance engineers should treat the exercise as a broader protection system health check rather than a single-component swap. The trip circuit supervision relay operates within a chain of interdependent components, and a failure in any adjacent element can mask or replicate the symptoms of a faulty EB142355SPER 1C1-AA.

Begin by verifying the auxiliary power supply feeding the supervision relay. ABB’s PSMV series auxiliary power supply modules and similar 24VDC/110VDC panel power units should be load-tested to confirm stable output within tolerance before the new relay is commissioned. Voltage fluctuations at the auxiliary input are a leading cause of premature supervision relay failure and nuisance alarms.

Next, inspect the trip coil itself and the associated wiring harness. Corroded terminals, loose connections at the terminal blocks — particularly ABB’s SNK or SAKT series terminal strips commonly used in REF panels — and degraded insulation on trip circuit wiring can all generate false supervision alarms that are incorrectly attributed to the relay module. Cleaning and re-torquing terminal connections before installing the replacement EB142355SPER 1C1-AA eliminates these variables.

The binary input modules of the host REF relay (such as the BI4 or BI8 cards in REF615 and REF630 platforms) should also be verified for correct signal thresholds. If the binary input card has drifted out of calibration, it may fail to register the supervision relay’s healthy status signal, generating persistent alarms even after a successful relay replacement. Where REF relays communicate via IEC 61850 GOOSE or IEC 60870-5-103 protocols, confirm that the communication module — typically the COM600 series or integrated Ethernet port — is correctly mapping the supervision status to the SCADA or DCS upstream.

For panels that include ABB’s REC670 or REL670 series protection IEDs, the EB142355SPER 1C1-AA may be part of a redundant trip circuit supervision scheme. In these configurations, both the primary and backup supervision relay channels should be tested simultaneously to confirm correct operation of the redundancy logic. Fuse integrity on the trip circuit — typically 2A or 4A glass fuses in the panel’s fuse terminal blocks — must be confirmed before energizing the replacement relay.

Finally, if the panel includes an HMI display such as the ABB CP600 series or a third-party operator panel, verify that the supervision alarm is correctly cleared from the HMI after replacement and that no latched fault conditions remain in the protection IED’s event log. Documenting the replacement in the panel’s maintenance logbook and updating the spare parts inventory system closes the maintenance loop and supports future audit readiness.

Site Replacement Workflow

Replacing the ABB EB142355SPER 1C1-AA on-site follows a structured sequence designed to minimize protection system downtime and eliminate the risk of inadvertent trip during the maintenance window. Before beginning, coordinate with the control room to confirm that the circuit breaker associated with the protection panel is in a safe state and that the trip circuit is isolated per the site’s switching schedule.

Step 1 — Isolation: De-energize the auxiliary supply to the supervision relay using the panel’s dedicated auxiliary isolator or fuse withdrawal. Confirm zero voltage at the relay terminals using a calibrated multimeter before proceeding.

Step 2 — Documentation: Photograph the existing wiring configuration and record terminal assignments. The EB142355SPER 1C1-AA uses a standard plug-in or screw-terminal connection; confirm the exact variant installed before ordering the replacement to ensure pin-for-pin compatibility.

Step 3 — Removal: Release the DIN rail locking tab and slide the relay free. Inspect the vacated slot for debris, corrosion, or damaged terminal contacts.

Step 4 — Installation: Seat the replacement EB142355SPER 1C1-AA firmly on the DIN rail. Reconnect all terminals per the documented wiring, torquing to the manufacturer’s specification (typically 0.5–0.6 Nm for M3 screw terminals).

Step 5 — Commissioning: Re-energize the auxiliary supply and observe the relay’s LED indicators. A healthy trip circuit should produce a steady green supervision status output within 2–5 seconds of power-up. Confirm the status is correctly reflected in the host REF relay’s binary input and in the SCADA/DCS alarm list.

Step 6 — Functional Test: Where site procedures permit, perform a secondary injection test or a controlled trip circuit open/close test to verify that the supervision relay correctly detects and reports a trip circuit fault condition.

This workflow is applicable to direct replacement of legacy ABB supervision relay variants used in older REF541, REF542, and REF543 panels, where the EB142355SPER 1C1-AA serves as a compatible modern replacement, reducing obsolescence risk and extending the operational life of existing protection infrastructure without requiring full panel replacement.

Spare Parts Support FAQ

Q1: Is the ABB EB142355SPER 1C1-AA compatible with older REF relay panels?
Yes. The EB142355SPER 1C1-AA is compatible with a broad range of ABB REF series protection panels, including REF541, REF542, REF542plus, REF615, and REF630 platforms. Compatibility depends on the auxiliary voltage range and terminal configuration of the installed panel. KNMKS recommends confirming the panel’s wiring diagram before ordering. Our technical team can assist with compatibility verification upon request.

Q2: What testing is performed before shipment?
Every ABB EB142355SPER 1C1-AA unit supplied by KNMKS undergoes visual inspection, dimensional verification, and functional testing of the supervision output contact and auxiliary input circuit prior to dispatch. Units are packed in anti-static, shock-protected packaging to prevent transit damage. A test report is available upon request for critical infrastructure procurement.

Q3: Can KNMKS support long-term supply commitments for this part?
Yes. KNMKS maintains strategic stock of ABB REF series spare parts to support long-term maintenance contracts and annual inspection programs. We offer blanket order arrangements and consignment stock programs for customers with recurring demand. Contact admin@knmks.com to discuss volume pricing and supply agreements.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the specified auxiliary voltage range. In the event of a support terms claim, KNMKS will arrange replacement or repair at no additional cost, with priority dispatch to minimize site downtime.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

EB142355SPER 1C1-AA

Product Family

Relays & Interface

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Interface range

Relays, isolation and signal modules

Common needs

Coil voltage and contact rating

Project support

Panel wiring and signal protection

Inquiry Support

• Relay base and module matching
• Signal isolation and protection options
• Panel accessory inquiry support

What to Send Us

• Brand and exact model number: ABB EB142355SPER 1C1-AA
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
