ABB DTCA717A 61430001-WH Fail-Safe Drive Control

Overview

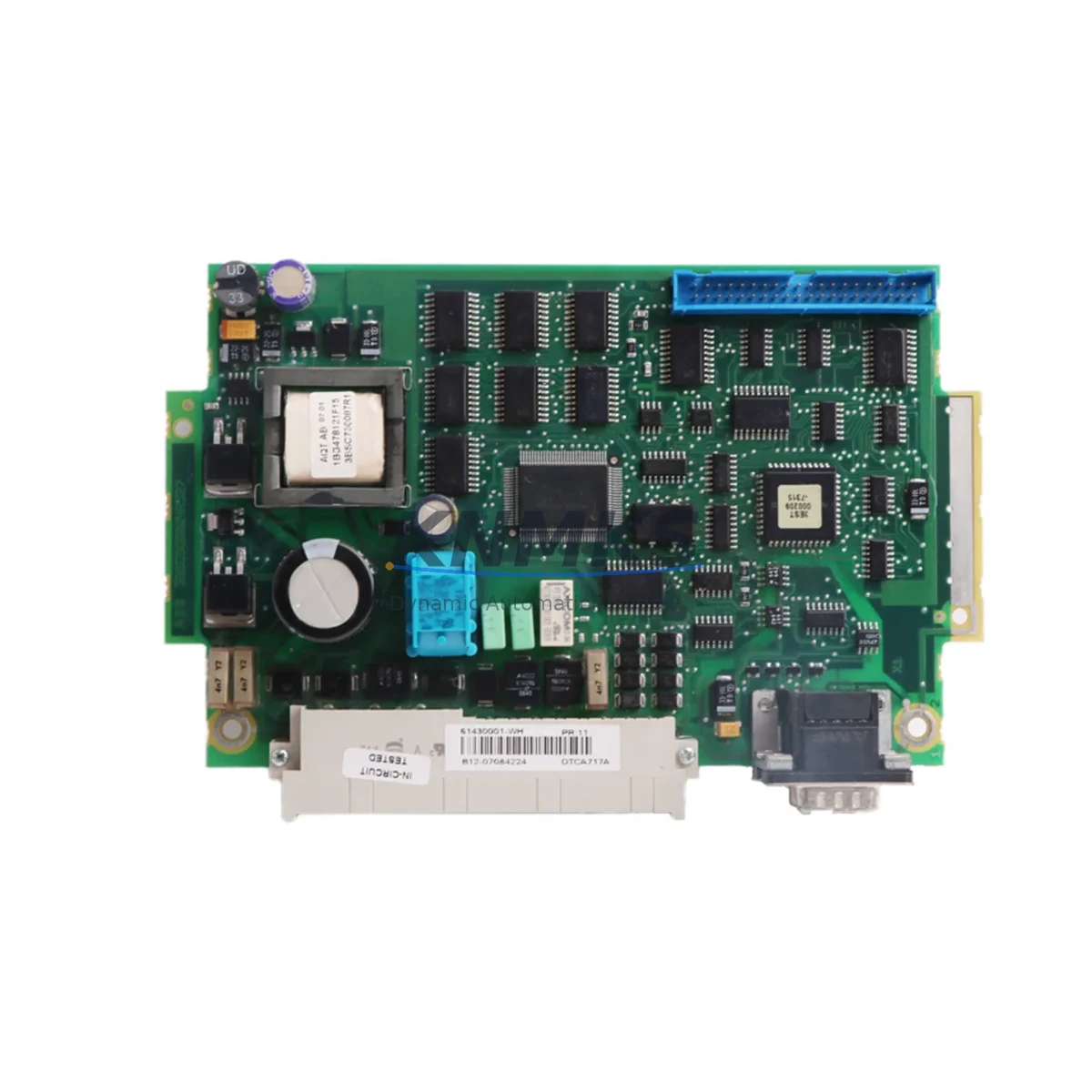

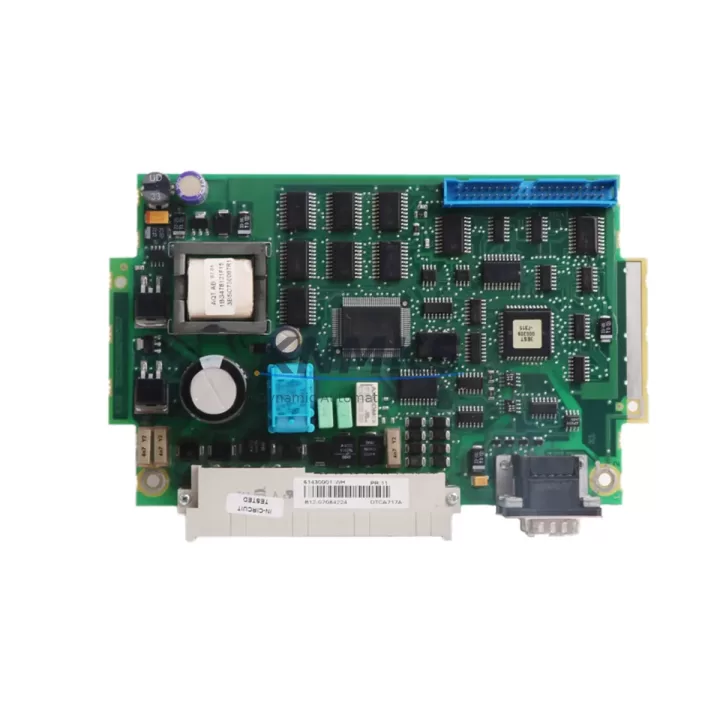

ABB DTCA717A 61430001-WH Fail-Safe Drive Control for Critical Industrial Reliability

The ABB DTCA717A (61430001-WH) is a precision-engineered drive control module designed for the ACS800 series variable frequency drive platform. In continuous production environments — where unplanned downtime translates directly into safety incidents and financial loss — this module delivers the fail-safe control logic, EMC immunity, and surge tolerance that critical industrial sites demand. Whether deployed in petrochemical process lines, power generation auxiliaries, mining conveyor systems, or heavy metallurgical drives, the DTCA717A provides the control-layer reliability that keeps operations running safely and predictably.

Engineered to ABB’s industrial-grade standards, this module addresses the most common root causes of drive control failure: signal drift under electromagnetic interference, power supply transients, communication anomalies, thermal stress, and vibration-induced connector fatigue. Its hardened design ensures that even in high-dust, high-humidity, or high-vibration enclosures, the control loop remains stable and the drive responds correctly to every command — eliminating the risk of nuisance trips, false starts, or uncontrolled motor rundown that can endanger personnel and equipment.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered ACS800 control cabinet, the DTCA717A does not operate in isolation. Its reliability is amplified when paired with the correct supporting components across power, communication, and protection layers.

On the power supply side, the ABB APBU-44C branching unit distributes the DDCS fiber-optic communication signals between the DTCA717A and upstream master controllers, ensuring that communication anomalies on one drive branch do not cascade into a system-wide fault. For cabinets with multiple ACS800 drives sharing a common DC bus, the ABB BAMU-01 battery monitoring unit provides early warning of DC bus voltage deviations that could otherwise cause the DTCA717A to receive corrupted speed references.

Surge protection at the cabinet entry point is equally critical. Installing an ABB OVR surge arrester on the incoming supply rail prevents high-energy transients — common in petrochemical sites with frequent lightning activity or large motor switching — from reaching the DTCA717A’s sensitive control circuitry. Within the cabinet, proper thermal management using ABB cabinet cooling units or fan tray assemblies keeps the ambient temperature within the module’s rated operating window, preventing the thermal drift that degrades signal accuracy over time.

For fieldbus-connected installations, the ABB RPBA-01 PROFIBUS adapter or RCAN-01 CANopen adapter mounted on the ACS800 option slot works in conjunction with the DTCA717A to maintain deterministic communication with the plant DCS or safety PLC. In safety-critical interlock loops — such as emergency stop chains in mining hoists or chemical reactor agitator drives — the DTCA717A’s STO input must be wired through a certified safety relay module (e.g., ABB JOKAB SMILE series) to ensure that the safe state is achieved within the required response time under all fault conditions.

Critical Industrial Safety Applications

Petrochemical & Refinery: In compressor and pump drive systems where a control board failure can trigger a process shutdown or safety system activation, the DTCA717A’s EMC hardening and surge tolerance reduce the probability of spurious trips caused by high-frequency interference from variable-speed drives operating in close proximity.

Power Generation Auxiliaries: Boiler feed pump drives, induced draft fan drives, and cooling water pump drives in thermal power plants require continuous, uninterrupted control. The DTCA717A supports the ACS800’s redundant control architecture, allowing hot-standby configurations that minimize mean time to repair in the event of a board-level fault.

Mining & Mineral Processing: Conveyor belt drives, ball mill drives, and hoist systems in underground and open-pit mining operate in extreme dust, humidity, and vibration conditions. The DTCA717A’s sealed component layout and vibration-rated connectors maintain control integrity even when the surrounding environment degrades rapidly.

Water & Wastewater Treatment: Municipal and industrial water treatment plants rely on precise flow control from variable-speed pump drives. The DTCA717A ensures that speed reference signals remain accurate and stable, preventing the flow deviations that can compromise treatment chemistry or cause pipe pressure surges.

Metallurgy & Steel: Rolling mill main drives and ladle transfer car drives demand high dynamic torque response. The DTCA717A’s fast control loop execution and robust I/O interface maintain torque accuracy under the heavy electromagnetic interference generated by large thyristor rectifiers and arc furnaces common in steel plant environments.

Port & Marine: Ship propulsion control systems and port crane drives are exposed to salt-laden air, condensation, and continuous vibration. The DTCA717A’s humidity tolerance and corrosion-resistant board coating support reliable long-term operation in these demanding maritime environments.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the DTCA717A?
The support terms confirmed by quotation cover all manufacturing defects and component failures under normal operating conditions from the date of dispatch. If the module fails within the confirmed support period due to a verified manufacturing defect, we provide a replacement unit or full repair at no additional cost. The support terms does not cover damage caused by incorrect installation, overvoltage beyond rated limits, or physical mishandling.

Q2: What pre-shipment testing is performed on each DTCA717A unit?
Every DTCA717A unit undergoes a full functional verification test before dispatch, including power-on self-test, I/O signal integrity check, communication interface verification, and insulation resistance measurement. Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request.

Q3: Is the DTCA717A compatible with all ACS800 variants, and how do I confirm compatibility?
The DTCA717A (61430001-WH) is designed for the ACS800 standard drive platform. Compatibility depends on the specific ACS800 hardware revision and firmware version installed in your drive. We recommend providing your ACS800 drive type code and serial number when ordering so our technical team can confirm compatibility before dispatch. For multi-drive systems using the APBU branching unit, fiber-optic channel assignment must also be verified.

Q4: Can you support long-term supply and emergency replacement for the DTCA717A?
Yes. We maintain dedicated stock of the DTCA717A and key ACS800 spare parts to support both planned maintenance programs and emergency breakdown replacements. For critical sites with zero-tolerance for downtime, we recommend establishing a consignment stock arrangement or pre-ordering a spare unit to keep on-site. Our team can advise on recommended spare parts lists for ACS800 installations based on your site’s drive count and criticality classification.
