ABB DSQC664 3HAC030923-001 Spare Part for Factory Uptime

Overview

ABB DSQC664 3HAC030923-001 Spare Part for Factory Uptime

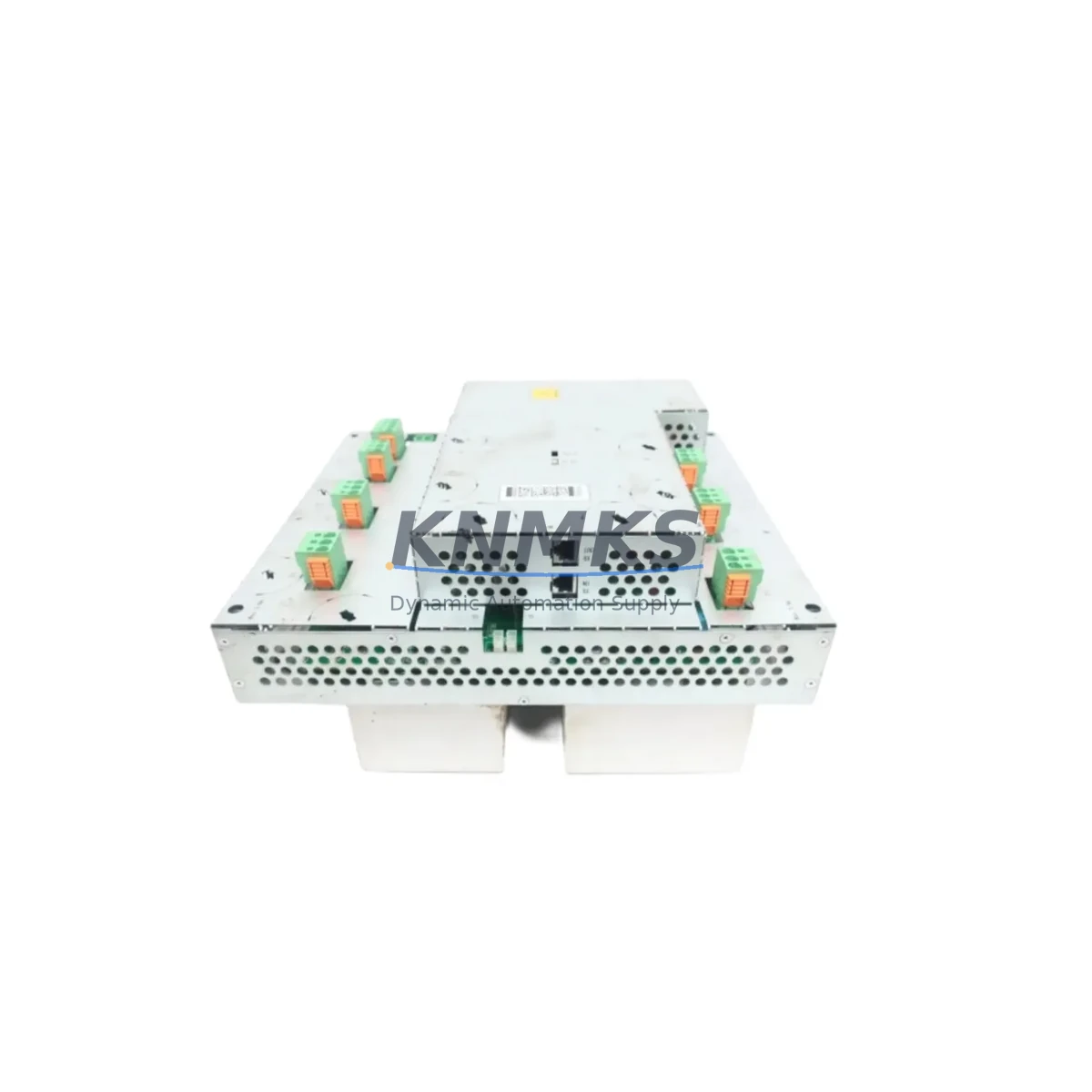

The ABB DSQC664 (part number 3HAC030923-001) is a critical axis drive unit designed for ABB IRC5 robot controllers. In industrial environments where robotic arms handle welding, assembly, material handling, and precision machining, an unplanned failure of the axis drive unit can halt an entire production line within minutes. Sourcing a verified, pre-tested replacement unit is the fastest path to restoring factory uptime and avoiding costly extended downtime.

This unit is an original ABB spare part, sourced through established industrial supply channels and subject to pre-shipment functional verification. Each DSQC664 unit shipped by KNMKS undergoes inspection covering power input integrity, drive output signal quality, and connector condition before dispatch. A support terms confirmed by quotation is included with every unit, providing procurement engineers with the confidence needed for both emergency replacement and planned spare parts inventory.

The DSQC664 is compatible with ABB IRC5 single-cabinet and dual-cabinet controller configurations. It interfaces directly with the IRC5 main computer (DSQC639 or DSQC1000 series) via the internal drive bus, and coordinates axis motion control for up to six robot axes. Maintenance engineers replacing this unit should verify the firmware revision on the replacement drive matches the robot controller’s current software version to avoid axis calibration errors on first power-up.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DSQC664 axis drive unit fails or is flagged during a scheduled inspection, experienced maintenance engineers know that the drive unit rarely fails in isolation. A thorough site assessment should accompany any axis drive replacement to prevent repeat failures and ensure the robot returns to full operational status.

Start by inspecting the IRC5 power supply module (DSQC609), which provides regulated DC power to the drive unit. A degraded power supply can cause intermittent axis faults that mimic drive unit failure. Check output voltage stability under load before reinstalling a new DSQC664. Similarly, the IRC5 main computer board (DSQC639 or DSQC1000) should be verified for active error logs — axis drive faults are often logged with error codes that distinguish between drive hardware failure and communication bus errors.

The axis computer (DSQC668), which handles the lower-level motion control and communicates with the drive unit over the internal bus, should also be inspected. If the DSQC664 replacement does not resolve axis errors, the DSQC668 may be the root cause. Maintenance teams managing aging IRC5 systems should keep both units in their spare parts inventory.

Connector integrity is frequently overlooked. The drive bus ribbon cables and motor power connectors inside the IRC5 cabinet are subject to thermal cycling and vibration fatigue. Inspect all connectors for pin corrosion, bent contacts, and secure seating before closing the cabinet. Loose motor power connectors are a common cause of axis overcurrent faults that damage drive units prematurely.

For facilities running multiple IRC5 robots, the IRC5 teach pendant (FlexPendant) and its cable assembly should be checked during the same maintenance window. A damaged FlexPendant cable can cause communication errors that are misdiagnosed as drive unit faults. Additionally, review the safety board (DSQC400 or DSQC643) status — safety chain faults can prevent the drive unit from enabling even after a successful hardware replacement.

Procurement engineers building a resilient spare parts program for IRC5 robot fleets should consider stocking the DSQC664 alongside the DSQC609 power supply and DSQC668 axis computer as a minimum viable spare set. This three-unit kit covers the most common hardware failure points in IRC5 controllers and enables same-shift recovery from most drive-related faults.

Site Replacement Workflow

Step 1 — Safety Isolation: Follow ABB IRC5 lockout/tagout procedures. De-energize the controller cabinet and discharge the drive unit capacitors per the IRC5 product manual (minimum 5-minute wait after power-off before opening the cabinet).

Step 2 — Fault Log Review: Before removing the failed unit, connect the FlexPendant and record all active and historical error codes. Document axis-specific fault codes (e.g., 38xxx series motor/drive faults) to confirm the DSQC664 is the correct replacement target.

Step 3 — Unit Removal: Disconnect the drive bus cable, motor power connectors (X1–X6), and any brake control connectors. Remove the mounting screws and slide the DSQC664 out of the drive unit bay. Note the physical orientation and connector labeling for reinstallation reference.

Step 4 — Replacement Installation: Install the new DSQC664 in the same bay position. Reconnect all connectors in reverse order, ensuring each motor power connector clicks fully into its socket. Reconnect the drive bus cable and verify the locking tab is engaged.

Step 5 — Power-Up and Verification: Restore power to the controller. Monitor the FlexPendant for startup errors. Run a manual jog test on each axis at low speed to confirm drive communication and motor response. Perform a fine calibration check if axis position data was lost during the replacement.

Step 6 — Documentation: Record the replacement in the robot’s maintenance log, including the new unit’s serial number, installation date, and technician name. Update the spare parts inventory to trigger reorder of a replacement DSQC664 unit for the next event.

This workflow is applicable to IRC5 single-cabinet and dual-cabinet configurations. For IRC5 panel-mounted controllers, consult the specific cabinet layout drawing before beginning disassembly.

Spare Parts Support FAQ

Q1: Is this DSQC664 unit compatible with all IRC5 robot models?
The DSQC664 (3HAC030923-001) is compatible with the full range of ABB IRC5 controller variants, including single-cabinet, dual-cabinet, and panel-mounted configurations used with IRB 1600, IRB 2600, IRB 4600, IRB 6640, and other IRC5-based robot models. Always verify the part number against your controller’s hardware revision documentation before installation.

Q2: What pre-shipment testing is performed on each unit?
Every DSQC664 unit dispatched by KNMKS is inspected for physical condition, connector integrity, and basic power-on functionality. Units showing signs of prior repair, burnt components, or connector damage are rejected. A support terms confirmed by quotation cover hardware defects identified after installation under normal operating conditions.

Q3: How quickly can a replacement unit be dispatched for emergency downtime situations?
KNMKS maintains stock of high-demand IRC5 spare parts including the DSQC664 to support emergency dispatch requirements. Contact the sales team at [email protected] or +86 18359268345 to confirm current stock availability and lead time for your specific situation. Express shipping options are available for critical downtime recovery.

Q4: What is the recommended spare parts strategy for facilities operating multiple IRC5 robots?
For facilities with three or more IRC5 robots, maintaining at least one DSQC664 on-site is strongly recommended. Pair this with a DSQC609 power supply module and a DSQC668 axis computer to cover the most statistically common IRC5 hardware failure modes. Annual review of spare parts consumption data helps refine stocking levels and prevents both stockouts and excess inventory carrying costs.
