ABB DSQC647 3HAC026272-001 Migration-Ready Drive for Legacy IRC5

Overview

ABB DSQC647 3HAC026272-001 Migration-Ready Drive for Legacy IRC5 Control Systems

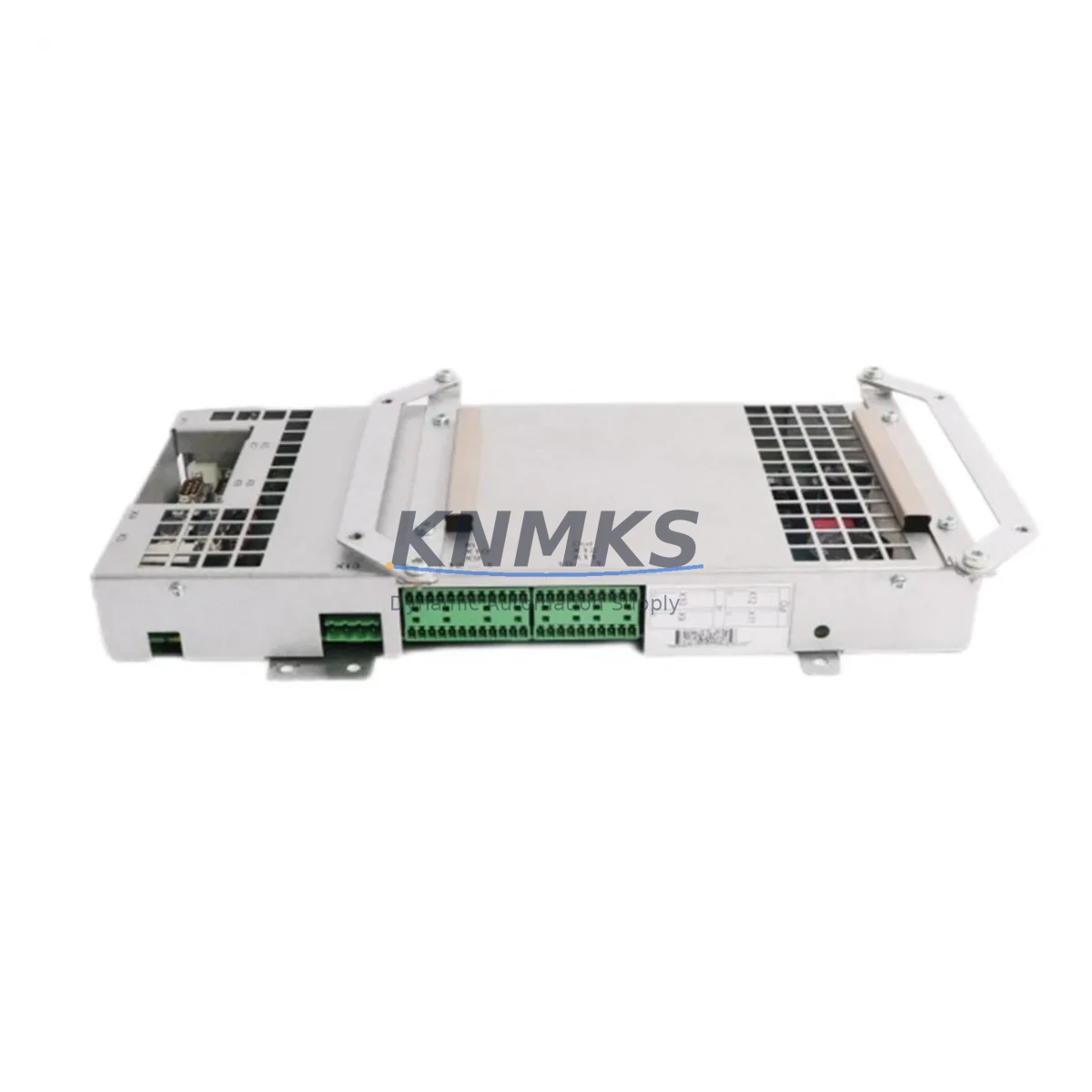

The ABB DSQC647 (P/N: 3HAC026272-001) is a proven axis drive module engineered for the IRC5 robot controller platform. As ABB progressively phases out older IRC5 hardware configurations, the DSQC647 remains a critical migration-ready component for facilities operating legacy IRB robot cells — including IRB 1600, IRB 2400, IRB 4400, and IRB 6600 series — that are not yet ready for a full M7 or OmniCore controller migration. This module enables engineers to extend the operational life of existing robot installations while maintaining full motion control integrity, minimizing capital expenditure, and deferring costly full-system replacements.

Whether you are replacing a failed drive in an active production line, restocking critical spares for a multi-robot cell, or executing a phased modernization of your automation infrastructure, the DSQC647 3HAC026272-001 provides a verified drop-in solution with documented compatibility across IRC5 single-cabinet and dual-cabinet configurations.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the DSQC647 into a legacy IRC5 system requires a structured pre-replacement audit. Before removing the failed module, engineers should document the current axis configuration using the ABB FlexPendant or RobotStudio offline backup. The DSQC647 interfaces directly with the IRC5 drive bus, but terminal wiring — particularly resolver cables and motor power connectors — must be inspected for wear, especially in installations exceeding 10 years of continuous operation.

In multi-axis cells, the DSQC647 typically operates alongside the DSQC663 axis computer and the DSQC668 I/O module, which handles digital and analog signal routing between the robot controller and field devices. If the retrofit scope includes I/O expansion — for example, adding a new end-of-arm tooling circuit or integrating a vision trigger — the DSQC668 capacity should be verified before the drive swap to avoid a secondary unplanned outage. Similarly, if the cell communicates over PROFIBUS-DP to a Siemens S7-300 or S7-400 PLC, the DSQC612 PROFIBUS adapter board within the IRC5 cabinet must be confirmed as functional, since a degraded DSQC612 can mask drive faults and complicate post-replacement diagnostics.

For facilities running coordinated motion between multiple IRC5 controllers — common in press-tending or assembly welding lines — the DSQC605 power distribution board and the DSQC609 power supply unit should be load-tested prior to the drive replacement. An undersized or aging DSQC609 is a frequent root cause of recurring DSQC647 failures, and replacing the drive without addressing upstream power quality will result in repeat failures within months. Confirm that the 24VDC logic supply rail is within ±5% tolerance under full axis load before commissioning the replacement module.

If the retrofit also involves updating the teach pendant or HMI interface — for example, migrating from an older IRC5 FlexPendant to a newer unit — verify that the RobotWare version installed on the main computer (DSQC639 or DSQC652) supports the replacement drive firmware. Mismatched firmware between the axis computer and the drive module is a common commissioning failure point that can be avoided with a pre-swap RobotWare version check via the ABB service portal.

Downtime Control During System Migration

Minimizing unplanned downtime during a DSQC647 replacement requires preparation before the maintenance window opens. The most effective approach is to perform a full RobotStudio backup of the active system — including all RAPID program modules, system parameters, I/O configuration, and safety controller settings — at least 24 hours before the scheduled swap. This backup serves as both a recovery baseline and a commissioning reference, allowing the maintenance team to restore the exact pre-failure program state without relying on manual re-entry of axis parameters.

During the physical swap, the IRC5 cabinet should be de-energized following the ABB lockout/tagout procedure, with particular attention to the capacitor discharge time on the drive section — typically 5 minutes after main power isolation. The DSQC647 module is secured by a standard DIN rail latch; removal and re-insertion should be performed with the drive bus connector fully disengaged to prevent backplane damage. After installation, the system should be powered up in manual mode with reduced speed (T1) to verify axis response before returning to automatic production mode.

For cells where continuous production cannot be interrupted, a hot-standby spare strategy — maintaining one pre-tested DSQC647 unit on-site — reduces mean time to repair (MTTR) to under two hours for a trained technician. All units supplied by KNMKS are pre-tested for functional output prior to shipment, reducing the risk of receiving a DOA replacement and eliminating the need for incoming inspection delays. The support terms confirmed by quotation cover the replacement period, providing coverage through the first full production cycle after the retrofit.

Retrofit Support FAQ

Q1: Is the DSQC647 3HAC026272-001 a direct replacement for all IRC5 drive configurations?
The DSQC647 is a direct replacement for units with the same part number (3HAC026272-001) in IRC5 single-cabinet and dual-cabinet configurations. For IRC5 Compact or IRC5 Panel Mounted Controller variants, verify the drive slot specification in the ABB product manual before ordering, as physical form factor and connector pinout may differ.

Q2: What commissioning steps are required after replacing the DSQC647?
After physical installation, restore the RobotStudio system backup, verify axis motor unit mapping on the FlexPendant, and perform a fine calibration routine for each affected axis. If the replacement follows a crash or mechanical overload event, also inspect the resolver feedback cables and motor brake circuits before returning the robot to automatic mode.

Q3: Does KNMKS provide pre-shipment testing for the DSQC647?
Yes. All DSQC647 units are functionally tested before dispatch. Units are verified for drive bus communication, output stage integrity, and logic power response. A test report is available upon request. The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of receipt.

Q4: What is the typical lead time and stock availability?
KNMKS maintains in-stock inventory of the DSQC647 3HAC026272-001 to support urgent replacement requirements. Standard orders ship within 1–3 business days. For bulk orders or long-term supply agreements, contact our sales team to confirm allocation and lead time. Emergency same-day dispatch is available for verified production-down situations.
