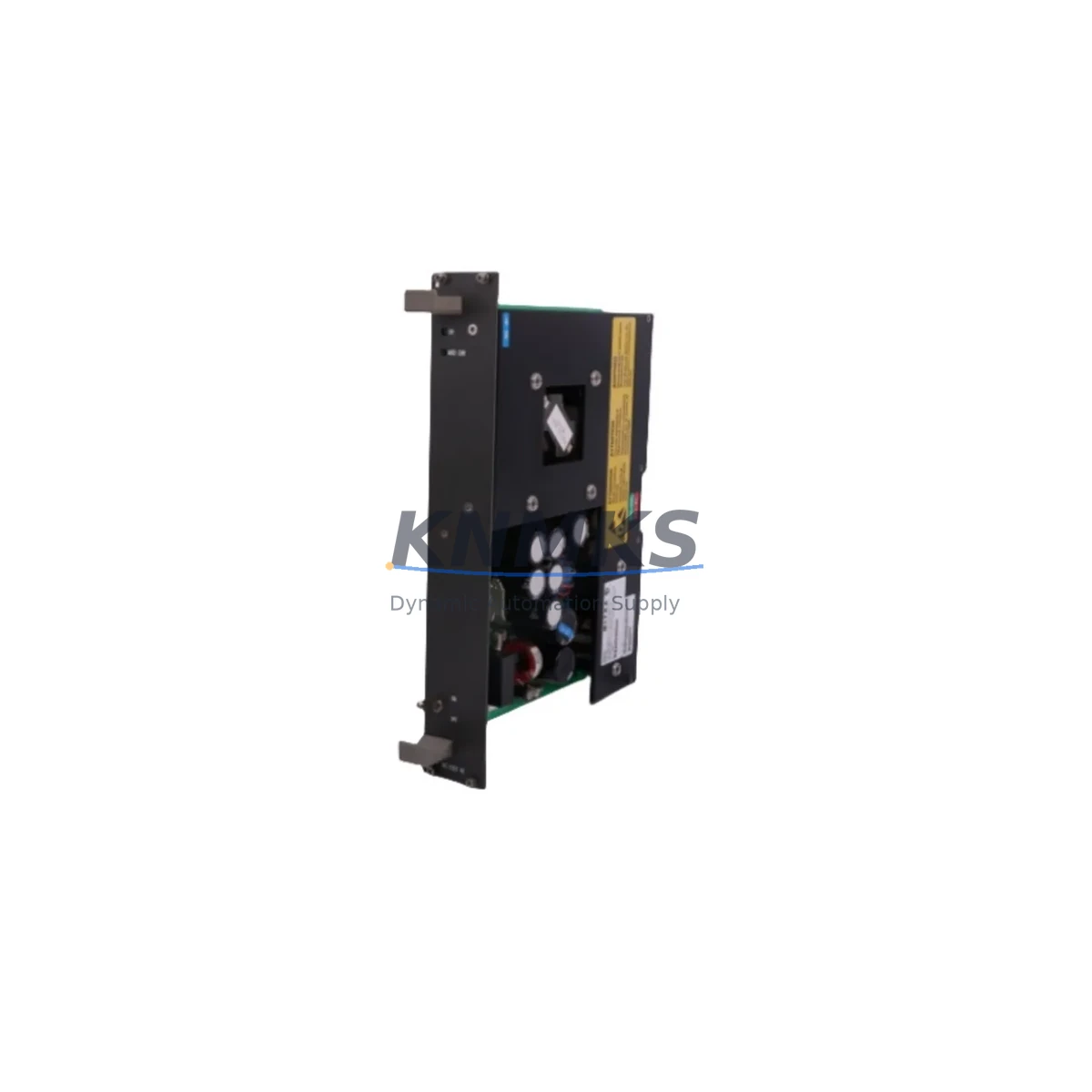

ABB DSQC539 3HAC14265-1 Fail-Safe Axis Drive Module IRC5

Overview

ABB DSQC539 3HAC14265-1 Fail-Safe Axis Drive Module IRC5: Fault Protection and Critical Industrial Reliability

The ABB DSQC539 / 3HAC14265-1 (HW0380393-B, A97L-0318-0239) is a precision-engineered axis drive module designed for the ABB IRC5 robot controller platform. In continuous production environments — automotive body shops, foundry lines, heavy fabrication cells, and chemical processing facilities — unplanned axis drive failures translate directly into costly downtime, safety interlock trips, and production losses that can cascade across entire manufacturing cells. The DSQC539 is built to eliminate that risk.

Engineered to ABB’s industrial-grade specifications, this module governs servo axis power distribution and motion control signaling within the IRC5 drive cabinet. Its internal architecture incorporates hardware-level fault detection, overcurrent protection, and thermal shutdown logic that prevent destructive failure modes from propagating to connected servo motors or the IRC5 main computer (DSQC639 / 3HAC025097-001). When axis load spikes, power transients, or communication anomalies occur, the DSQC539 responds with controlled, fail-safe shutdown rather than uncontrolled collapse — protecting both the mechanical drivetrain and the broader safety interlock chain.

In high electromagnetic interference environments — welding bays, induction heating stations, large VFD installations — signal integrity is a persistent threat to axis drive reliability. The DSQC539’s EMI-hardened design maintains stable encoder feedback and drive command signals even under sustained electrical noise, preventing the axis position drift and erratic motion that can trigger emergency stops or, worse, undetected positional errors in safety-critical operations. This makes it a dependable component alongside the ABB DSQC563 / 3HAC024488-001 panel bus communication module and the DSQC662 / 3HAC026254-001 I/O module, which together form the backbone of the IRC5 control architecture.

Power quality is another key reliability factor in industrial robot installations. Voltage sags, surge events, and harmonic distortion from heavy machinery sharing the same distribution panel can stress axis drive electronics over time. The DSQC539 incorporates surge absorption and voltage regulation circuitry that buffers the servo drive chain from these upstream disturbances, extending operational life and reducing the frequency of nuisance faults. When paired with a properly specified 24 VDC system power supply — such as the ABB DSQC661 / 3HAC026253-001 — the complete drive system achieves the power stability margins required for continuous, high-duty-cycle robot operation.

For facilities operating in dusty, humid, or thermally demanding environments — mineral processing plants, port crane automation, offshore installations, or food and beverage production — the DSQC539’s sealed connector interfaces and conformal-coated PCB assemblies provide a meaningful barrier against contamination-induced failures. Vibration resistance is equally important in mobile or structurally dynamic installations; the module’s robust mechanical design maintains electrical contact integrity under the sustained vibration profiles common in heavy industrial settings.

Every DSQC539 / 3HAC14265-1 unit supplied by KNMKS undergoes a structured pre-shipment functional test protocol. This includes power-on verification, axis communication handshake confirmation, and fault response validation — ensuring that the module arrives ready for immediate installation without the commissioning delays associated with untested spare parts. Global stock availability means that critical spare requirements can be fulfilled rapidly, minimizing the window of production exposure when a drive fault occurs.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable IRC5 axis drive performance depends on a coordinated cabinet architecture. The DSQC539 operates within a system where the ABB DSQC639 / 3HAC025097-001 main computer module manages high-level motion planning and safety supervision, while the DSQC563 / 3HAC024488-001 panel bus communication module maintains real-time data exchange between the drive and control layers. Any degradation in this communication chain — caused by connector corrosion, EMI coupling, or firmware incompatibility — can manifest as axis faults, reduced positioning accuracy, or safety interlock activations.

On the power side, the DSQC661 / 3HAC026253-001 system power supply provides the regulated 24 VDC rail that the DSQC539 and associated I/O modules depend on for stable logic operation. Upstream power quality issues — including voltage ripple, ground loops, or inadequate cable shielding — should be addressed at the distribution level before commissioning a replacement drive module. The DSQC662 / 3HAC026254-001 I/O module and DSQC652 / 3HAC025338-001 fieldbus adapter, where installed, complete the signal and communication infrastructure that the axis drive module relies on for coordinated, fault-tolerant operation. Replacing the DSQC539 as part of a planned maintenance cycle — rather than reactively after failure — is the most effective strategy for maintaining continuous production uptime.

Critical Industrial Safety Applications

The ABB DSQC539 / 3HAC14265-1 is deployed across a wide range of safety-critical and continuous-process industrial environments:

• Automotive Manufacturing: Spot welding, body assembly, and paint shop robot cells where axis drive reliability directly affects line throughput and weld quality consistency.
• Petrochemical & Refinery: Hazardous area material handling and inspection robots where unplanned stops trigger complex safety interlock sequences and regulatory reporting obligations.
• Power Generation & Utilities: Maintenance robots in high-voltage substations and turbine halls where EMI levels are extreme and axis control precision is non-negotiable.
• Mining & Mineral Processing: Heavy-duty loading and sorting automation in dusty, vibration-intensive environments where drive module contamination resistance is a primary reliability factor.
• Port & Logistics Automation: Container handling and palletizing systems operating in outdoor or semi-outdoor environments with wide temperature and humidity variation.
• Continuous Process Manufacturing: Food, beverage, and pharmaceutical production lines where robot downtime triggers batch loss, cleaning protocols, and compliance documentation.
• Metallurgy & Foundry: High-temperature casting and forging automation where thermal stress on drive electronics is a persistent reliability challenge.

Safety and Quality FAQ

Q: What does the support terms confirmed by quotation cover for the DSQC539 / 3HAC14265-1?
A: The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional faults identified under normal operating conditions consistent with ABB IRC5 installation specifications. Support requests are supported with direct technical assistance and replacement logistics coordination.

Q: What pre-shipment testing is performed on each unit?
A: Every DSQC539 unit undergoes power-on verification, axis communication handshake testing, and fault response validation prior to dispatch. Test records are available upon request for quality-critical procurement processes.

Q: Is this module compatible with all IRC5 cabinet variants?
A: The DSQC539 / 3HAC14265-1 is compatible with standard ABB IRC5 single-cabinet and dual-cabinet configurations. Compatibility with specific robot models and software versions should be confirmed against the ABB IRC5 spare parts manual or by contacting our technical team before installation.

Q: Can long-term supply be arranged for ongoing maintenance programs?
A: Yes. KNMKS supports 12- to 36-month spare parts supply agreements for critical IRC5 drive components, including the DSQC539. Scheduled stock reservation and priority dispatch options are available for facilities with continuous production requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DSQC539/3HAC14265-1 HW0380393-B A97L-0318-0239
IRC5 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB DSQC539/3HAC14265-1 HW0380393-B A97L-0318-0239
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
