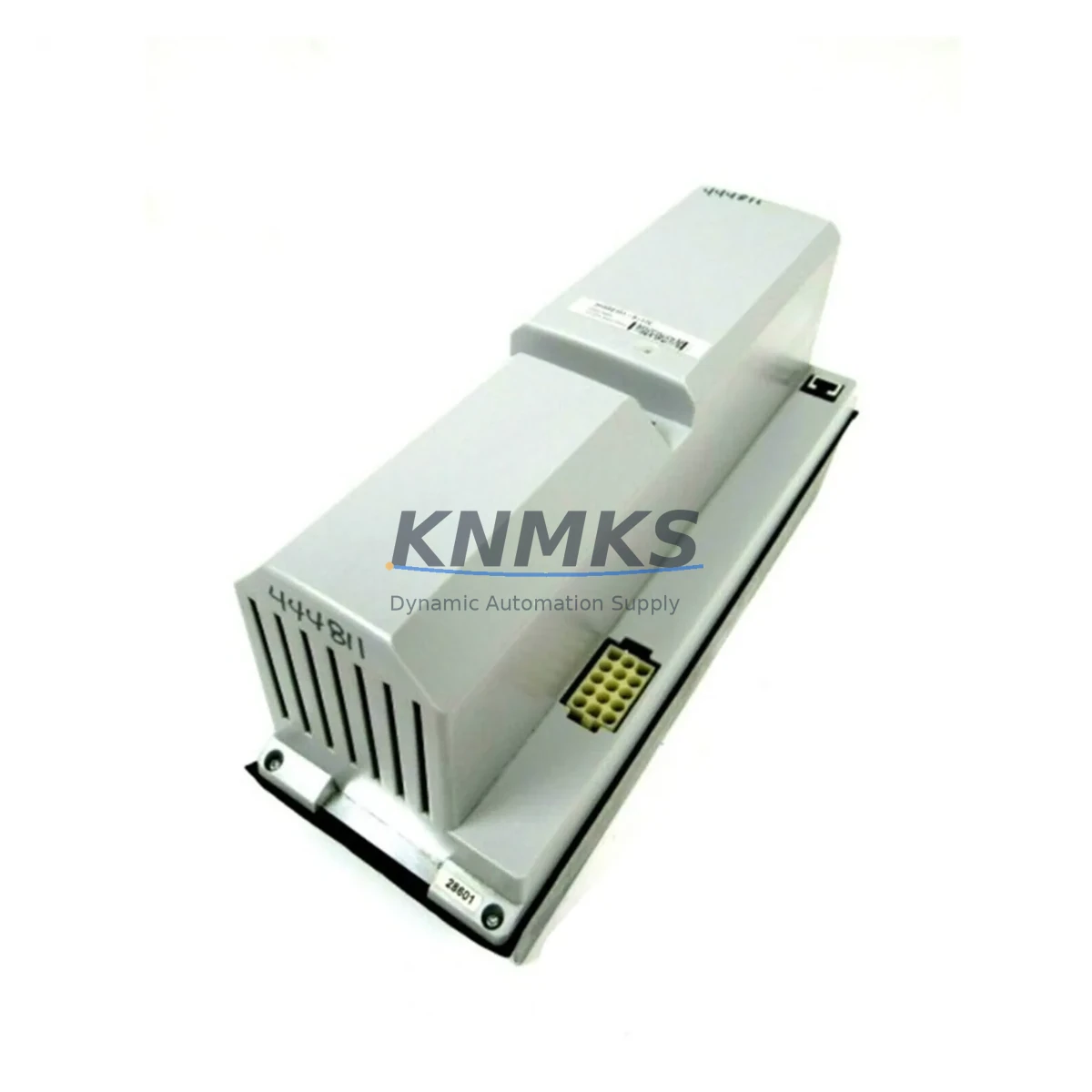

ABB DSQC346G Migration-Ready AC Servo Drive for Legacy Systems

Overview

ABB DSQC346G Migration-Ready AC Servo Drive for Legacy Control Systems

The ABB DSQC346G is a proven AC servo drive unit engineered for deployment within ABB IRC5 and S4C+ robot controller platforms. As legacy automation lines face increasing pressure from discontinued spare parts and aging drive infrastructure, the DSQC346G has become a critical component in retrofit and modernization projects across automotive, electronics, and heavy-industry facilities. Whether you are replacing a failed unit on an active production line or building a validated spare inventory ahead of a planned system upgrade, the DSQC346G delivers the electrical and mechanical compatibility required for a controlled, low-risk migration.

Each unit supplied by KNMKS is sourced from verified channels, functionally tested prior to dispatch, and covered by a support terms confirmed by quotation. Our technical team supports pre-shipment compatibility checks, wiring documentation review, and post-installation commissioning guidance to minimize downtime during the replacement process.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the DSQC346G into a legacy control cabinet begins well before the physical swap. Engineers undertaking an IRC5 or S4C+ retrofit should first audit the existing power distribution architecture. The DSQC604 power supply module is the most common PSU paired with this drive series; confirm its output capacity is sufficient to support the replacement unit under full servo load before proceeding. If the PSU is also approaching end-of-life, coordinating both replacements in a single maintenance window significantly reduces total downtime exposure.

Terminal wiring is a frequent source of commissioning delays. Before disconnecting the failed drive, photograph and document every terminal connection, including shield grounding points and cable routing. The DSQC346G uses the standard ABB servo terminal block layout, but wire labeling on older S4C+ installations may be incomplete or inconsistent with current ABB documentation. Cross-reference against the original cabinet wiring diagram and update records as part of the retrofit deliverable.

For systems where the robot controller communicates with an upstream PLC or SCADA layer via DeviceNet or PROFIBUS, verify that the communication module — such as the DSQC352 DeviceNet adapter or DSQC350 PROFIBUS adapter — remains correctly addressed after the drive replacement. A drive swap does not alter network node configuration, but a controller restart during commissioning can trigger address conflicts if the network is not properly isolated beforehand.

I/O mapping should also be reviewed. If the production line relies on a DSQC328 or DSQC332 I/O module for digital signal routing between the robot and peripheral equipment, confirm that the I/O configuration file in the controller matches the physical wiring after the drive is replaced and the system is restarted. Any mismatch between the stored configuration and the live hardware state will generate fault codes that delay return to production.

HMI screens linked to axis status, torque feedback, or drive fault diagnostics should be validated after commissioning. Operators familiar with the legacy S4C+ teach pendant interface may need a brief orientation if the retrofit involves a controller firmware update that alters the diagnostic display layout. Coordinate with the production team to schedule this orientation within the planned maintenance window rather than during the first live production run.

Finally, if the retrofit scope includes expanding the robot’s axis count or integrating an additional servo axis for a positioner or track unit, the DSQC346G should be evaluated alongside the relevant axis computer module — such as the DSQC373 — to ensure the complete drive chain is validated as a system rather than as individual components.

Downtime Control During System Migration

Minimizing unplanned downtime during a drive replacement on an active production line requires a structured pre-migration checklist. Before the maintenance window opens, the replacement DSQC346G should be on-site, tested, and confirmed compatible. A cold spare that arrives after the line is already stopped adds hours of unnecessary delay.

Back up the robot program, system parameters, and I/O configuration from the IRC5 controller before any hardware is touched. ABB RobotStudio provides a straightforward backup routine that captures the complete system snapshot, including axis calibration data. This backup is your recovery baseline if the commissioning process encounters an unexpected fault.

During the physical swap, maintain control cabinet power isolation discipline. Verify that the drive bus is fully de-energized and that capacitor discharge is complete before handling the DSQC346G. Re-seat the replacement unit firmly into the backplane connector and confirm the locking mechanism is engaged before restoring power.

On power-up, monitor the controller’s startup sequence for drive recognition faults. If the axis is not recognized immediately, check the module address assignment in the controller configuration and confirm the backplane connector is fully seated. In most like-for-like replacements, the IRC5 controller will recognize the DSQC346G without requiring a configuration change, and the system will be ready for a test cycle within the same maintenance window.

Document the completed replacement with photos, updated wiring records, and a commissioning sign-off sheet. This documentation supports future maintenance planning and provides evidence of the system state for support requests if required.

Retrofit Support FAQ

Q1: Is the DSQC346G a direct drop-in replacement for the unit currently installed in my IRC5 cabinet?
In the majority of IRC5 and S4C+ installations, yes. The DSQC346G is designed for the standard drive bay in these controller platforms. Before ordering, provide your controller serial number and current drive part number to our technical team for a pre-shipment compatibility confirmation at no additional cost.

Q2: What wiring changes are required during installation?
For a like-for-like replacement, no wiring changes are required. The DSQC346G uses the same terminal block layout as the original unit. Document your existing wiring before disconnection and re-verify terminal torque specifications after reconnection. If your installation includes non-standard wiring modifications made by a previous integrator, our team can review your wiring diagram prior to shipment.

Q3: How is the unit tested before shipment, and what does the support terms confirmed by quotation cover?
Every DSQC346G unit supplied by KNMKS undergoes functional testing prior to dispatch. A test report is available on request. The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact. Support requests are processed with a target response time of 48 hours.

Q4: What is the typical lead time, and do you maintain stock?
KNMKS maintains inventory of the DSQC346G to support urgent replacement requirements. Standard orders ship within 1–3 business days. For projects requiring multiple units or scheduled delivery against a retrofit timeline, contact our sales team to arrange a reserved stock allocation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DSQC346G
IRC5 Series

Product Family

Servo Systems

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Motion range

Servo drives, motors and cable sets

Common needs

Power, encoder and brake confirmation

Project support

Motion upgrade and spare-part supply

Inquiry Support

• Motor, drive and cable set coordination
• Power rating and encoder type checking
• Motion control replacement support

What to Send Us

• Brand and exact model number: ABB DSQC346G
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
