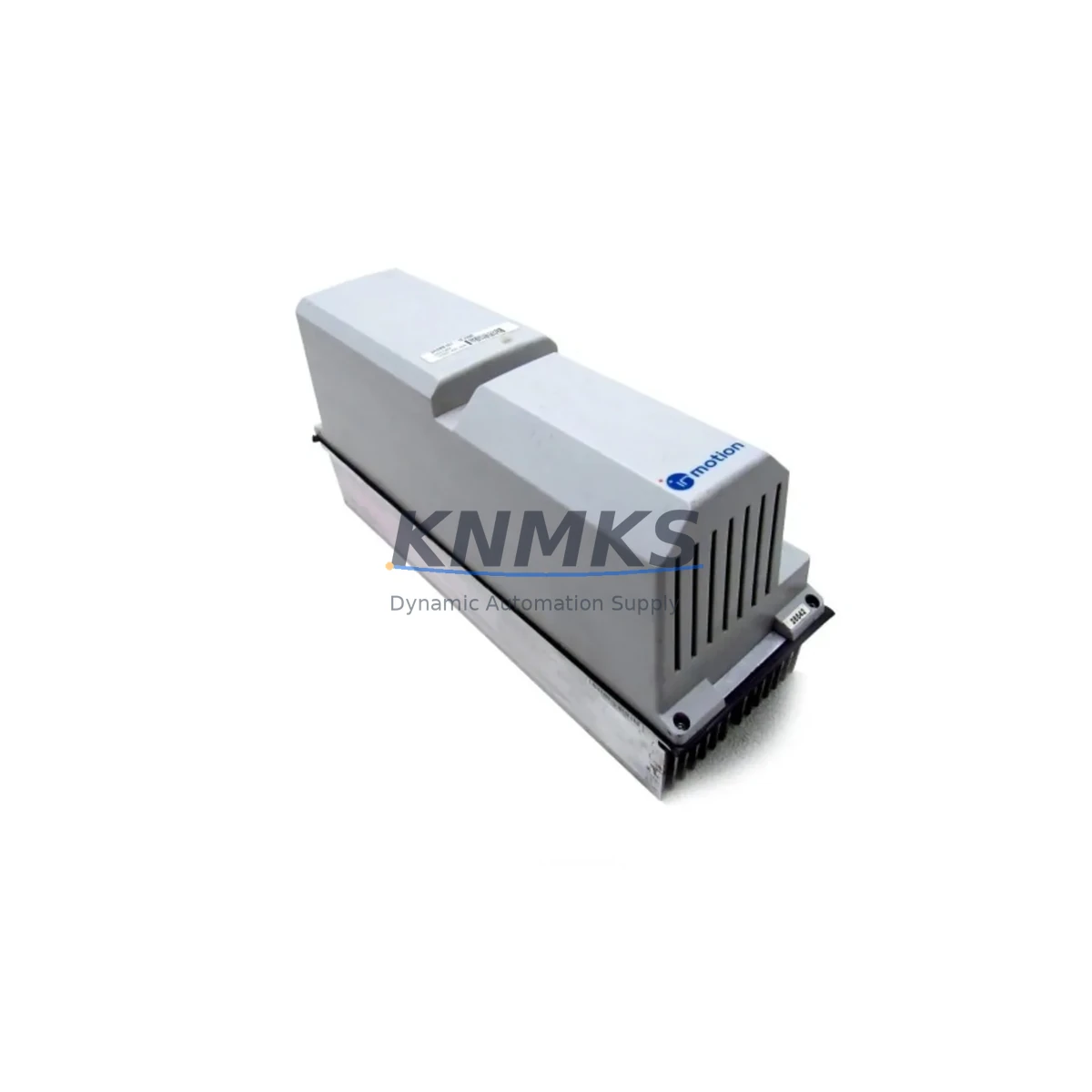

ABB DSQC346G Fail-Safe Servo Drive for Industrial Control

Overview

ABB DSQC346G Fail-Safe Servo Drive for Industrial Control

The ABB DSQC346G (part numbers: 3HAB8101-8/08C, 0190-A2463, 0090-A9700, HG-MR73K) is a precision servo drive module engineered for the ABB IRC5 robot controller platform. Designed to deliver uninterrupted axis control in the most demanding industrial environments, this module is a cornerstone of fail-safe motion management in continuous production lines, critical interlock circuits, and high-load control cabinets. Whether deployed in petrochemical processing, power generation, metallurgical smelting, or port logistics automation, the DSQC346G provides the servo-level reliability that safety-critical operations demand.

In modern industrial facilities, servo drive failures are among the leading causes of unplanned downtime. A single axis fault can cascade into a full production halt, triggering costly emergency maintenance windows and jeopardizing process safety. The DSQC346G addresses this risk directly — its robust drive architecture maintains stable torque and velocity control even under conditions of high electromagnetic interference (EMI), supply voltage fluctuation, and mechanical vibration. Its internal protection logic actively guards against signal drift, overcurrent events, and communication anomalies between the drive and the IRC5 controller’s DSQC374 axis computer board, ensuring that motion commands are executed with precision and that fault states are reported cleanly for rapid diagnosis.

Control cabinet thermal management is a persistent challenge in heavy industrial deployments. The DSQC346G is rated for operation across a wide ambient temperature range and is built to withstand the heat generated by adjacent power modules, including the ABB DSQC609 power supply unit and DSQC663 drive unit assemblies commonly installed in the same IRC5 cabinet. Its compact form factor and efficient power conversion reduce internal heat load, directly lowering the risk of cabinet overtemperature events that can trigger protective shutdowns or degrade neighboring components such as the DSQC652 digital I/O board or DSQC679 teach pendant interface unit.

In environments with elevated dust, humidity, or corrosive airborne particulates — common in mining, cement production, and coastal port operations — the DSQC346G’s sealed connector interfaces and conformal-coated PCB assemblies provide a meaningful barrier against ingress-related degradation. This physical resilience, combined with the module’s surge suppression capability, makes it a dependable choice for installations where replacing a failed drive requires extended lead times and carries significant operational risk.

For facilities operating ABB IRB series robots in safety-rated interlock loops, the DSQC346G integrates cleanly with the ABB DSQC400 safety board and associated emergency stop circuits. Its predictable fault behavior — clearly flagged through the IRC5 FlexPendant and system event log — supports structured safety function verification during commissioning and periodic proof testing, in full alignment with IEC 62061 and ISO 13849 functional safety frameworks.

Every DSQC346G unit supplied by KNMKS undergoes pre-shipment functional verification, including axis enable/disable cycle testing, encoder feedback signal integrity checks, and thermal stress screening. Units are shipped with full electrostatic discharge (ESD) protection packaging and are accompanied by a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Stock is maintained across regional distribution hubs to support urgent spare parts requirements with minimal lead time.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A resilient IRC5 control cabinet is built on the coordinated performance of multiple interdependent modules. The DSQC346G servo drive operates in close functional relationship with the ABB DSQC609 power supply unit, which must deliver stable DC bus voltage to the drive under all load conditions — including the high inrush currents associated with axis acceleration in heavy-payload robot applications. Voltage sag or ripple from an aging DSQC609 is a primary cause of nuisance drive faults and should be addressed proactively as part of any cabinet reliability audit.

Axis motion data from the DSQC346G is processed by the ABB DSQC374 axis computer board, which coordinates multi-axis interpolation and communicates drive status to the main computer module. A degraded DSQC374 can misinterpret drive feedback, producing erratic motion or false fault conditions — making it a critical companion spare for any facility maintaining IRC5 uptime targets. Similarly, the ABB DSQC652 digital I/O board manages the discrete safety signals — including external emergency stop inputs and safety gate monitoring — that interact with the drive’s enable chain. Ensuring the DSQC652 is functioning correctly is essential to validating the integrity of the full safety interlock loop.

In high-EMI cabinet environments, the ABB DSQC508 fieldbus adapter (or equivalent DeviceNet/PROFIBUS communication module) provides the structured communication backbone between the IRC5 controller and plant-level SCADA or PLC systems. Communication anomalies at this layer — packet loss, address conflicts, or bus termination faults — can manifest as unexplained drive behavior, making the fieldbus module a key diagnostic checkpoint when investigating DSQC346G fault patterns. Rounding out the cabinet protection strategy, the ABB DSQC679 teach pendant interface unit provides the operator interface through which drive status, fault codes, and safety acknowledgments are managed — its availability is non-negotiable in any safety-rated robot cell.

Critical Industrial Safety Applications

The ABB DSQC346G is deployed across a broad spectrum of safety-critical industrial sectors where servo axis reliability directly impacts process safety and production continuity.

In petrochemical and refinery environments, ABB IRC5-controlled robots perform welding, inspection, and material handling in zones classified for flammable atmosphere risk. Servo drive reliability in these applications is not merely an uptime concern — an unexpected axis fault during a welding sequence or valve actuation task can create a direct process safety hazard. The DSQC346G’s clean fault state behavior and rapid recovery capability are essential in these contexts.

In power generation and electrical utility facilities, robots equipped with IRC5 controllers perform high-voltage substation inspection, transformer maintenance, and cable routing tasks. The high EMI levels inherent to these environments place exceptional demands on servo drive signal integrity — a capability the DSQC346G is specifically engineered to sustain.

In metallurgical and foundry operations, IRC5 robots handle molten metal pouring, die casting extraction, and forge press tending in environments characterized by extreme heat, vibration, and airborne particulates. The DSQC346G’s thermal resilience and vibration-rated construction make it a proven choice for these high-stress deployments.

In port and maritime logistics, automated container handling and ship-to-shore transfer systems rely on continuous servo axis availability. Unplanned drive failures in these applications result in immediate throughput loss and potential cargo damage. Maintaining a stocked DSQC346G spare reduces mean time to repair (MTTR) to hours rather than weeks.

In continuous process manufacturing — including automotive body-in-white assembly, food and beverage packaging, and pharmaceutical filling lines — IRC5 robots operate on tightly synchronized production cycles where a single axis fault can halt an entire line. The DSQC346G’s predictable performance envelope and well-documented fault behavior support the rapid diagnosis and replacement workflows that lean manufacturing environments require.

Safety and Quality FAQ

Q: What does the support terms confirmed by quotation cover for the DSQC346G?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. It includes free replacement or repair for units that fail to perform their specified servo drive function. Support requests are supported by our technical team with rapid response and advance replacement options for critical production environments.

Q: What pre-shipment testing is performed on each DSQC346G unit?
Each unit undergoes a structured functional verification protocol prior to dispatch, including axis enable/disable cycle testing, encoder feedback signal integrity verification, power rail stability checks, and thermal stress screening. Units are packaged with full ESD protection and accompanied by a test record confirming functional status at time of shipment.

Q: Is the DSQC346G compatible with all IRC5 controller variants?
The DSQC346G is designed for the ABB IRC5 platform and is compatible with both single-cabinet and dual-cabinet IRC5 configurations. Compatibility with specific robot models and software versions should be verified against the ABB IRC5 product manual or confirmed with our technical team prior to ordering, particularly for installations running M2004 or later controller software revisions.

Q: How does KNMKS support long-term supply continuity for the DSQC346G?
KNMKS maintains dedicated stock of the DSQC346G across regional distribution hubs in Europe, North America, and Asia-Pacific to support urgent spare parts requirements. For facilities with planned maintenance schedules or high-volume robot fleets, we offer consignment stock arrangements and priority allocation agreements to ensure supply continuity regardless of OEM lead time fluctuations or product lifecycle changes.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DSQC346G 3HAB8101-8/08C 0190-A2463 0090-A9700 HG-MR73K
IRC5 Series

Product Family

Servo Systems

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Motion range

Servo drives, motors and cable sets

Common needs

Power, encoder and brake confirmation

Project support

Motion upgrade and spare-part supply

Inquiry Support

• Motor, drive and cable set coordination
• Power rating and encoder type checking
• Motion control replacement support

What to Send Us

• Brand and exact model number: ABB DSQC346G 3HAB8101-8/08C 0190-A2463 0090-A9700 HG-MR73K
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
